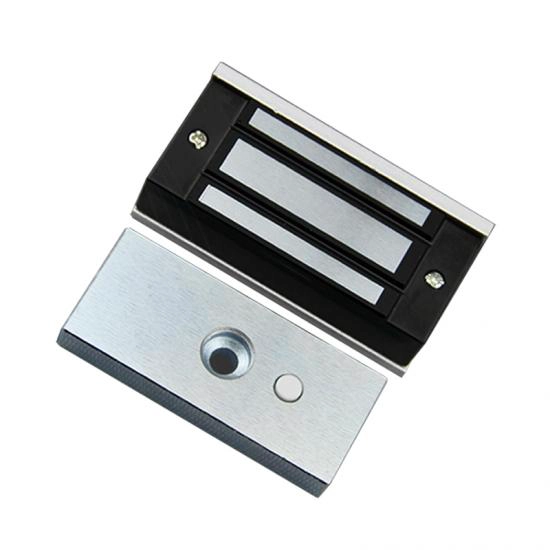

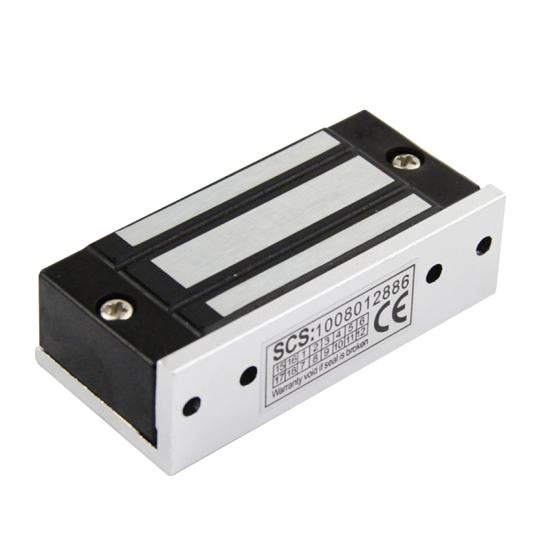

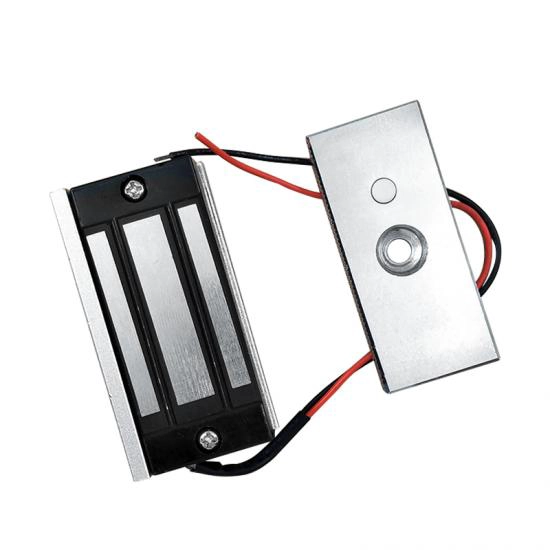

ACM-Y60 100LBs 60kg 12V Small Electromagnetic Lock

Model Number: ACM-Y60
Holding Force: 60KG(100Lbs)
Voltage: DC12V

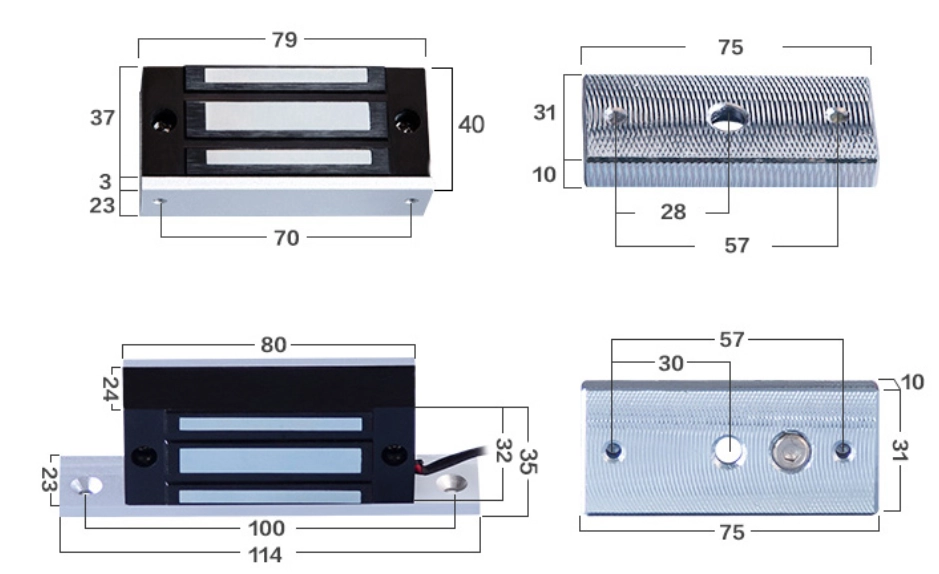

lock size: 79Lx40Wx23H(mm)
Armature plate: 75Lx31Wx10H(mm)

100LBs 60kg Small Electromagnetic Lock, 12V Electric Magnetic Door Locks for Access Control Single Door, 12V Electric Magnetic Electromagnetic Lock

Model No.: ACM-Y60

What is Electromagnetic Lock?

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.

Item	Parameter
Lock size	79Lx40Wx23H(mm)
Armature plate	75Lx31Wx10H(mm)
Holding force	60kg(100Lbs)
Voltage	DC 12V

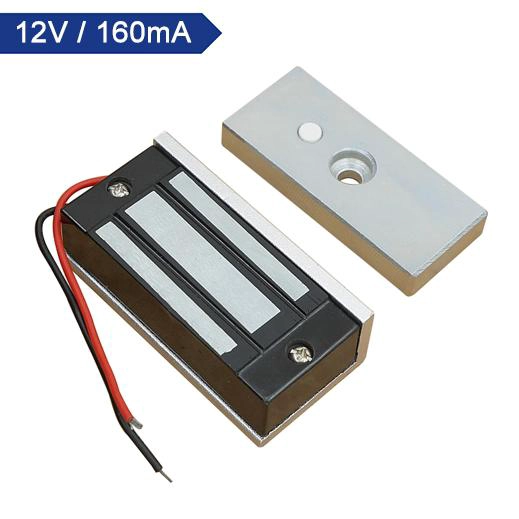

Current draw	12V/160mA
Suitable for	File Cabinet, Display Cabinet
Operating temp	≤20°C
Surface temp	-10℃ ~ 55℃ (14°F~131°F)
Suitable humidity	0~90% (non-condensing)
Finishes for shell	Anodized aluminum surface texture processing
Finishes for magnetic	Zinc
Finishes for armature	Zinc
Weight	0.6kg
Standard packing	60pcs

Small Electromagnetic Lock

100LBs 60kg 12V Small Electromagnetic Lock
Model No.	Dimension	Quantity/Carton	Gross Weight	Carton Size
ACM-Y60 12V	79x40x23mm	50pcs	26.8KG	56x24x22cm
ACM-Y60 24V			26.8KG

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.

- On the contrary, ACM Goldbridge will cahrge extra if repair.

- More information, please browse our service center.

Instalation Diagram

Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 5pcs per carton,
Carton size : 35*30*16cm , Gross Weight :25kg.
