Electric Gate Garage Universal Multi Frequency Remote Control Wireless Duplicator RF Remote ControllerElectric Gate Garage Universal Multi Frequency Remote Control Wireless Duplicator RF Remote ControllerElectric Gate Garage Universal Multi Frequency Remote Control Wireless Duplicator RF Remote ControllerElectric Gate Garage Universal Multi Frequency Remote Control Wireless Duplicator RF Remote Controller

Electric Gate Garage Universal Multi Frequency Remote Control Wireless Duplicator RF Remote Controller

  • Product name:Wireless Duplicator RF Remote Controller
  • Input:DC12V
  • Transmitting distance:50m (Free Space)
  • Frequency:433MHz
  • Channel:4
  • Size:55*28*14mm
  • Type:Remote Control
  • Modulation System:ASK
  • Output terminal:NO , NC , COM
  • Transmitting Power:+13dbm
Product Description

Electric Gate Garage Universal Multi Frequency Remote Control Wireless Duplicator RF Remote Controller

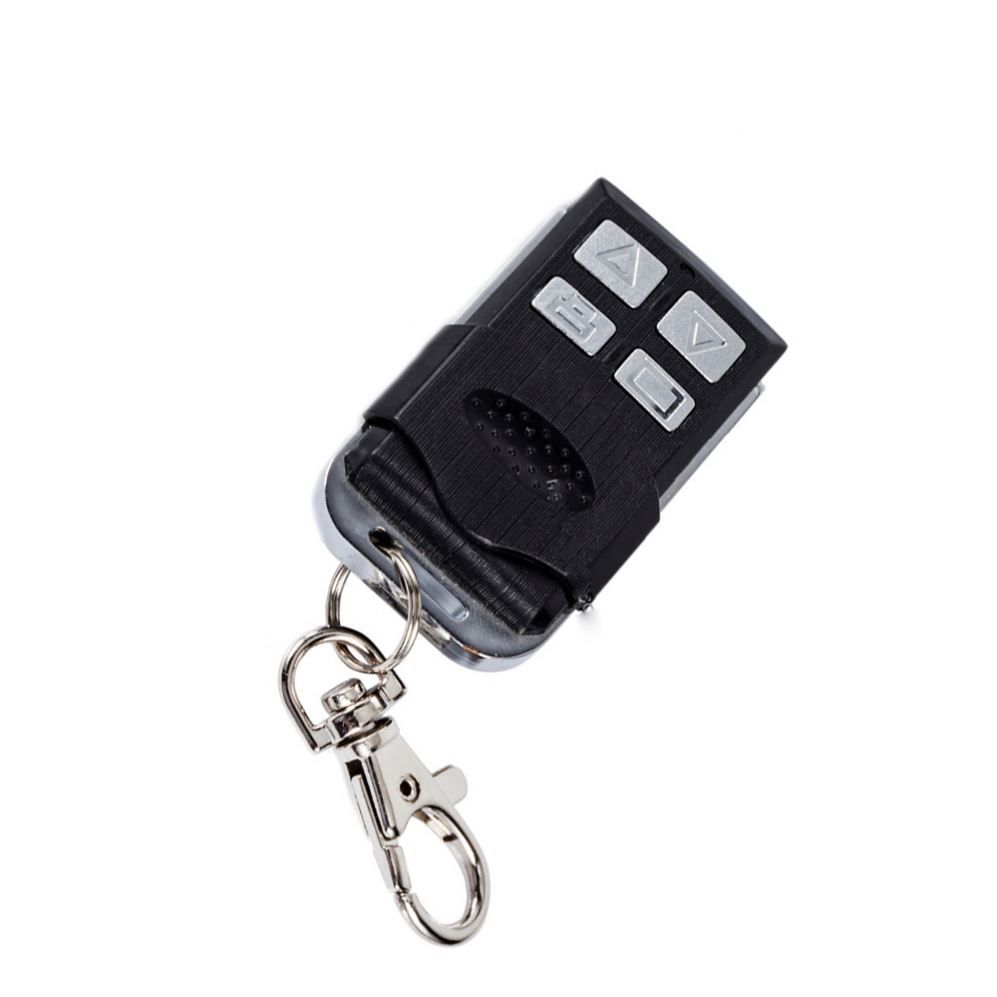

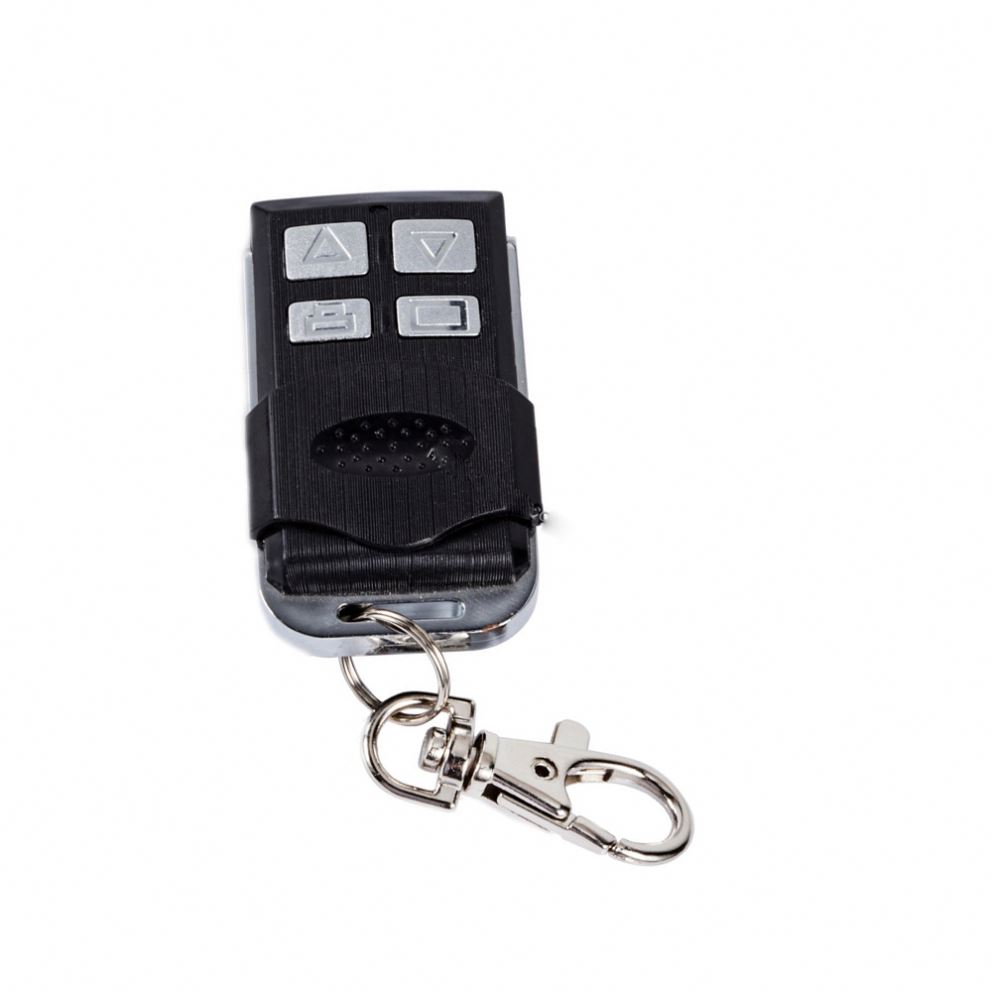

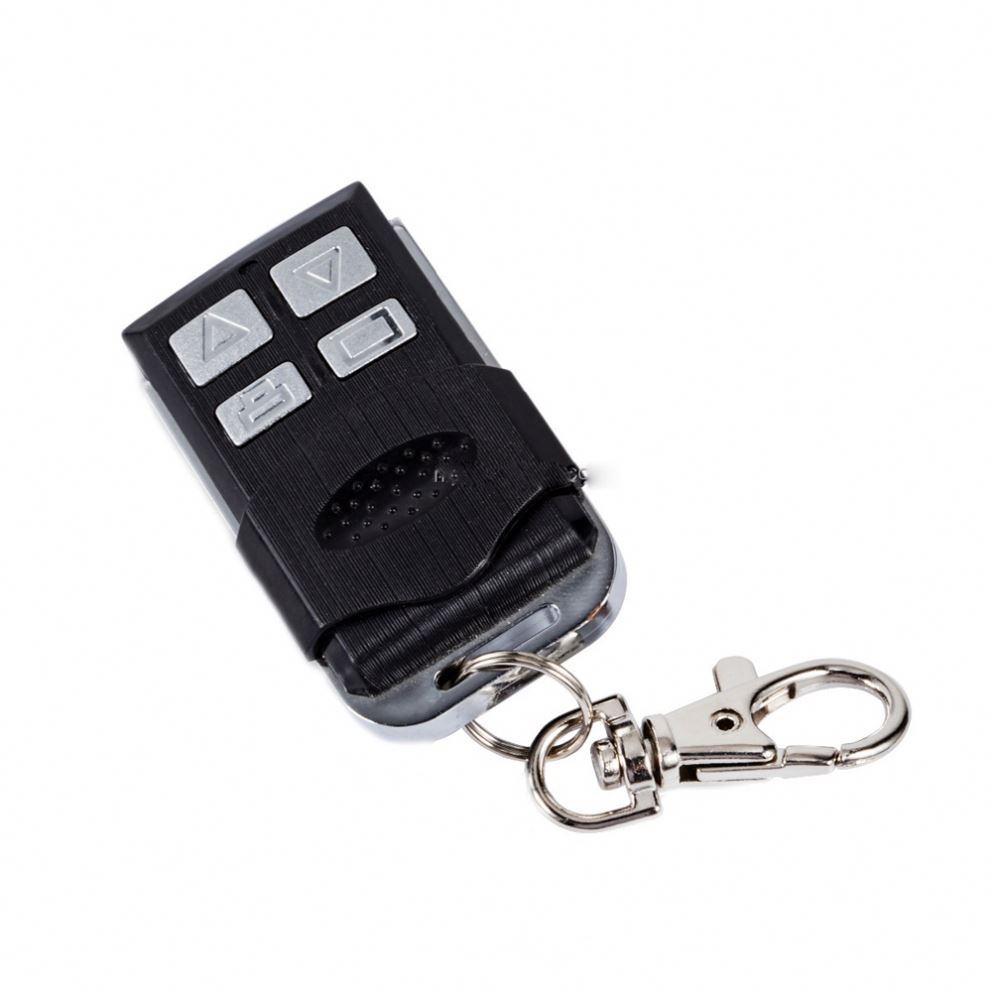

The gadget is a wireless remote control key fob, which comes with ultra-strong Learning code function. It support remotely and wirelessly control your roller shutter door, garage door and other telecommand equipments within 100m (free space). Bringing you brand new experience of remote control, bring you much convenience in your daily life. You can not miss it.

*Support Learning Code(1527) Common Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Panel.
*Stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenient.
*Adopts imported high-frequency triode, owning 10mW Transmitting Power.
*Easy to use: Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
*Widely Use: Perfect Suitable for controlling electrically operated gate, retractable door, garage door, electric curtain
automobile, motorcycle and other telecommand equipments.
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote
Control Relay Receiver module to achieve controlling.
4.We don't offer retail package, but we will pack it well before shipped out.
Material: Metal and PVC
Product Type: Copying / Duplicating Remote Control Transmitter Key Fob
RF Frequency: 433MHz
Match Code Way: Copying Via Face to Face(One to One Copying)
Channel Supported: Four Channel
Encoding Type: Learning Code(1527), Fixed Code(2262).
Button: 4 Buttons(A,B,C,D)
Modulation System: ASK
Operating Voltage:DC12V
Operating Current:<25mA
Transmitting Power:+13dbm
Frequency Windage: ±0.2MHz
Transmission Distance: 50m (Free Space)
Color: Black
Main Item Size: 5.4 * 2.9 * 0.9cm / 2.1 *1.14 * 0.35oz
Main Item Weight: 28g/1.0oz
Package Size: 5.5 * 3.0 * 1.0cm /2.16 * 1.18 * 0.39oz
Package Weight: 30g/1.05oz
We usually do not recommend copying a rolling code chip, because there are many uncertainties when copying a rolling code chip. When copying a rolling code chip remote control, it is not possible to determine whether the original remote control chip is an encryption chip. Therefore, we do not recommend copying the rolling code remote control.
• Input Voltage: 12 V, RF working mode: Superheterodyne
• Receiver sensitivity: > 97 dbm
• Transmitting distance:> 100 m ( open space)
• Decoding mode: MCU software decoding
• Remote storage: 20
• Support remote type: EV1527 learning code
• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )
• Output terminal: NO , NC , COM
• Dimension of PCB:35 x 30 x 18 mm (L,W,H)
• Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V

Remote programming
-Clearing the code :
Push the learning button on the receiver 8 times , the codes will be reset.
After clearing the code, remotes will be need to be recalibrated

-Momentary mode
Please contact us for detailed use instructions

-Learning the code : ( Toggle - Press remote button to turn on, press again to turn off.)
Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .

-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times.
When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times .
Push the remote button B, Led flash for 3 times .
After 3 seconds , the LED indicator will be off , Learning to succeed.

Model Number: Wireless Remote Control Switch
Wireless Communication:RF
Frequency:433 MHz
