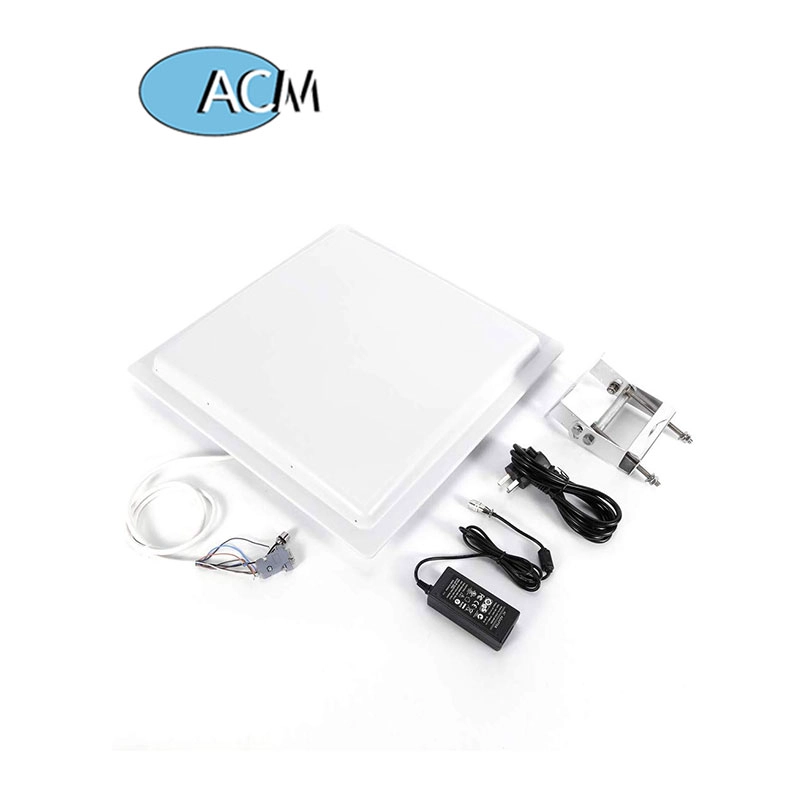

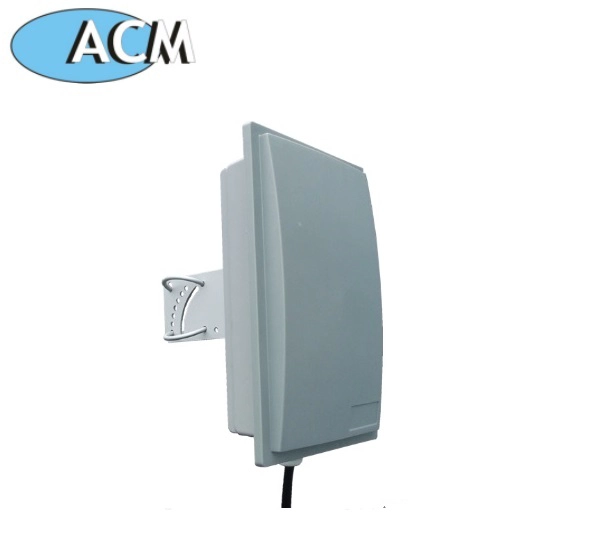

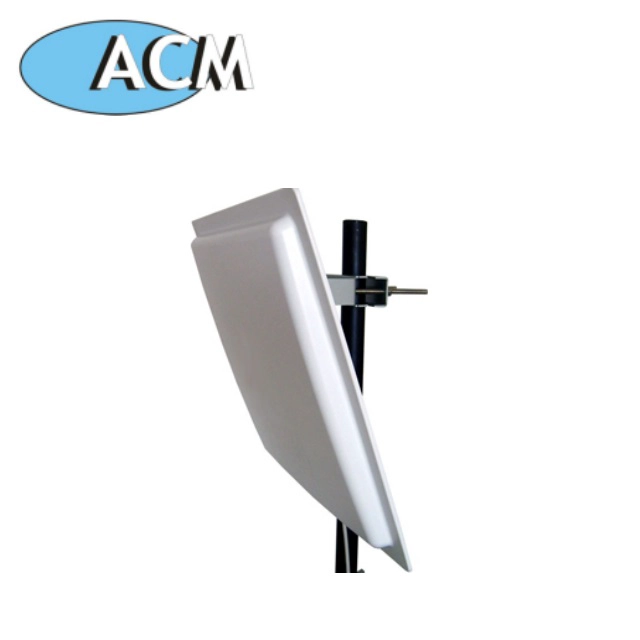

Goldbridge car parking system 20 meters 900mhz passive rfid reader

Model Name: ACM819A
Product Name: Goldbridge car parking system 20 meters 900mhz passive rfid reader
Read Distance: 10-20 METER
Antenna: 12dbi linear polarization antenna
Tag Protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Output Power: Software adjustable, step interval 1.0dB, maximum +30dBm
Interface: RS232,RS485,Wiegan26
Highest data read rates: ≥200tags/s
Communication Rates: 115200bps
Read range: 20M Reading Rang(Reliable)
Dimension / Weight: 44.5*44.5*7.5CM

Product Description

ACM819A Long range UHF Reader 10meter~ 20meter

- Communication: Wiegand 26 output, RS232/485, TCP/IP optional - European frequency: 865Mhz-868Mhz American Frequency: 902Mhz-928Mhz -Provide demo software and free SDK

Product Parameter	Description
Frequency	- European frequency: 865Mhz-868Mhz;?American Frequency: 902Mhz-928Mhz; other;
Operating temperature	-25 - 75℃
Operating humidity	10 - 90%
Working voltage	DC 12V/24V
Power Supply	DC+12V (Power Adapter)
Read range	10-20m
Color	white
Dimensions	535313(cm)
Operation Mode	FHSS or fixed frequency(set by software)
RF Power	0~30dBm, software adjustable
Reading Speed	Software Programmable, Average Reading per 64Bits:
Reading Mode	Timing or Touch, Software Programmable
Data Ports	Standard: Wiegand26/34, RS485, RS232; software programmable
	Optional: TCP/IP ( RJ45), WIFI
?Reading Clue	Buzzer
?Antenna	Built-in line polarization Antenna, Gain:12dbi

Detailed Images

RFID UHF 15m long range card reader can be compatible with mult-protocol, integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, access control, time attendance, bus transportation etc lots of field, can read and write , fast speed read and recognized.This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B.It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install.Mainly application as follows:1. Parking management: Long range intelligent parking management and automatic charge without stop the car.2. Production line management: Goods identification for production flow.3. Auto Access control: Long range access control management for custom, sea port.4. Logistics and warehouse management.5. People auto registry for important meeting or exhibition.6. Automatic weighing and data capture.Features: Support ISO18000-6C and ISO18000-6B protocol.? RS232, RS485, Wiegand26/34, RJ45 communication interface support. Advanced tag collision processing algorithm, high literacy rate.  High-Speed write data.

Packing & Delivery

Shipping Way

We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .
