High Quality 2.4G Smart Card Long Range RFID ReaderHigh Quality 2.4G Smart Card Long Range RFID ReaderHigh Quality 2.4G Smart Card Long Range RFID ReaderHigh Quality 2.4G Smart Card Long Range RFID Reader

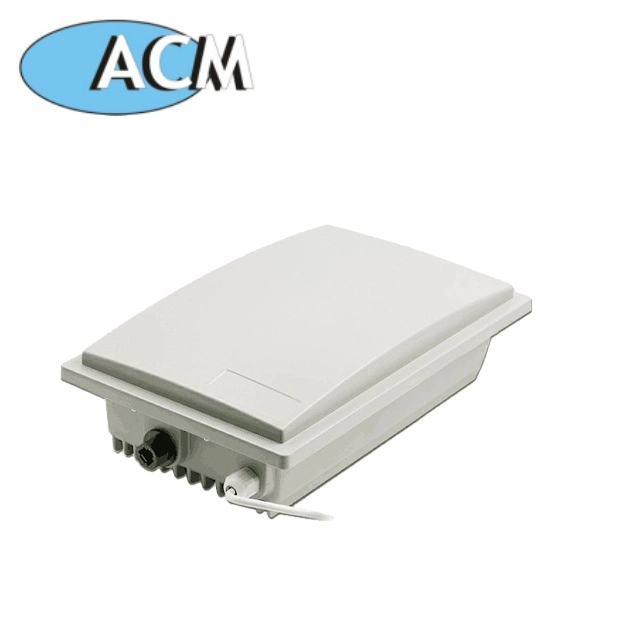

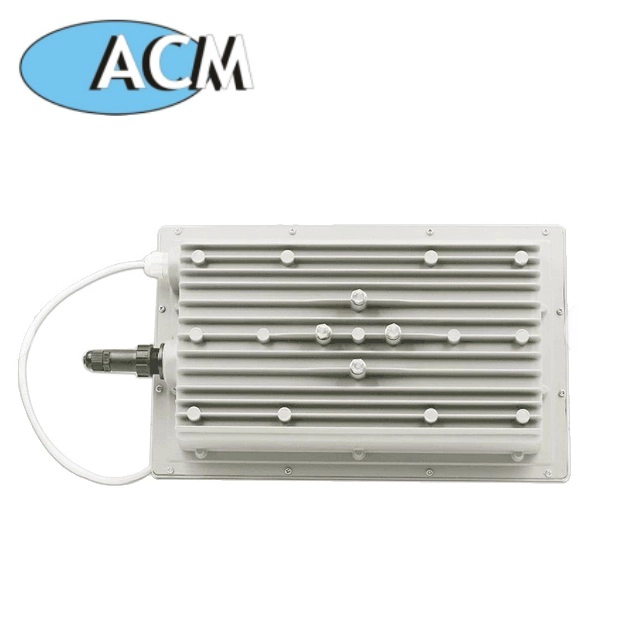

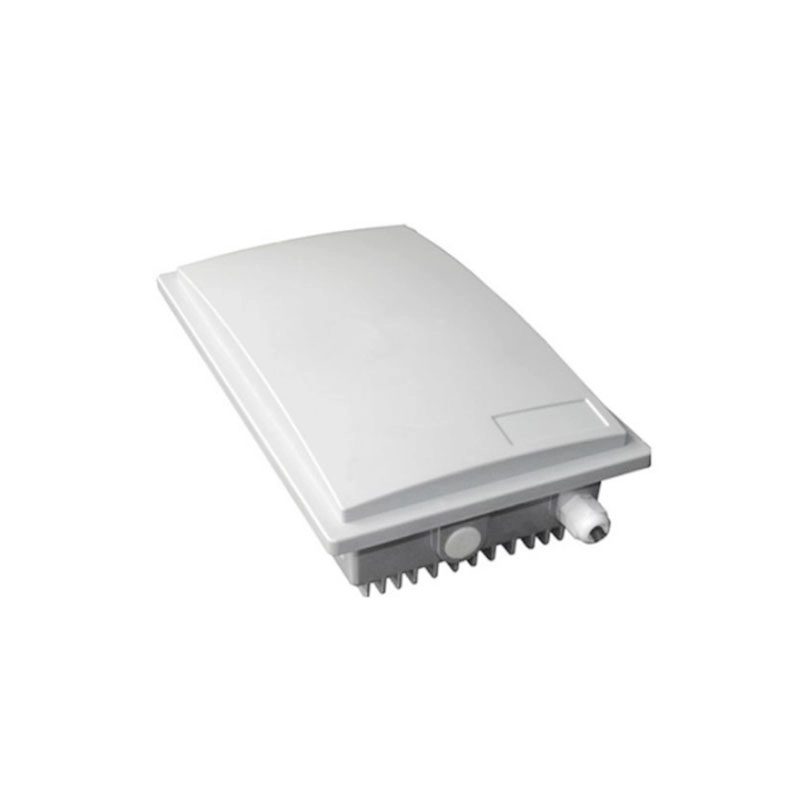

High Quality 2.4G Smart Card Long Range RFID Reader

  • Product Name:High Quality 2.4G Smart Card Long Range RFID Reader
  • Operation Mode:Fixed Frequency or FHSS or Software Programmable
  • RF Power Output Adjustable:Power Output Adjustable Range:0.1W --- 1W
  • Built- in Antenna Type:Built-in Circularly polarized antenna.
  • Communication Ports:RS-232 ,Weigand 26 bits \ 32bits
  • Communication Rates:Up to 57,600bps and software programmable
  • Power Consumed:DC-9V±0.5V Adapter, less than 3 Amps
  • Operation Temp:Working Temp.:-35°~ +60 ° Storage Temp.:-50°~ +80
Product Description
High Quality 2.4G Smart Card Long Range RFID Reader

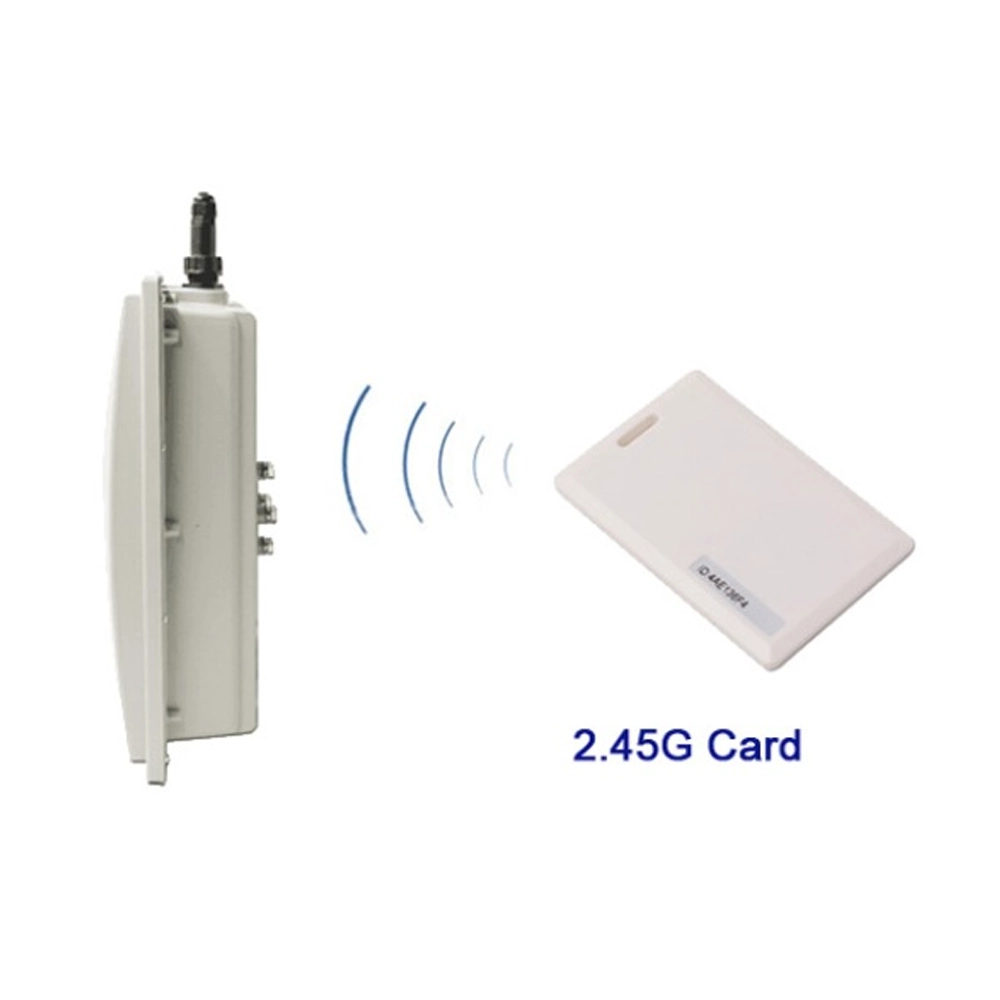

ACM09G RFID 2.45GHz Long Range Active Directional Card Reader, Widely used for car parking long range automated system 1)Operation frequency: ISM2.45GHz 2)Reading range: adjust distance: 3~80meter

Specification of 2.4GHZ Active Reader

Product Parameter
Parameter Description
Model
ACM09G 2.4GHZ active reader
Frequency
2.4GHZ
Operation Mode
Fixed Frequency or FHSS or Software Programmable
RF Power Output
0~30dBm
Built- in Antenna Type
Built-in Circularly polarized antenna.
Reading Rate
Software Programmable,Average Reading per 64Bits:<10ms
Reading Mode
Auto And Touch or Software Programmable
Communication Ports
RS232 /485 , wiegand 26/34
Data Input
Input One Team
Reading Range
3-80M
Reading Clue
Buzzer
Antenna
Built-in Antenna,Gain:7dbi
Power Consumed
DC +9v AC–DC Adapter, less than 3 Amps
Application

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click Send now!
We are looking forward to forming successful business relationships with new clients around the world in the future.

Packing & Delivery
You May Like

UHF anti-metal tag

ACM-UHF-M . UHF tag 860-915mhz RFID anti-metal tag 148*25*4mm

UHF stikcer

ACM-UHF-S UHF stikcer 860-915mhz RFID sticker 86*54mm

ACM S001

UHF ETC Sticker
Anti-tamper /Anti-fake Sticke

ACM 217

UHF USB Desktop Reader/Writer

ACM 26C

125Khz EM Long range reader
70cm-1meter distance

ACM09G

Active 2.4G Reader Long Range distance 10~50meter,weigand 26/34 output
