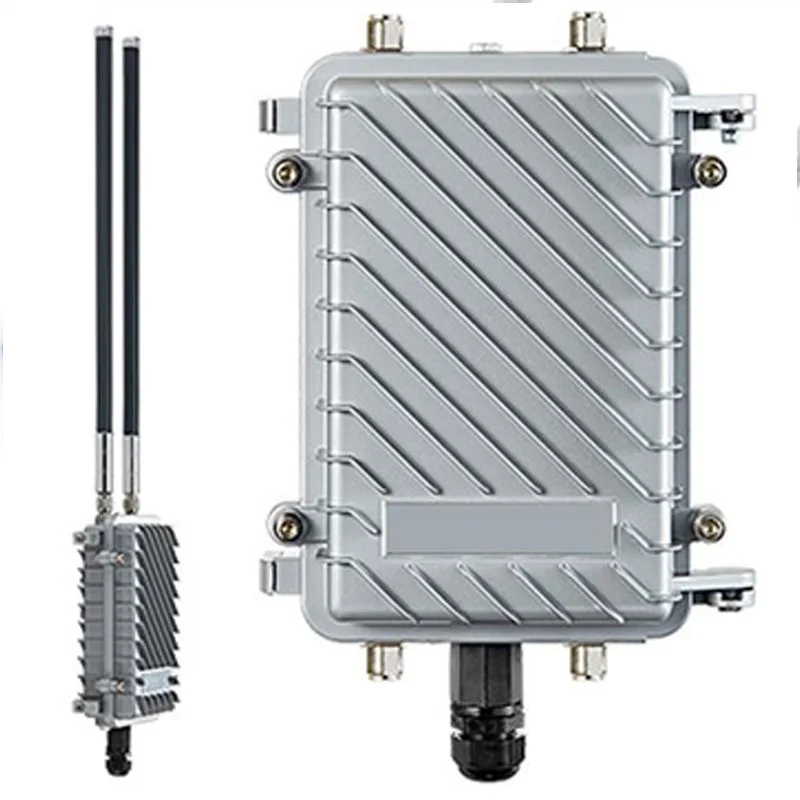

2.45G Omni-Directional Active RFID Reader

Feature:

The 2.4G active readerACM-R2430A developed and produced by ACM is an industrial-grade, high-performance, ultra-low power consumption, high recognition sensitivity, long-distance, transceiver integrated, 2.4G frequency band 360 degrees, RFID reader products, fully comply with RFID 2.4G frequency band ISO/IEC18000-4 standard. The reader design uses the ARM32-bit Cortex-M7 core, and an embedded MCU with a main frequency of 500MHz as the main control processor, thereby improving the processing capacity of multi-reading cards; it adopts the industry's most advanced high-receiving sensitivity The embedded radio frequency SoC is used as a 2.4G transceiver unit, which greatly increases the reader’ reading distance; supports TCP/IP protocol and STA+AP multi-working mode, unique radio frequency design and omnidirectional high-bandwidth antenna design configuration, thereby enhancing The outdoor 2.4G reception coverage effect is improved. In addition, the reader design supports the POE network port power supply in an industrial control environment, thereby simplifying the complex conditions of indoor installation and deployment.

The software design of the reader adopts ACM's unique RFID tag anti-collision algorithm and multi-channel switching anti-interference technology, thereby improving the recognition ability and reading speed of multi-card reading; it adopts an antenna with controllable gain and RSSI filtering The channel control technology facilitates users to adjust the card reading distance; the reader also provides different data communication protocols, network layout, convenient for users to carry out secondary development or system integration, to meet users' different active radio frequency identification solutions.

The reader also supports two-way communication between the RFID reader and the tag. The reader transmits control commands to control the tags in the area through the 2.4G wireless channel. It can control the power, working frequency, sleep, and rewrite tags. Wake up, tag IO output control and other working parameters, so as to control the working status of the tag. The two-way communication of the reader can prevent other tags outside the system from being read, thereby completely solving the same-frequency interference of such tags, thereby ensuring the reliability of the information exchange between the tags and the reader in the system And accuracy.

The software upgrade and maintenance of the reader adopts the remote wireless WiFi access point upgrade method, as well as the wired network port and wired RS232 serial port upgrade method, which is convenient and flexible for users to operate.

The reader supports card reading through 2.4G WiFi/4G-LTE/RS232/RS485/Ethernet communication, and flexible networking configuration according to the different use environments of different customers to solve various actual RFID use requirements of customers.

The reader also supports GPS L1, GLONASS, BDS positioning. The positioning accuracy can reach below 3 meters.

The metal structure appearance of this reader designed by ACM is heavy and stable, and it meets the IP67 waterproof standard. It is the best choice for many users to remotely manage and locate outdoor RFID assets.

Quality Warranty

 - Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Shipping Way

We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .
