Infrared Sensor Switch No Touch Contactless Door Release Exit Button with LED Indication

  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Model Number: K2B
  • Special Features: Other
  • Network: None
  • Application: gate / door / exit / automation control
  • Standard Structure: Stainless steel Panel, Steel Button
  • Size: 86Lx86Wx29H (mm)
  • Material: Stainless steel Panel, Steel Button
  • Current Rating: 3A,36VDC Max
  • Mechanical Life: 1000000 tested
  • Suitable for Door: Hollow Door
  • Operating temp: -10℃ ~ 55°C (14°F-131°F)
  • Operating Humidity: 0-95% (non- condensing)
  • Detection range: 0.1-10cm
  • Item name: no touch exit button for control push button
Product description

Feature:

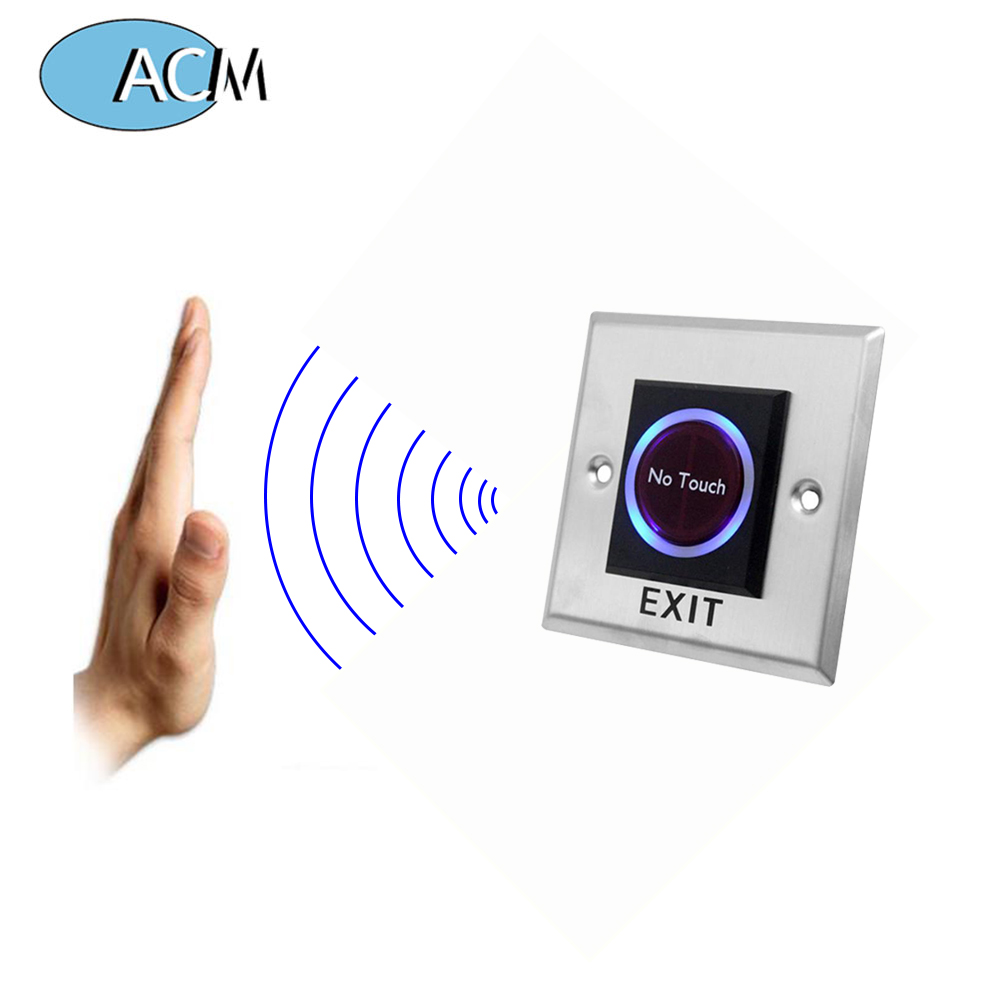

  • Featured with infrared technology, touch free, more convenient to use.

  • Contactless, free from contagious disease spread.

  • The switch responds agilely and quickly.

  • IP-55 industrial protection level.

  • Stainless steel plate, very durable to use.

  • Suitable for doors, gates, or other exit automation control systems.

  • LED indication

Specification:

  • Material: stainless steel

  • Contact rating: 3A, AC 120V / DC 30V

  • Input voltage: DC 12V

  • Working temperature: -20 to 50 Celsius degree (-4 to 122 Fahrenheit degree)

  • Response range: within 10cm

  • LED indication: sensor standby: blue LED on, visitors approaching: red LED on

  • Item size: 11.3 * 6.9 * 3.9cm / 4.4 * 2.7 * 1.5in

  • Item weight: 73g / 2.5oz

  • Package size: 12.5 * 8.6 * 4.5cm / 4.9 * 3.3 * 1.7in

  • Package weight: 101g / 3.5o



Infrared Sensor Switch No Touch Contactless Door Release Exit Button with LED IndicationInfrared Sensor Switch No Touch Contactless Door Release Exit Button with LED IndicationInfrared Sensor Switch No Touch Contactless Door Release Exit Button with LED Indication



Product parameter
Parameter description

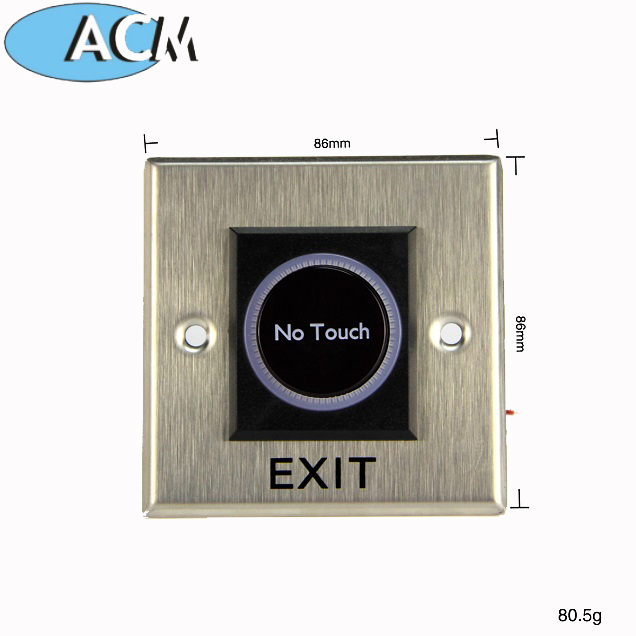

Dimensions
86Lx86Wx29H (mm)
Entrance
DC12V
Contact evaluation
12-28V, 3A
Output contact
NO / NC / COM
Mechanical life
500000 tested
Suitable for door
Empty door
Operating Temp
-20 ℃ ~ + 55 ℃ (14-131F)
Suitable humidity
0-95% (relative humidity)
Detection range
0.1-10 cm
LED indicator
White LED indicator: power off
Blue LED indicator: power on (standby)
Red LED indicator: power on (feeling)
Weight
0.15 kg

exit button for access control Advantage:

. Touchless / non-contact output sensor (diffuse detection)

· Optical / infrared technology
IP-55 ingress protection / SUS 304 stainless steel plate
Easy to use (healthy protection)
·· Free from widespread contagious diseases
Sensing range: 0.1 ~ 10cm
Application: gate / door / exit / automation control
High capacity of the dry contact of the relay (3A / AC120V, DC30V)
· Normally Open / Normally Closed / Common relay output
Double led indicators for sensor waiting or approached:
(1) Sensor standby: BLUE LED ON
(2) Visitors who have approached the sensor in 10 cm: RED LED ON

Detailed images

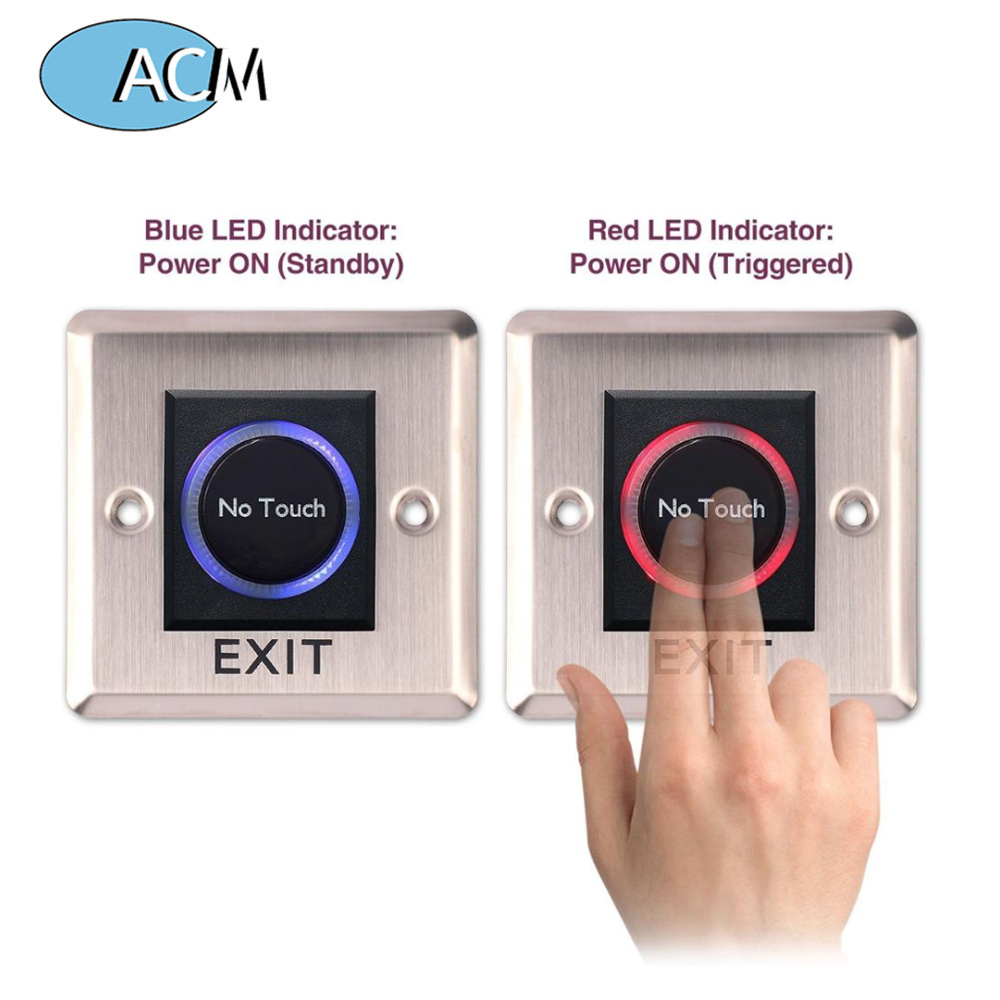

Blue LED indicator
Red LED indicator
Power On (Standby)
Power on (activated

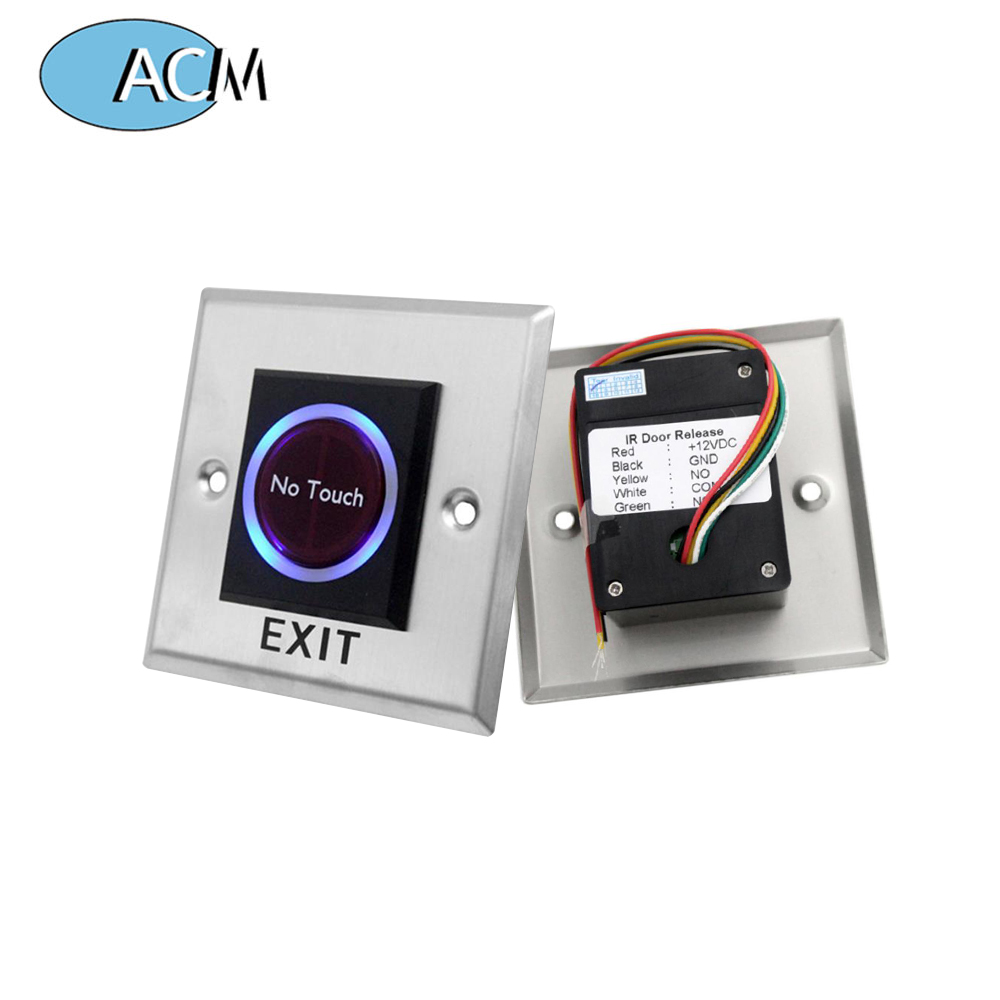

+ 12V
Google Display Network
NO
COM
NC
Red
Black
Yellow
white
Orange
