Keyless Entry Rfid Keypad Support EM+HID+MF Cards

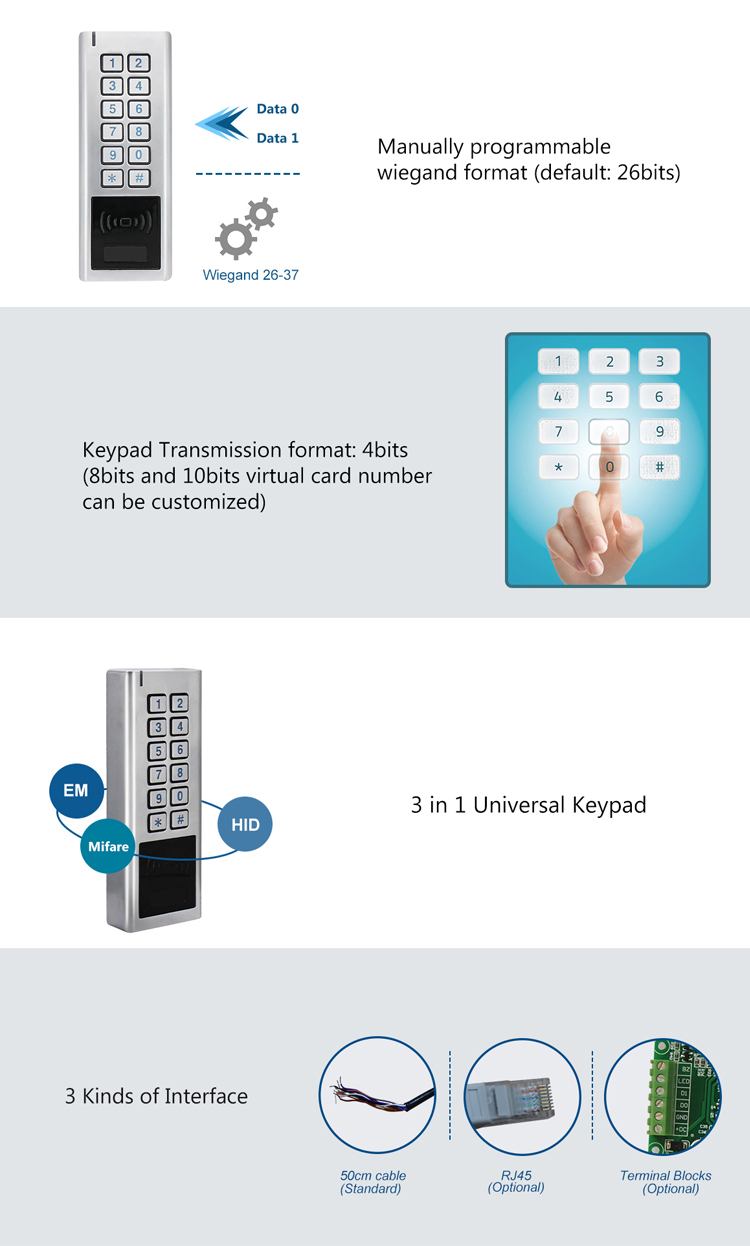

> Waterproof conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Programmable Keypad Transmission: 4 bits,8bits or virtual card number format
> Card type: Hid card, EM card & Mifare card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control

It is a Wiegand output keypad, with an integrated proximity reader.

It can read 125KHz EM & HID cards and 13.56MHz Mifare Cards.

Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

> Waterproof conforms to IP66

> Wiegand 26~37 bits output (default: 26bits)

> Programmable Keypad Transmission: 4 bits,8bits or virtual card number format

> Card type: Hid card, EM card & Mifare card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control

Operating Voltage	9~18V DC
Frequency	125KHz & 13.56MHz
Card Type	125KHz - EM & Hid Card
Card Type	13.56MHz - Mifare Card (ISO 14443A Compatible)
Keypad Transmission	4 bits (factory default), 8bits or virtual card number format can be set
Reading Distance	7 CM
Output Format	Wiegand 26~37 bits
Operating Temperature	-40℃ ~ 60℃ (-40°F ~ 140°F)
Standby Current	< 35mA
Operating Humidity	0%~95% RH
Index of Protection	IP66
Dimensions	14.8L x 5.6W x 2.25H (cm)
Colour	Silver

Keyless Entry

Packing & Delivery

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton

Port: Shenzhen or Hong Kong

Lead time: 3~7 days after the order confirmed

We are looking forward to forging successful business relationships with new customers around the world in the future.

Shipping way

We have been one of the leading exporters of RFID products in China for 2000 years. With rich experience in international trade, we know international shipping very well, we know which express or air / sea line is cheap and safe for your country. We can provide various certificates to clean your habit such as CO, FTA, Form F, Form E ... ect. We will provide our professional shipping suggestion. EXW, FOB, FCT, CIF, CFR ... trade terms are ok for us. We can be your reliable partner for products and shipments.
