Magnet Lock 180KG 350lbs 280KG 500KG Electric Magnetic Lock DC 12V Electromagnetic Locks for Door Access Control Gate
Place of Origin: Guangdong, China
Brand Name: ACM
Model Number: MLock
Type: Other
Special Features: Other
Network: None
Application: Indoor
Certification: CE
Smart home platform: NONE
Origin: CN(Origin)
Security Mode: Fail Safe with Signal
Direction: None
Product Description

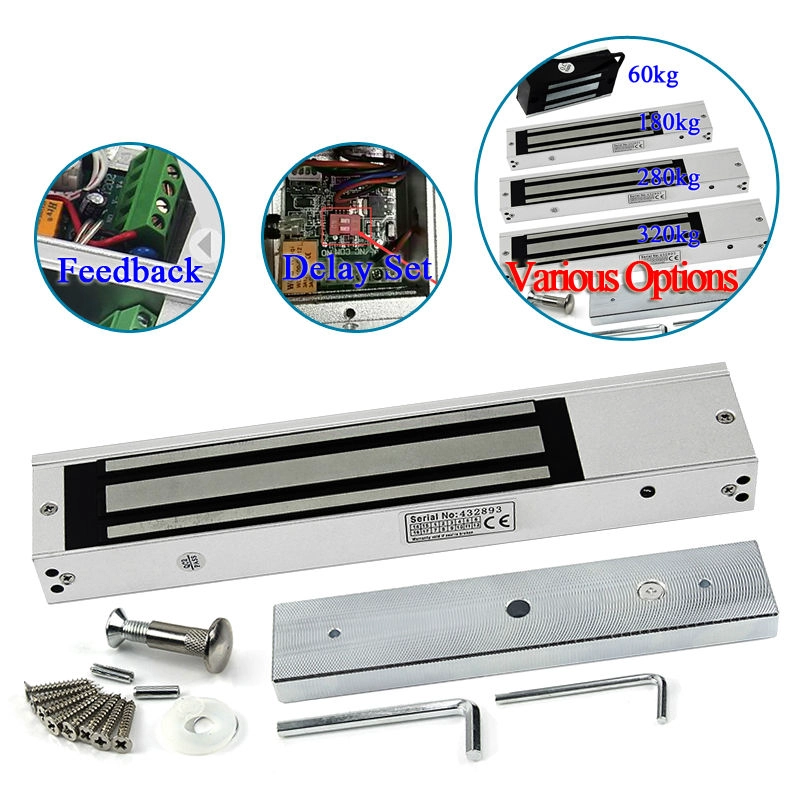

Magnetic Locks (Various options for choosing)

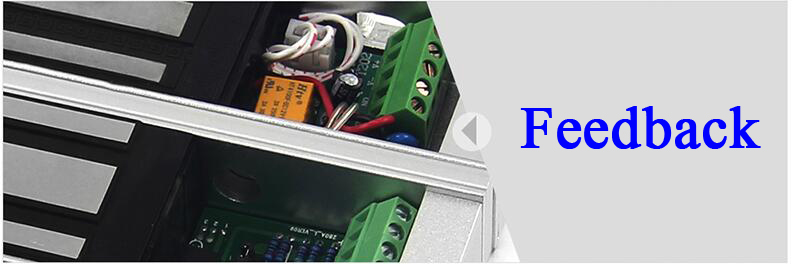

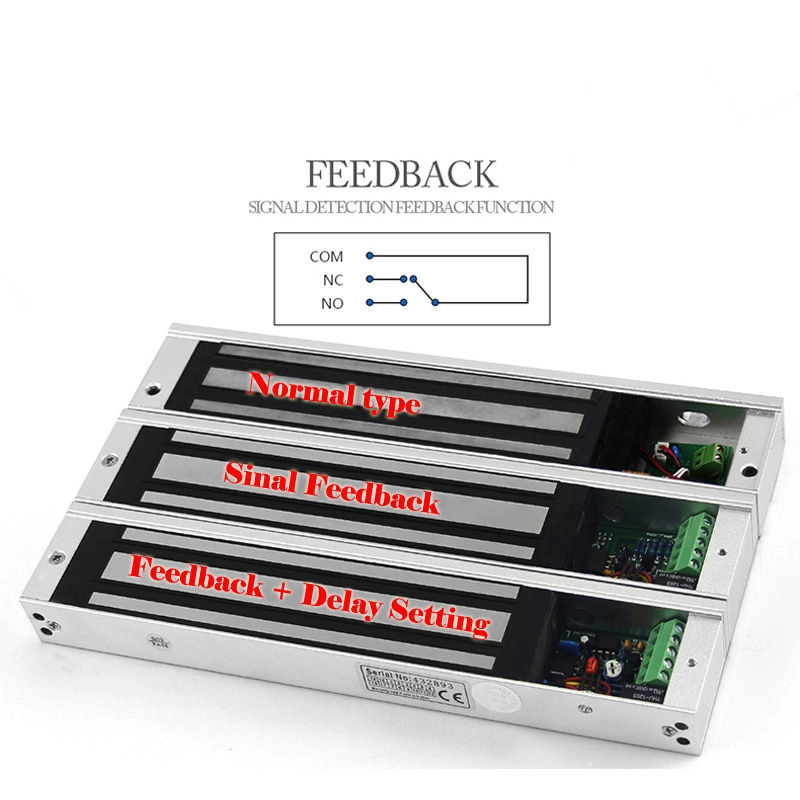

What is Feedback function?
Magnetic lock with Feedback function means it can give back signal for additional function, for example : work with alarm system

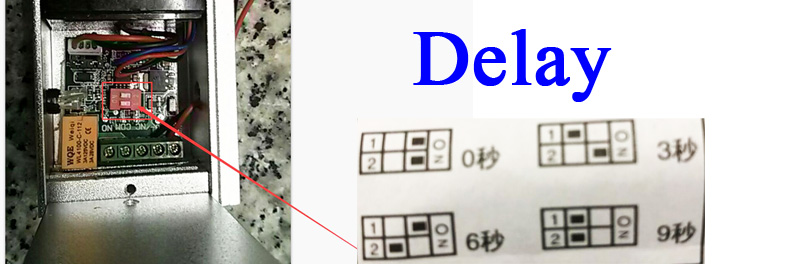

What is Delay function?
Magnetic lock with Delay function means that it can set the delay time from the open status to close status (normally set as 0 second or 3 seconds or 6 seconds or 9 seconds)

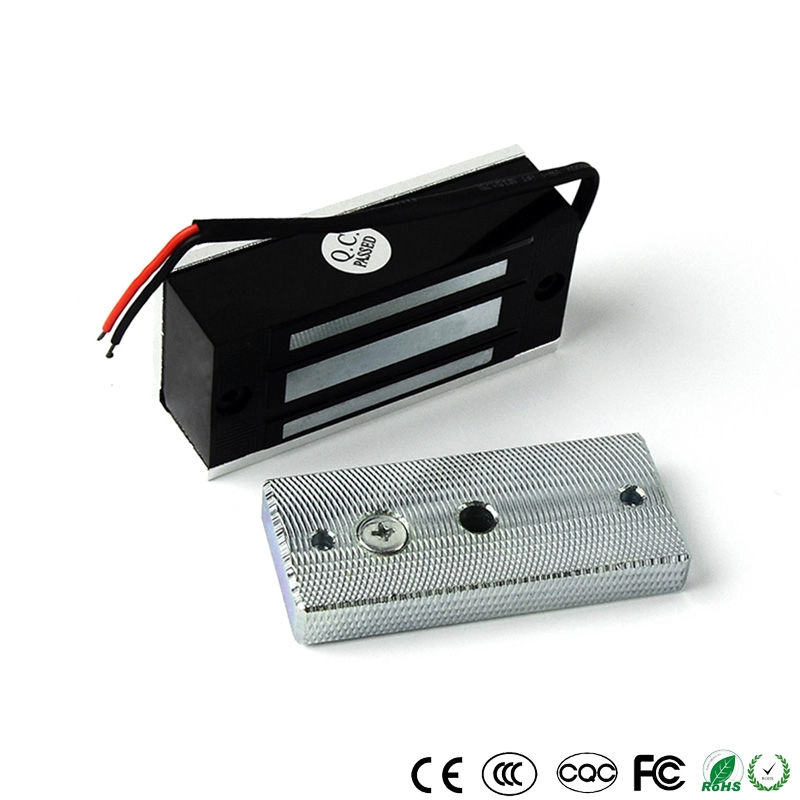

60Kg Magnetic Lock
Lock dimensions: 80 x 40 x 22 mm
Armature plate: 74 x 35 x 10 mm
Maximum tension: 60 kg (100 lbs)
Input voltage: DC12V +10%
Operating current: 12V/300mA
Surface temperature: Within + 20 degree below ambient temperature
Suitable temperature: -10 to 55 + degrees (14-131F)
Suitable humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
Lock and suction plate processing: Environmentally friendly zinc plating processing
Weight: 0.55kg
Suitable for file cabinets, small doors, and more.

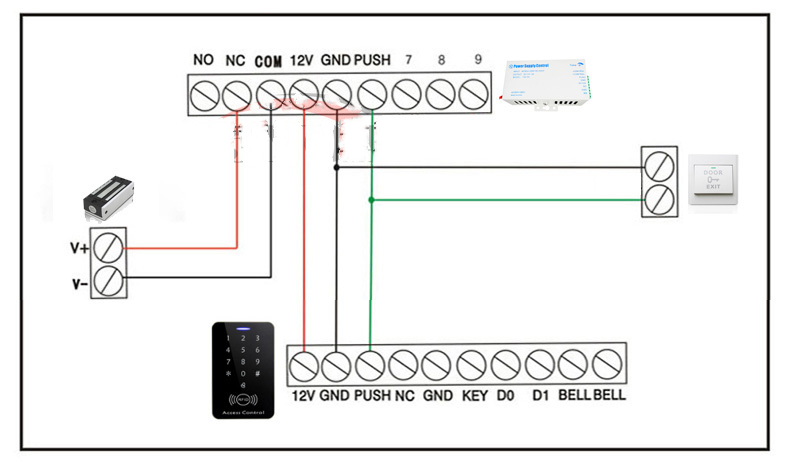

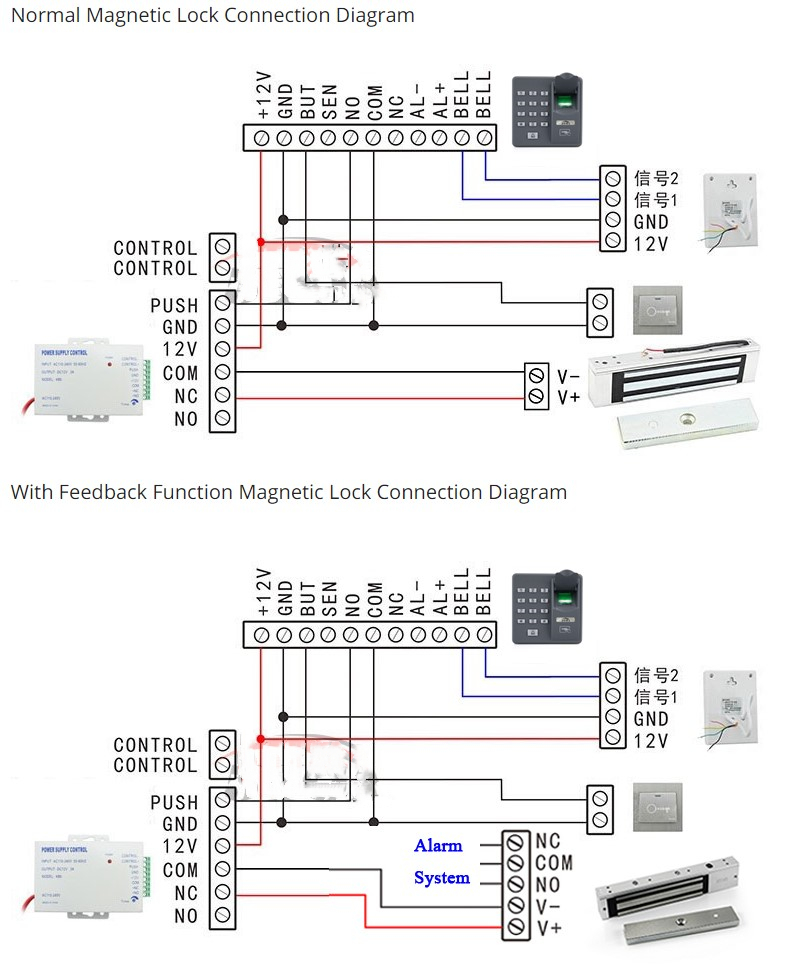

Connection diagram with access control device

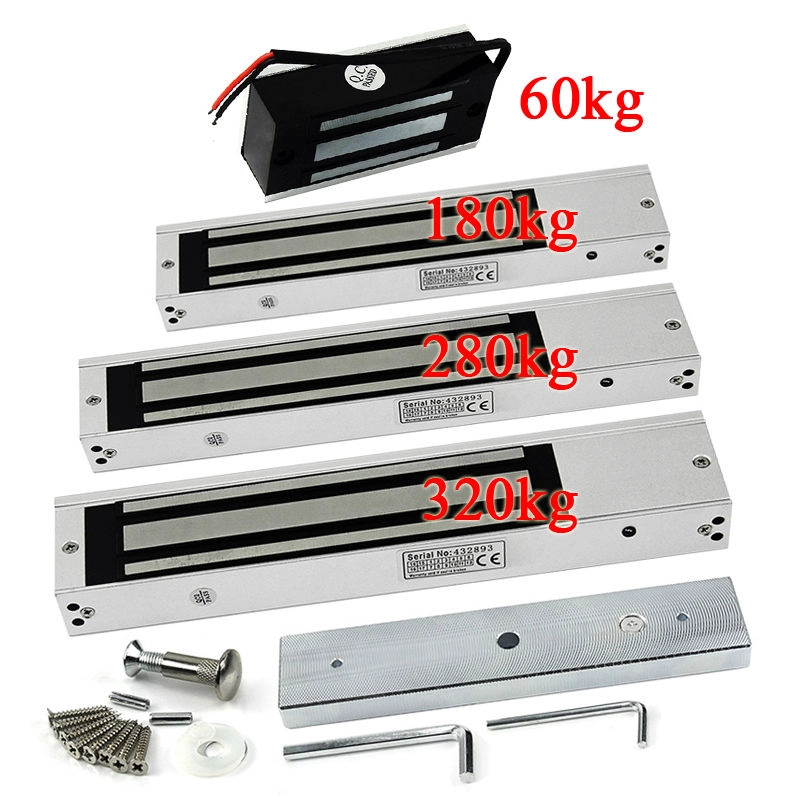

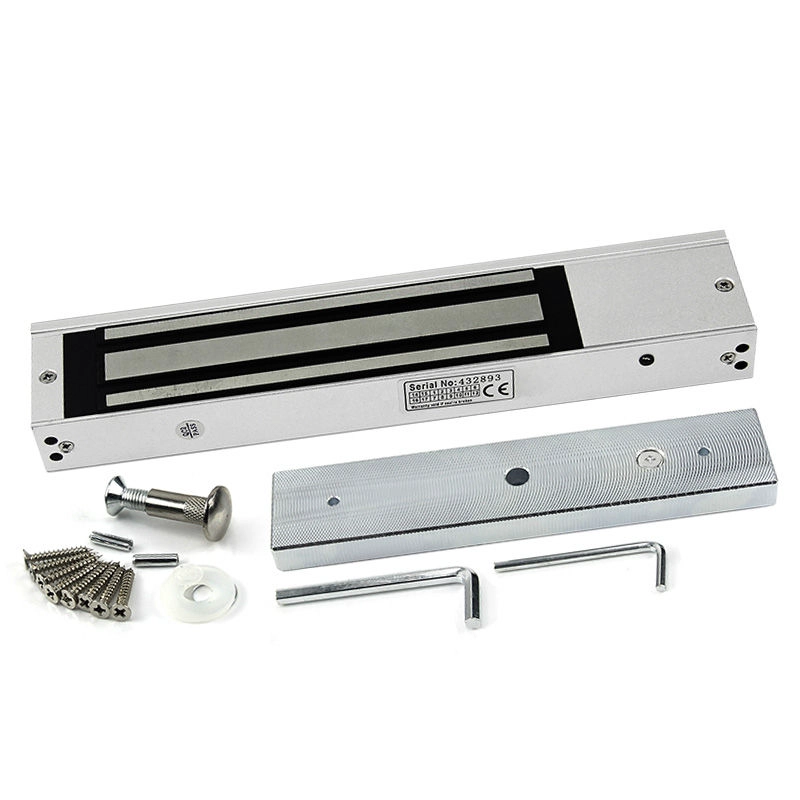

Other Magnetic Locks
Features:

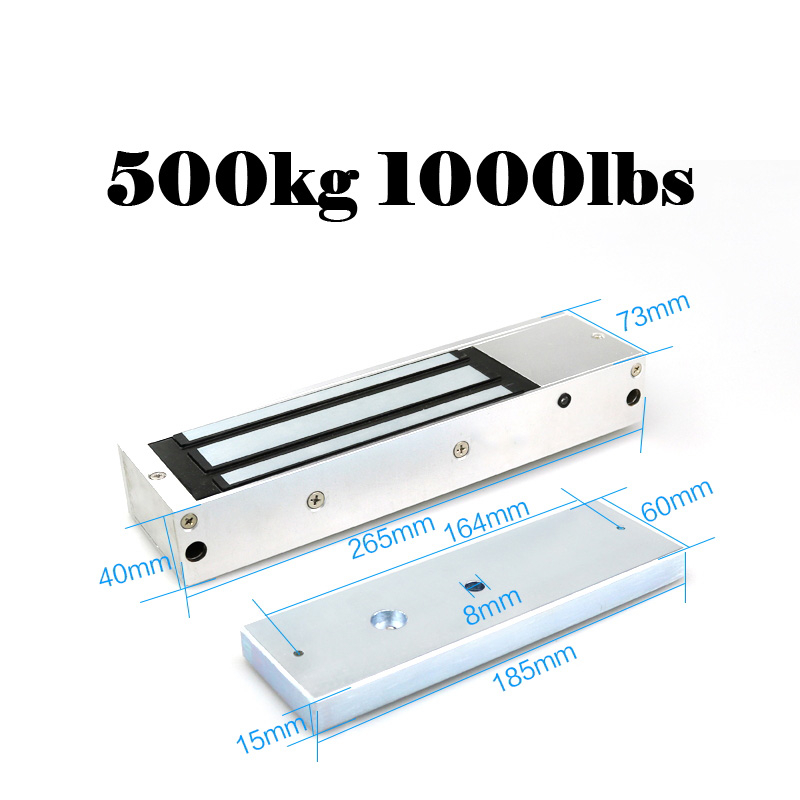

Use magnetic power to lock the door, 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.
Specifications:

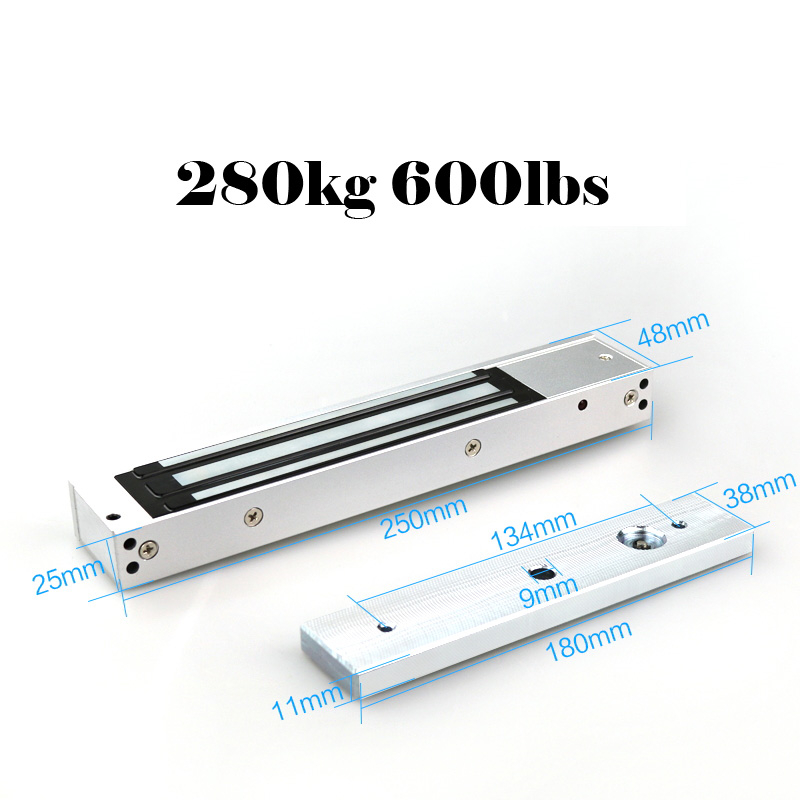

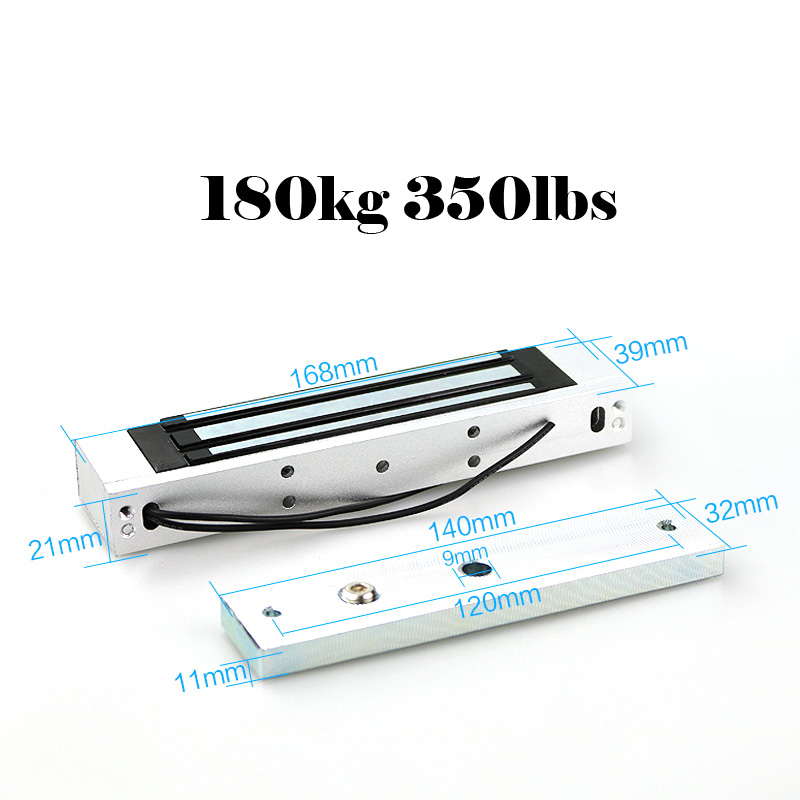

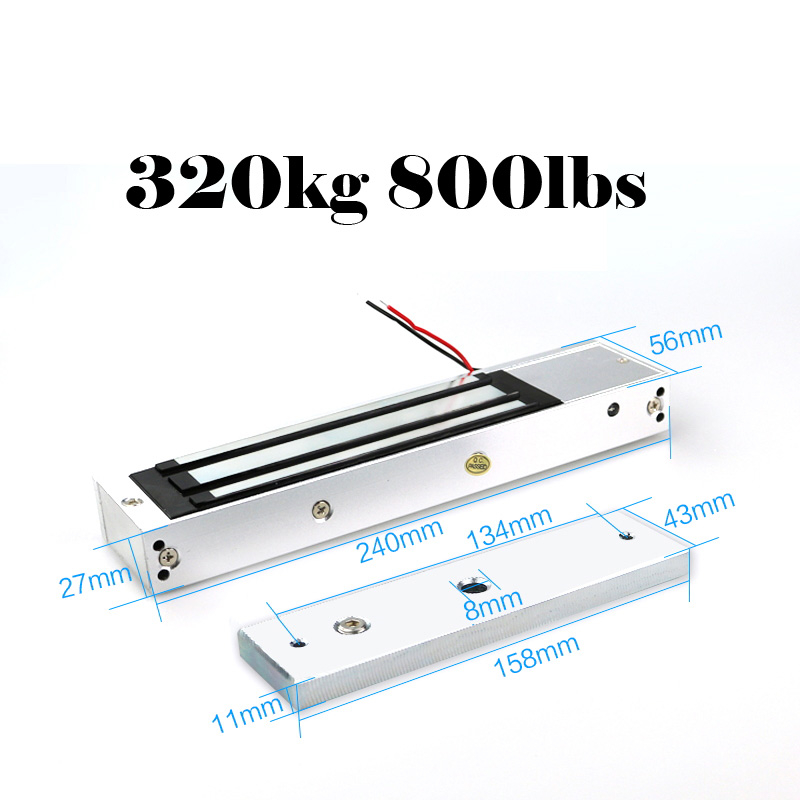

Holding force: 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs)
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
Related Products:
Packing & Delivery
Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Magnetic Lock packaging: 1unit per box, 12pcs per carton,
Carton size : 54.3*13.5*19.3cm , Gross Weight :25kg. 50 cartons per pallet
