Metal keypad IP68 Security control systems for waterproof door entry EM Keypad reader EM Card Independent access control RFIDMetal keypad IP68 Security control systems for waterproof door entry EM Keypad reader EM Card Independent access control RFIDMetal keypad IP68 Security control systems for waterproof door entry EM Keypad reader EM Card Independent access control RFIDMetal keypad IP68 Security control systems for waterproof door entry EM Keypad reader EM Card Independent access control RFID

Metal keypad IP68 Security control systems for waterproof door entry EM Keypad reader EM Card Independent access control RFID

  • Brand: ACM
  • Model Number: ACM 208A
  • Product name: keypad access controller RFID access control system
  • Power supply: 12VDC + 10%
  • Release relay: 12VDC / 2A
  • Electric lock output: max 3A
Product description

External keypad for 125khz RFID access control system for waterproof metal access control card for security


The ACM208C standalone metal access controller, for single door entry, with card reader and keyboard input in one function, supports Wiegand output and input, can be used as card reader. Integrated data memory, quickly identify proximity readers.

Product parameter
Description of the parameters
Power supply:
12VDC + 10%
Frequency:
125KHz
Length of pin
3-6 digits
Access control interface
WG26 interface
Cut it:

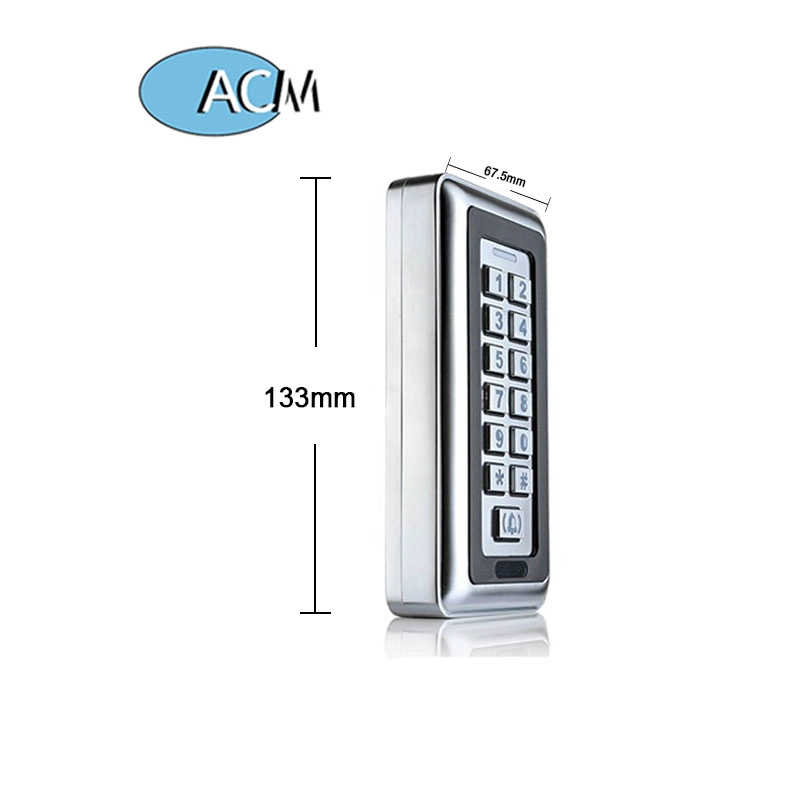

L130 * W58 * H24mm
Unlock relay:
12VDC / 2A
Operating temperature:
-20 - 70 ° C
Relative humidity:
20% -90% relative humidity
Compatible cards
EM 125KHz standard card
Reading distance of the map
1.18 ~ 2.36
Electric lock interface
Relay output or optional input
Free access
1
Benefit

1 completely independent access control, directly through the keyboard to reach
passwords, card management and other functions.

2. Supports Wiegand 26 output and input, can be used as a card reader.

3.Supports card, password, card with password and three seed certification management.

4.reader sensor with high sensitivity, less than 0.1 seconds.

5. supports a password to open the door, autonomous card capacity up to 1000, optional 4000.

6. Exit button and doorbell input function.

Product display

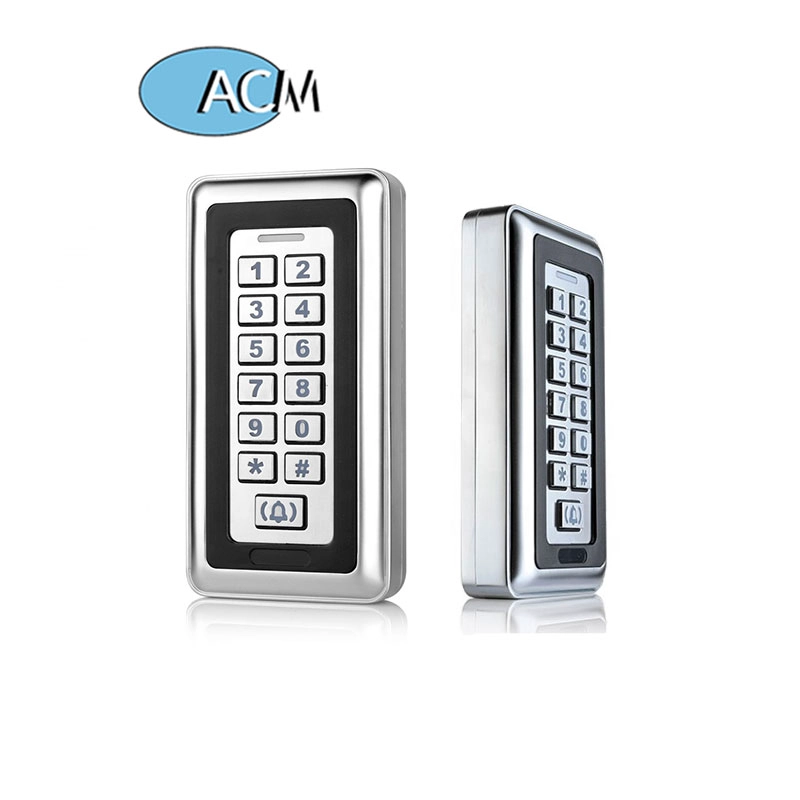

ACM208C Standalone metal RFID access control Card capacity 1000 users with metal keyboard and LED indicators

Detailed image

Supports Wiegand 26 output, can be used as access control to the card reader door
