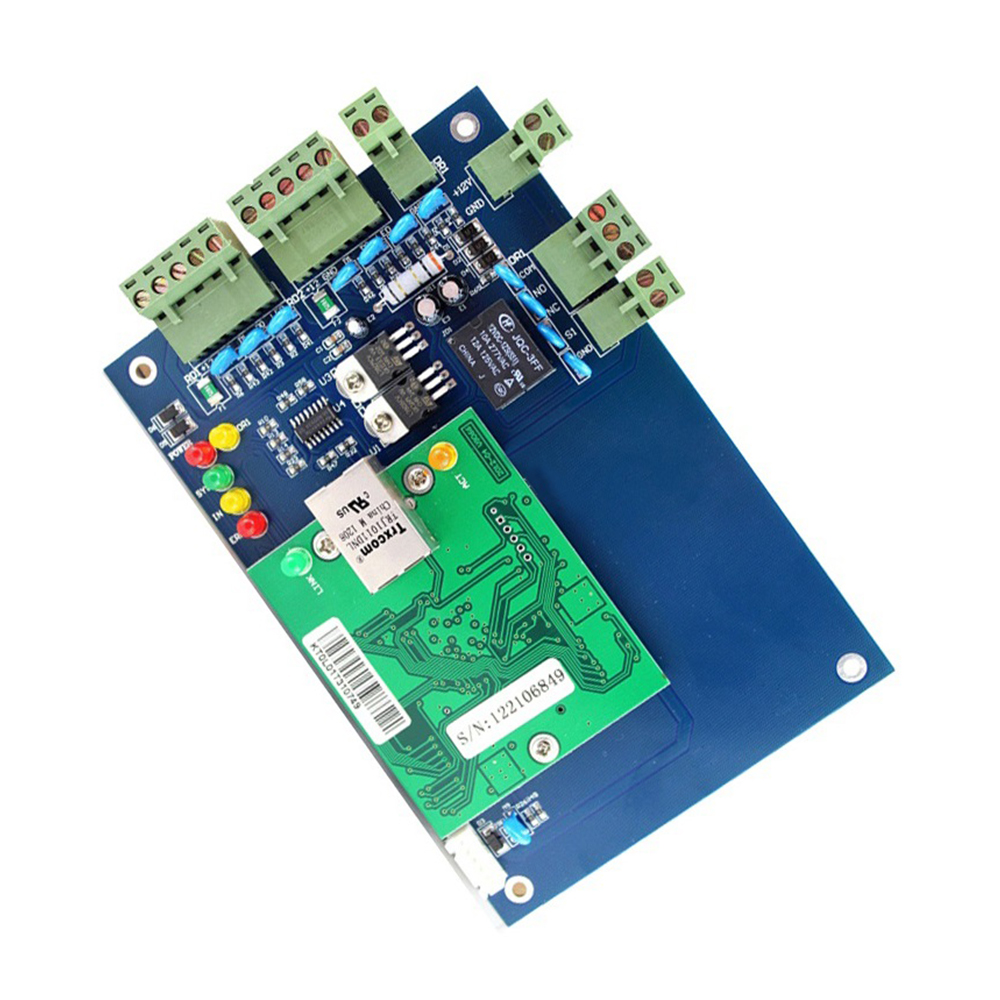

TCP IP Single Door Access Control Panel Wiegand 26 With Free Software

  • Special Features:None
  • Customized support:Customized logo
  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Model Number:ACB-001
  • Type:Home Safey
  • Product Name:Door Access Control Panel
  • Application:Security Access Control Management, Indoor, Outdoor
  • Warranty:18 Months, 1 Year
  • Material:Gold plated version
  • Communication:TCP/IP 10M/100M adaptive
  • Size of PCB board:160mm*106mm
  • Power Supply:12VDC 4-7A
  • Power Consumption of Circuit Board:Less than 100mA
  • Quantity of Readers:2 pcs
  • Certification:ce

Overview
Quick Details
Special Features:
Time & Attendance
Place of Origin:
Guangdong, China
Brand Name:
ACM
Model Number:
ACM-WEG01
Product name:
One Doors Access Control Board Door Access Control Panel
Card Capacity:
20000
Communication:
Wiegand
Transaction Capacity:
100000
Indicator:
Color LED Indicator
Panel size:
160*106mm
Communication Protocol:
TCP/IP, Wiegand 26 , Wiegand 34
Weight:
0.5kg
Power supply:
DC 12V
Keyword:
Access Control Solution System
Certification:
CE

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X15X10 cm
Single gross weight:
0.600 kg
Package Type:
one piece in one carton, 50 pieces in one carton
Picture Example:
Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 101 - 500 >500
Est. Time(days) 7 15 22 To be negotiated

Product Description

Entry Door Security System Wiegand Solution Controller Board TCP IP RFID Network One Door Access Control Panel

This access control board's software provides numerous access control and alarm monitoring features: expiry date for clubs,
automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

Product Parameter
Parameter Description
Model
WG01
User
40,000
Event Buffer
100,000
Power / Current
DC 9.6V-14.4V, Rated Max.1A
Reader Port
4ea (26bit Wiegand, 8bit Burst for PIN)
Communication
RS485, TCP/IP
Baud Rate
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port
6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)
Output Port
2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC)
LED Indicator
Yes, LED indication for communication, power, status and punch card
Operating Temperature
0to +55C
Operating Humidity
10% to 80% relative humidity non-condensing
Dimension (L*W)mm
218(W)*106(H)(single board )
345(W)*275(H)*70(D)(with power supply and metal box)
Certification
CE, FCC, RoHS

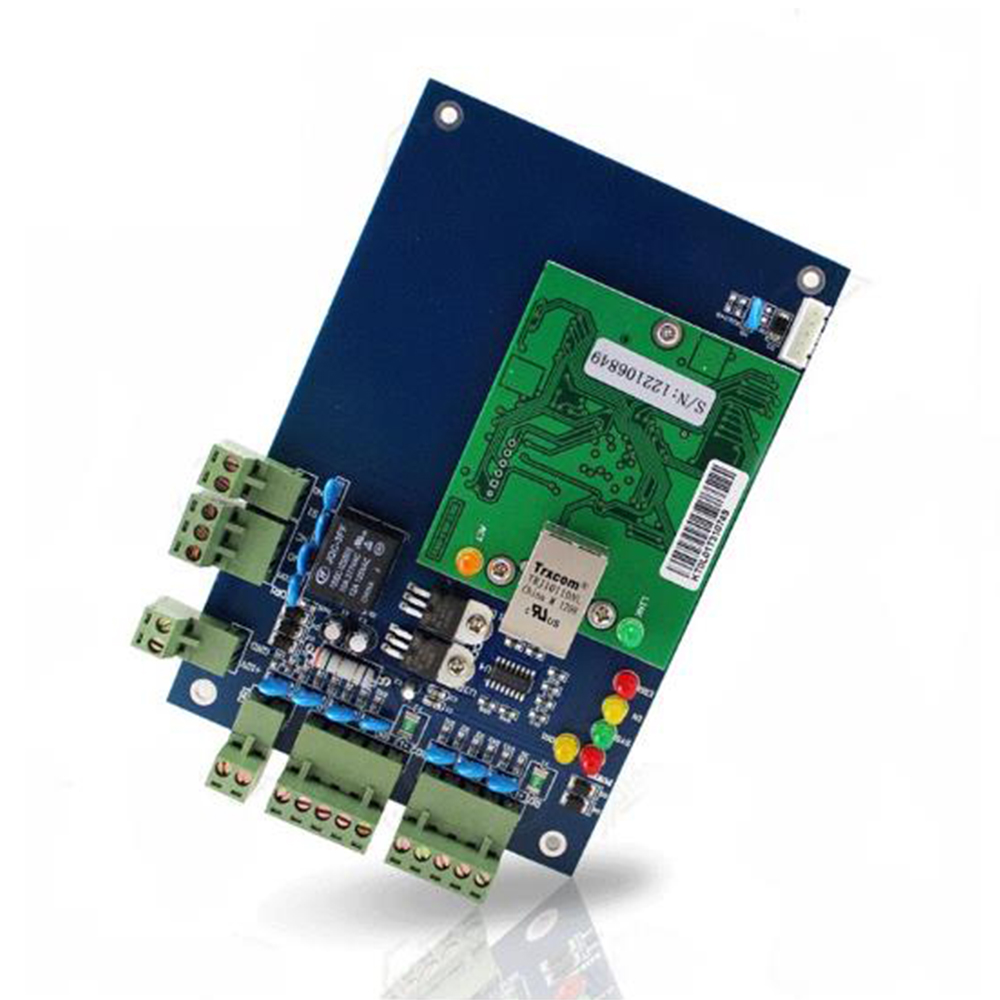

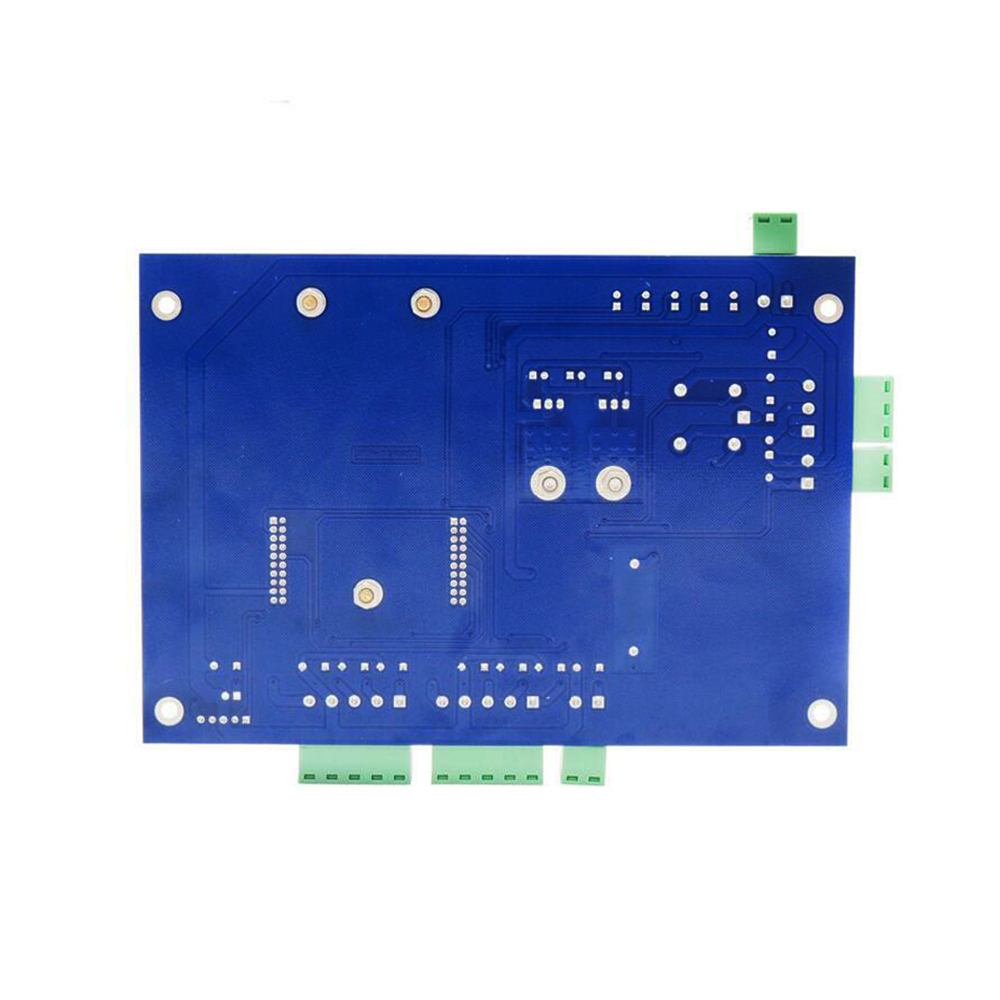

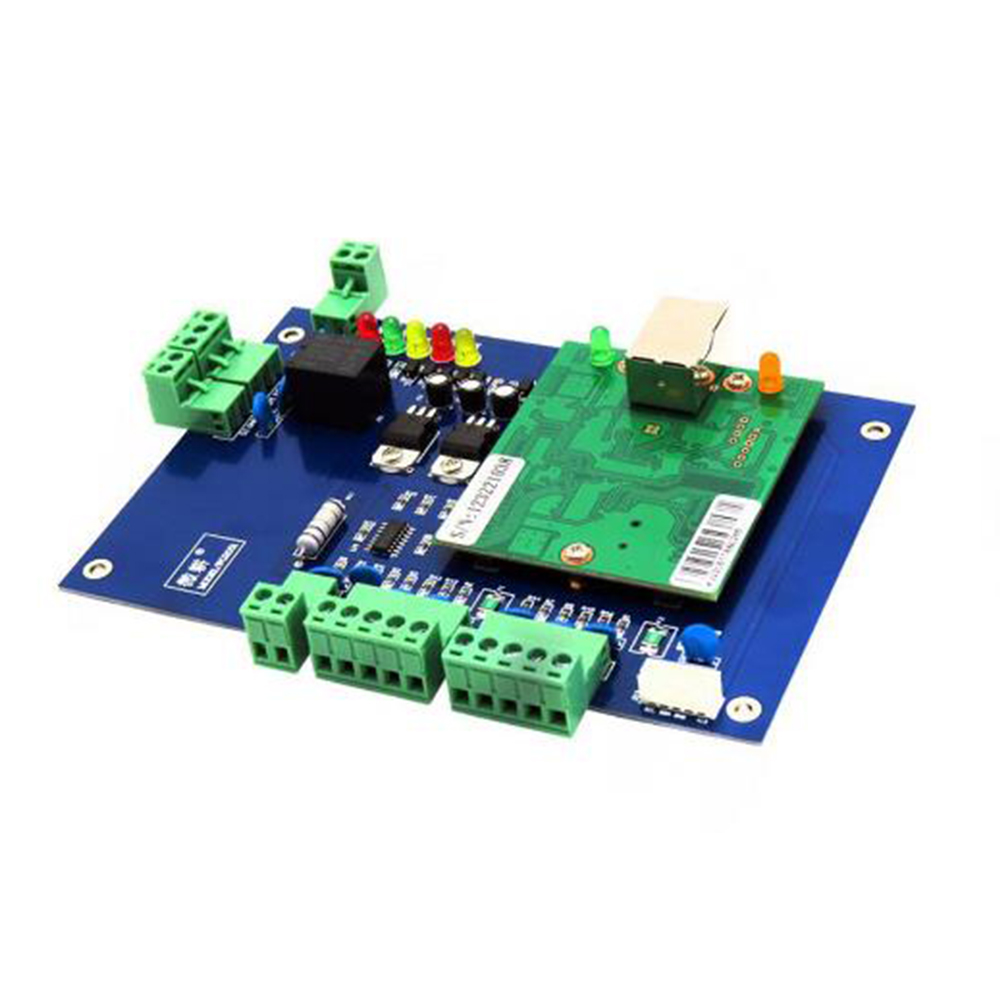

Detailed Images

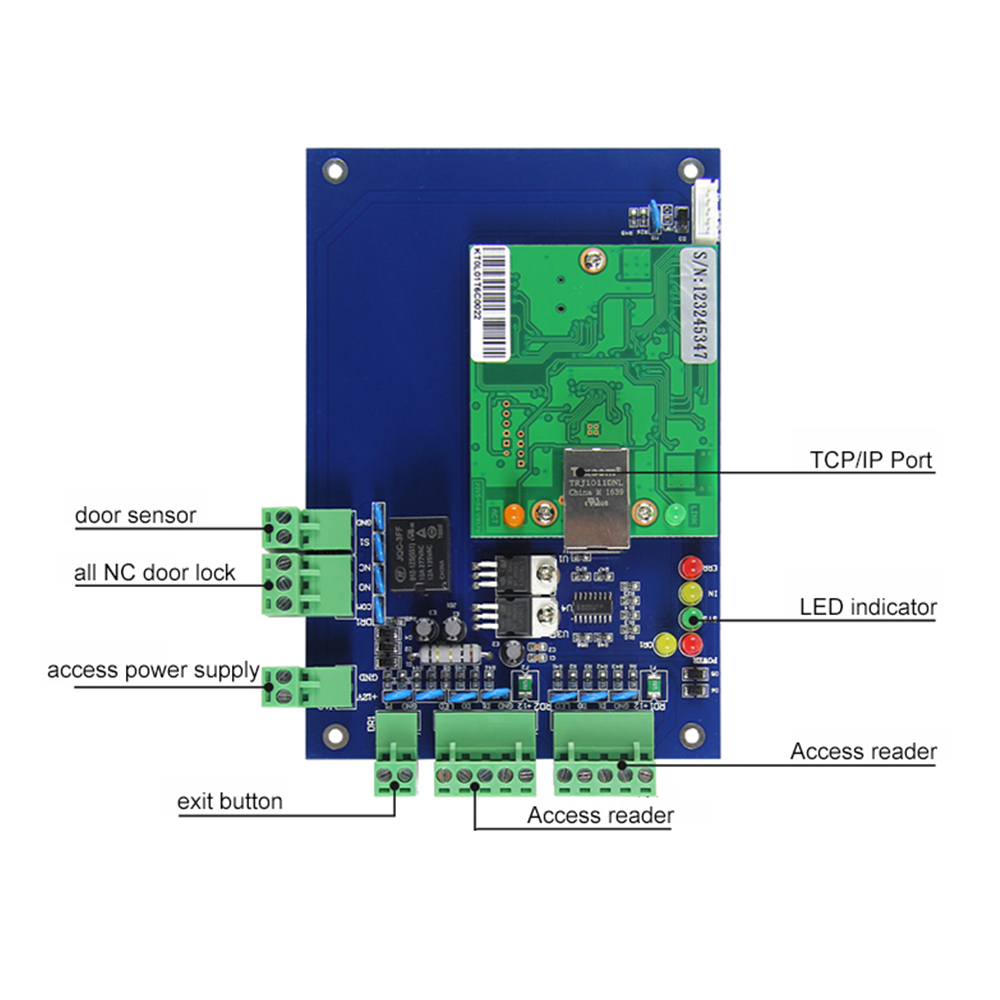

Hardware:
1. Support 1 doors--Door with four readers and one push button interface.
2. With door sensor for door
3. Relay output for use with Normally Open and/or Normally Closed type locks.
4. Can Opeate off-line and real-time monitoring.
5. 100,000 events can be stored.(off-line), Can store unlimited events to PC.
6. 40,000 users can be registered.
7. Network communication using TCP/IP 10M/100M adaptive.
8. Expandable to use unlimited number of controllers.
