Network Control BoardNetwork Control BoardNetwork Control BoardNetwork Control Board

Network Control Board

  • Brand Name:ACM
  • Model Number:ACM-WEG02
  • Product name:2 Doors Wiegand Rfid Card Access Control Panel Board
  • Communication Protocol:TCP/IP
  • Indicator:Color LED Indicator
  • Control Doors:2 door
Product Description

 TCP/IP double door control board multi door access controller network door access control

        Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks.               The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.

Product Parameter
Parameter Description
Description
Control 2 door, get in by card and get out door by exit button
Communication
TPC/IP
Door Controlled
1-Door/2-Door/4-Door
Support Reader type
Weigand 26
Software Language
English
Max qty of the software supported
Limited
Max Distance from Reader to Controller
100m (suggestion distance 80m)
Max Distance between Controllers
TCP/IP: Depends on net coverage area
Read data
Keypad (card+passwor, supper password)
Open door method
Open door in remote distance
Open too long alarm
Yes
Multi card open
Yes
Timing open or close
Yes
Emergency open or close
Yes
Keypad password
Yes
Force open alarm
Yes

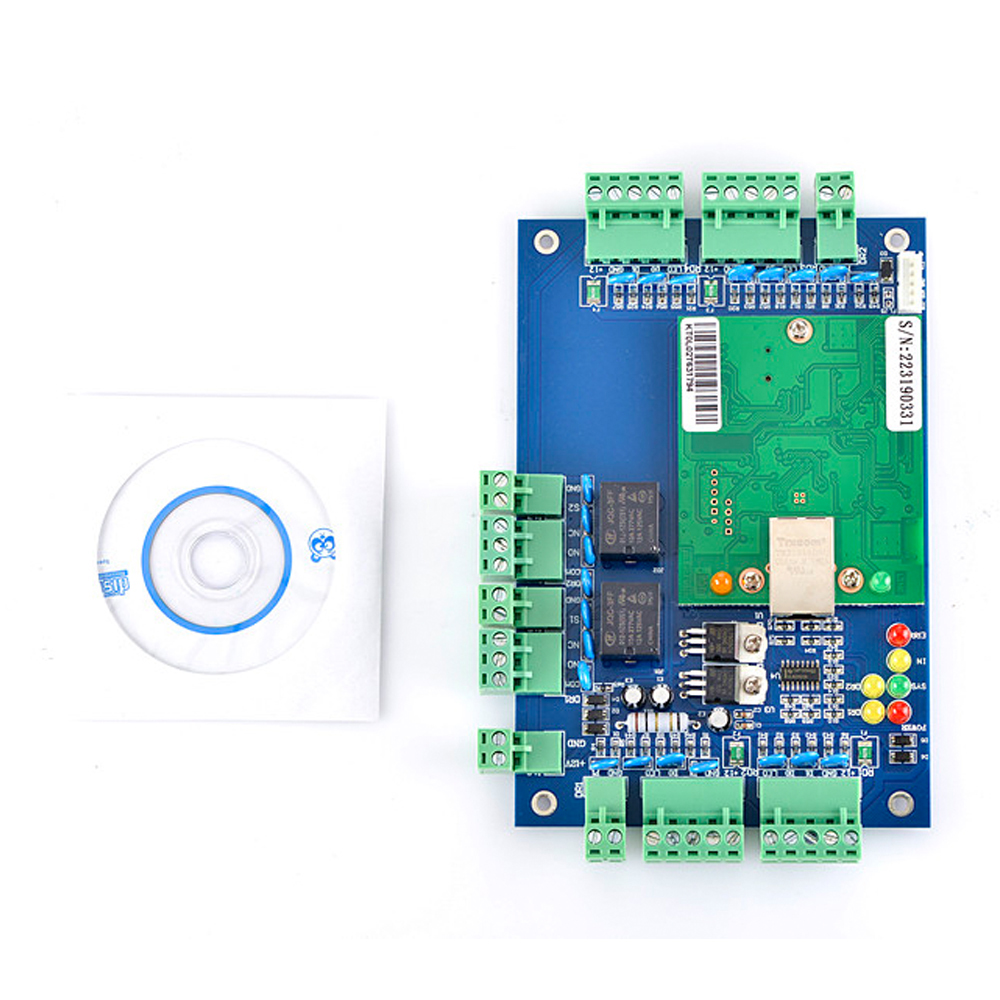

Detailed Images

    This access control board's software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

Picture below is the design file for two doors access control panel.

Application

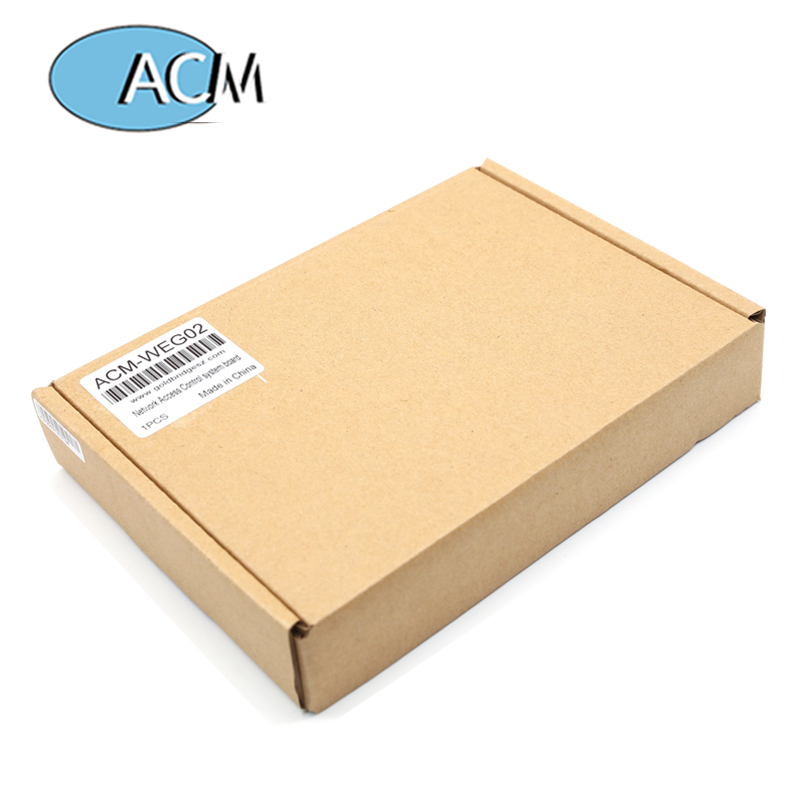

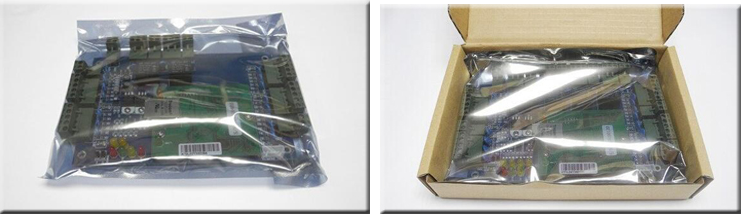

Packing & Delivery
