Outdoor Smart Door Lock Kit Wireless Fingerprint Reader Access Control System

  • Special Features:Waterproof / Weatherproof, Wireless Access Kit
  • Keyword:Wireless Fingerprint Lock Kit
  • Card Type:125Khz EM Card
  • Working Mode:Access control
  • Material:ABS
  • Working Temperature:-40oC-60oC
  • Power Supply:Battery
  • Communication distance:50m Max
  • Remote transmitter power:1 unit of 2032 Lithium battery
  • Warranty:3 Years
Product Features:

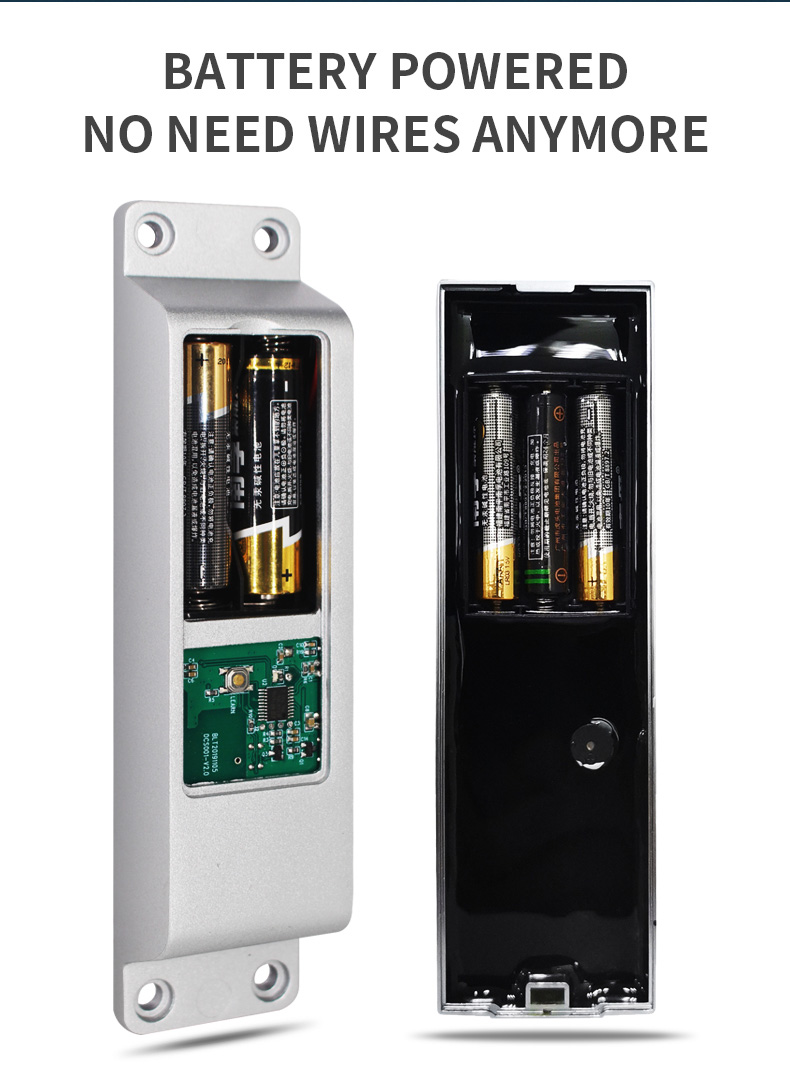

> All wireless, no need wires any more
> Easy for installation and operation
> Open times: 16,000 times for lock, 10,000 times for keypad
> 433MHz Rolling Code technology
> Ultra low power consumption

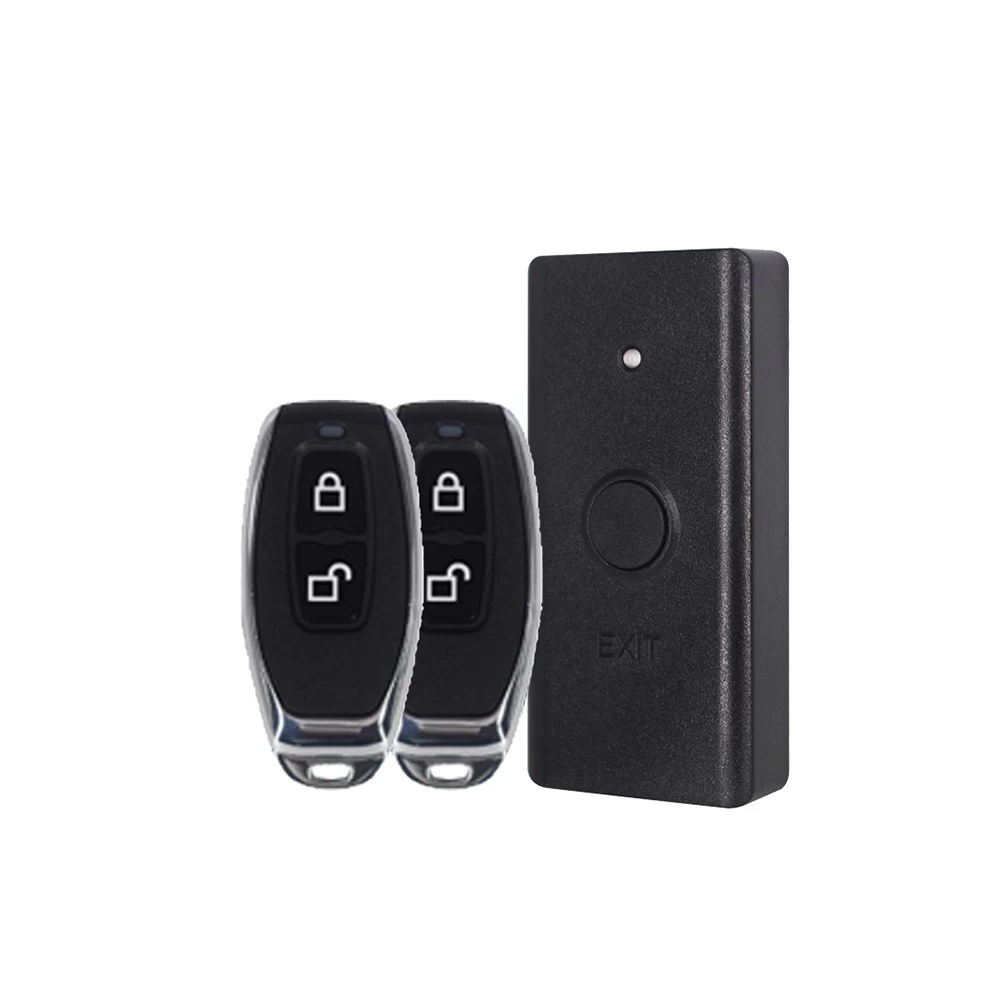

> With two remote transmitters
> Metal Wireless Fingerprint Keypad (IP65)

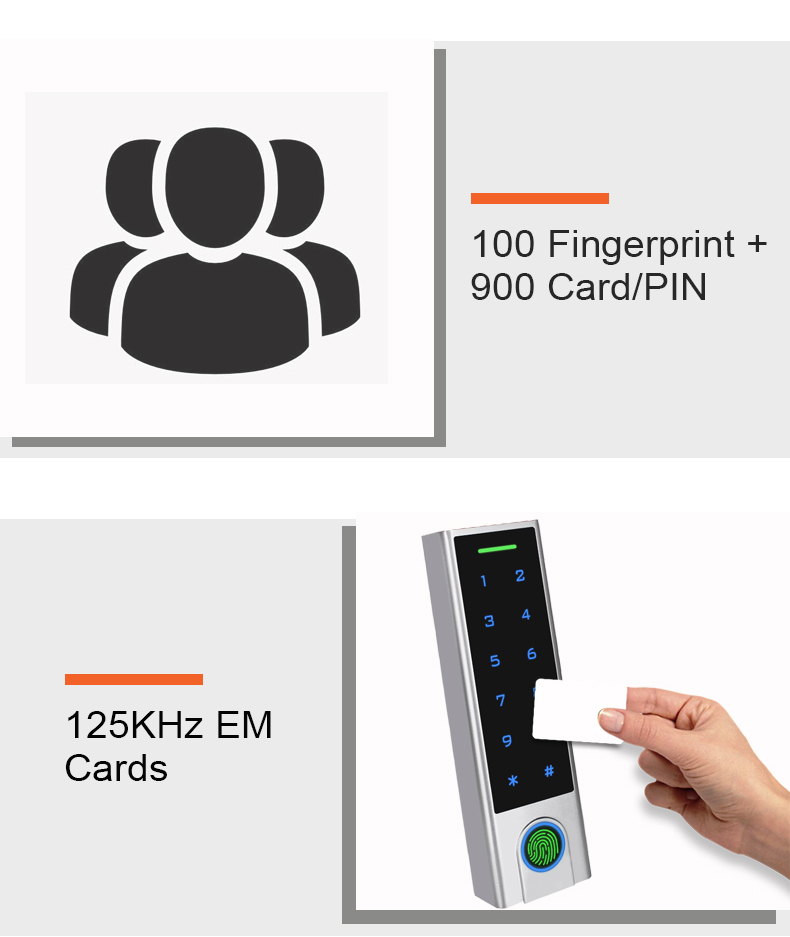

> 1000 Users (including 100 fingerprint users + 900 PIN / card users)

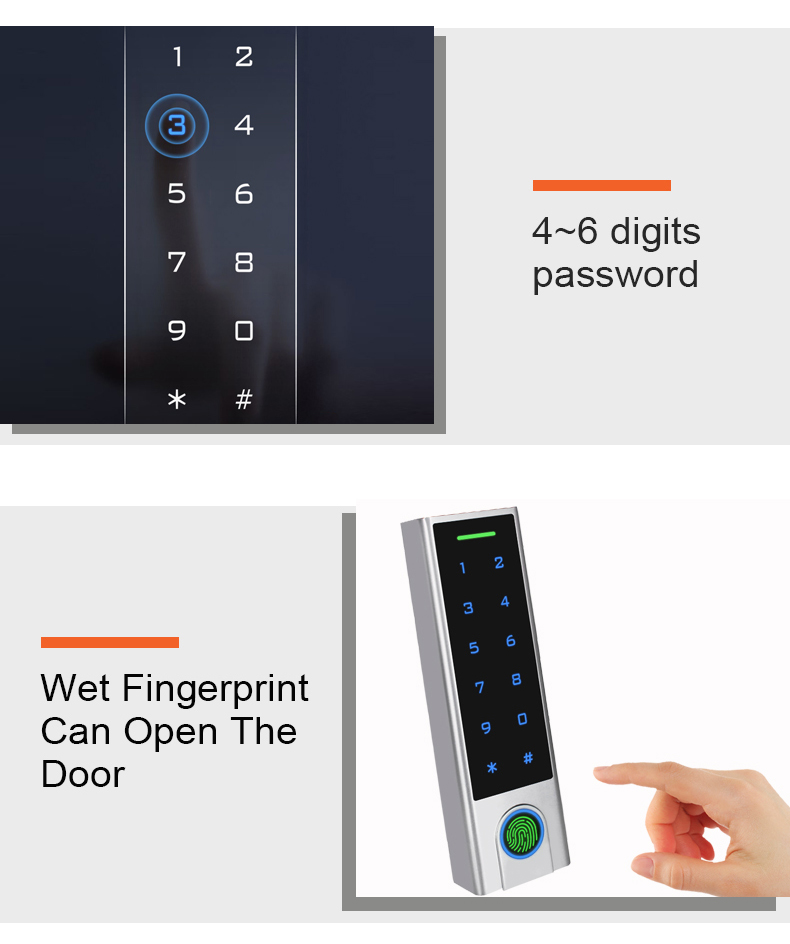

> 4~6 digits PIN, 125KHz EM card
> Communication distance: 20M max

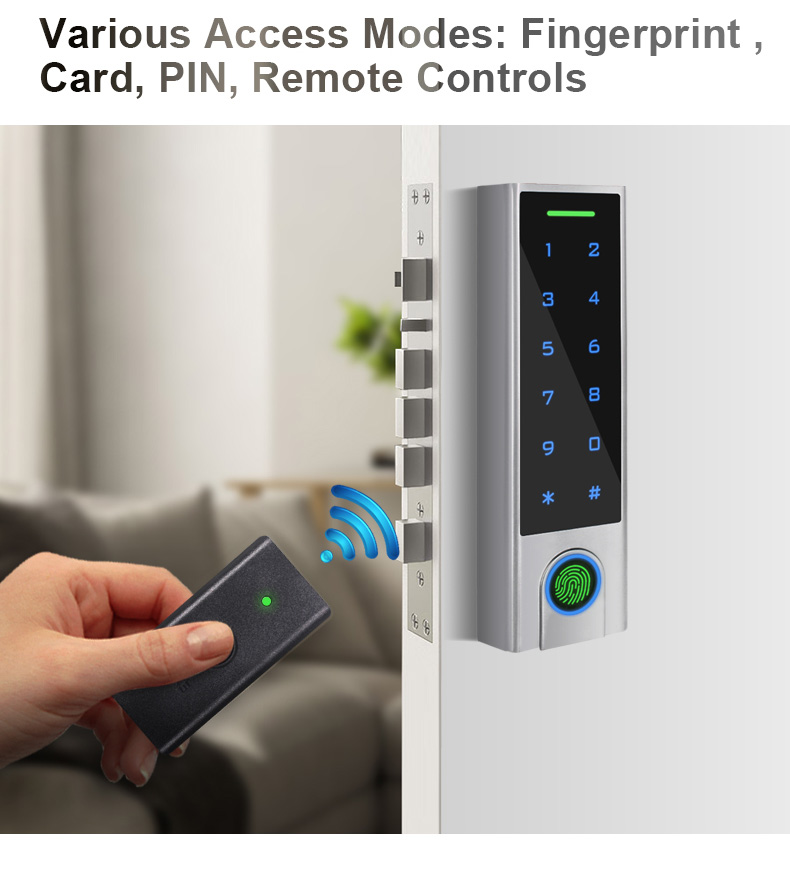

> Open the lock by fingerprint keypad, wireless exit button and remote transmitters
> Battery life: more than 12 months

User Capacity
PIN Length
Card Type
1000 Users (including 100 fingerprint users + 900 PIN / card users)
4-6 digits
125KHz EM card

Operating Voltage

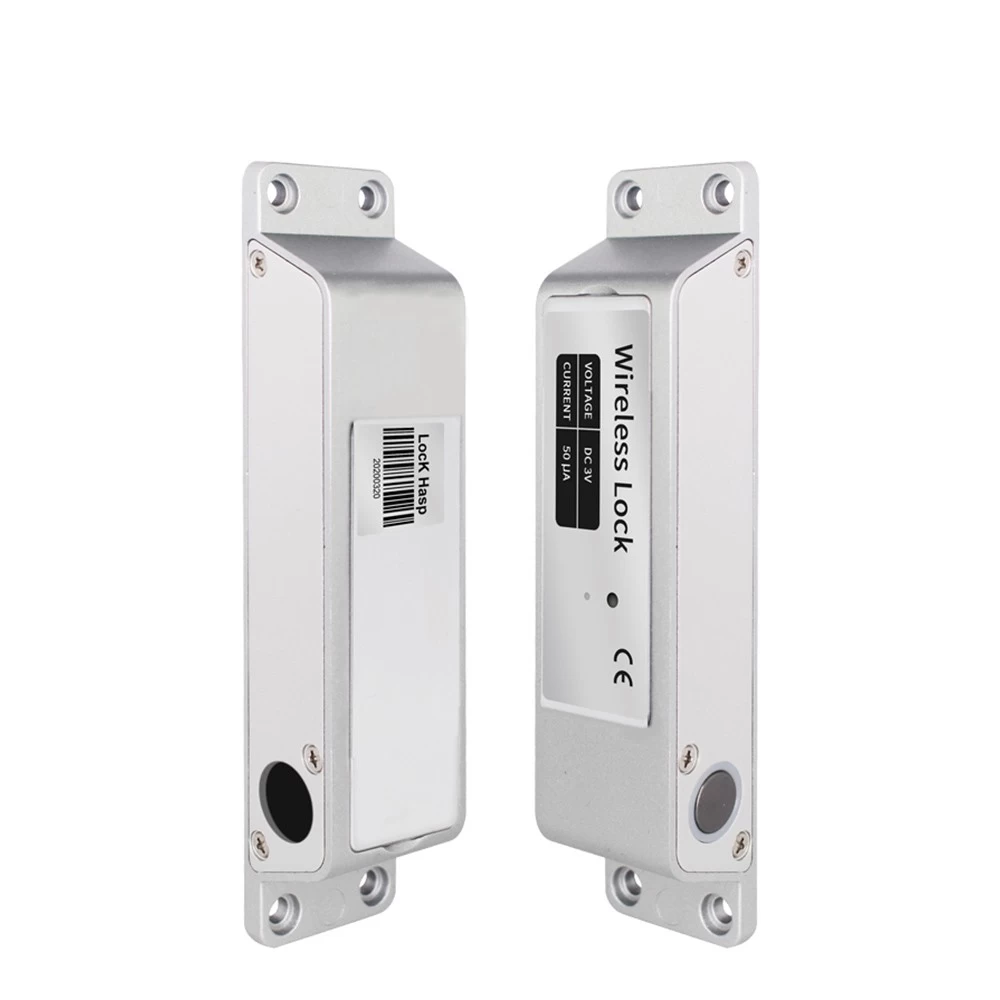

Wireless Lock
Wireless Fingerprint Keypad
Wireless Exit Button

Remote Transmitter

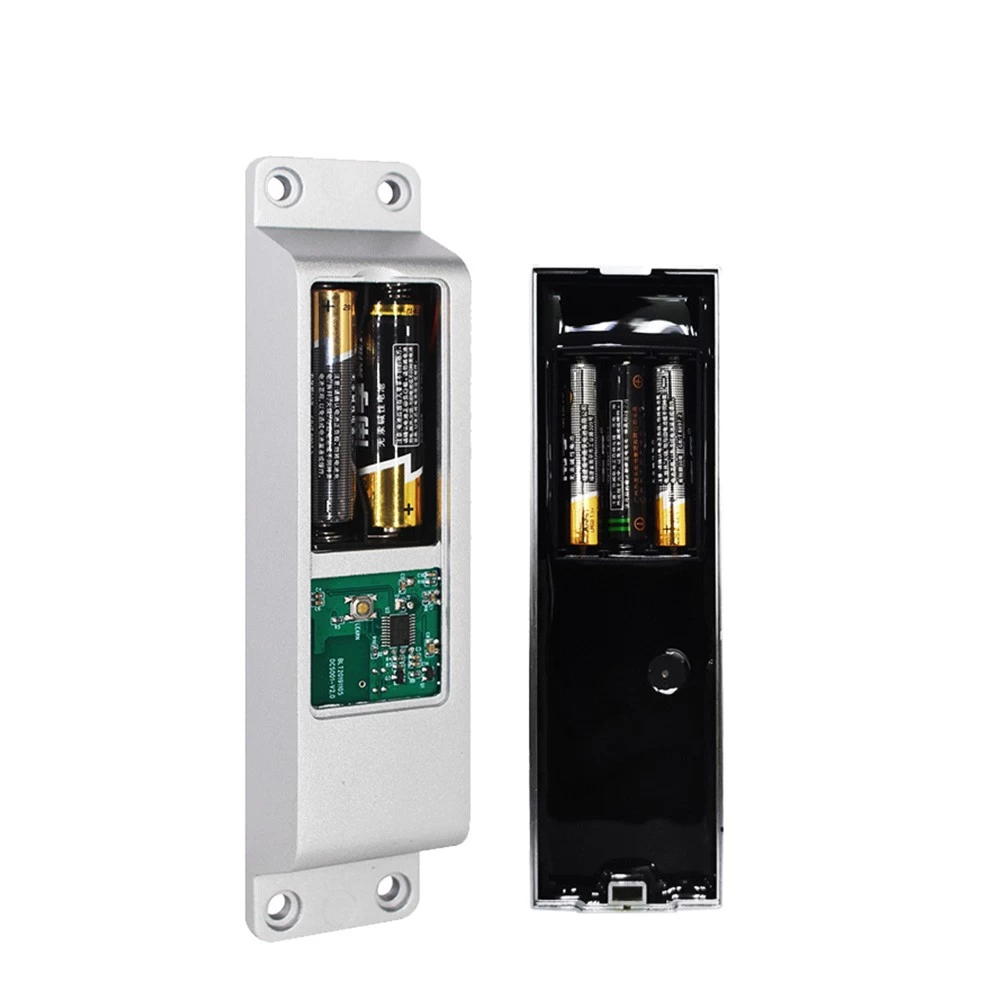

2 units of AA batteries

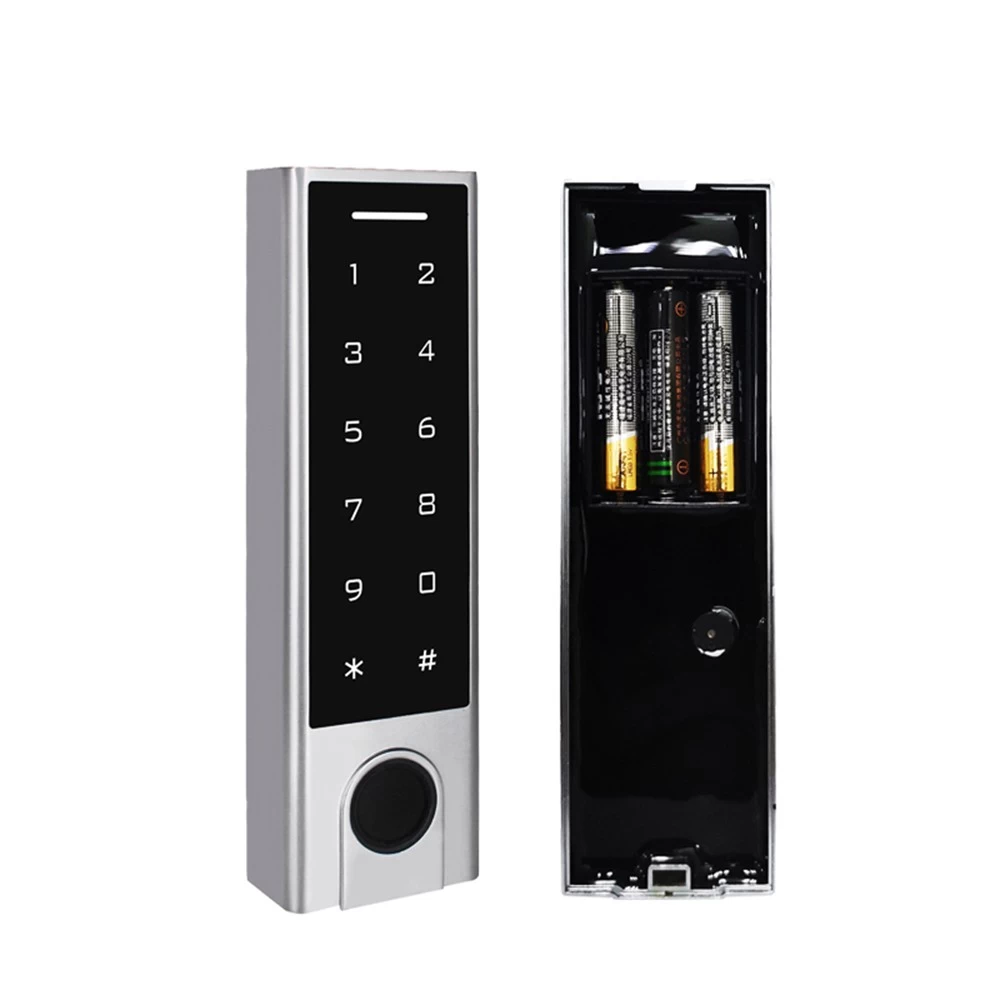

3 units of AAA batteries

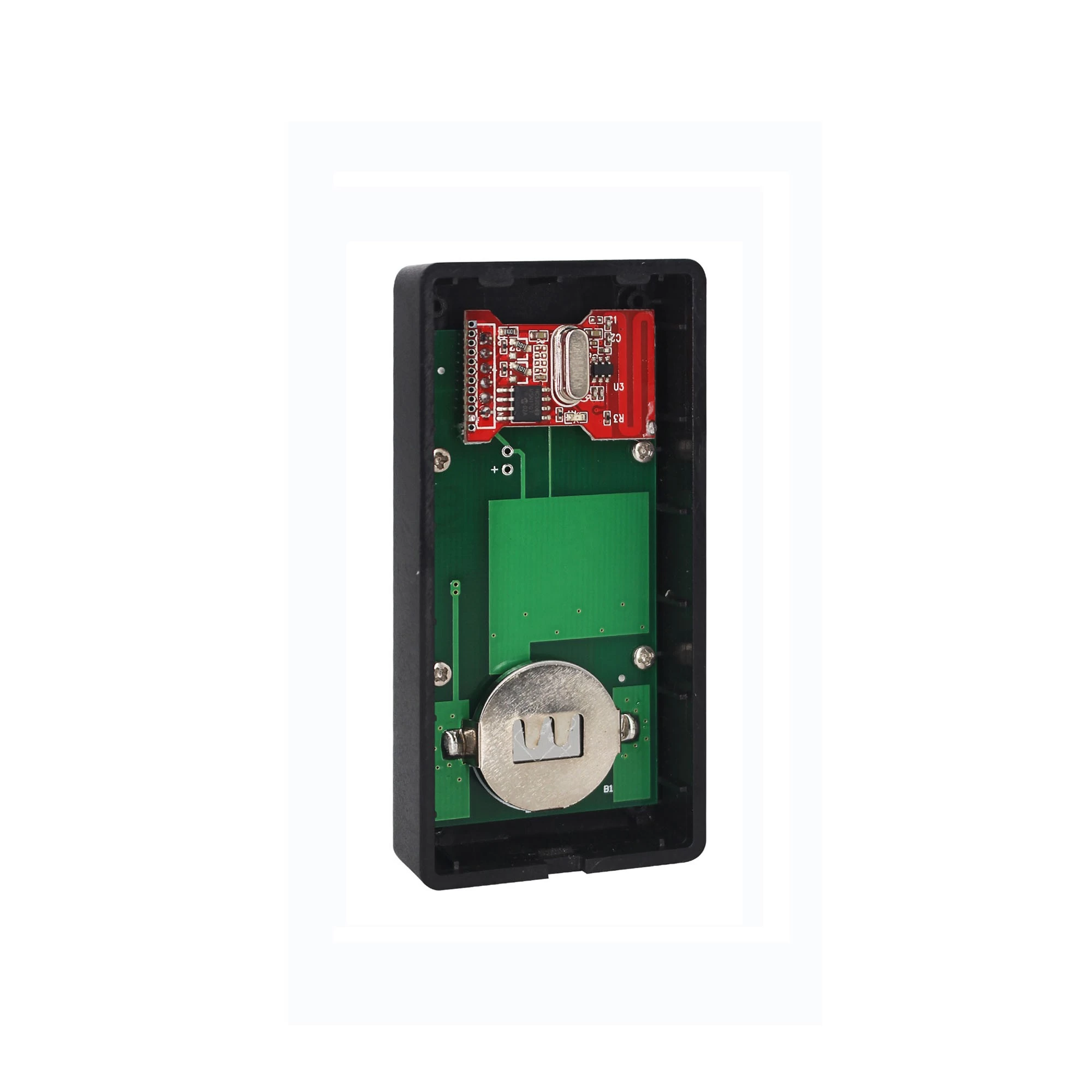

1 units of 2032 Lithium battery

1 unit of 2032 Lithium battery

Idle Current

All items < 10uA

Working Current
Wireless Fingerprint Keypad

Wireless Lock
Wireless Exit Button

Remote Transmitter



< 50mA
< 42mA

< 3mA
< 3mA

Communication Frequency

433MHz

Communication Distance

20m Maximum

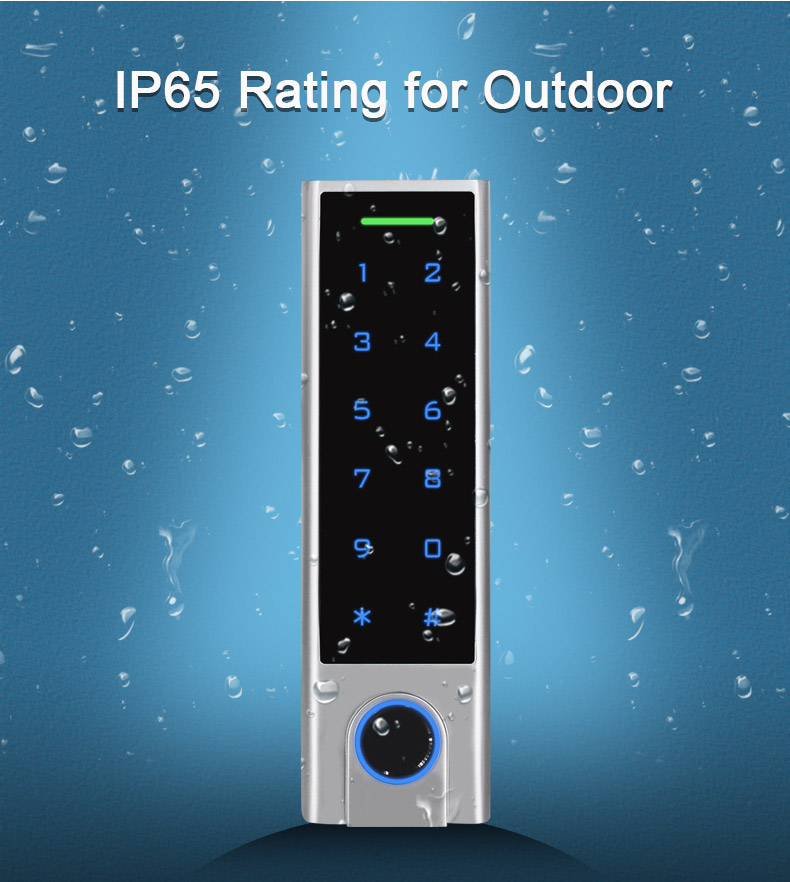

Working Temperature Outdoor, IP65 (Fingerprint Keypad)

Operating Temperature

Wireless Lock
Wireless Fingerprint Keypad


-20°C~+60°C (-4°F~+140°F)
-20°C~+60°C (-4°F~+140°F)

Operating Humidity

0%~86%RH

Physical

Wireless Lock
Wireless Fingerprint Keypad

Others



Zinc-Alloy
Zinc-Alloy

ABS Shell

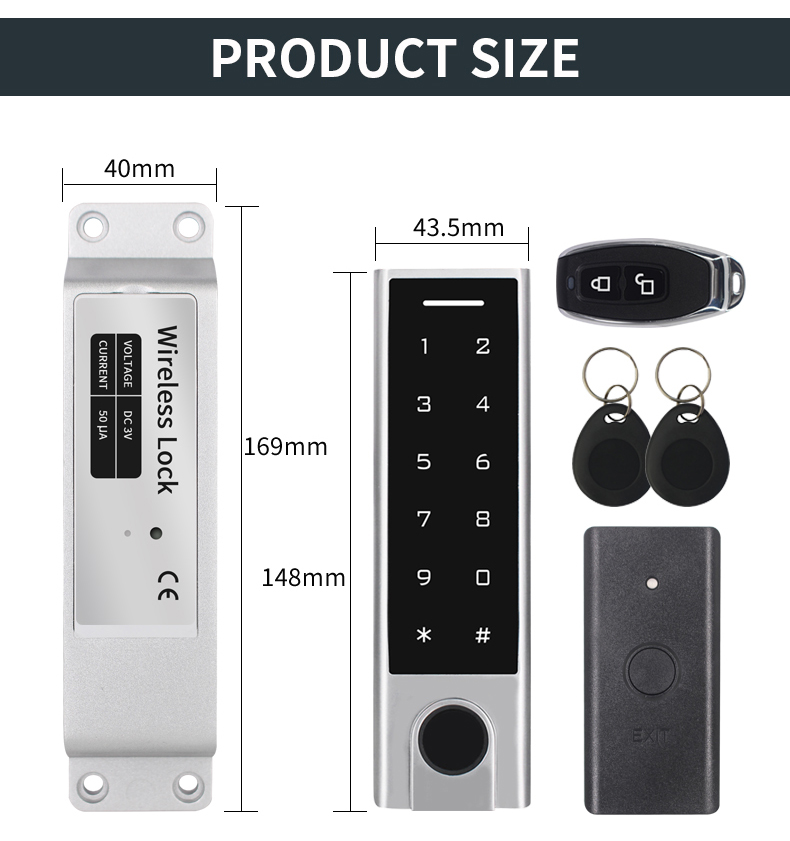

Dimensions

Wireless Fingerprint Keypad
Wireless Lock
Wireless Exit Button

Remote Transmitter



L149 * W43.5 * H22 (mm)
L170 x W39 x D25(mm)
L83 x W40 x D16(mm)

L62 x W30 x D11.5(mm)

Unit Weight

Wireless Keypad
Wireless Lock
Wireless Exit Button

Remote Transmitter

780g

300g
400g
30g

25g/pc
