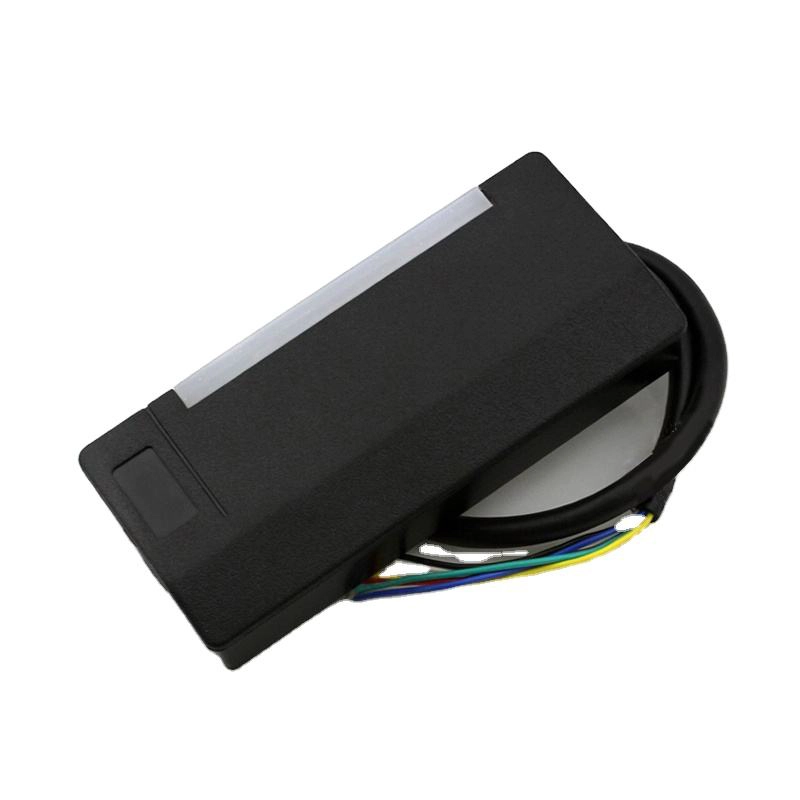

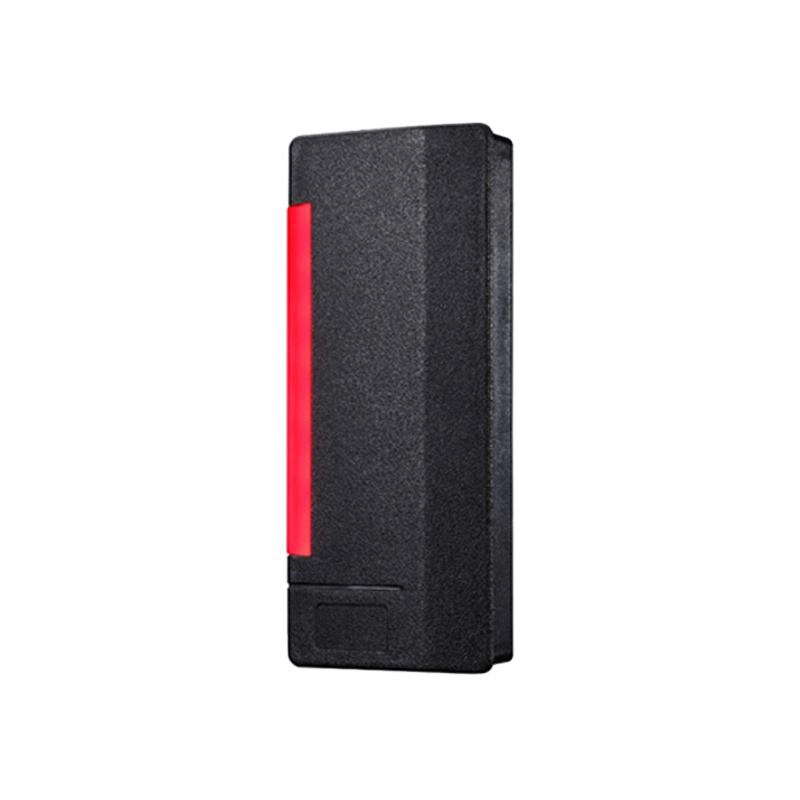

Proximity Reader Access Control Systems 125KHz or 13.56MHz RFID Card Reader
Model No.: RF003 EM, MF
Introduction:
RF003E: 125KHz Proximity card reader
RF003M: 13.56MHz 13.56Mhz card reader
Features:
> 125KHz Proximity /13.56MHz 13.56Mhz Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
|
Model
|
RF003EM and RF003MF
|
|
Read Range
|
RF003EM: Up to 10CM, RF003MF: Up to 5CM
|
|
Reading Time (Card)
|
≤300ms
|
|
Power / Current
|
DC 6-14V / Max.70mA
|
|
Input Port
|
2ea (External LED Control, External Buzzer Control)
|
|
Output Format
|
26bit/34bit Wiegand (default)
|
|
LED Indicator
|
2 Colour LED Indicators(Red and Green)
|
|
Beeper
|
Yes
|
|
Operating Temperature
|
-20° to +65°C
|
|
Operating Humidity
|
10% to 90% relative humidity non-condensing
|
|
Colour
|
Black
|
|
Material
|
ABS+PC with texture
|
|
Dimension(W x H x T)mm
|
110X86X18mm
|
|
Weight
|
50g
|
|
Index of Protection
|
IP65
|
