RS485 Double Door Access Control Panel
|Parameter||Single Door Control Panel||Multi Door (2) Control Panel||Multi Door (4) Control Panel|
|Communication||TCP/IP and RS485||TCP/IP and RS485||TCP/IP and RS485|
|Description||Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button||Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button||Control 4 doors, get in the door by swiping card, and get out door by button|

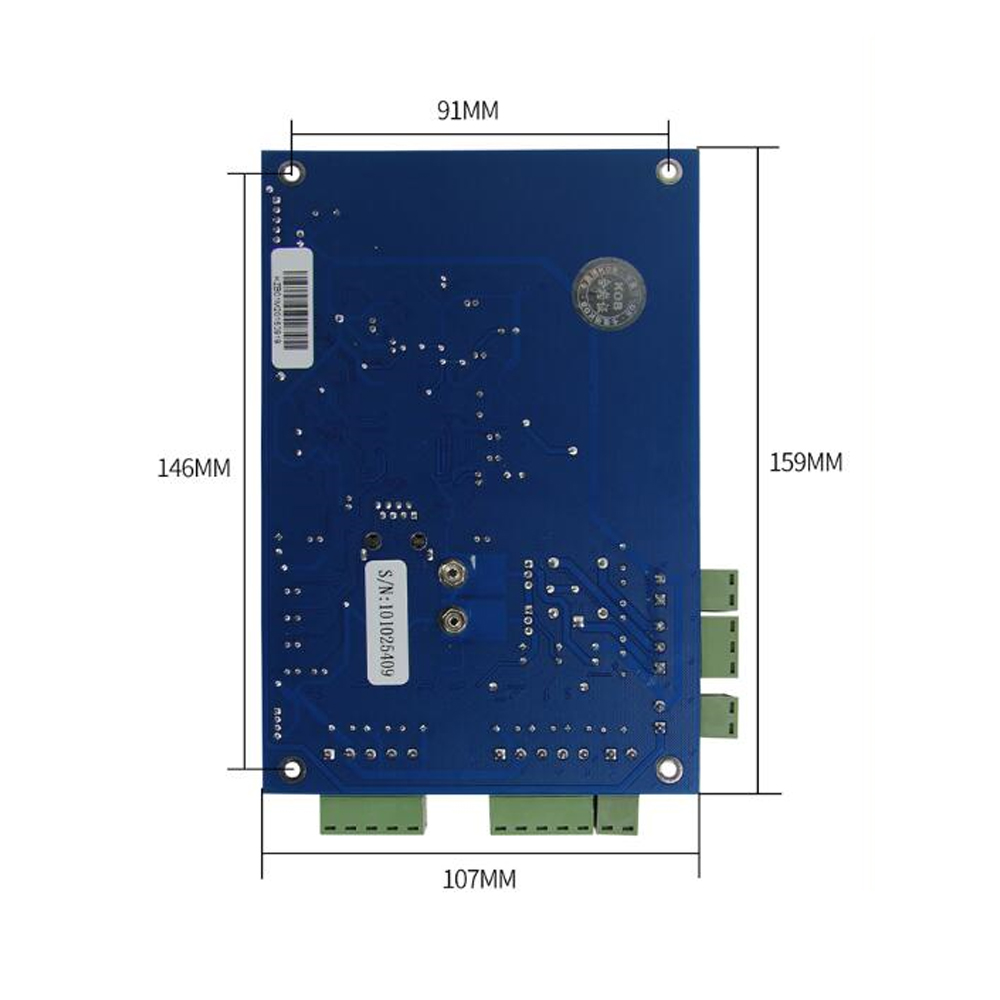

|Size of PCB board||160mm *106mm||160mm *106mm||218mm *106mm|
|Size of Case||273mm*228mm*65mm|
|Power Supply||12VDC 4-7A|
|Power Consumption of Circuit Board||Less than 100mA|
|Input Format of Reader||Wiegand 26 (All card reader with compatible protocol, such as Motorola ,HID,EM,Mifare one etc)|
|Quantity of Readers||2 pcs||4 pcs||4 pcs|
|Door Controled||1 door||2 doors||4 doors|
|Door opening time extending setting||1-600 seconds(adjustable)|
|Max q ' ty of controller||No limit|
|Operation Humidity||10-90 % RH , No Condensation|
|Q ' ty of users||20,000 Users|
|Q ' ty of Event Buffers(offline)||100,000 event buffers|
|Power interruption protection measure||High Speed Memory, Records never lose|
|Max Distance from Reader to Controller||100m (suggestion distance 80m)|
|Max Distance between Controllers||TCP/IP: Depends on net coverage area|
|Package included:||PCB board, software, manual, certificate. carton|
|Alarm for long time door open, ilegal break in, intimidate||Yes|
|Fire and alarm linkage||If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm, Model is ACB-EA05|
|Complsive open and close door at long time||Yes|
|Open door in remote distance||Yes|
|Anti pass back and tail||Yes||Yes||Yes|
|Multi-card open door||Yes|
|Open long time at specified time||Yes|
|First card unlocking||Yes|
|Unlock based on internal and external validation||Yes|
|Keypad (card+passwor, supper password)||Yes|
Every order we will check the quality firstly to ensure our customer get the best product.
Our staff will pack it carefully to avoid the damage of transportation.
We will ship every goods out as soon as possible.
We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, ccontact us now!!
We are looking forward to forming successful business relationships with new clients around the world in the future.
It can control 1 door.
It can control 2 door.
It can control 4 door.
No touch Door Realese Exit Button with led
Surface mounted magnetic lock (180kg)
Power supply 5A for access control
Touch Keypad RFID Access Control 12khz
Metal Waterproof RFID Wiegand Access Control
125Khz EM Card RFID Reader Size: 115mm×75.5mm×16.8mm
