ACM26E-EM RFID card reader with Wiegand / RS232 interface. 125 kHz RFID readerACM26E-EM RFID card reader with Wiegand / RS232 interface. 125 kHz RFID readerACM26E-EM RFID card reader with Wiegand / RS232 interface. 125 kHz RFID readerACM26E-EM RFID card reader with Wiegand / RS232 interface. 125 kHz RFID reader

ACM26E-EM RFID card reader with Wiegand / RS232 interface. 125 kHz RFID reader

  • Model number: ACM26E-EM
  • Product name: Rfid smart card reader with Wiegand / RS232 125khz rfid interface
  • Frequency: 125KHz
  • Interface: Wiegand
  • Reading range: 5 ~ 10 cm
  • Dimensions: 126mm * 76mm * 23mm
  • Black colour
  • Working current: 70 mAh
  • Power consumption: DC12V
  • Operating temperature: -25 - 75 ℃
  • Operating humidity: 10 - 90%
Product description

RFID reader with TCP / IP protocol for LAN / wall-mount RFID reader

Response speed less than 0.2 seconds

Less than 0.5 seconds Distance of proximity time

Supports the EM 4100 ID card or compatible with it (64 bit, Manchester code) and MF1 Card (13.56 MHz frequency)

* Built-in antenna

* Built-in LED (dual color LED)

* Built-in speaker (buzzer)

* Communication distance of 100 meters

* PVC case material (black resin for water-proof function)

Card reader speed
0.2 / s
Frequency
125kHz
Operating temperature
-25 - 75 ℃
Operating humidity
10 - 90%
Working voltage
DC 12V
Working current
70mAh
Read range
5 ~ 10 centimeters
Color
black
dimensions
126mm * 76mm * 23mm

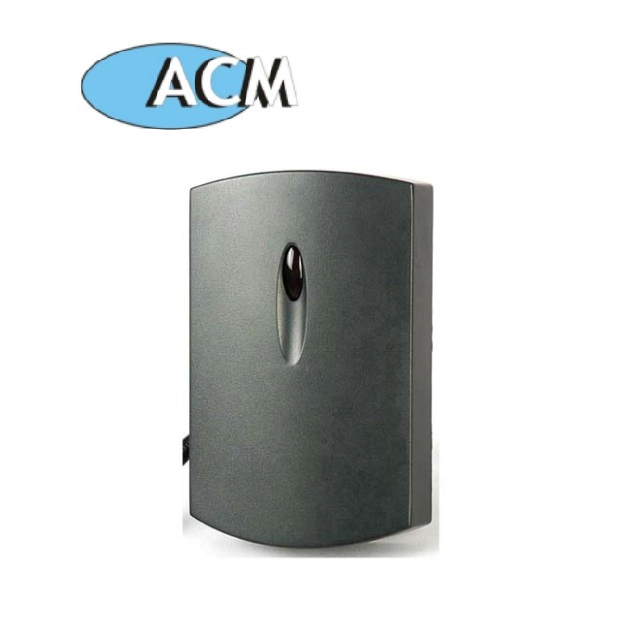

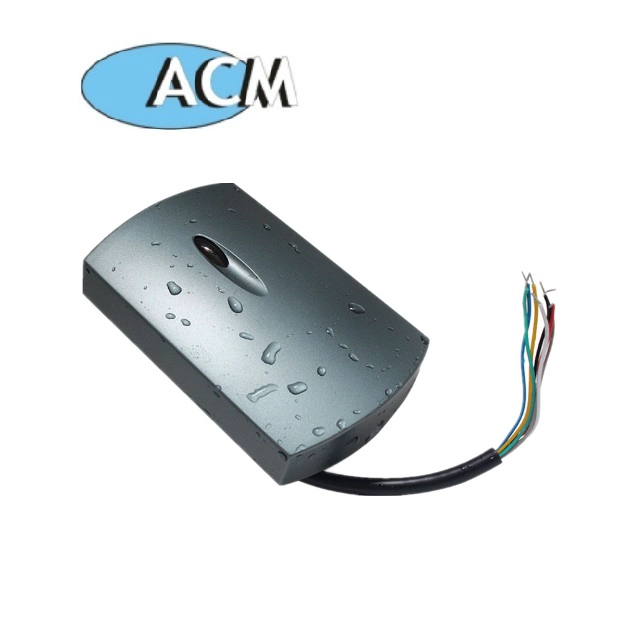

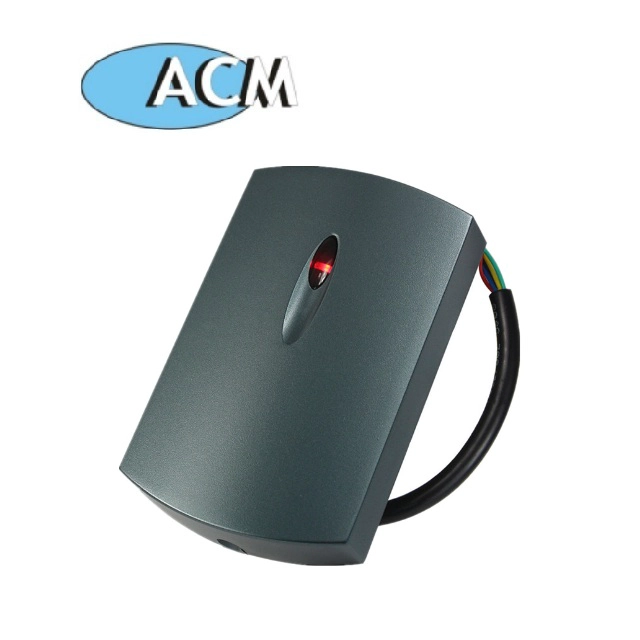

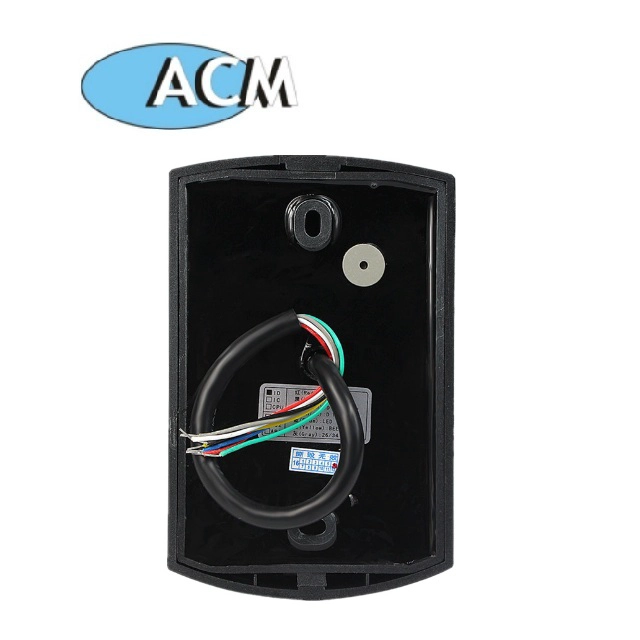

Detailed images
Packaging & Delivery

            RFM reader ACM08N

125Khz / MF1 USB Desktop Reader


      UHF RFM reader ACM812A

UHF reader from 2 meters ~ 5 meters, Wiegand
26 outputs, RS232 / 485

       Long range RFID reader ACM26C 125khz

Long distance reader EM 125Khz 70cm-
1 meter away

          RFM card ACM-EMI-S

Proximity card EM 125Khz
Size 86 * 54mm

            RFID card ACM-MF1

MF1 Compatiable Card.

Size 86 * 54mm

            ACM-ABS003 Remote control

Keychain 125 khz EM / 13.56 mhz, optional color: blue, red, black, yellow, gray, green
