Rolling code HCS301 four buttons RF remote control garage door openers

Model Number:AG076
Material:ABS, Plastic And Silicone, metal, Plastic and zinc alloy
Code:Rolling Code, Fixed Code, Learning Code, Copy Code Optional
Button:4 Buttons
Function:Automatic
key words:home automation system
Working voltage:12V27A
Distance:50~100m
LED color:red, blue, green
Dimension:55*31.4*12.7mm
buttons:4 buttons
Use range:Home alarm /car alarm and industrial appliance

Product Description

It is designed with small size, beautiful exterior , Sound wave resonator (SAW) is used for stabilizing frequency, It is applied for wireless alarms, wireless controlling devices,etc.
Using High stability, SMT components, SAW (sound wave resonator),Optional for encoding IC.

RF Remote Control Transmitter Features / Technical Specifications:

      Frequency

       315Mhz/ 433Mhz/868Mhz/can be customized from 250MHz to 450MHz

       Frequency deviate

       ±150KHz

       Chip

      A.Common code:Learning code (1527,2240,HT6P20B,HT6P20D etc.)

                                     Fixed code (2260,2262,2264,2272 etc.)

                                     Hopping code (HCS301,HCS300,HCS200 etc.)

      B.copy code: can copier fixed code and learning code remote control also can copier parts of rolling code remote

      Working Volt

      12 V

      Working Current

      12 mA

      Transmitting Distance

      50-100 m

      Frequency Modulation

       AM / FM

      Warranty
      1 year

      Certification
      CE  ROHS

      Working Temperature

       -50°C~+80°C

      Others

       flashing LED color can be choice;battery and key chain included

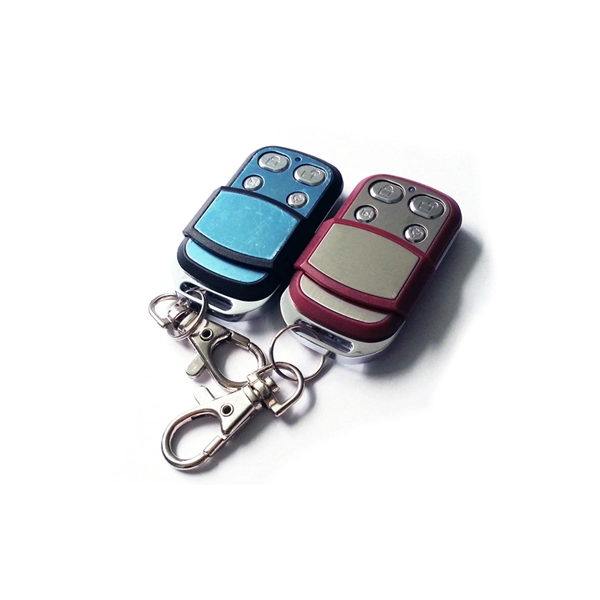

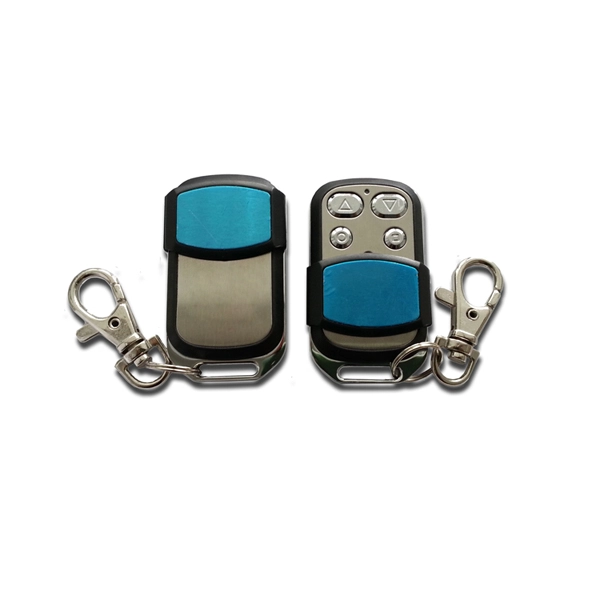

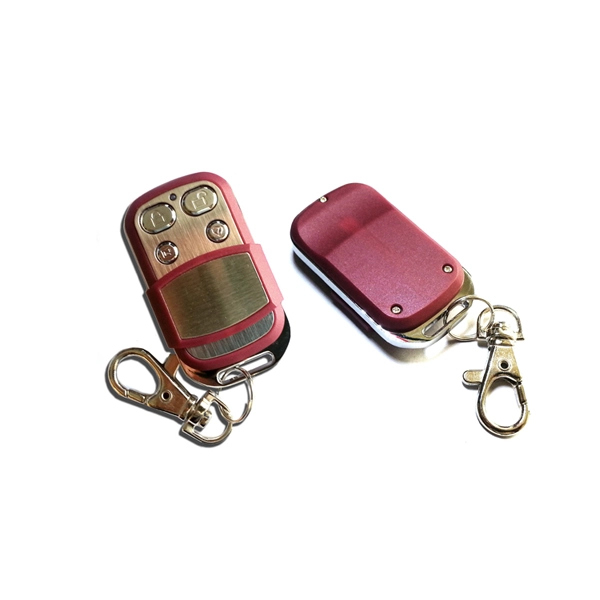

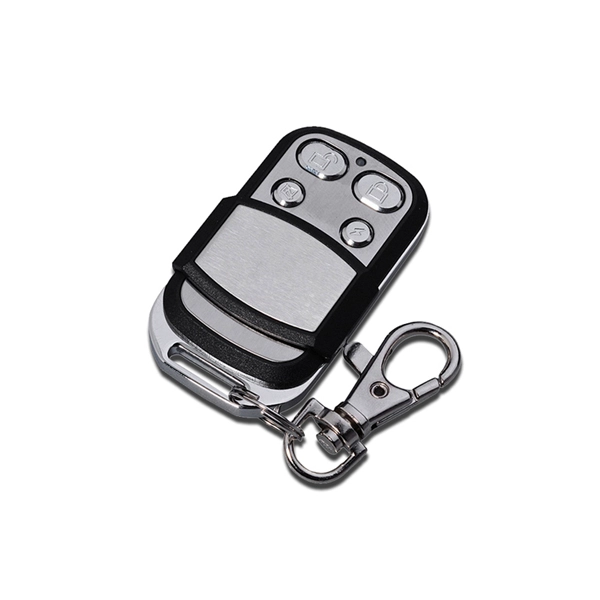

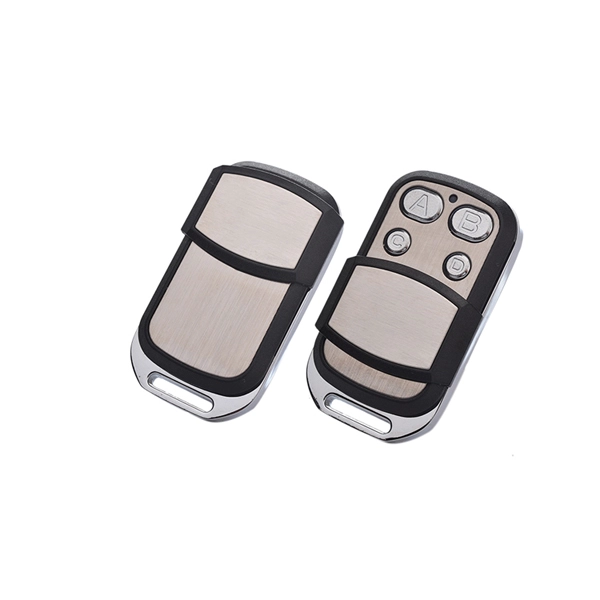

AG076 pictures

 Application Scope:
Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
