Security Door Access Control Keypad Stand-Alone Keypad Waterproof Door Lock Keypad Controller Zinc Alloy Metal

  • Special Features: WG26 or WG34 input and output
  • Customized support: OEM, ODM, Customized logo
  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Model Number: Rfid Keypad Door Access Control
  • Type: Other
  • Item Name: Rfid Keypad Door Access Control
  • Working Voltage: DC12-24V
  • Capacity: 2000 users
  • Card Reading Distance: 1~3cm
  • Standby Current: ≤30mA
  • Door Relay time: 0~99S(Adjustable)
  • Working Temperature: -40℃~60℃
  • Working Humidity: 10%~90%
  • Dimension: 114x75x16mm
  • Wiegand Interface: WG26 or WG34 input and output
Product Description

Security Door Access Control Keypad Stand-Alone Keypad Waterproof Door Lock Keypad Controller Zinc Alloy Metal

This is ACM Industrial Co.,Limited.
We are professional supplier for high quality access controller at competitive price.

Here are our main categoties below:_

- Access Control Panel
- Standalone Access Controller(keypad/smart card/fingerprint/face)


- Facial & Fingerprint Time Attendance and Access Control
- Electric Magnetic lock / Bolt lock / Strike lock/Cabinet lock


- RFID Card Reader
- Exit Push Button and other accessories etc.



Now show you the standalone access control as follow~

Product Description



Security Door Access Control Keypad Stand-Alone Keypad Waterproof Door Lock Keypad Controller Zinc Alloy Metal

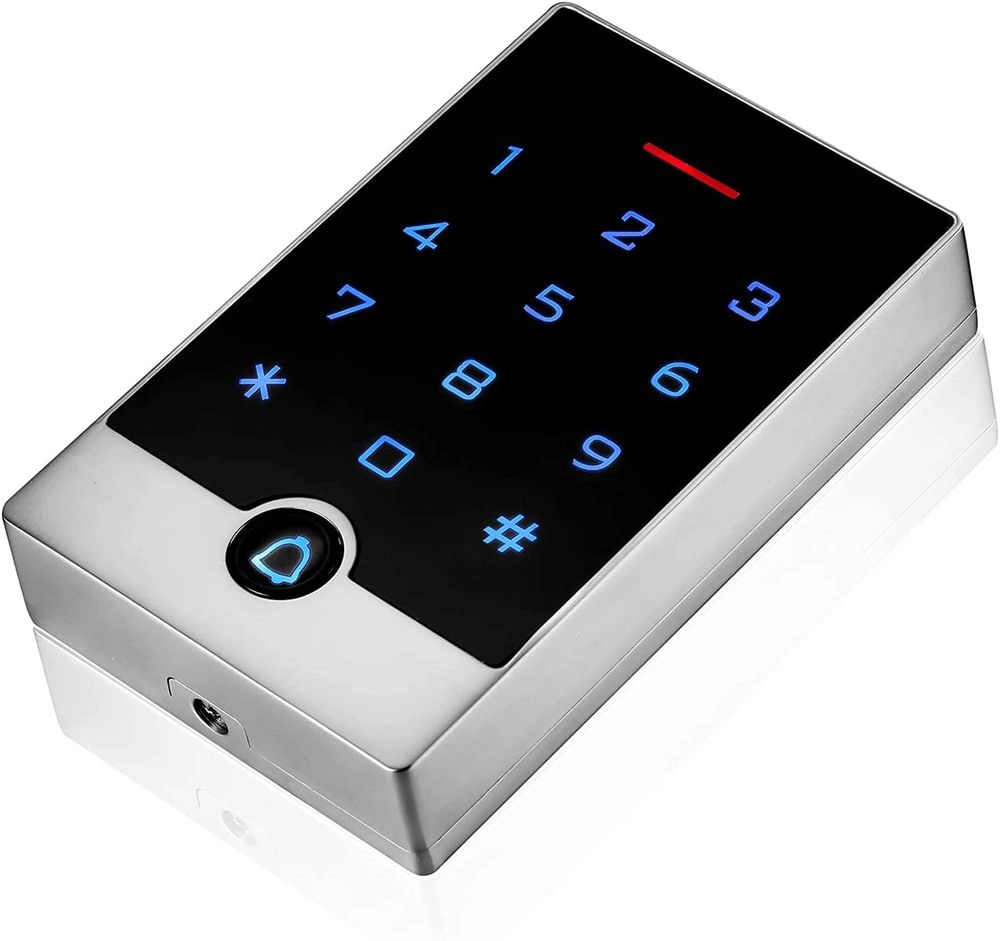

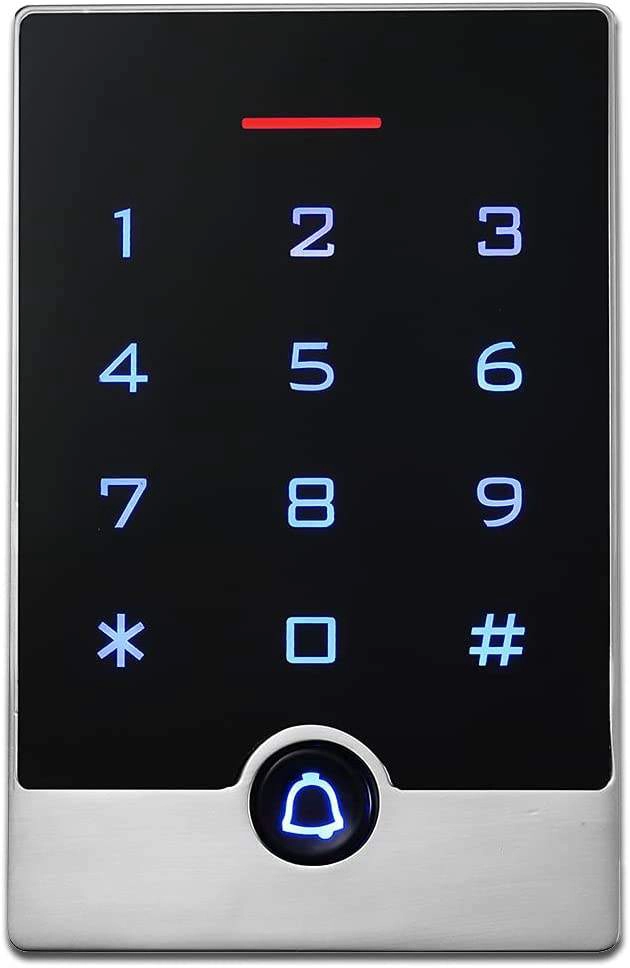

Access Control Keypad



  • Professional design for Home and Office, Sensitively and response quickly.
  • Contactless ID transponder technology, contactless transmission of data.

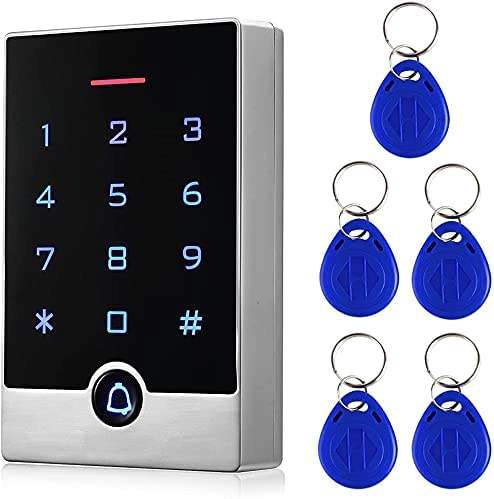

  • With 5pcs ID Key Fobs, each card pre-programmed with a unique ID number, which is printed on the card.
  • Full programming from the keypad, can works alone, no need to connect on the computer.
  • With door bell button, can connect to a extra door bell.

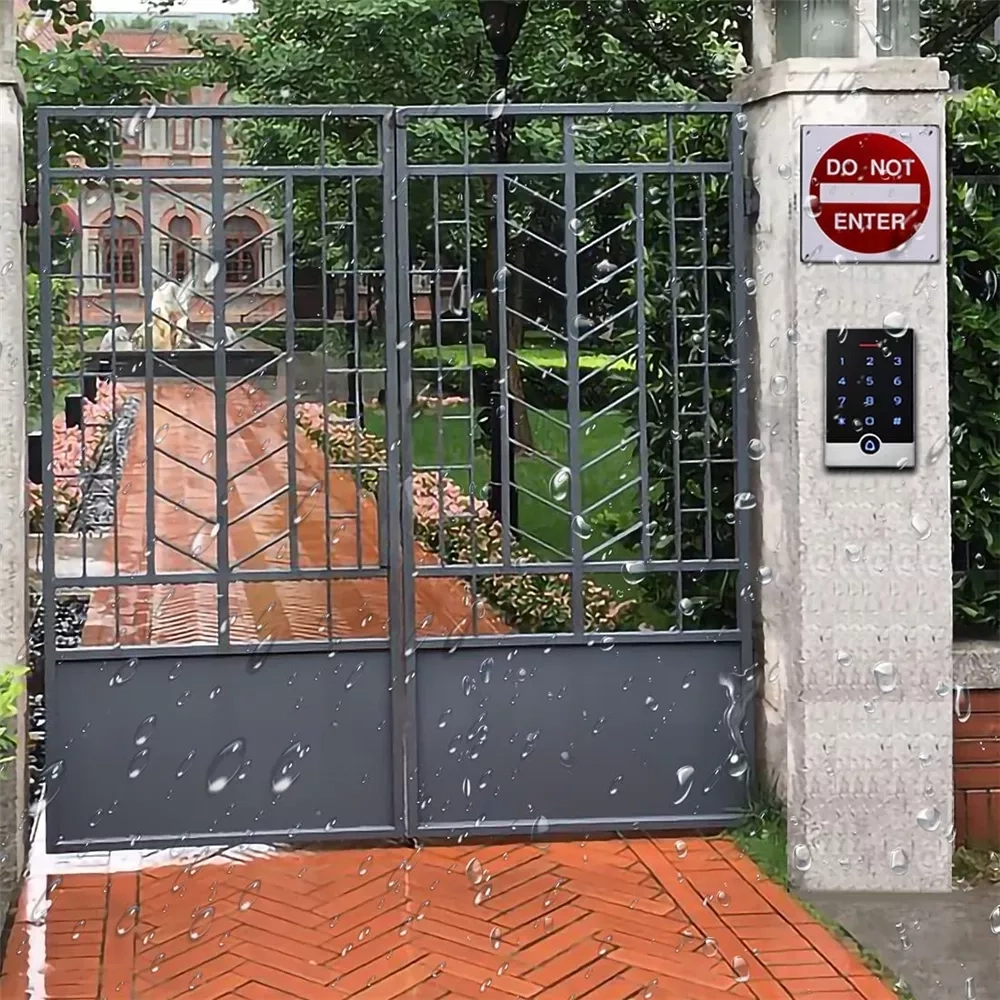

  • Application Home, Garage, Office, or Gate Use.

single door multifunction standalone access controller



  • Work Voltage: DC 12V
  • Operating Current: < 100mA
  • User capacity: 2000 users
  • Card Reading Distance:1~15mm
  • Open Mode: ID Card or Access Password
  • Identification frequency: ID (EM) type: 125KHz
  • Material: Zinc Alloy
  • Temperature: -40℃~60℃
  • Weight: Approx. 46g/0.1lb
  • Dimensions: Approx. 4.5x2.9x0.8 in(L*W*H)



Security Door Access Control Keypad Stand-Alone Keypad Waterproof Door Lock Keypad Controller Zinc Alloy Metal

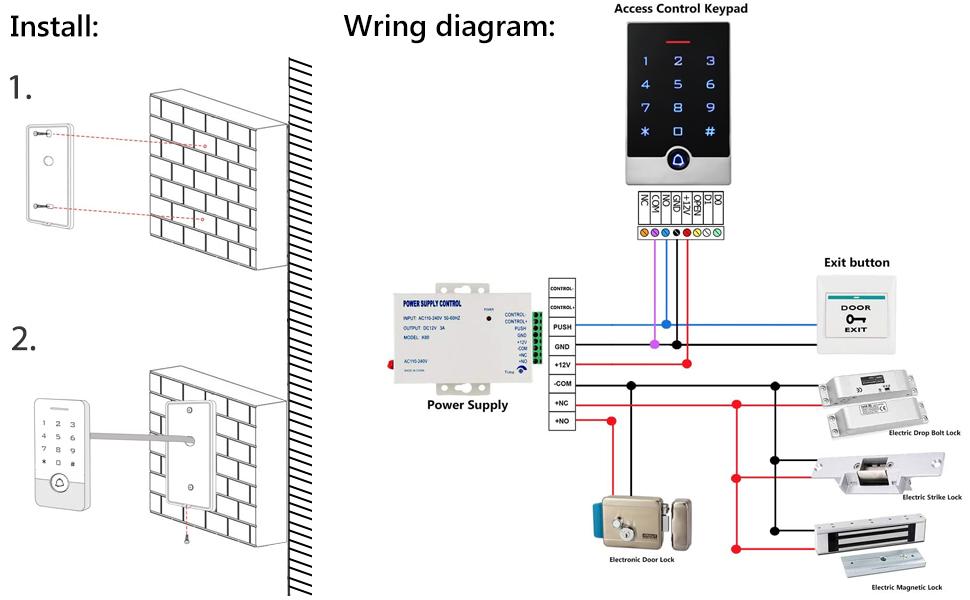

Installation:



Drill hole according to the size of the device and fix the back shell with the equipped screw. Thread the cable through the cable hole.

 connect the wires according to your required function, and wrap the unused wires to avoid short circuit.

After connecting the wire, install the machine. (as show below)

 Rfid Keypad Door Access Control K12

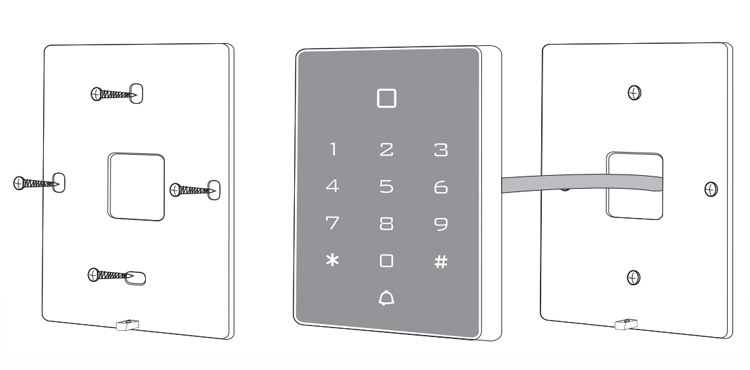

How to Install

  • Remove the back cover from the keypad using the supplied special screw driver
  • Drill 2 holes on the wall for the Self tapping screws and 1 hole for the cable
  • Put the supplied rubber bungs into the 2 holes
  • Fix the back cover firmly on the wall with 2 Self tapping screws
  • Thread the cable through the cable hole
  • Attach the keypad to the back cover
