Single Door Access Controller Wifi Mini Door Controller Connect with 26~37 Bits Output Wiegand Reader Control PanelSingle Door Access Controller Wifi Mini Door Controller Connect with 26~37 Bits Output Wiegand Reader Control PanelSingle Door Access Controller Wifi Mini Door Controller Connect with 26~37 Bits Output Wiegand Reader Control PanelSingle Door Access Controller Wifi Mini Door Controller Connect with 26~37 Bits Output Wiegand Reader Control PanelSingle Door Access Controller Wifi Mini Door Controller Connect with 26~37 Bits Output Wiegand Reader Control Panel

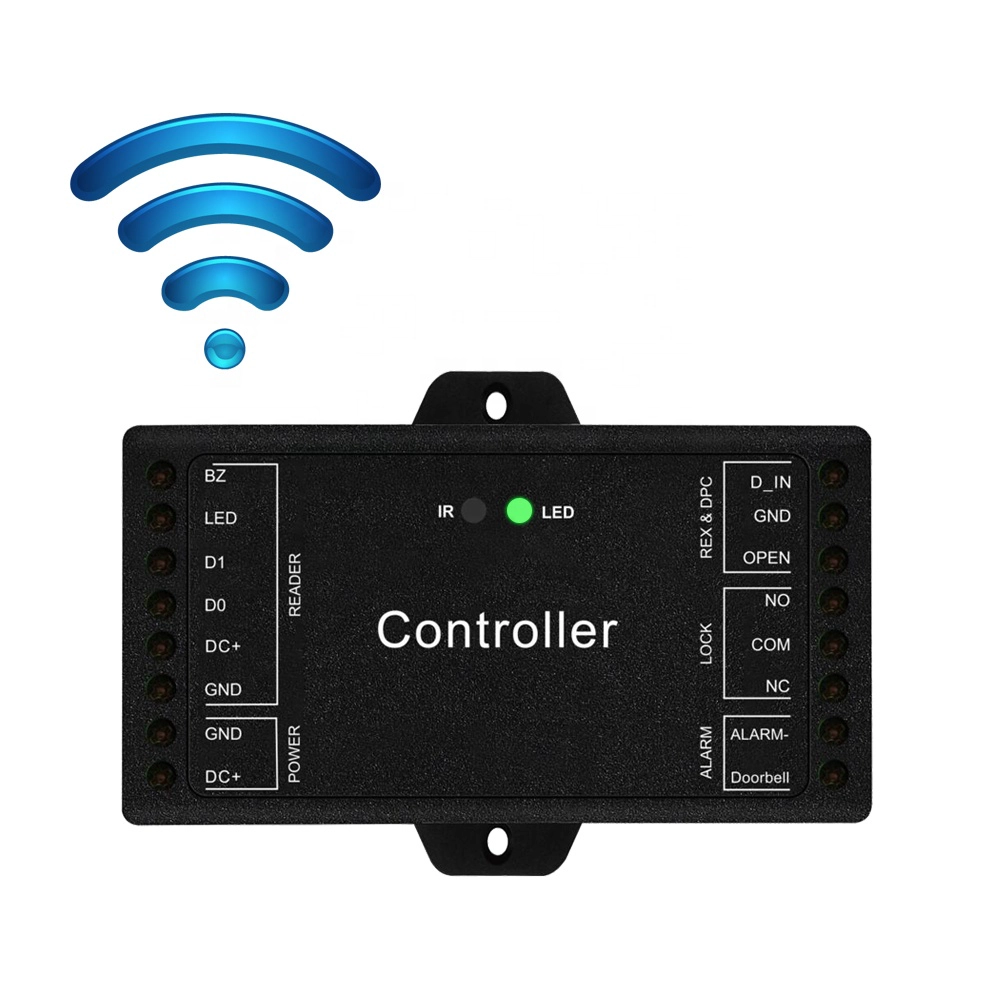

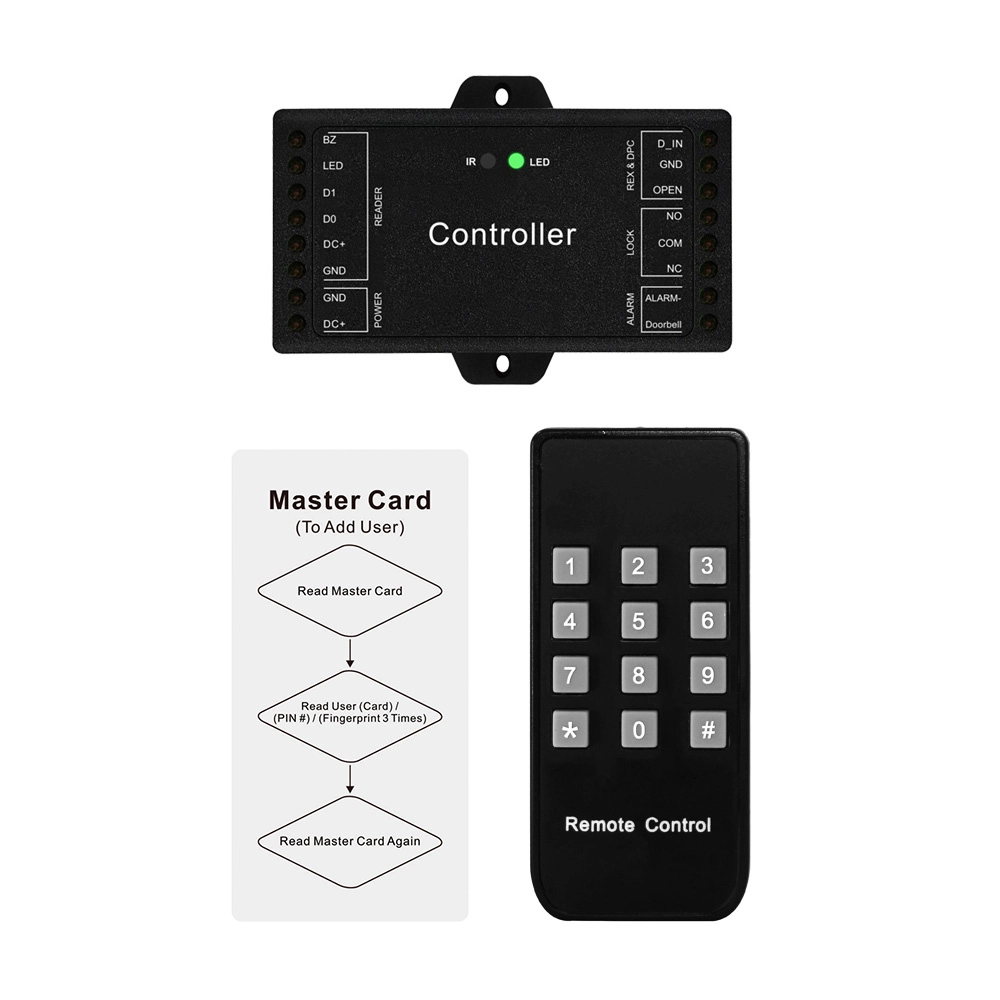

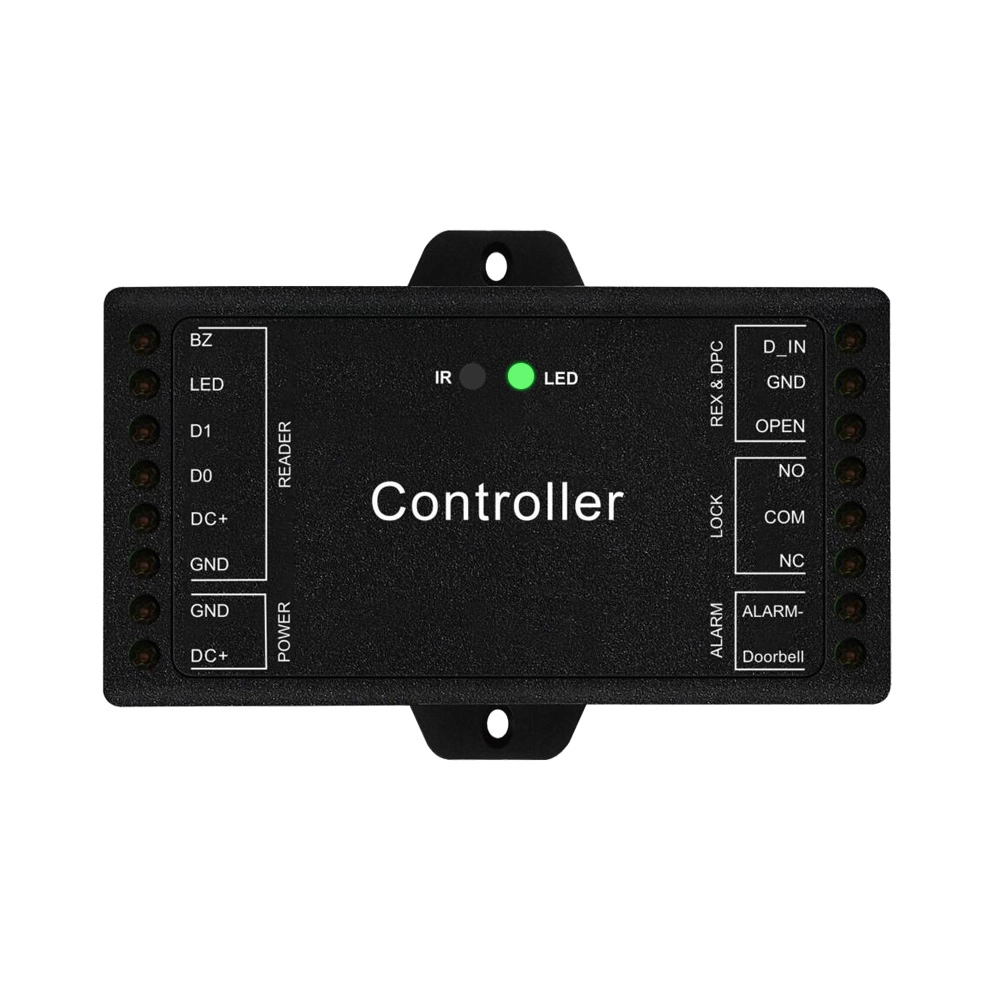

Single Door Access Controller Wifi Mini Door Controller Connect with 26~37 Bits Output Wiegand Reader Control Panel

  • Frequency:125Khz /13.56Mhz
  • protocol:Wiegand
  • Material:ABS
  • Support Card:proximity cards
  • network:4G, WIFI
  • Name:Tuya WiFi Mini Controller
  • Remotely Access:(Support 3G/4G/5G)
  • Main feature:Can set Time Restriction for users
  • User capacity:One relay,1000 users
  • Support 1:Add / Delete users by APP ( Card users available only)
  • Support 2:Can set Time Restriction for users
  • Support 3:Checking Opening Record
  • Support 4:Doorbell Call Notice (Support External Door Bell)
  • Support 5:Temporary Password (One-time Or Period Code)
  • Warranty:3 Years
Product Features:

> 12V DC power input

> One relay,1000 users

> Wiegand 26~44, 56, 58bits input

> Can connect with external alarm and door contact



> 500 APP users

> iOS and Android available

> Add / Delete users by APP ( Card users available only)

> Can set Time Restriction for users

> Temporary Password (One-time Or Period Code)

> Support checking Opening Record

> Remotely Access (Support 3G/4G/5G)

> Doorbell Call Notice (Support External Door Bell)

User Capacity

 Common User

Authorized User
 Visitor User
 Panic User

Hardware User: 1000

APP User: 500

987 PIN/Card Users)

1

10
2

Operating Voltage

 Idle Current
 Active Current

12V DC

 ≤ 100mA
≤ 150mA

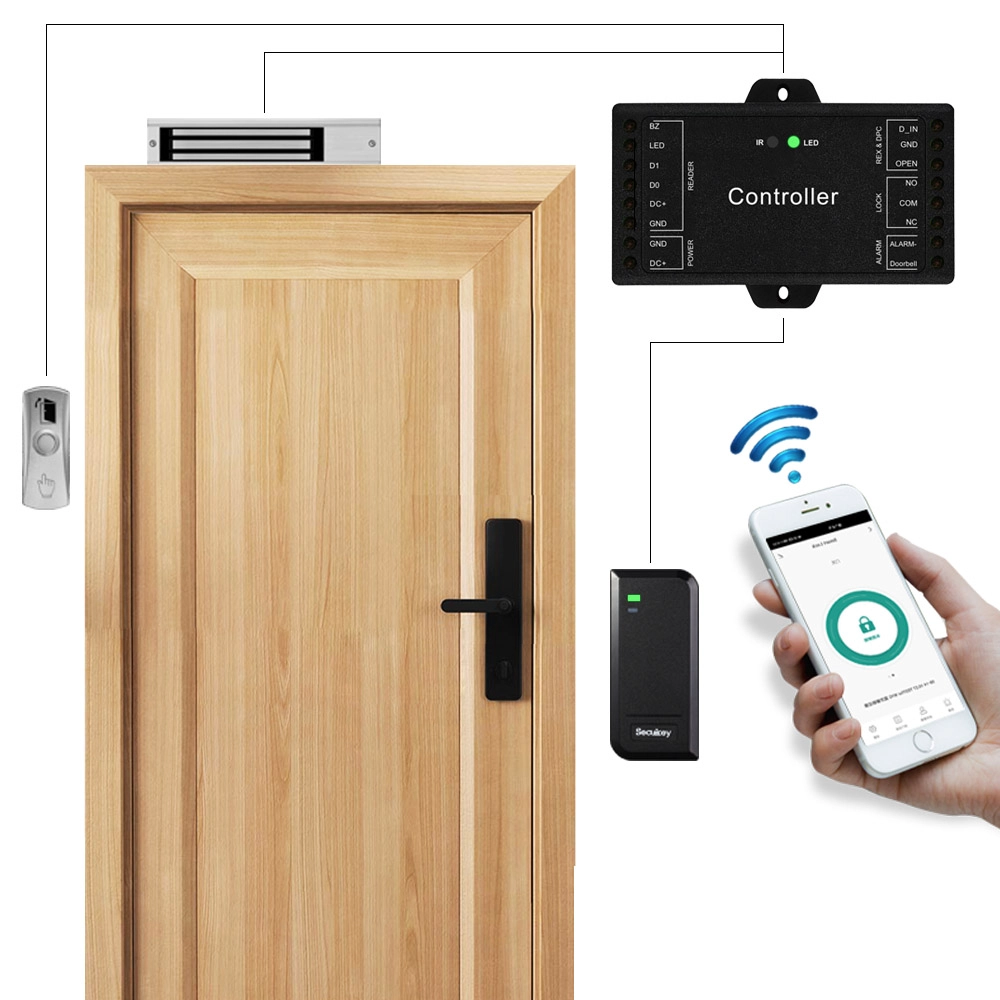

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input

Relay

Adjustable Relay Output Time

Lock Output Load

One (NO, NC, Common)

0~99 Seconds (5 seconds default)

2 Amp Maximum

Wiegand Interface  Input

Wiegand 26~44, 56, 58bits

Environment

Operationg Humidity

Indoor

0~90%RH

Physical

Colour

Dimensions

Unit Weight

Shipping Weight

ABS Shell

Black

L91 x W48 x D20 (mm)

63g

73g
