Single Door Access Locker 280KG Electromagnetic Lock 12 volts Electric Magnetic EM Lock

  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • item name: 12V Magnetic EM Lock
  • Feature: Easy Installation Easy Management
  • Lock Size: 250 L X 27 H X 48 D (mm)
  • Armature Size: 180 L X 38 H X 11 D (mm)
  • Holding Force: 280KG(600LBS)
  • Feedback: Door Status Output, NO/NC/COM
  • Certification: CE, ROHS
  • Weight: Approx.: 2kg
  • Logo: Customized Logo Acceptable
  • Packing: brown box
  • Current Draw: 380mA
  • Surface Temp: ≤+20℃
  • Operating Temp: -10~+55℃
  • Application Door: metal doors, wooden doors, fireproof doors, glass door
Product Description

Feature

Fail-safe: Power to lock

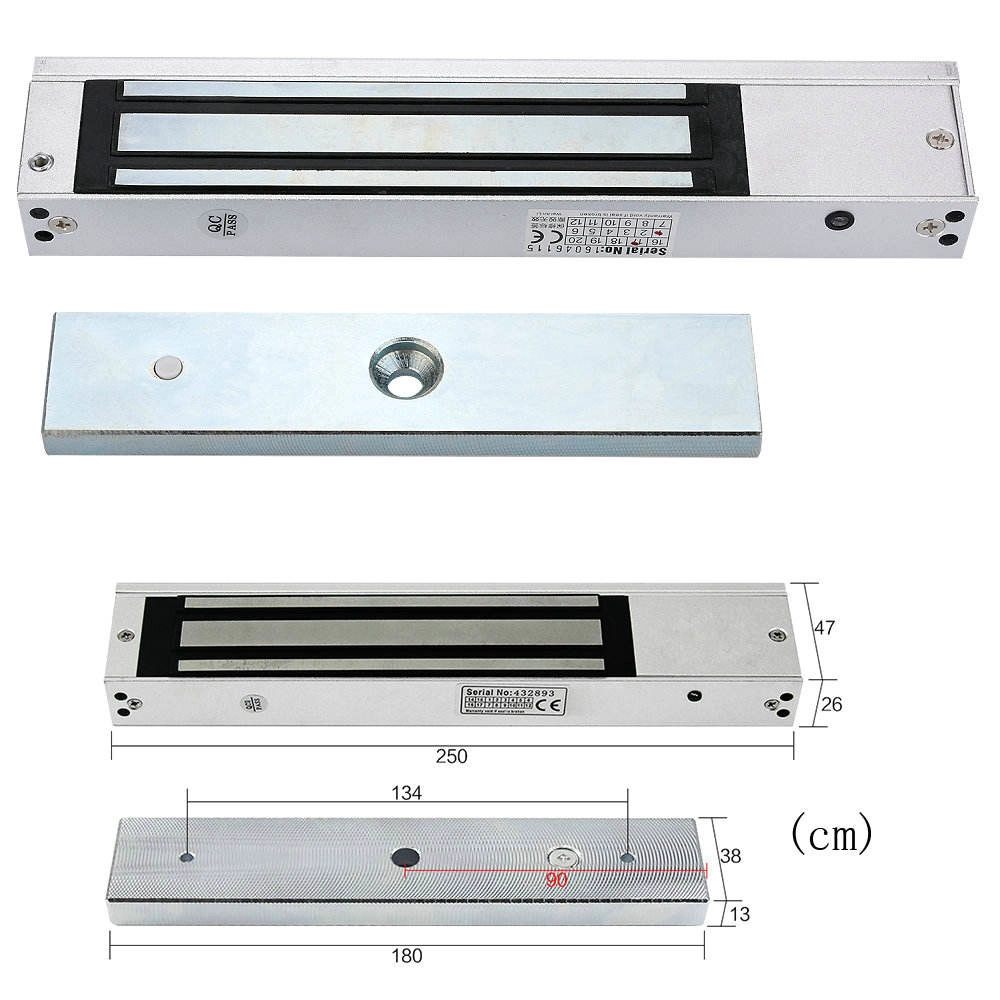

Lock Size

250 L X 27 H X 48 D (mm)

Armature Size

180 L X 38 H X 11 D (mm)

Holding Force

280KG(600LBS)

Feedback

Door Status Output, NO/NC/COM

Voltage

12/24VDC

Current Draw

12V/500mA, 24V/250mA

Material

Finishes for shell: Anodized aluminum
Finishes for magnet: Zinc
Finishes for Armature: Zinc

Certification

CE, ROHS, CMA

Advantage

Low power consumption, high efficiency

Application

Metal doors, wooden doors, fireproof doors, glass door

Weight

Approx.: 2kg

Main Features

1. Door status, lock status monitoring output
2. Dual voltage selectable (12VDC or 24VDC)
3. Low current consumption
4. Reliable holding force
5. High strength material, anodized aluminum housing
6. Anti-residual magnetism designed
7. Durable and silence operation

8. CE Certificate by European Union





280kg Magnetic Lock Electric Drop Bolt Em Lock Access Control Electric Magnetic Lock280kg Magnetic Lock Electric Drop Bolt Em Lock Access Control Electric Magnetic Lock280kg Magnetic Lock Electric Drop Bolt Em Lock Access Control Electric Magnetic Lock






Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging
Magnetic Lock packaging: 1unit per box, 12pcs per carton,
Carton size :
54.3*13.5*19.3cm , Gross Weight :25kg. 50 cartons per pallet



Click here to order and have your FREE SAMPLE in 3 days!!!

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.





ACM-Y280-L

L Bracket for 280kg/350kg Magnetic Lock

ACM-Y280Z

Z Bracket for 280kg Magnetic Lock

ACM-Y280-ZL

ZL Bracket for 280Kg/350Kg Magnetic Lock
