Single Door Keyless Card ReaderSingle Door Keyless Card ReaderSingle Door Keyless Card Reader

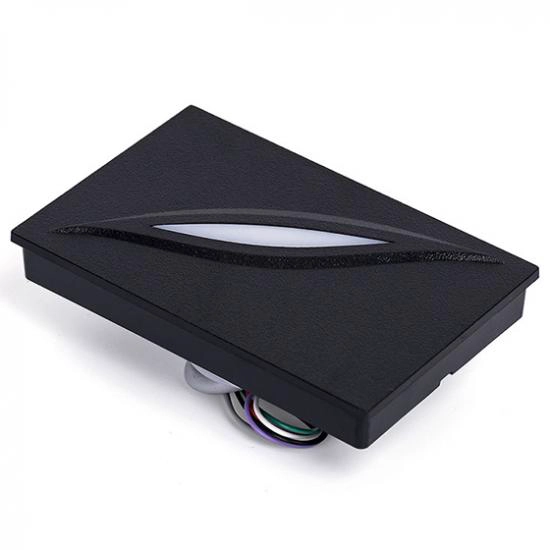

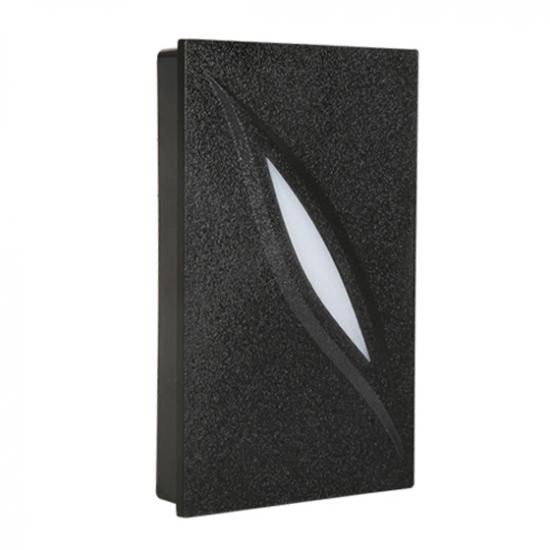

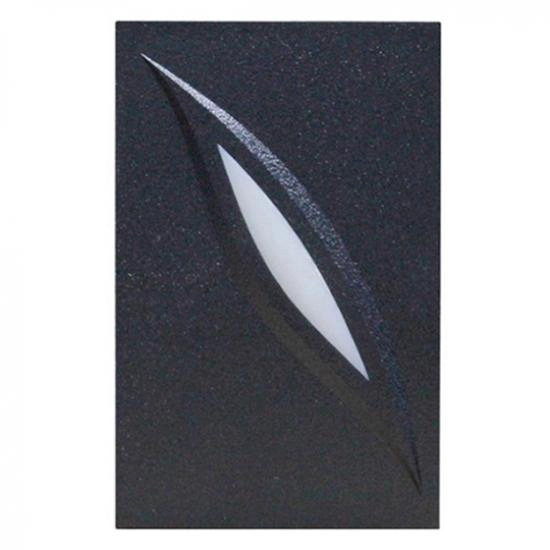

Single Door Keyless Card Reader

  • > 125KHz Proximity /13.56MHz mifare Card Reader
  • > Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
  • > 26/34bit Wiegand (default)
  • > Easy to install on Metal Door Frame or Mullion
  • > External LED Control
  • > External Buzzer Control
  • > Indoor / Outdoor Operation
  • > Solid Epoxy Potted
  • > Waterproof IP65
  • > Reverse Polarity Protection

Features:

> 125KHz Proximity /13.56MHz mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection


Model

KR100EM and KR100MF

Read Range

KR100EM: Up to 10CM, KR100MF: Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Output Format

26bit/34bit Wiegand (default)

LED Indicator

2 Colour LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

Colour

Black

Material

ABS+PC with texture

Dimension(W x H x T)mm

115 X 75 X18mm

Weight

50g

Index of Protection

IP65



Packing & Delivery

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~7 days after the order confirmed
