| Parameter |
Single Door Control Panel |
Multi Door (2) Control Panel |
Multi Door (4) Control Panel |
| ACM Model |
ACM-WG01 |
ACM-WG02 |
ACM-WG04 |
| Communication |
TCP/IP 10M/100M adaptive |
TCP/IP 10M/100M adaptive |
TCP/IP 10M/100M adaptive |
| Description |
Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button |
Control 4 doors, get in the door by swiping card, and get out door by button |

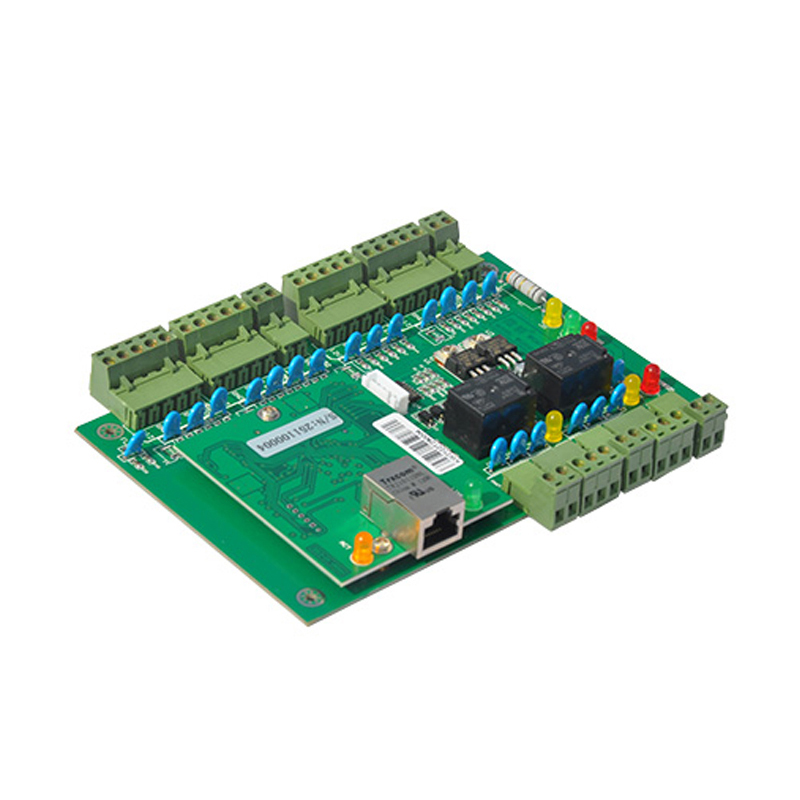

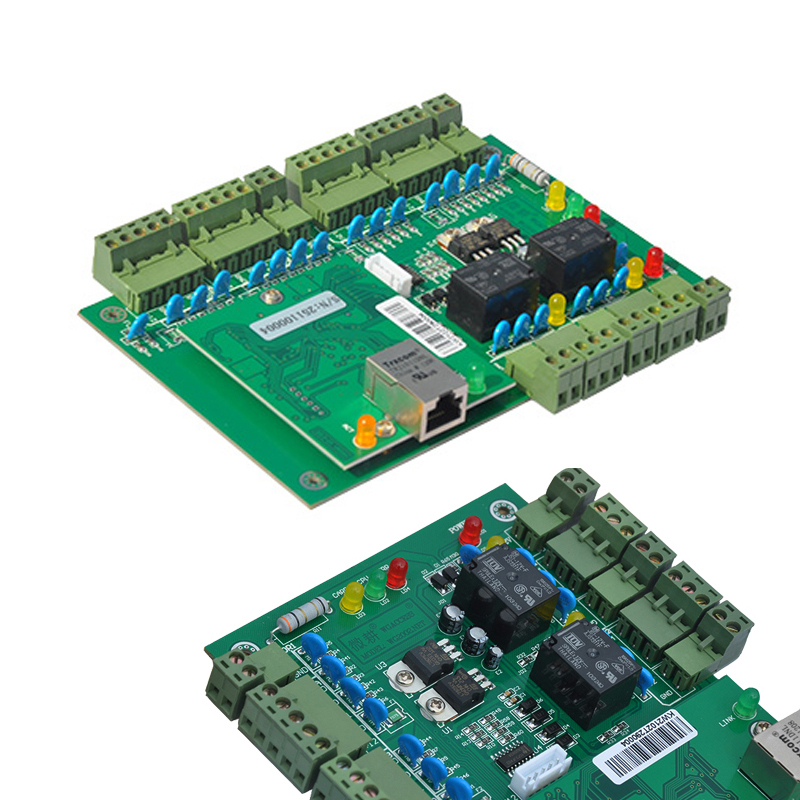

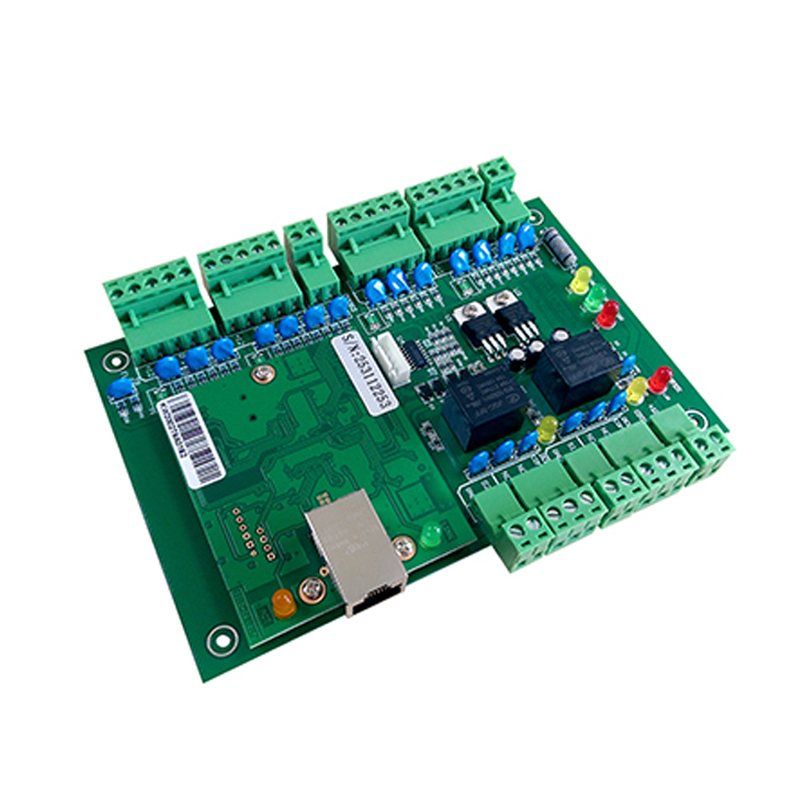

| Size of PCB board |
160mm *106mm |
160mm *106mm |
218mm *106mm |
| Size of Case |
273mm*228mm*65mm |
| Power Supply |
12VDC 4-7A |
| Power Consumption of Circuit Board |
Less than 100mA |
| Input Format of Reader |
Wiegand 26
(All card reader with compatible protocol,
such as Motorola , HID , EM ,, Mifare one etc) |
| Quantity of Readers |
1pair |
2 pairs |
4 pcs |
| Door Controled |
1pair |
2 pairs |
4 pcs |
| Door opening time extending setting |
1-600 seconds(adjustable) |
| Max q ' ty of controller |
No limit |
No limit |
No limit |
| |
Remark: N denotes q ' ty of computer serial prot or q ' ty of 485hub port, support 256pcs ports |
| Operation Temperature |
- 40 C~70 C |
| Operation Humidity |
10-90 % RH , No Condensation |
| Q ' ty of users |
20,000 Users |
| Q ' ty of Event Buffers(offline) |
100,000 event buffers |
| Power interruption protection measure |
High Speed Memory, Records never lose |
| Max Distance from Reader to Controller |
100m (suggestion distance 80m) |
| Max Distance between Controllers |
RS232: Communication Distance less than 13m, suggestion distance is 3m or less |
| RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m |
| TCP/IP: Depends on net coverage area |
| Collocations |
PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate |
Yes |
| Fire and alarm linkage |
If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm |
| Complsive open and close door at long time |
Yes |
| Open door in remote distance |
Yes |
| Inter block |
X |
Yes |
Yes |
| Anti pass back and tail |
Yes |
Yes |
X |
| Multi-card open door |
Yes |
| Open long time at specified time |
Yes |
| Electronic map |
Yes |
| Urgency locking |
Yes |
| First card unlocking |
Yes |
| Unlock based on internal and external validation |
Yes |
| Keypad (card+passwor, supper password) |
Yes |
