Unique Design Cheaper Price Electronic DIY Lock Kit with Power Supply Access Controller Wireless Glass Digital Door Lock

Unique Design Cheaper Price Electronic DIY Lock Kit with Power Supply Access Controller Wireless Glass Digital Door Lock

Product Name:Wireless Access Control Kit
Communication Frequency:433MHz
Communication Distance:10~15m
User Capacity:500
Card Type:125KHz EM Card
PIN Length:4-8 digits
Operating Temperature:-20 C~+60C
Power Supply:Battery
Installation:Sticker, no need drill holes
Warranty:3 Years

Product Features:

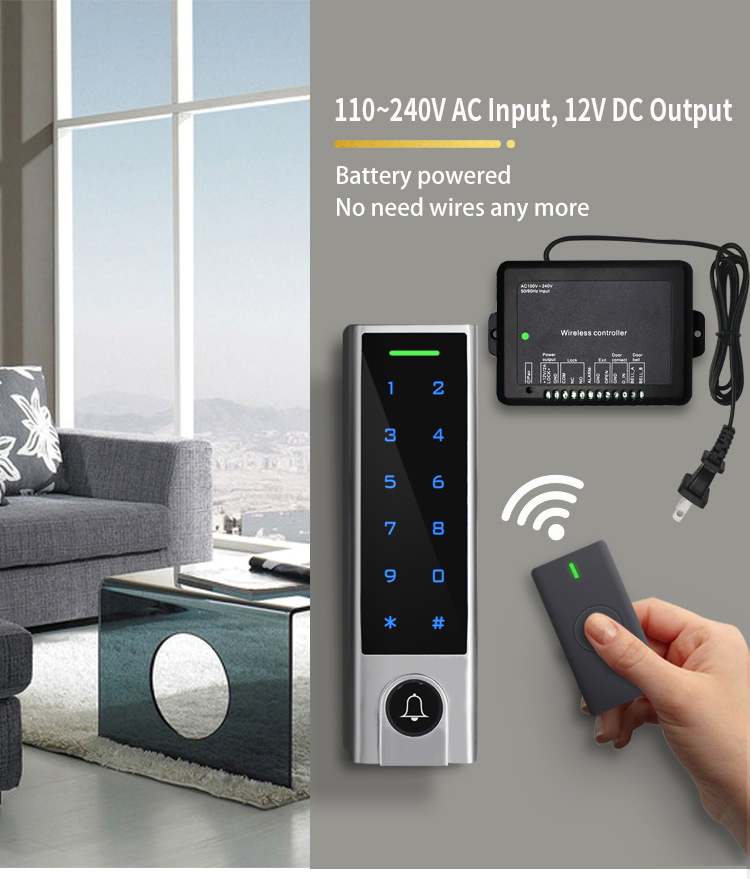

> 110V~240V AC Input, 12V DC Output

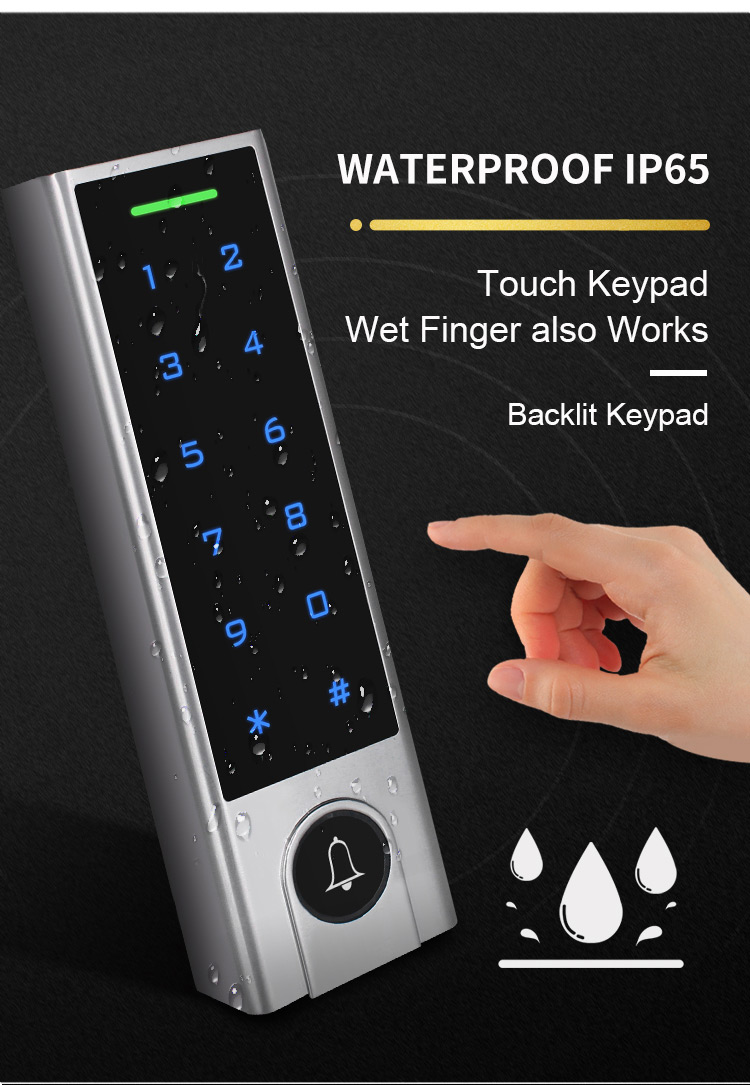

> Waterproof, conforms to IP65 (Wireless Keypad)
> Communication frequency: 433MHz

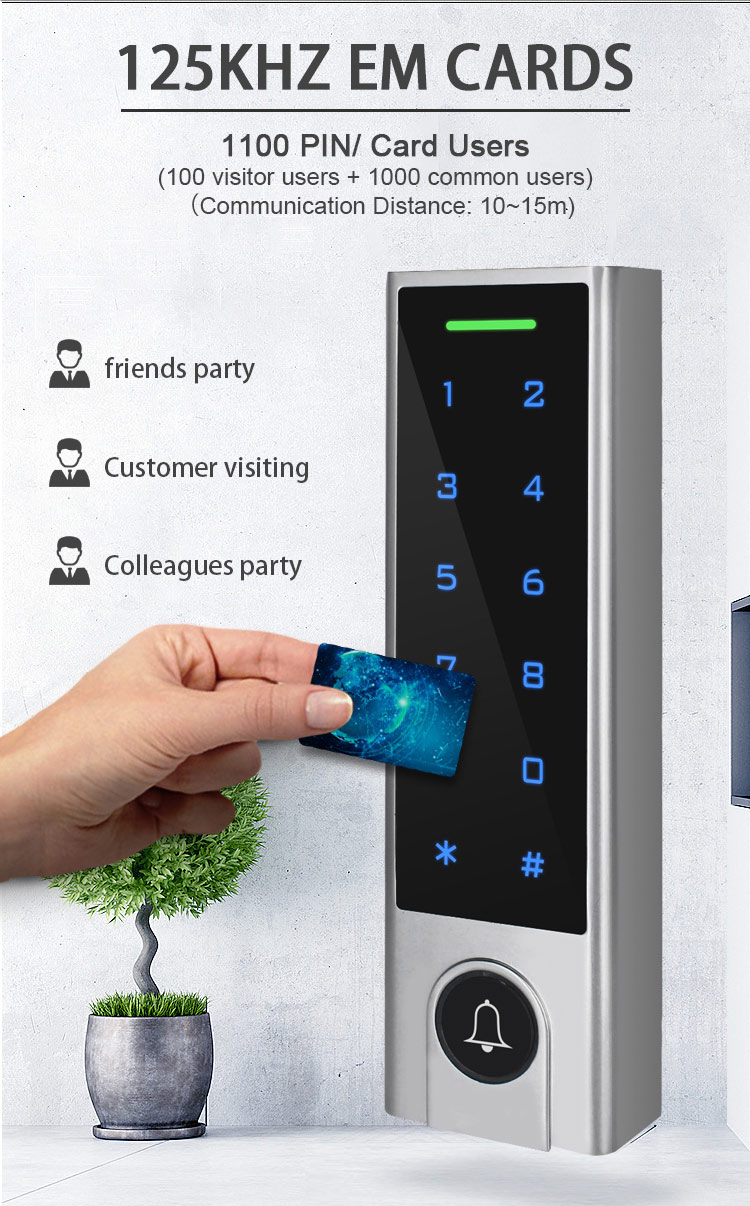

> 1100 PIN / card users (100 visitor users + 1000 common users)
> 125KHz EM Card
> PIN length: 4~8 digits
> Communication distance: 10~15m

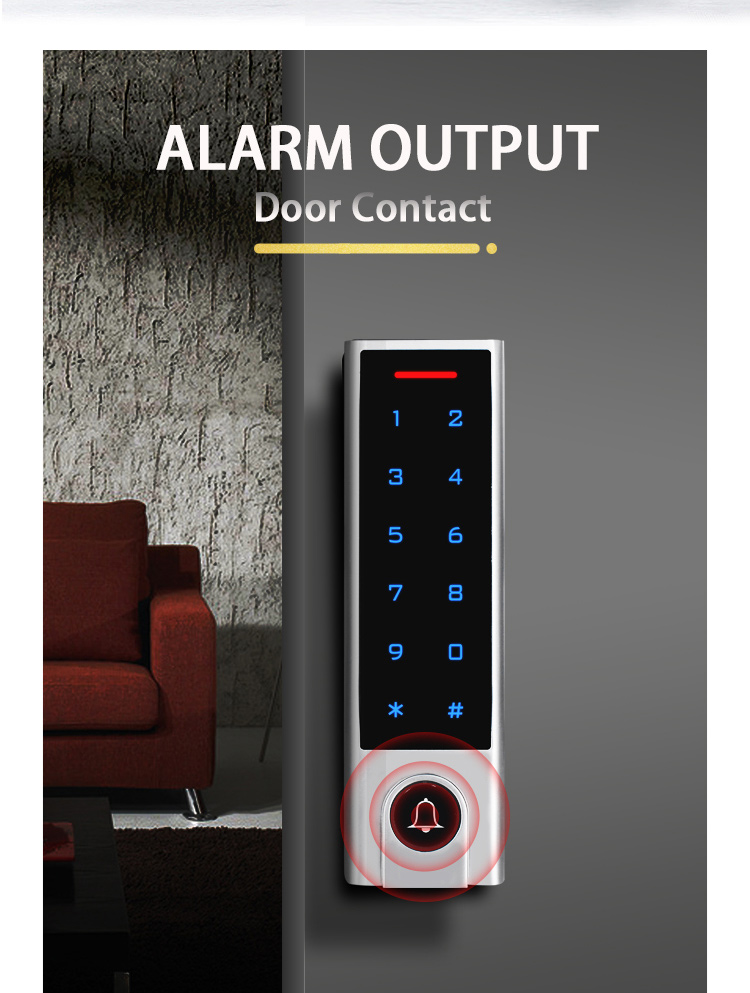

> Door contact, alarm and door bell output

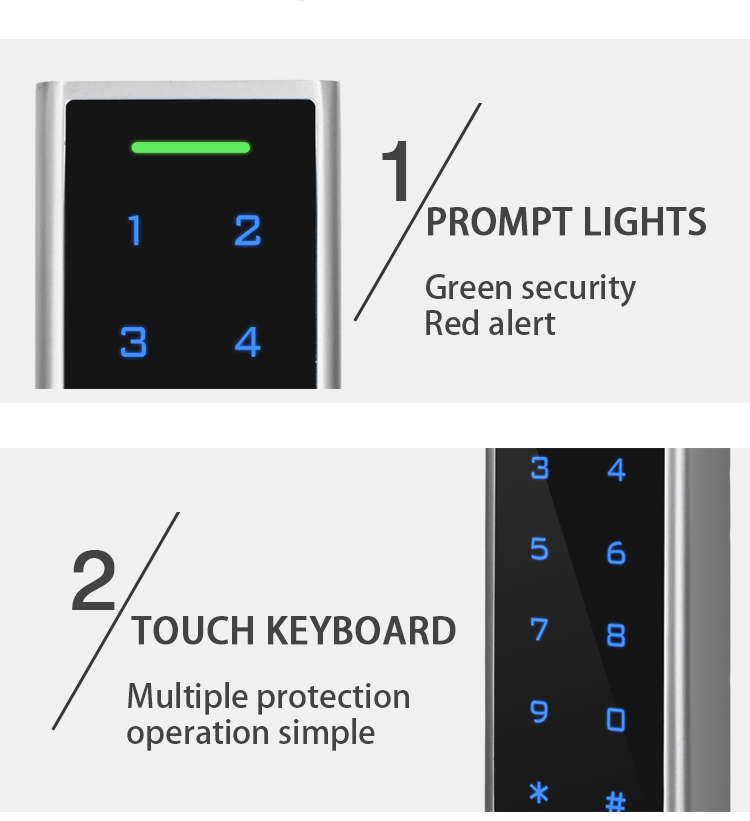

> Backlit keypad
> Pulse mode, toggle mode
> Tri-color LED status display
> Ultra low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA)
> Supports integrate 1 keypad and 1 exit button, or 2 keypads

User Capacity

PIN Length

Card Type

1100 PIN / card users
(1000 common users + 100 visitor users)

4~8 Digits

125KHz EM Card

Operating Voltage

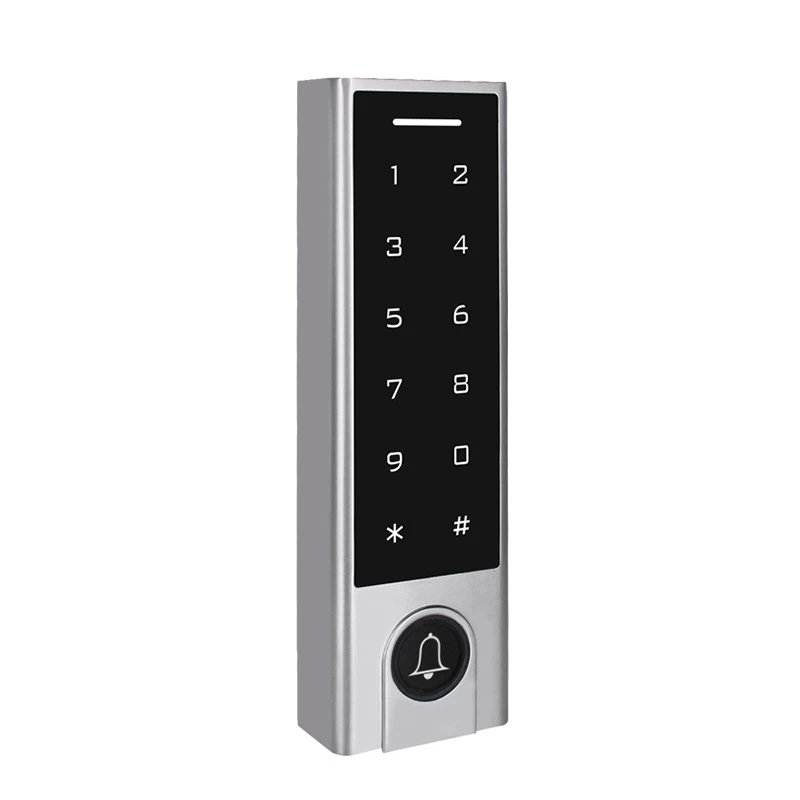

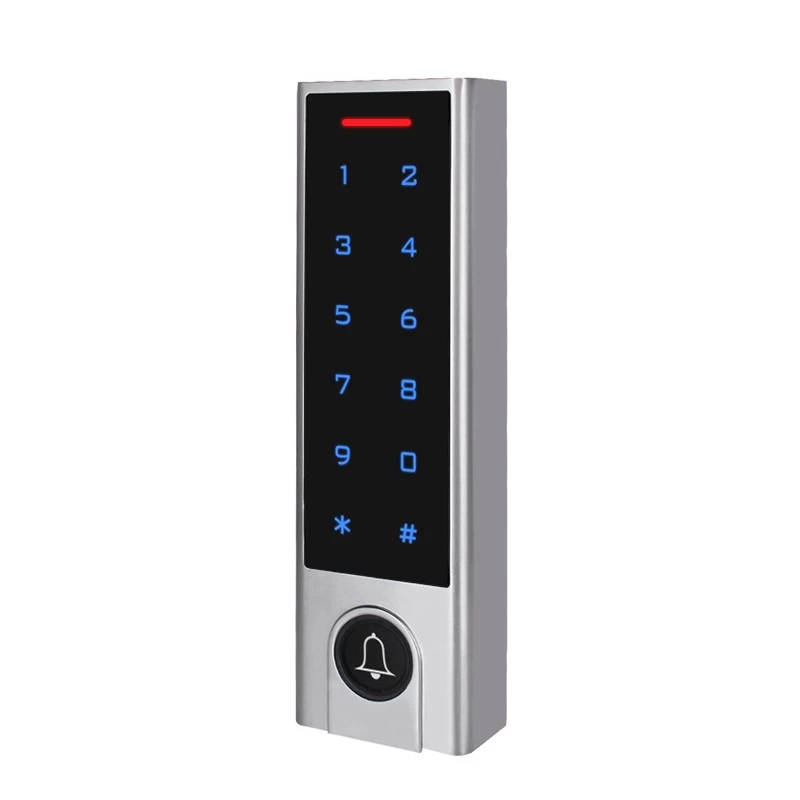

Wireless Keypad

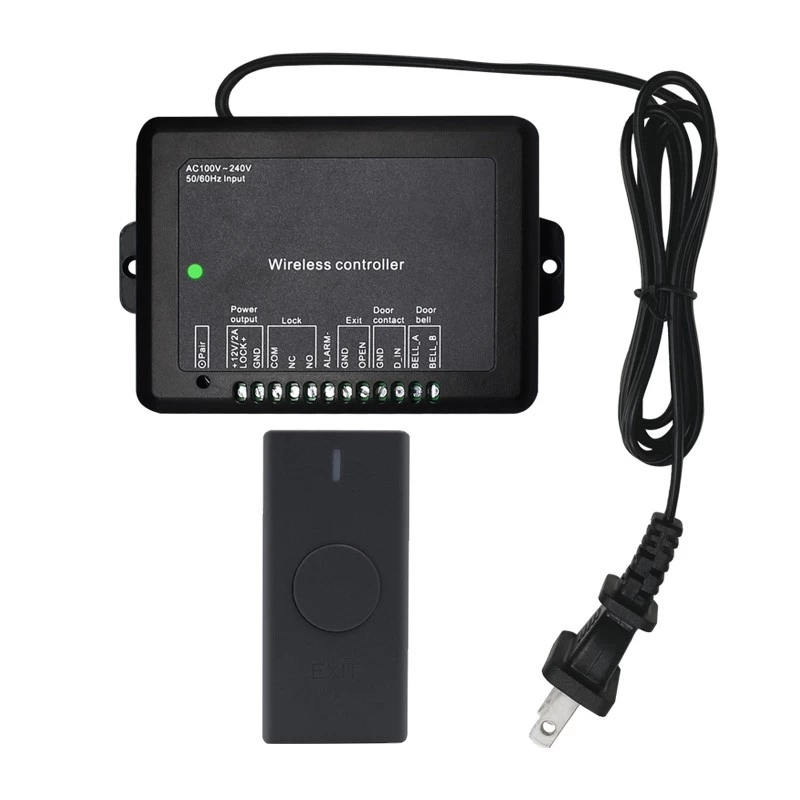

Controller

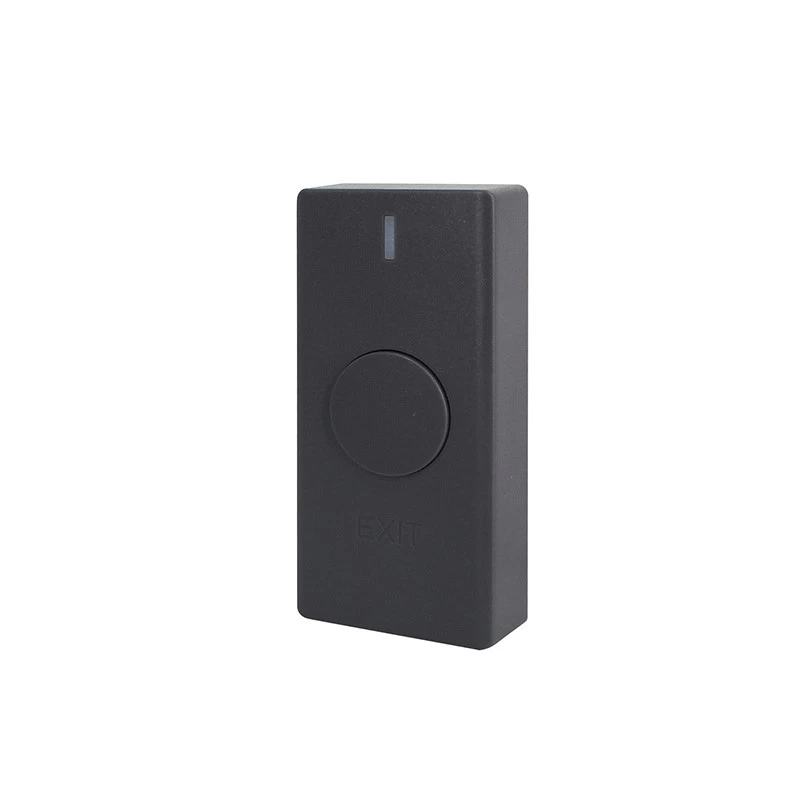

Wireless Exit Button

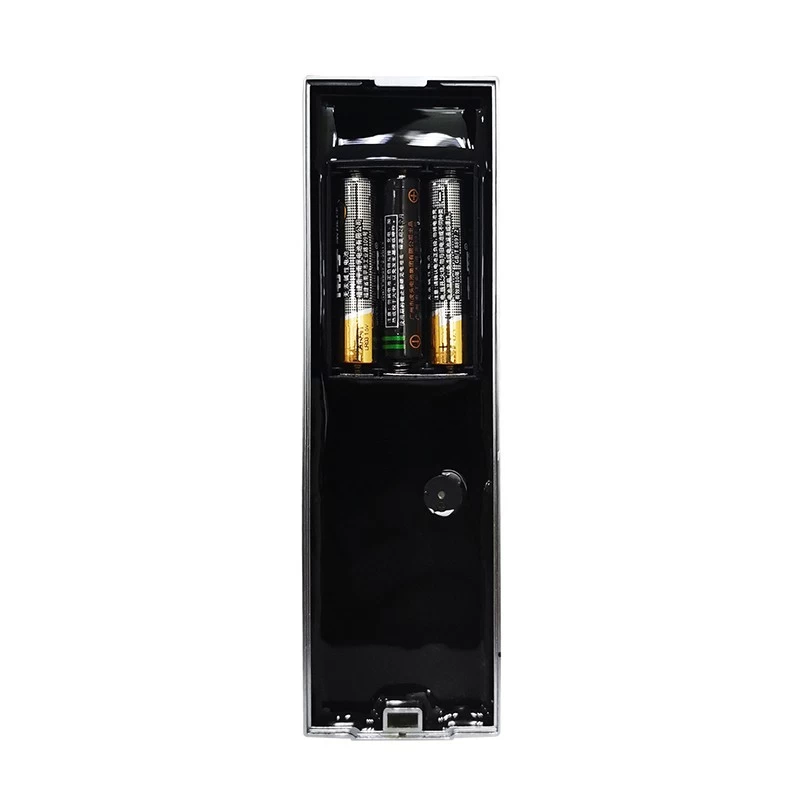

3units of AAA batteries

110V~240V AC Input, 12V DC Output

2032 Lithium battery

Current

Idle Current

Working Current

Wireless Keypad: <10uA

Controller: <20Ma

Wireless Exit Button: <10uA

Wireless Keypad: <80mA;

Controller: <50mA

Wireless Exit Button: <30uA

Communication Frequency

433MHz

Communication Distance

10~15m

Relay Contact Load

2Amp Maximum

Environment

Operating Temperature

Operating Humidity

Outdoor (Wireless Keypad)

-40^oC~60^oC(-40^oF~140^oF)

10%~9%RH

Physical

Dimensions

Unit Weight

Shipping Weight

ABS Shell

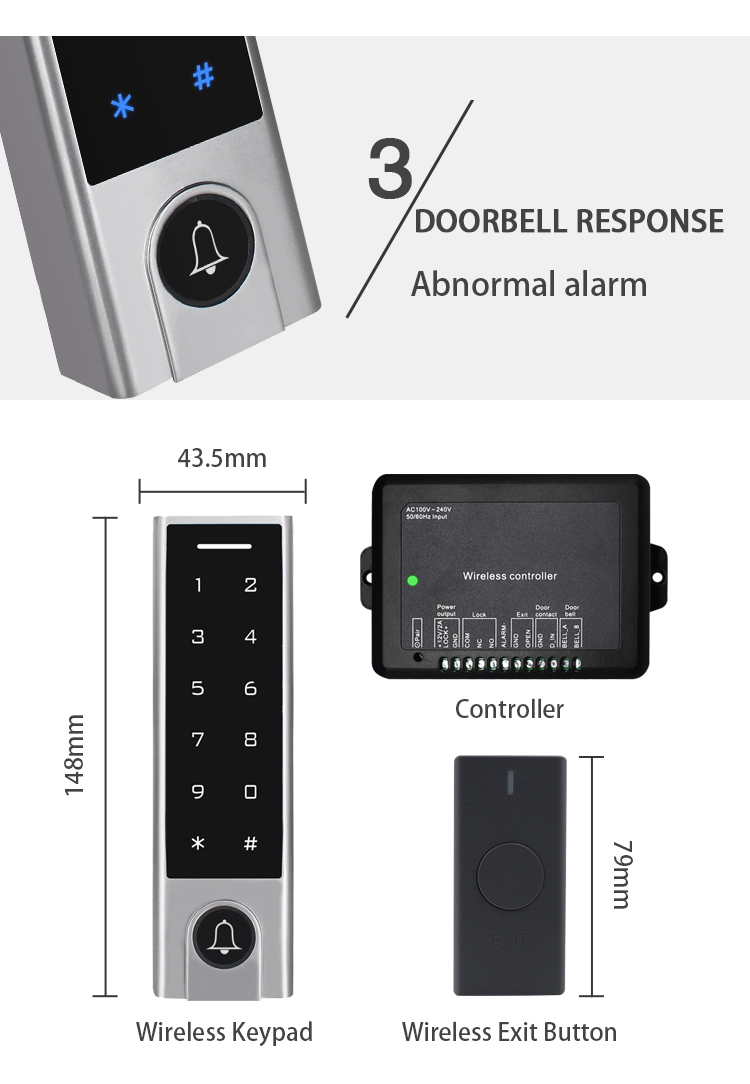

Wireless Keypad: L148 x W43.5 x D22(mm)

Controller: L117 x W85 x D30(mm)

Wireless Exit Button: L80 x W38 x D15(mm)

Wireless Keypad: 300g

Mini Controller: 62g

Wireless Exit Button:34g

450g
