Warehouse management pcb uhf anti-metal rfid tag for metal environment

  • Band Name:ACM
  • Material:PCB
  • Size:80*12*3MM, 95*25*3MM, 76*20*3MM, 60*30*3MM, 56*21*3MM
  • Protocol:EPC Class1 Gen2; ISO18000-6C
  • Chip:Alien H3, Alien H4, Impinj M4QT, M4E, M4D etc.
  • Reading Distance:up to 10m
  • Working temperature:-40°C to +85°C
  • Craft:printing, lasering
  • Application:Vehicle and Logistics management, Asset management, Tray tracking
  • Business type:Manufacturer
  • Keywords:pcb uhf anti-metal rfid tag
Product Description


Warehouse management pcb uhf anti-metal rfid tag for metal environment







CXJ RFID PCB Tags UHF are constructed with FR-4 materials and rated IP63 for high reliability and durability in all types of environments including outdoor waterproof,strong acid,strong base.
RFID Tags For Metal integrates the latest IC technology to deliver the industry’s best performance and memory size while conforming to EPC Class 1 Gen 2 specifications.

 Technical Specification
    - Dimension:  80*12*3MM, 95*25*3MM, 76*20*3MM, 60*30*3MM, 56*21*3MM, 36*13*2.5MM, 12*7*2.5MM, 25*9*2.5MM, 22*8*2.5MM, 90*11*3MM, 18*8*2.5MM, 10*3.5*1MM, 17*9*1.6MM
    - Frequency:  UHF  902~928 MHZ
    - Chip Type:    EPC Class 1 Gen 2 ( ISO18000-6C)
    - Memory:  User Moemory 512 bit, EPC: 96bits Chip
    - Encapsulation:    FR4 material
    - Operating Temperature :   -40°C to +85°C
    - Storage Temperature : -55°C to +105°C
    - Features:  Robust, Impact-proof, Easy Fastening, Ultra-thin design, Heat Resistance
    - Tagging Method:  Adhesive tape back (Option) or Plastic screw



 Applications
      Warehouse Management
       IT Asset Management
      Facility Management;


Features
      Mount-on-metal
      Waterproof
       High Temp, Resistant

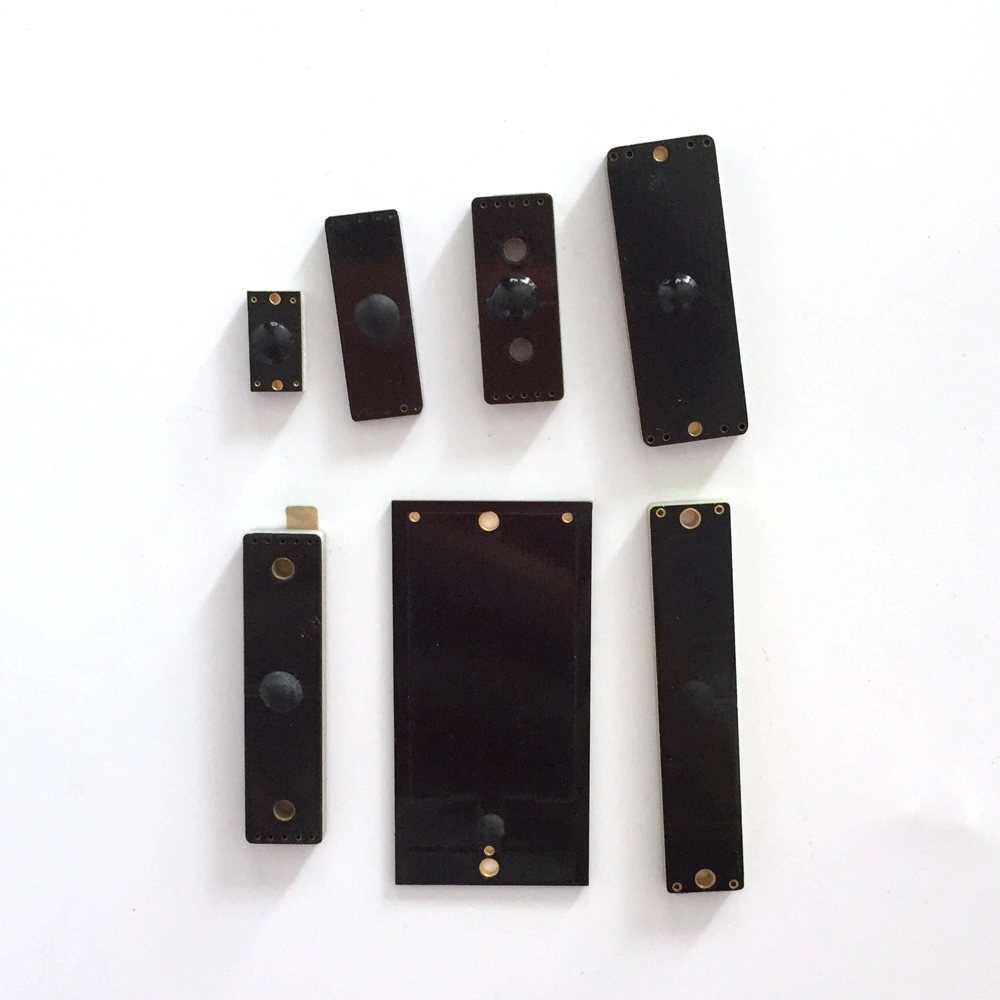

Product Show

 Warehouse management pcb uhf anti-metal rfid tag for metal environment

Warehouse management pcb uhf anti-metal rfid tag for metal environment




Related Products



ACM-EMI-S

125Khz TK4100 chip rfid proximity Card



ACMM-MF1

13.56mhz MF1K compatible F08 RFID card



ACM-INLAY

125khz,13.56mhz,860-960mhz card inlay




ACM-S001-UHF

UHF anti-tamper label for car parking system



ACM-UHF-P Windshield Sticker

860-960Mhz windshiled sticker for car management



ACM-NFC-Sticker

NFC tag label for phone payment management

Packing & Delivery

Every order we will check the quality firstly to ensure our customer get the best product.
Our staff will pack it carefully to avoid the damage of transportation.
We will ship every goods out as soon as possible.

024SV%1T{J16U@ZPAALDG$A

1,Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and ourfactory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast leadtime
5, After-sale Service :
1) All products will have been strictly quality checked in house before packing
2) All products will be well packed before shipping
3) All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 daysfor bulk order
7, Payment : You can pay for the order via : T/T, Western Union,Paypal, Ali trade assurance
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS,EMS, Forwarder by SEA and By AIR, You also can choose your own shippingforwarder.

Quality warranty:



Warranty service will be honored if the damage is not caused byhuman, ACM Goldbridge provides 2 years warranty for relative products.

On the contrary, ACM Goldbridge willcharge extra if repair.

More information, please browse ourservice center.

FAQ

Q: 1. How can I place an order?

A:Please list your requirement to us via inquiry. Then we will send the offer to you at earliest time,after order          confirmation,we will arrange production ASAP.



Q: 2.What aboutthe payment and shipment?

A:Trade Assurance and T/T ,Paypal, Western Union.

    Clients can choose by sea, air or express(DHL,FedEx, TNT UPS etc.)



Q: 3. How can i get a sample tocheck your quality?

A:Wecould provide free sample to you, and the freight cost payed by you.



Q:4. How long can I expect toget the samples?

A:It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for100,000pcs



Q:5. Can your products be customized?

A:Almost all of your products are customized ,including the materia, size,thickness and printing. OEM orders are highly welcome.



Q:6.Are you a trading companyor factory?

We are the one of the biggest manufacturer of RFID cards/NFCtags/RFID keybod /RFID wristband in China more than20 years.
