Waterproof Door Access Control System Standalone Keypad Rfid Card Fingerprint Door Entry Access ControllerWaterproof Door Access Control System Standalone Keypad Rfid Card Fingerprint Door Entry Access ControllerWaterproof Door Access Control System Standalone Keypad Rfid Card Fingerprint Door Entry Access Controller

Waterproof Door Access Control System Standalone Keypad Rfid Card Fingerprint Door Entry Access Controller

  • Special Features:Waterproof / Weatherproof, Time & Attendance
  • Customized support:OEM, ODM
  • Model Number:ACM227-ID
  • Type:fingerprint
  • Product Name:Rfid Card Fingerprint Door Entry Access Controller
  • Capacity:30,00 user
  • Communication:Wiegand
  • RFID Card:125KHz EM standard card
  • Authentication:Finger/PIN/Card
  • Work Voltage:DC12V/2A
  • Keywords:Keypad Access Control
  • Weight:110g
  • Data Storage Options:Memory Card
Access Controller

Hot Selling Products



1.jpg 2.png 10.jpg 9.jpg
 Biometric AI Face Recognition Temperature Measurement  Time Attendance And Door Access Control Tuya Touch Keypad Access Control WG 26 Touch Access Control
5.jpg 11.jpg 12.jpg 61C3slzwdFL._AC_SX466_.jpg
Standalone Access Control Keypad Access Control  Waterproof Access Control  Keypad Access Control
4.jpg 61oQoLhTdDL._AC_SY879_.jpg 3.jpg 6.jpg
Metal Access Control WiFi Access Control Magnetic Lock Control System Kit Tuya Wifi Biometric Fingerprint Lock
Touch Controller
ACM

What is Touch display standalone access controller?

ACM Touch display standalone access controller is relative to the press buttons standalone access controller. Touch display controllers' design is more elegant and quality is stable,and usually used indoors.Standalone access control is simply used to open and close doors,has no software to check record.

Touch display standalone access controller all-in-one access controller have different design outlook and sizes to meet the needs of different doors or door frames.

ACM touch display access controller default voltage is 9-24V, and 90% of the access control machines with D1 D0 can be used as proximity card reader

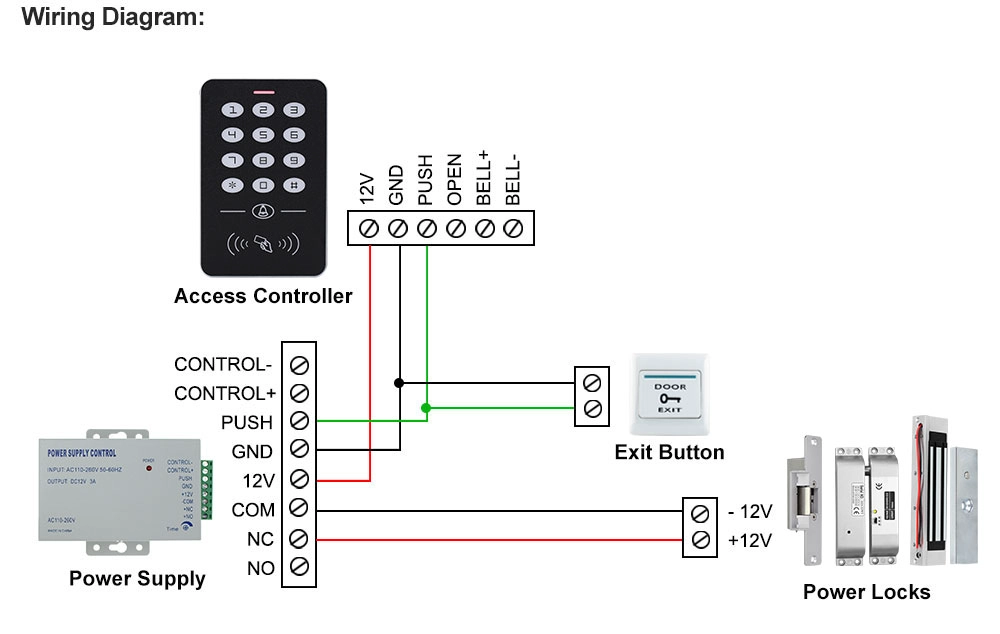

Basically all standalone access controller have the same wiring method, the wiring is as follows:

Product Description

Model No.: T2DC EM+MF (Plastic shell)



Product Introduction

This product is a non-contact proximity card and password access control Integration machine. It supports two proximity cards, EM and 13.56mhz. It is one of the most advanced single door controllers at present. Can be widely used in high-end office buildings, residential quarters and other public places.



Features

> Power consumption: current is less than 100mA

> Wiegand output: WG26/34 output and input, it can also be connected with an external card reader and key input reader.

> Search time: the time from swiping the card to opening the door is less than 0.1S

> Luminous keyboard: easy to operate at night

> Doorbell interface: external wired doorbell can be connected

> Door opening method: card, password, card plus password

> Independent password: use a password that has nothing to do with the card to open the door

> Modify password: the user can modify the password to open the door by himself

> Delete card number: use the keyboard to delete the card number after the card is lost, completely eliminating security risks

> Waterproof grade: epoxy resin potting package. Suitable for outdoor

> Working temperature: -40℃-70℃, applicable to a wide range of areas

> Unattended card addition: convenient for user management

> Dual-frequency operation: No need to worry about choosing user card. Mixed use is possible

> Machine data is copied to each other: Register one, multiple machines share data, and the workload is reduced.

Capacity

3,000 User

Standard Function

Webserver, Anti-passback

Communication

Wiegand

Access Control Interface for

3rd party electric lock, door sensor, exit butto, alarm

Wiegand Signal

Input & Output

Optional Functions

ID Card, IC Card

Power Supply

12V DC

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension(W*H*D)mm 78×120×22mm
