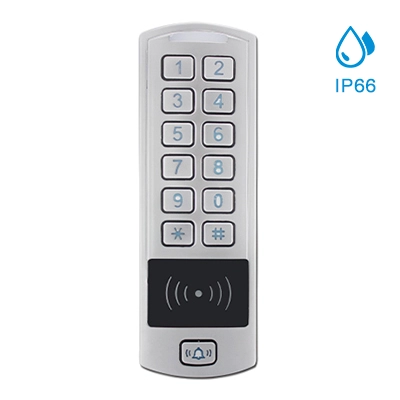

> Waterproof, conforms to IP66
> One relay, 600 users
> Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card
> PIN length: 4~6 digits
> Wiegand 26~37 bits input & output
> Can be used as Wiegand reader with LED & Buzzer output
> Pulse mode, Toggle mode
> 2 devices can be interlocked for 2 doors
> 12~28V AC/ DC
|
User Capacity |
600 |
|
Common Users |
598 |
|
Panic Users |
2 |
|
Operating Voltage |
12~28V AC/DC |
|
Idle Current |
< 65mA |
|
Active Current |
< 100MA |
|
Proximity Card Reader |
HID & EM & MF |
|
Radio Technology |
125KHz &13.56Mhz |
|
Read Range |
2~6 cm |
|
Wiring Connections |
Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
|
Relay |
One (NO, NC, Common) |
|
Adjustable Relay Output Time |
0~99 Seconds (5 seconds default) |
|
Lock Output Load |
2 Amp Maximum |
|
Wiegand Interface |
Wiegand 26~37bits |
|
Wiegand Input |
26~37bits |
|
Wiegand Output |
26~37bits |
|
PIN Output |
4 bits, 8 bits(ASCII), 10 digits Virtual Number |
|
Environment |
Meets IP66 |
|
Operating Temperature |
-40℃ ~ 60℃ (-40°F ~ 140°F) |
|
Operating Humidity |
0%RH ~ 98%RH |
|
Physical |
Zinc-Alloy Enclosure |
|
Surface Finish |
Powder Coat |
|
Dimensions |
L150xW51xH23mm |
|
Unit Weight |
500g |
|
Shipping Weight |
600g |
