Fixed Barcode Reader QR Code ScannerFixed Barcode Reader QR Code ScannerFixed Barcode Reader QR Code ScannerFixed Barcode Reader QR Code Scanner

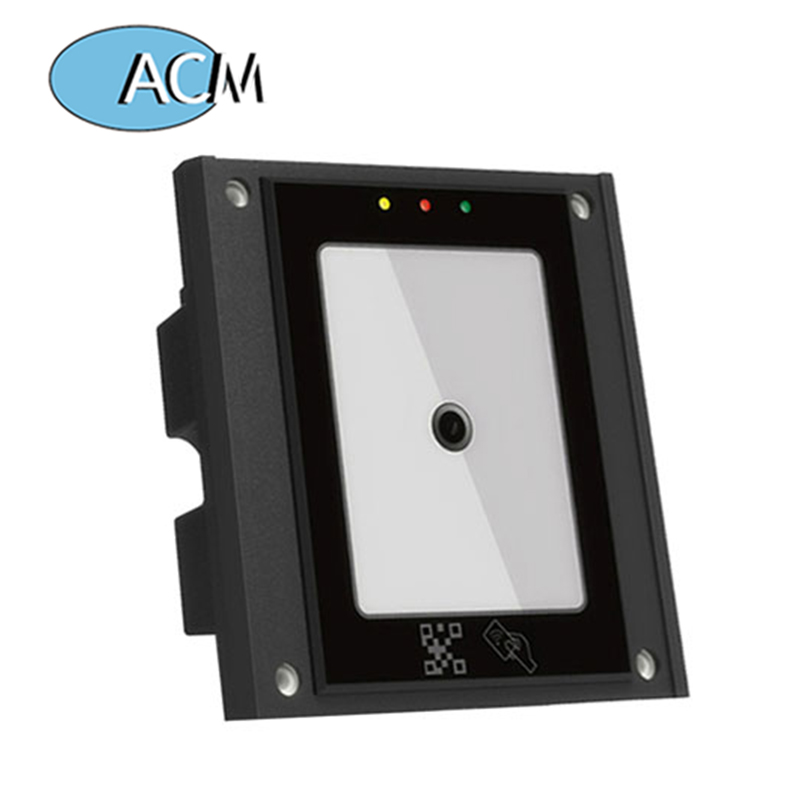

Fixed Barcode Reader QR Code Scanner

  • Model Number:ACM-QR88
  • Product name: Access Control QR Code RFID Card reader
  • reading range: 3-6cm
  • Color: Black
  • Type: access control system reader
  • interface: wiegand26/34, RS232, RS485, TCP/IP optional
  • Function: EM or Mifare card, QR code reading
  • Operating system: Windows, Linux
  • Lights: Red, Green, Light Green
  • Material: Tempered glass
  • Size: 86*86*42
Product Description

Access Control QR Code RFID Card reader



· High-performance

· Readily accessible for QR code
· High quality tempered glass material
·Optional interface, such as wiegand26, TCP/IP, RS485;
· LED indicates the status of the device
· Available SDK for secondary development
Product Parameter
Parameter Description
Material
Plastic + Tempered glass
Output format
Weigand 26/ 34/ RS485/RS232/ TCP/IP
Color
black
Language
English/Chinese
Reading speed
<200ms
Reading range
0-20cm
Led light
Red light:working light Yellow light:feed back light Green light:network light
Dimension
86*86*42mm (L*W*H)
Detailed Images

Future:
• Access control QR and RFID reader with Wiegand output
• Input voltage: DC 4-15V wide voltage input
• High quality tempered glass panel
• Suitable for all kinds of door access control system
• High speed reading, and reading distance from 0-20cm
• LED indicates the status of the device
• Available SDK for secondary development

This Low Price USB Biometrics Fingerprint Scanner supports Windows 2000/XP/2003/Vista/7/8(32/64bit) . We provide developer with SDK. The developer can integrate the hardware into their own system. This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.
