12 Volt Security Magnet Hidden Electric Mortise Strip Smart Electronic Remote Control Rfid Magnetic Lock12 Volt Security Magnet Hidden Electric Mortise Strip Smart Electronic Remote Control Rfid Magnetic Lock12 Volt Security Magnet Hidden Electric Mortise Strip Smart Electronic Remote Control Rfid Magnetic Lock12 Volt Security Magnet Hidden Electric Mortise Strip Smart Electronic Remote Control Rfid Magnetic Lock

12 Volt Security Magnet Hidden Electric Mortise Strip Smart Electronic Remote Control Rfid Magnetic Lock

  • Product name: LED, signal output or delayed frameless glass door magnetic lock
  • Holding Force :: 280KG (600LBS)
  • Model :: ACM-Y280N
  • Voltage :: 12 / 24VDC
  • Certification :: CE / MA
  • Block status: NO / NC / COM / + / -
  • Block Size: Magnet (LxWx H): 224Lx40Wx25H (mm)
  • Feature: timer delay, feedback signal, dual voltage 12V / 24V
  • Keywords: electric locks, magnetic locks, electric locks for sliding doors
Product description

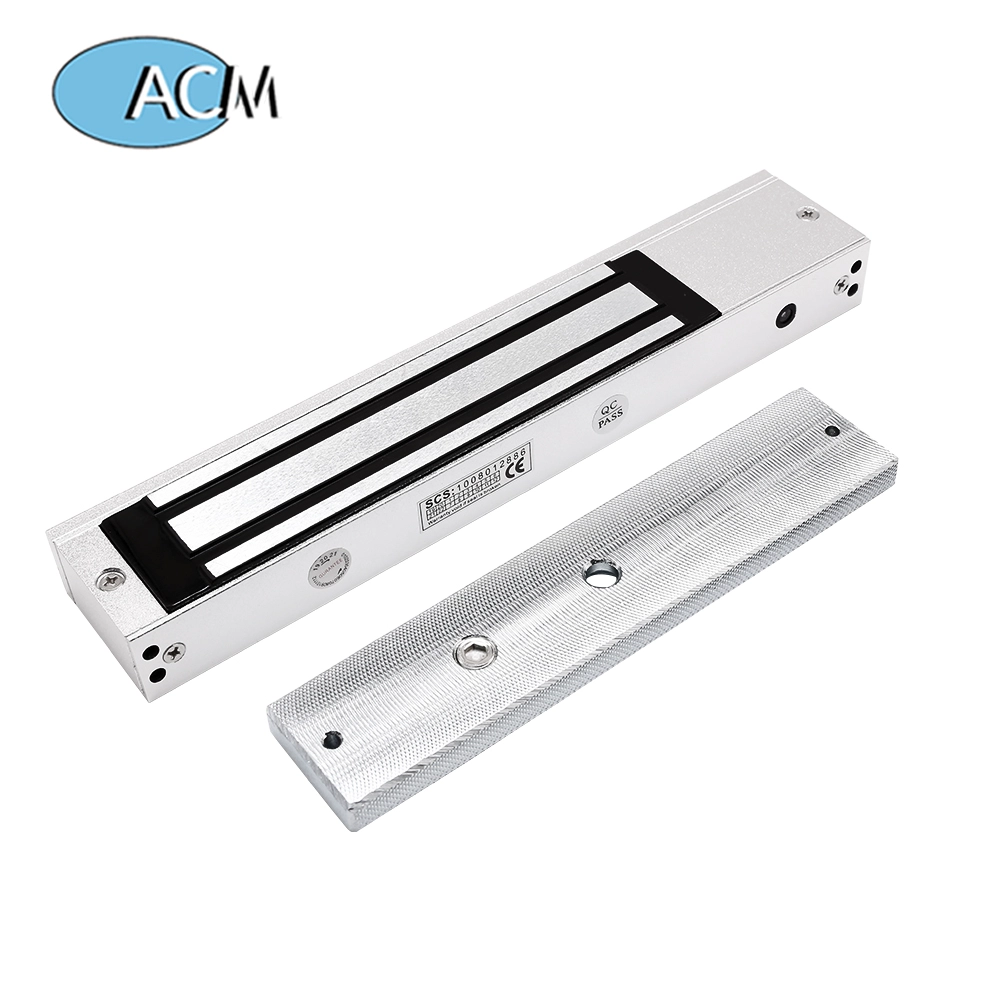

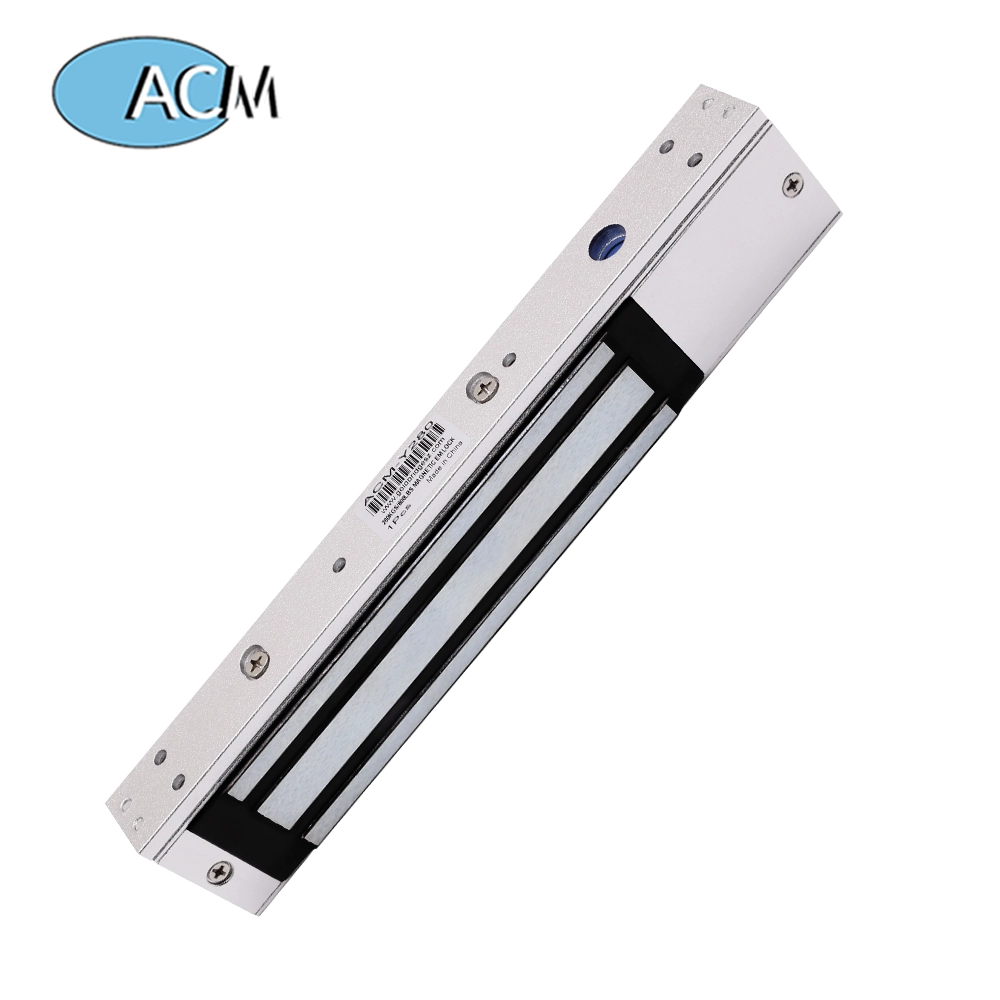

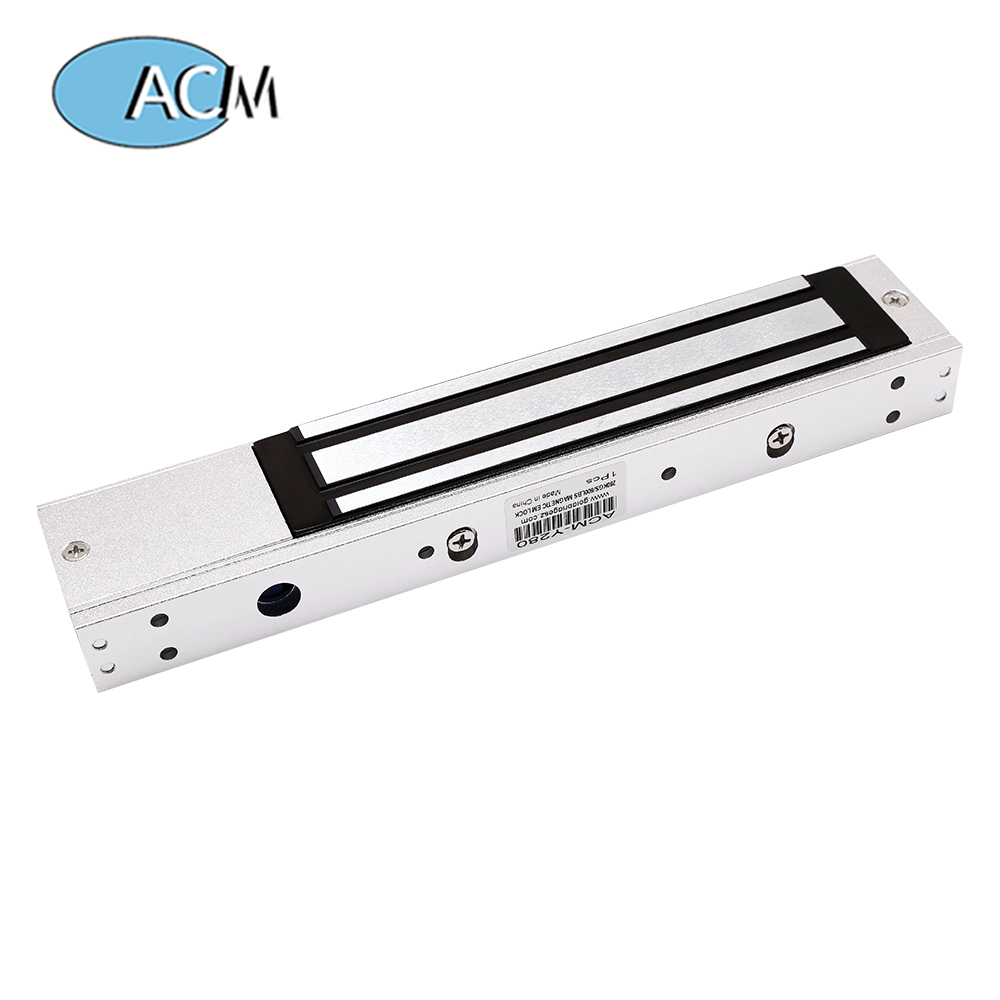

Holding force 280kg Electric lock magnetic lock with LED, signal output or delayed frameless glass door magnetic lock


Hidden magnetic lock with 600 lbs (280 kg) of holding force for single door

Product parameter
Parameter description
Block size:
224Lx40Wx25H (mm)
Armature plate:
190Lx190Lx45Wx11H (mm)
Holding Force:
280 kg (600 lbs)
Input voltage:
Dual voltage 12 / 24VDC
Suitable for door:
Wooden door, glass door, metal door, fire door
Singal output:
Block single status NO / NC / COM / + / -
Characteristic:
Fail Safe, timed delay, feedback signal, dual voltage 12V / 24VDC
GUIDED:
Red shows unlocked, green shows locked
Weight:
2.1 kg
Certification:
CE / MA
Advanatge product

- 280kg, 600lbs collinear load test.
- Dual voltage 12 or 24 VDC (optional).
- Standard voltage is 12VDC when finished.
- MOV provides reverse current protection.
- Suitable for wooden doors, glass doors, metal doors, fire doors.
- LED Indicates the status of the door.
- Block status sensor (NO / NC / COM)
- Door status sensor (NO / NC / COM)
- Anti-residue magnetism designed.
- High strength material, anodized aluminum housing.
- Design without mechanical failures.
- Increase the holding force, double insulated housing.
- CE certified by the European Union, MA certified by the Chinese Public Security Bureau



Shenzhen Goldbridge focuses on R&D innovation, manufacturing and sales of IOT RFID products and application solutions, including RFID reader category UHF desktop reader writer, UHF integrated reader, R2000 UHF fixed reader, UHF OEM module, RFID handheld reader, uhf rfid tag, 2.4G active rfid reader, 125KHZ long range EM reader, industrial RFID hardware and embedded software, got the national high-tech corporate certification FCC, CE and ROHS.

Tag: smart lock ,rfid door lock ,Door lock ,electromagnetic lock ,magnetic door lock ,Feedback signal ,Time-delay ,NO/NC/COM
