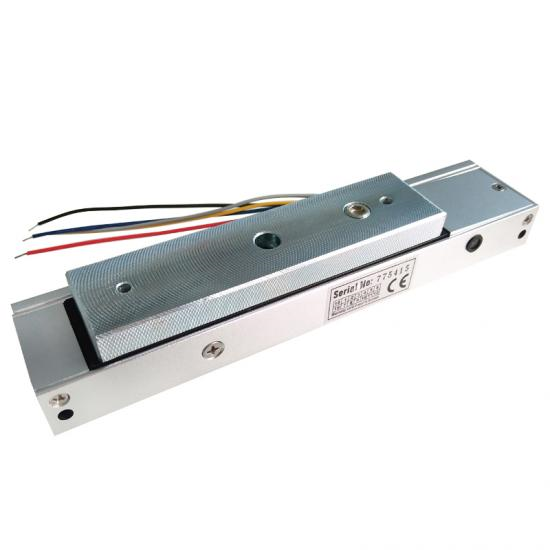

180KG Single Door EM Lock with 5wires180KG Single Door EM Lock with 5wires

180KG Single Door EM Lock with 5wires

  • Model : ACM-Y180
  • Voltage: DC12V or DC24V
  • Holding Force: 180KG(350Lbs)
  • Lock Size: 200Lx41.7Wx21.7H(mm)
  • Current Draw: 12V/300mA 24V/150mA

180KG Single Door EM Lock with 5wires

Model No.: ACM-Y180


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


Lock Size

200Lx41.7Wx21.7H(mm)

Armature plate

130Lx33Wx10.5H(mm)

Holding Force

180KG(350Lbs)

Voltage

DC12V or DC24V (24V need to customize)

Current Draw

12V/280mA  24V/150mA

Signal Output

Pls see EL-350TS

Suitable for

Wooden door, Glassdoor, Metal door, Fireproof door

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

1.2kg

Standard Packing

20pcs


180KG Single door EM lock

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet
