IP68 Waterproof 13.56mhz Multi Function Wiegand 26 Standalone Smart Card Door Access Control
Operating Voltage |
DC 12V±10% |
User Capacity |
2000 |
Card Reading Distance |
3-6 cm |
Active Current |
<60mA |
Idle Current |
25±5 mA |
Lock Output Load |
Max 3A |
Alarm Output Load |
Max 20A |
Operating Temperature |
-45°~60° |
Operating Humidity |
10%- 90% RH |
Waterproof |
Conforms to IP68 |
Adjustable Door Relay time |
0 -99 seconds |
Adjustable Alarm Time |
0- 3 minutes |
Wiegand Interface |
Wiegand 26 bit |
Wiring Connections |
Electric Lock, Exit Button, External Alarm,External reader |
Colour |
Function |
Description |
Pink |
BELL_A |
Doorbell button one end |
Pale blue |
BELL_B |
Doorbell button to the other end |
Green |
D0 |
WG output D0 |
White |
D1 |
WG output D1 |
Grey |
ALARM |
Alarm negative(alarm positive connected 12 V+) |
Yellow |
OPEN |
Exit button one end(the other end connected GND) |
Brown |
D_IN |
Magnetic switch one end(the other end connected GND) |
Red |
12V+ |
12V + DC Regulated Power Input |
Black |
GND |
12V - DC Regulated Power Input |
Blue |
NO |
Relay normally-on end(Connect positive electric lock "-") |
Purple |
COM |
Relay Public end, connect GND |
Orange |
NC |
Relay Closed end(connect negative electric lock "-") |
l Waterproof, conforms to IP68
l Strong Zinc Alloy Electroplated anti-vandal case
l Full programming from the keypad
l 2000 uses, supports Card, PIN, Card + PIN
l Can be used as a stand alone keypad
l Backlight keys
l Wiegand 26 input for connection to external reader
l Wiegand 26 output for connection to a controller
l Adjustable Door Output time, Alarm time, Door Open time
l Very low power consumption (30mA)
l Fast operating speed, <20ms with 2000 users
l Lock output current short circuit protection
l Easy to install and program
l Built in light dependent resistor (LDR) for anti tamper
l Built in buzzer
l Red, Yellow and Green LEDS display the working status

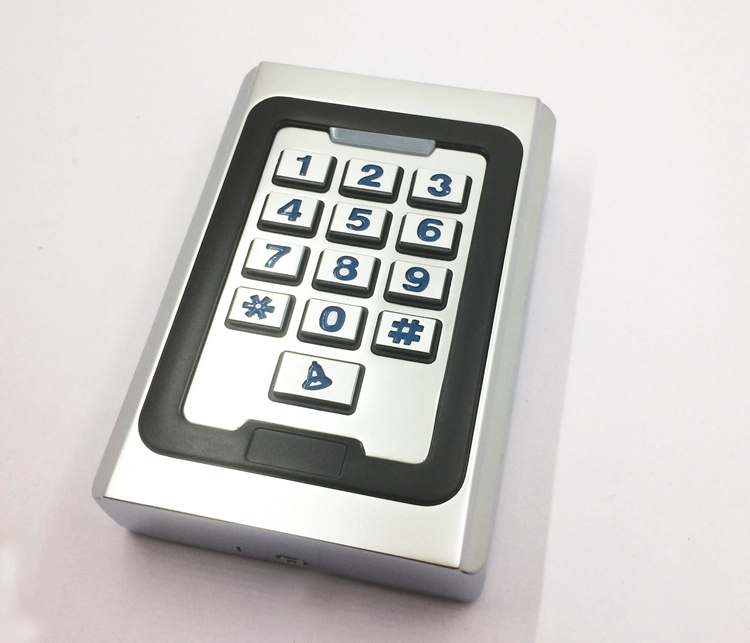

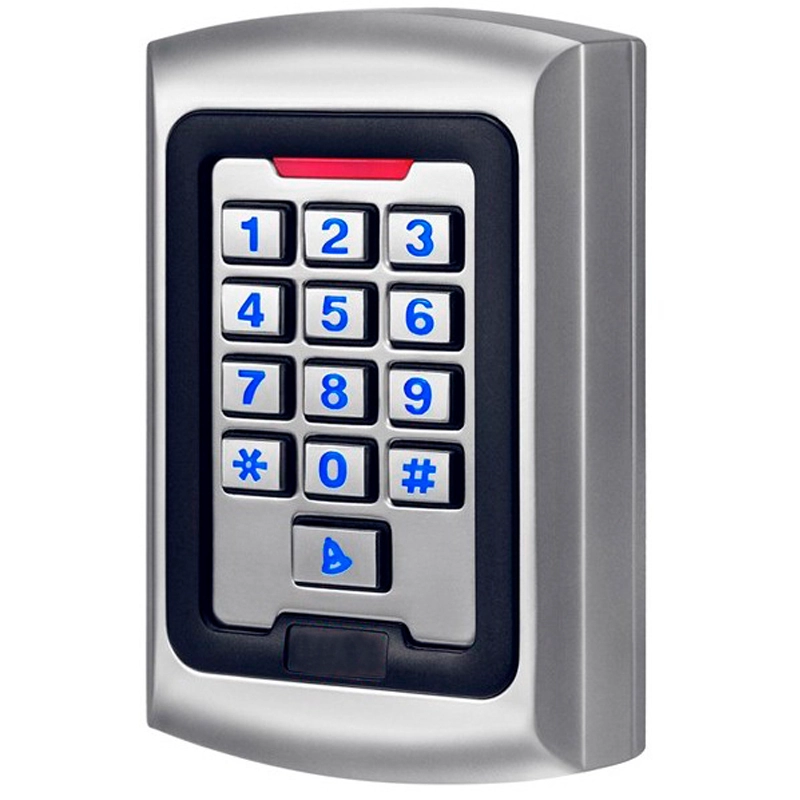

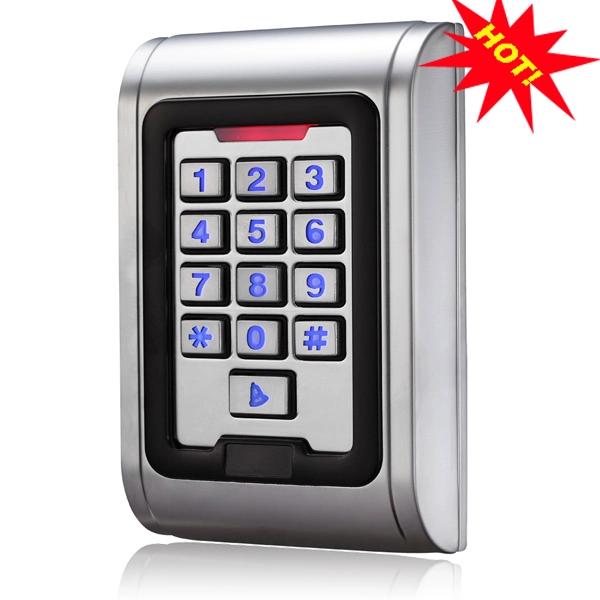

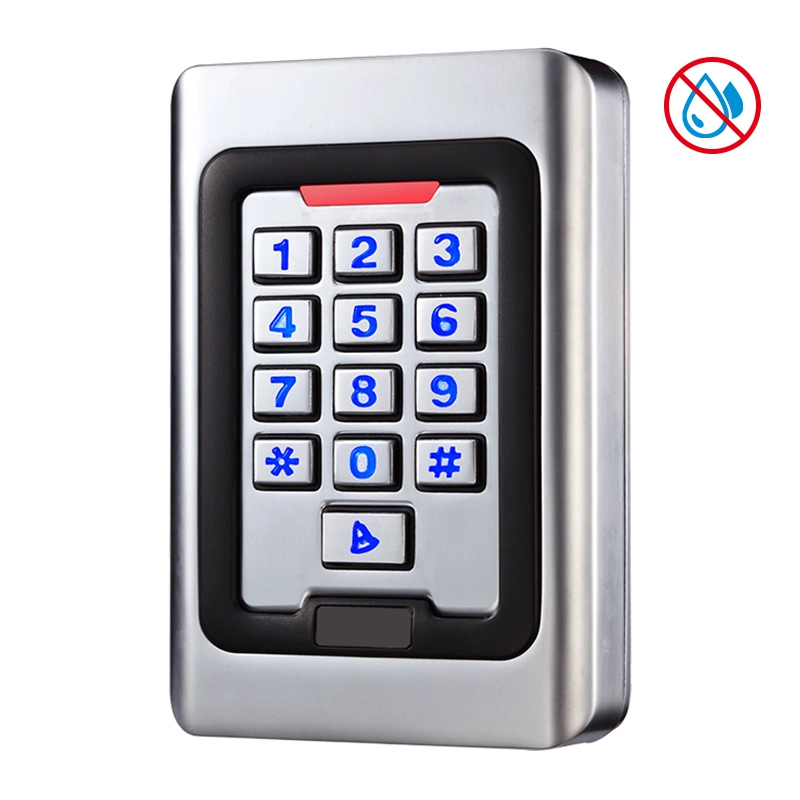

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is waterproof and conforms to IP68. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 13.56MHz MF cards. The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.
