ACM-218BL-B Waterproof metal Standalone Metal Wiegand 125KHz EM RFID Keypad card password Door Access Control SystemACM-218BL-B Waterproof metal Standalone Metal Wiegand 125KHz EM RFID Keypad card password Door Access Control SystemACM-218BL-B Waterproof metal Standalone Metal Wiegand 125KHz EM RFID Keypad card password Door Access Control SystemACM-218BL-B Waterproof metal Standalone Metal Wiegand 125KHz EM RFID Keypad card password Door Access Control System

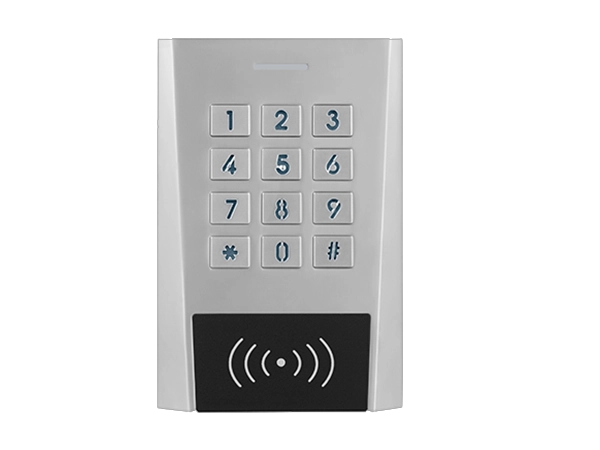

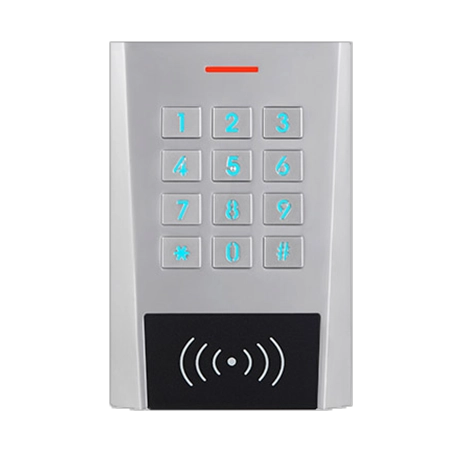

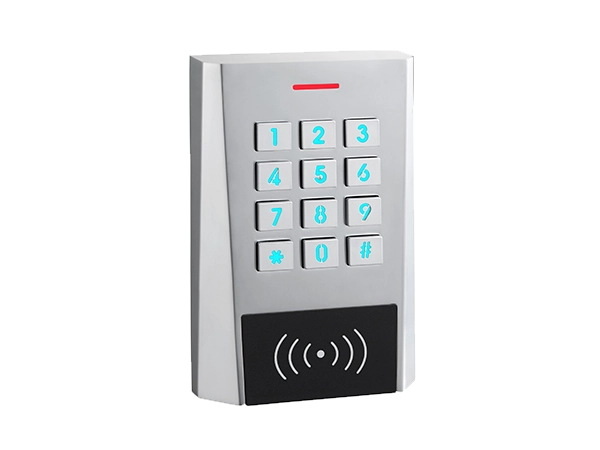

ACM-218BL-B Waterproof metal Standalone Metal Wiegand 125KHz EM RFID Keypad card password Door Access Control System

  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Keyboard:Metal buttons with luminous
  • Door Open Time:0-99 seconds
  • Frequency:EM-ID 125KHz or 13.56MHz
  • lighting:LED light
  • material:waterproof metal
  • Verification Method:Card,Password,Card+password
  • Capacity Of Cards:2000 Users
  • Proximity Range:3-10CM
  • Wiegand Signal:Output&Intput
Product Description
Bluetooth Outdoor Metal RFID PIN Keypad Access Controller
Convertible working modes, more possibilities . Standalone mode, controller mode, Reader Mode .

It is a widely used access control system entrances and exits at offices, factories, hotels, schools and other public places.All
input/output uses anti-jamming protection and over-voltage/circuit protection.

Specification
User Capacity
Normal Users
Visitor Users
1000 PINS
990
10
Operating Voltage
Idle Current
Active Current
9~18V DC
50mA
80mA
Wiring Connections
Relay Output, Exit Button
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
0-99 Seconds (5 seconds default)
3 Amp Maximum
Environment
Operating Temperature
Operating Humidity
Meets IP66
-40°C~ 60°C (-40°F ~ 140°F)
10%RH-90%RH

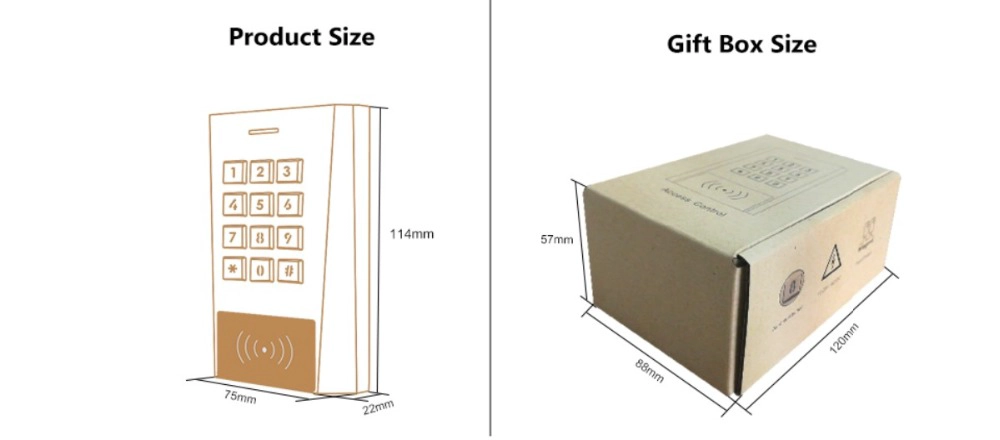

Physical
Surface Finish
Dimensions
Unit Weight
Shipping Weight
Zinc-Alloy Enclosure
Powder Coat
9.8L x 6.6W x 2.2H (cm)

295g
350g
Advantage

Bluetooth Metal Access Control

* Waterproof, conforms to IP66

* One relay, 1000 users

* Wiegand 26~37 bits input & output

* User data can be transferred by Wiegand line

* Access modes: Card, PIN, Card + PIN, Multi Cards/PINs, Mobile phone

* PIN length: 4~6 digits

* Pulse mode, toggle mode

* 2pcs device support interlock for two doors

* With Bluetooth, APP configuration

Product Show

Rfid Keypad Bluetooth Door Access Control Remote Controlled By Smartphone APPRfid Keypad Bluetooth Door Access Control Remote Controlled By Smartphone APP

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our service

1, all questions will be answered within 24 hours
2, professional manufacturer and supplier, welcome to visit our website and our factory
3, OEM / ODM available
4, high quality, fashin desing, reasonable and competitive price, quick delivery time
5, after-sales service:
1), all the products will have been strictly checked at home before packing
2), all products will be well packed before shipment
3), All our products have a 2-3 year warranty if the damage is not caused by human being
6, faster delivery : About 1 ~ 5 days for sample order, 7 ~ 30 days for bulk order
7, payment: You can pay for the order via: T / T, Western Union, Paypal, Ali commercial insurance
8, shipping: We have a strong partnership with DHL, FEDEX, TNT, UPS, EMS, freight forwarder by sea and by air, you can also choose your freight forwarder.


FAQ

Q: 1. How can I place an order?
A: List your needs by e-mail. Then we will send you the offer as soon as possible, after order confirmation, we will organize the production as soon as possible.

Q: 2. What about payment and shipping?
A: Commercial warranty and T / T, Paypal, Western Union.
Customers can choose by sea, air or express (DHL, FedEx, TNT UPS etc.)

Q: 3. How can I get a sample to check the quality?
A: We could supply you free sample and the freight cost paid by you.

Q: 4. How long can I wait to get the samples?
A: it depends on the quantity. Normally 3-7 days for 5000 pieces and 7-15 days for 100,000 pieces

Q: 5. Can your products be customized?
A: Almost all your products are customized, including material, size, thickness and printing. OEM orders are welcome.

Q: 6. Are you a trading company or factory?
We are one of the leading manufacturers of RFID cards / NFC tags / RFID keybod / RFID reader RFID reader and access control products in China for over 20 years.
