ACM-27 Metal Rfid Reader Dual Frequency Access ReaderACM-27 Metal Rfid Reader Dual Frequency Access ReaderACM-27 Metal Rfid Reader Dual Frequency Access ReaderACM-27 Metal Rfid Reader Dual Frequency Access Reader

ACM-27 Metal Rfid Reader Dual Frequency Access Reader

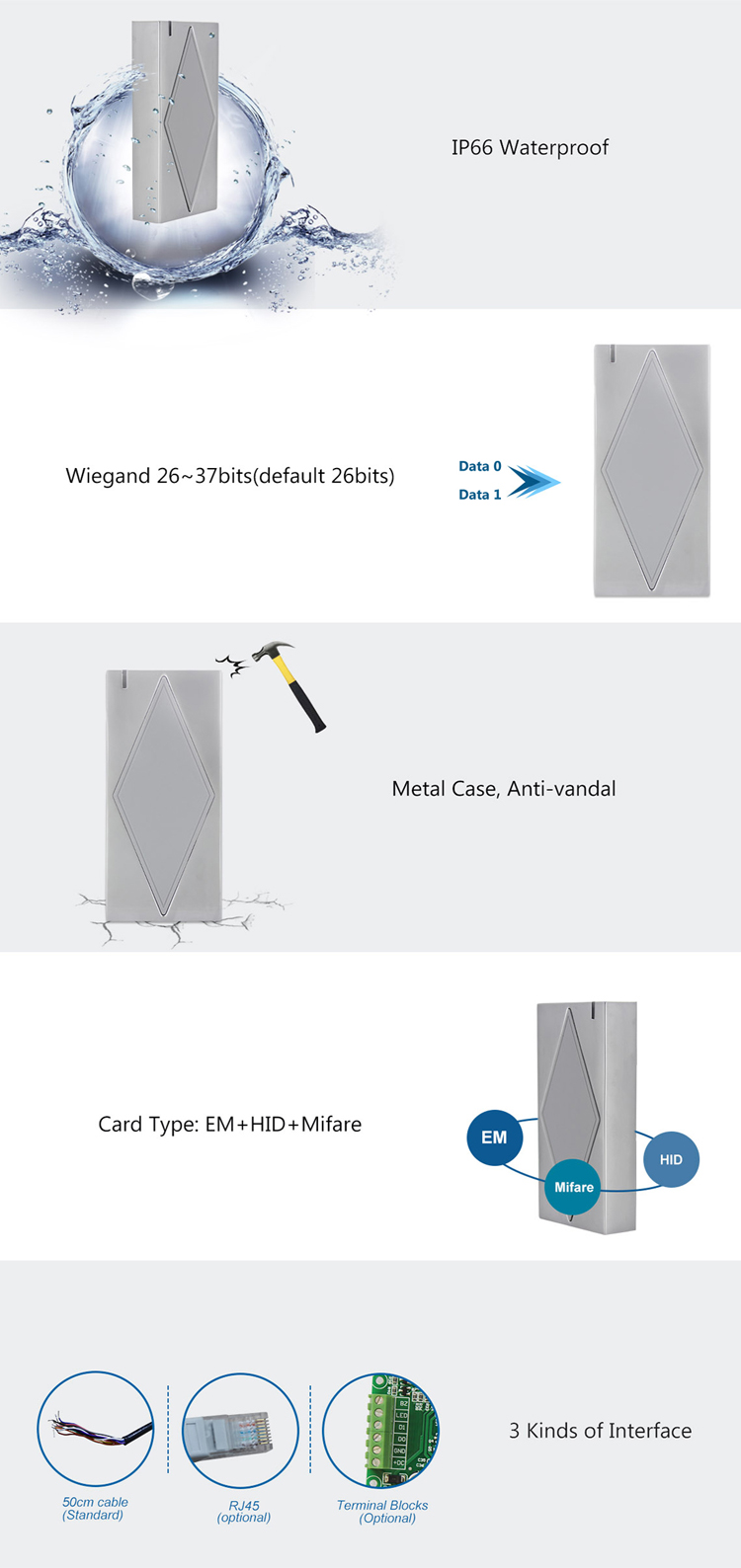

  • > Metal Case, anti-vandal
  • > Waterproof conforms to IP66
  • > Wiegand 26~37 bits output (default: 26bits)
  • > Card type: Hid card, EM card & Mifare card
  • > Reading range: 3~8cm
  • > External LED Control & External Buzzer Control

The ACM-27 reader is an advanced 125KHz & 13.56MHz technology proximity reader.

Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in a harsh environment.

> Metal Case, anti-vandal

> Waterproof conforms to IP66

> Wiegand 26~37 bits output (default: 26bits)

> Card type: Hid card, EM card & Mifare card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control


Operating Voltage

9~24V DC

Frequency

125KHz & 13.56MHz

Card Type

125KHz - EM & Hid Card

13.56MHz - Mifare Card (ISO 14443A Compatible)

Reading Distance

3~8 CM

Output Format

Wiegand 26 bits

(26~37 bits available upon request)

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Standby Current

< 25mA

Operating Humidity

10%~98% RH

Index of Protection

IP66

Dimensions

L103 x W48 x H19 (mm)


Metal Wiegand Reader

Packing & Delivery

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~7 days after the order confirmed


We are looking forward to forging successful business relationships with new customers around the world in the future.

Shipping way

We have been one of the leading exporters of RFID products in China for 2000 years. With rich experience in international trade, we know international shipping very well, we know which express or air / sea line is cheap and safe for your country. We can provide various certificates to clean your habit such as CO, FTA, Form F, Form E ... ect. We will provide our professional shipping suggestion. EXW, FOB, FCT, CIF, CFR ... trade terms are ok for us. We can be your reliable partner for products and shipments.
