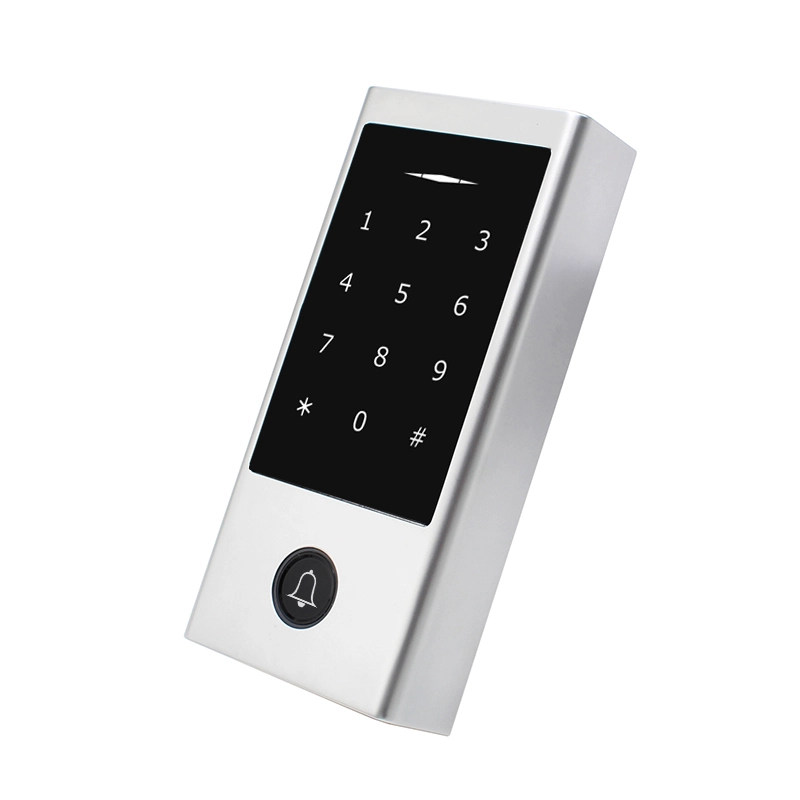

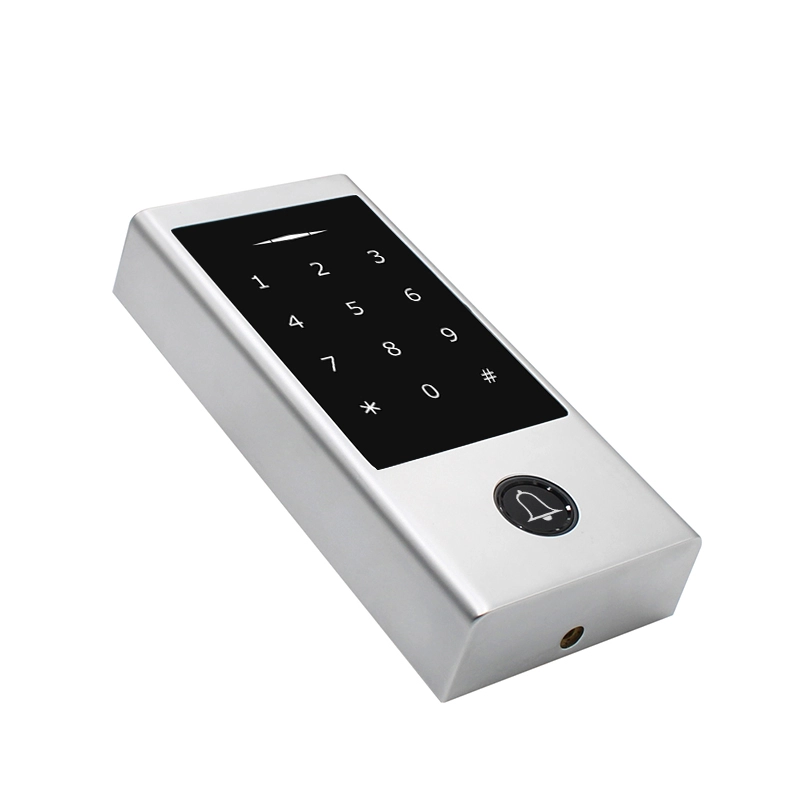

Bluetooth Access Control Password Door Lock Keyless RFID 13.56MHz Card Reader ACM-232

  • Model Number:ACM-232
  • User Capacity:100 APP users (include 255 Card, PIN users)
  • Card Type:13.56MHz MF/IC Cards
  • Access Mode:Card, PIN, Multi Users
  • Wiring Connections:Relay output, exit button, alarm, door contact
  • Multi-language:English, Spanish, French, German, Italian, Russian, Portuguese
Product Descrption

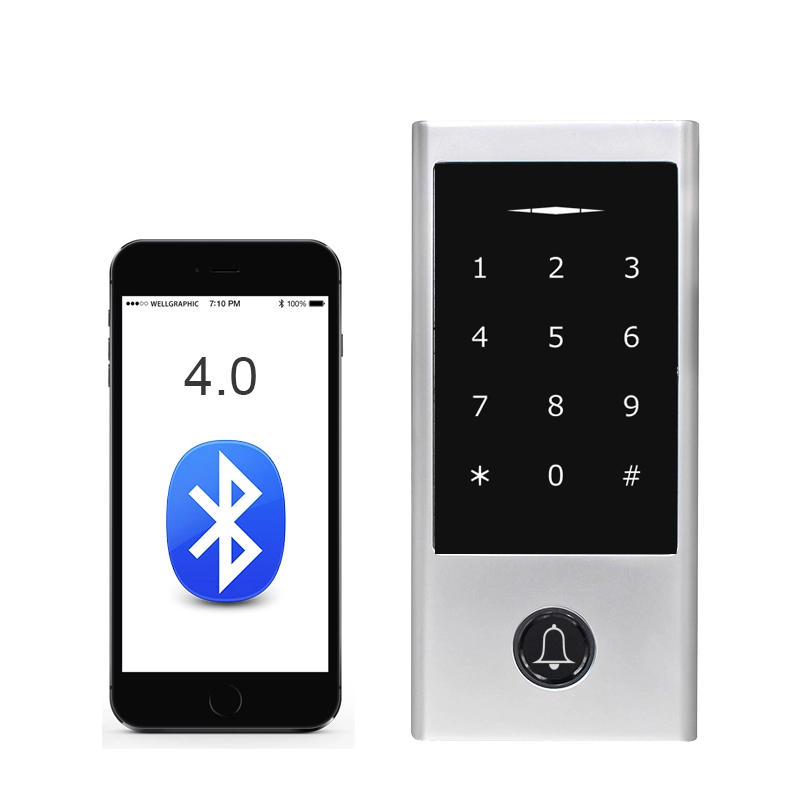

Bluetooth Access Control
Waterproof, conforms to IP66
Metal housing, anti-vandal
Card type:  Mifare Card
iOS and Android available

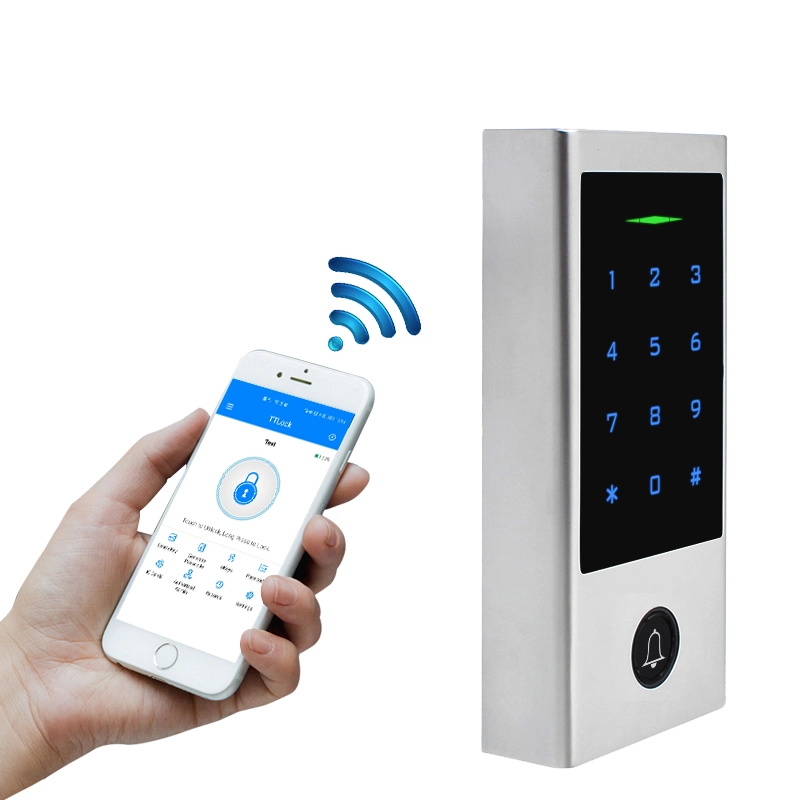

Add / Delete users by APP
Support checking Opening Record
Support Gateway
> Support Time Attendance
Multiple Access Modes: Smartphone, Card, PIN
Secukey 13.56MHz Touch Keypad Bluetooth RFID Access Control with TTLock APP Compatible with Mifare Card
Secukey 13.56MHz Touch Keypad Bluetooth RFID Access Control with TTLock APP Compatible with Mifare Card
Parameter



Blutooth

Bluetooth (BLE 4.1)

Mobile Phone

Android 4.3/IOS7.0 above

PIN User Capacity

Custom password : 150

dynamic password:  150

Card User Capacity

200

Card Type

13.56MHz Mifare card, M1 card

Multi-language

English, Spanish, French, German, Italian, Russian, Portuguese,

Serbian, Malaysian, Japanese, Vietnamese etc.

Card Reading Distance

2~4 cm

Keypad

Capacitive TouchKey

Operating Voltage

12V DC

Working Current

≤80mA

Lock Output Load

≤2A

Operating Temperature

-20°C~+60°C

Operating Humidity

0%RH~85%RH

For Outdoor

Waterproof, IP66

Physical

Colour

Dimensions

Unit Weight

Shipping Weight

Zinc-Alloy

Silver & Black

L149 X W68 X D25 (mm)

500g

615g
