ACM-K2A Infrared sensor RFID touch button without touch

  • Model number: ACM-K2A
  • Product name: RFID infrared sensor without exit button for touch door access control

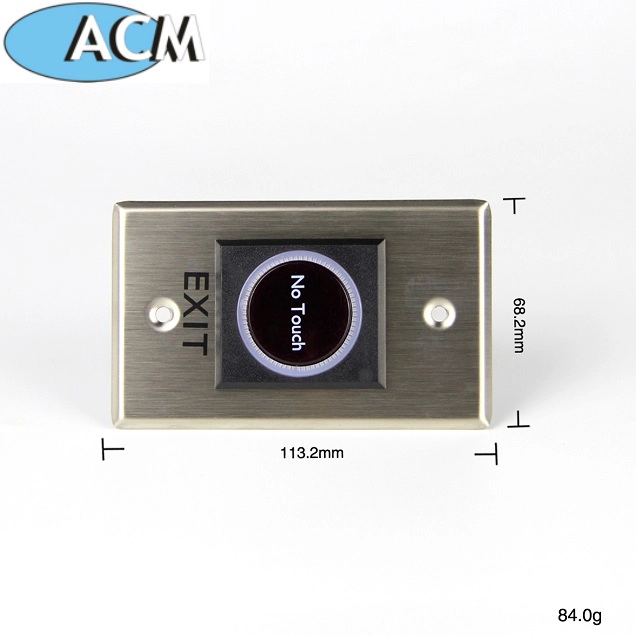

  • Dimensions: 115 * 40 (mm)
  • Input: DC12V
  • Application: gate / door / exit / automation control
Product description

RFID infrared sensor without door access control exit button

1. Aluminum panel with elegant style

2. Tested on 500,000 cycles

3. Three contact exits, suitable for all types of locks

4. The best choice for access control

access control exit button Technical specifications:

Product parameter
Parameter description
dimensions
115 * 40 (mm)
Entrance
DC12V
Contact evaluation
12-28V, 3A
Exit contact
NO / NC / COM
Mechanical life
500000 tested
Suitable for door
Empty door
Operating temperature
-20 ℃ ~ + 55 ℃ (14-131F)
Suitable humidity
0-95% (relative humidity)
Detection field
0.1-10cm
LED indicator
White LED indicator: switching off
Blue LED indicator: Power on (standby)
Red LED indicator: Power ON (feeling)
Weight
0.15kg

exit button access control Advantage:

. No touch / Contactless exit sensor (diffuse detection)

· Optical / infrared technology
· IP-55 plate for ingress protection / SUS 304 stainless steel
· Easy to use (healthy protection)
Free from the spread of contagious diseases
· Detection range: 0.1 ~ 10 cm
· Application: gate / door / exit / automation control
·· High dry contact capacity of the relay (3A / AC120V, DC30V)
· Normally open / normally closed / common exit
· Twin LED indicators for sensor waiting or approach:
(1) Sensor standby: BLUE LED ON
(2) Visitors who approached the sensor in 10 cm: RED LED ON

Detailed images

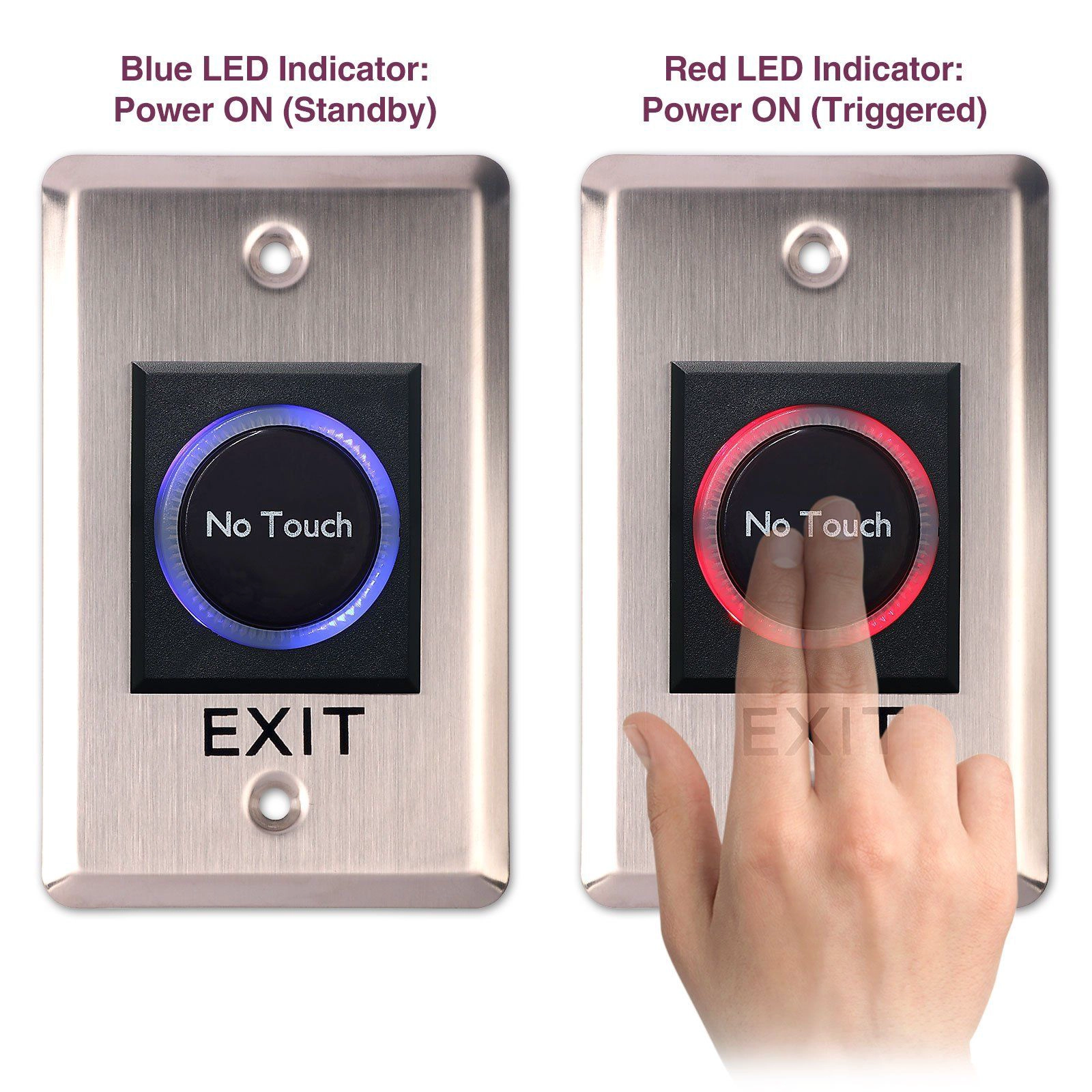

Blue LED indicator
Red LED indicator
Switch on (standby)
Switch on (activated

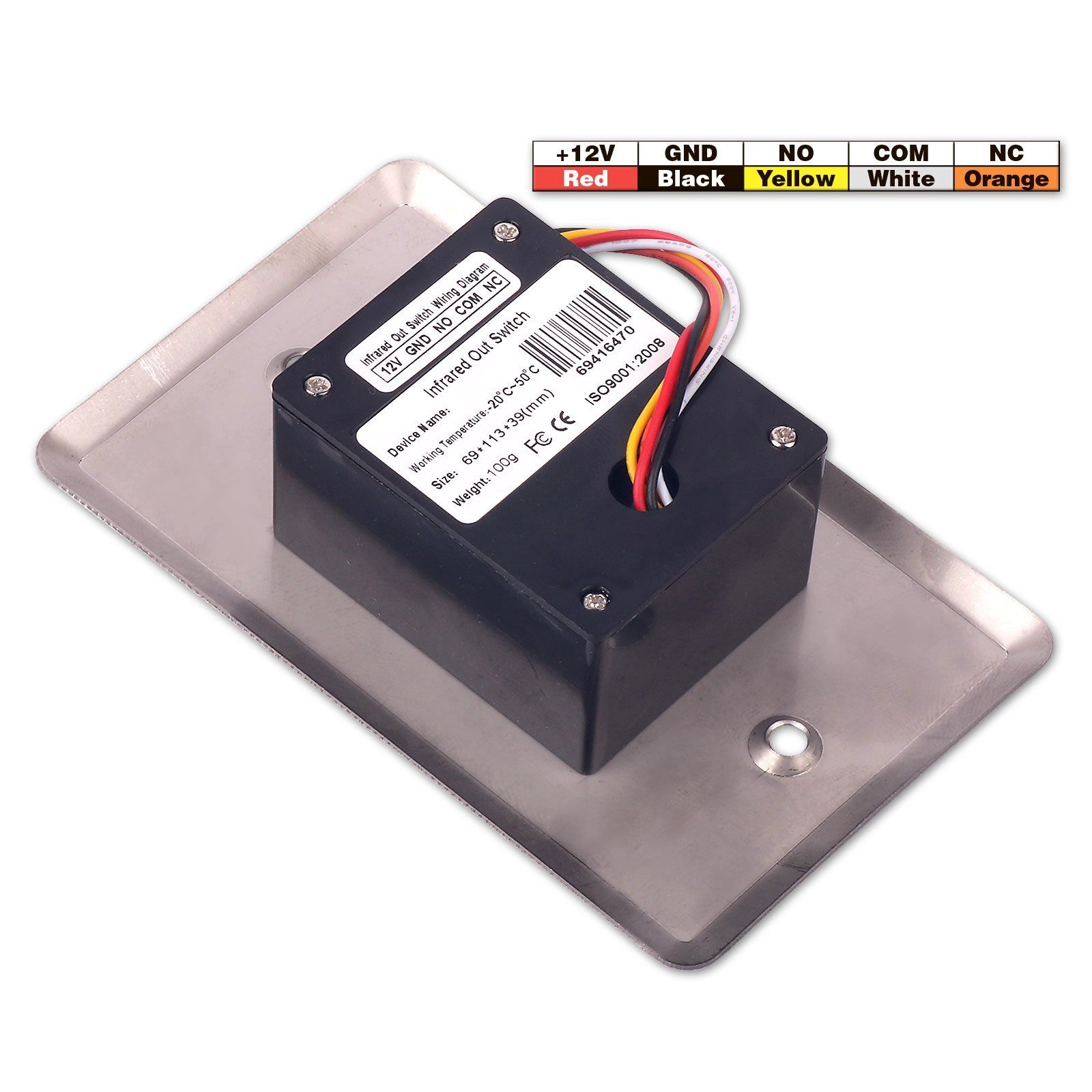

+ 12V
GDN
NO
COM
NC
Red
Black
Yellow
white
Orange

Click here to order and get your FREE SAMPLE in 3 days !!!
We are a complete supplier of professional security access control products with 20 years of experience, we make sure we offer the best access control solution! So, send the details of your request below, click "Send" now!
We look forward to establishing successful business relationships with new customers around the world in the future.

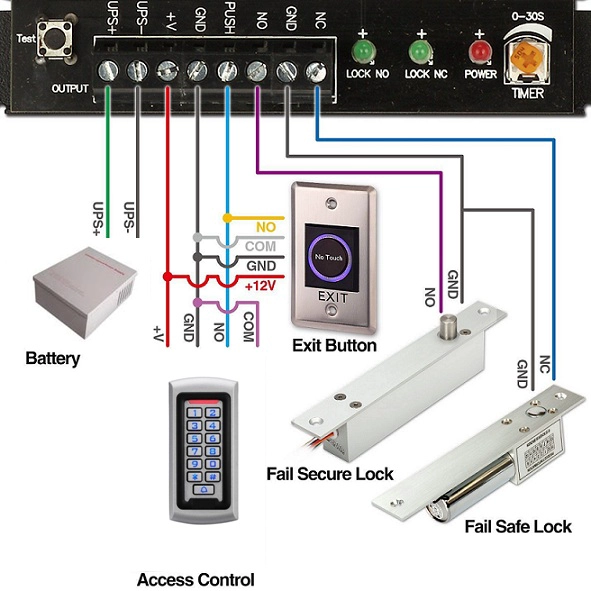

Application
