ACM Multi-Beam Infrared BarrierACM Multi-Beam Infrared Barrier

ACM Multi-Beam Infrared Barrier

  • Brand Name:ACM
  • Model Number:ACM-BS02
  • Product Name:Single Beam Infrared Barrier Sensor
  • Color:Black
  • Wave length:940nm
  • Operating Voltage:12-24V DC
  • Detection distance:≤20M
  • Frequency:1.92KHz
  • Operating Temperature:-25℃ ~ 55℃

Multi-Beam Infrared Barrier

Product Description

 Infrared Beam Sensor
1. Wave length: 940nm

2. Operating Voltage: 12-24V DC

3. Detection distance: ≤20M

4. Frequency: 1.92KHz

5. Waterproof IP65

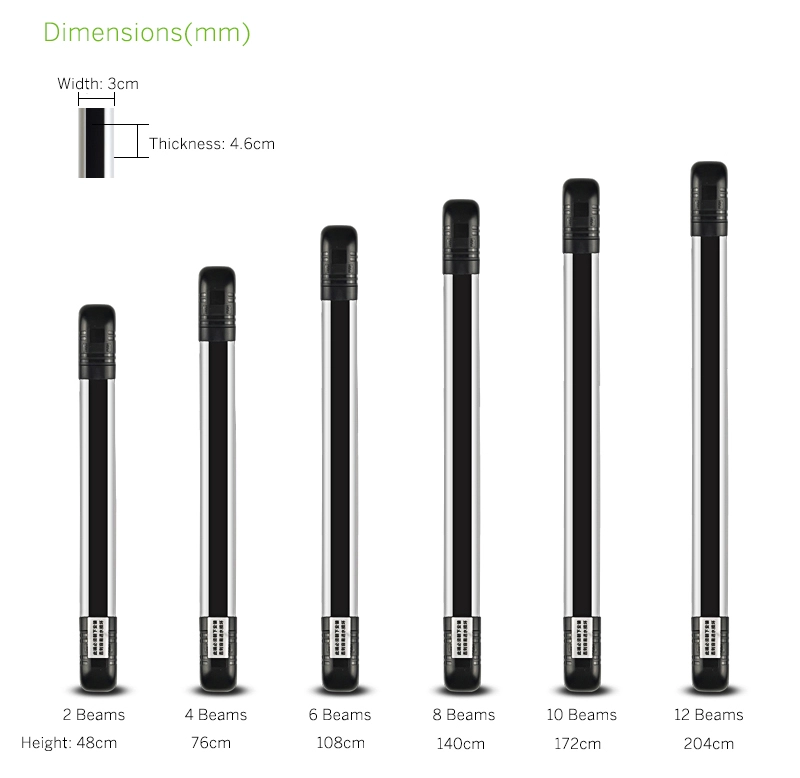

 Model BS-02 BS-03 BS-04 BS-05 BS-05 BS-06
Light Beam 2 Beams 4 Beams 6 Beams 8 Beams 10 Beams 12 Beams
Detection Distance 10M / 30M / 60M / 100M both available 10M
Height 48cm 76cm 108cm 140cm 172cm 204cm
Weight 0.75KG 1.09KG 1.45KG 1.9KG 2.2KG 2.55KG
Dimension 48*3.6*3.5cm 76*3.6*3.5cm 108*3.6*3.5cm 140*3.6*3.5cm 172*3.6*3.5cm 204*3.6*3.5cm
