Alarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest UniversalAlarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest UniversalAlarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest UniversalAlarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest UniversalAlarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest Universal

Alarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest Universal

  • Place of Origin: Guangdong, China
  • Brand Name: ACM
  • Model Number: BS-20
  • Special Features: Other
  • Network: None
  • Application: Indoor
  • Color: Black
  • Wave length : 940nm
  • Operating Voltage: 12-24V DC
  • Detection distance: ≤20M
  • Frequency: 1.92KHz
  • Operating Temperature: -25℃ ~ 55℃
  • Function: Alarm

Alarm Sensor Infrared safety beam IR Relay NC/NO Photocells automatic window gate door Garage Barrier Detector Newest Universal



Model No.: BS-20



Technical Parameters:

Model: Single beam

work voltage:12VDC24VDC

waterproof level : IP55

Temperature : +50~ (-30)

Size : 49.2 x 76 x 21.6MM

Water Proof, UV proof

Detector Area: indoor 20m. Outdoor 15m

Description:

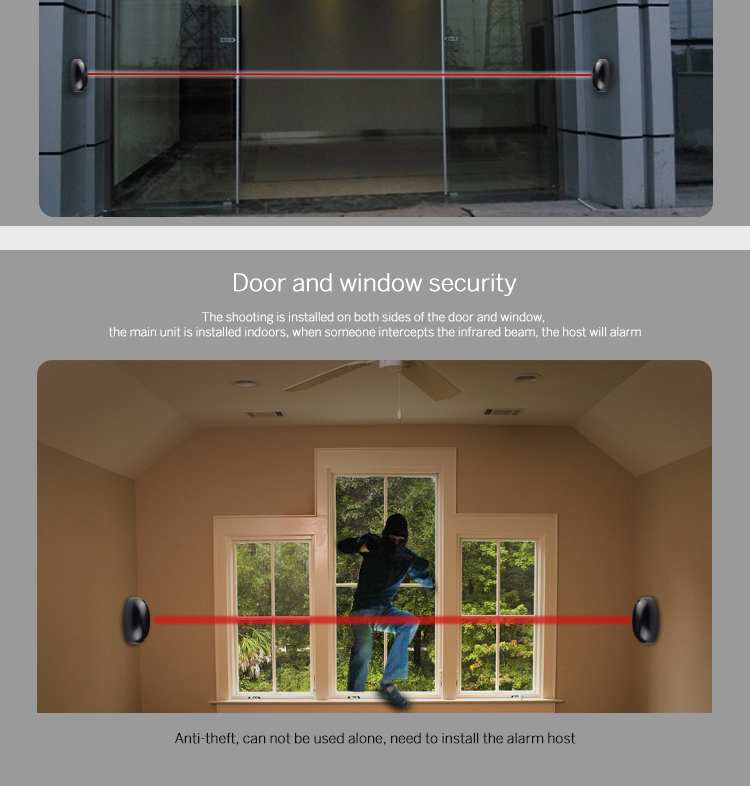

1.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here). 2. Install Distance(Max.)in the above chart means the maximum install distance between the twodetector parts. 3. Great to be installed for security system in school, office building, hosipital, home yard, etc. 4. Detecting range can be reduced to 30% in bad weather conditions, like rain, dust, etc. 5. English Usage Manual included in the pack. It will give you detailed instructions.

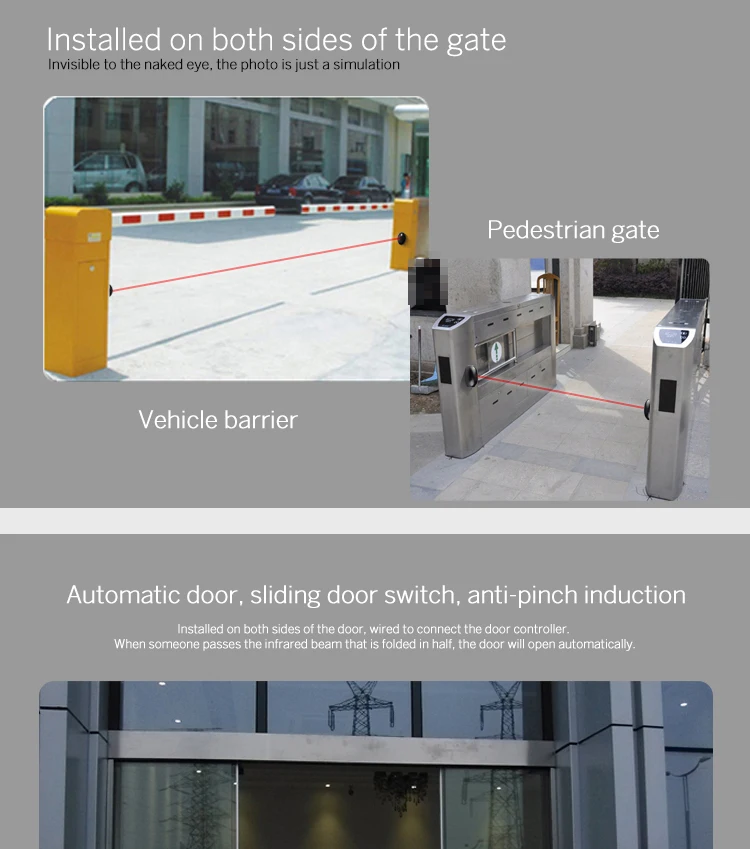

Widely to use





Product Name

Beam sensor

Color

Black

Wave length

940nm

Operating Voltage

12-24V DC

Detection distance

≤20M

Frequency

1.92KHz

Operating Temperature

-25℃ ~ 55℃

Dimensions

49.2 x 76 x 21.6MM

Waterproof IP65 Single Infrared Beam Sensor Laser Alarm SystemWaterproof IP65 Single Infrared Beam Sensor Laser Alarm SystemWaterproof IP65 Single Infrared Beam Sensor Laser Alarm SystemWaterproof IP65 Single Infrared Beam Sensor Laser Alarm System
