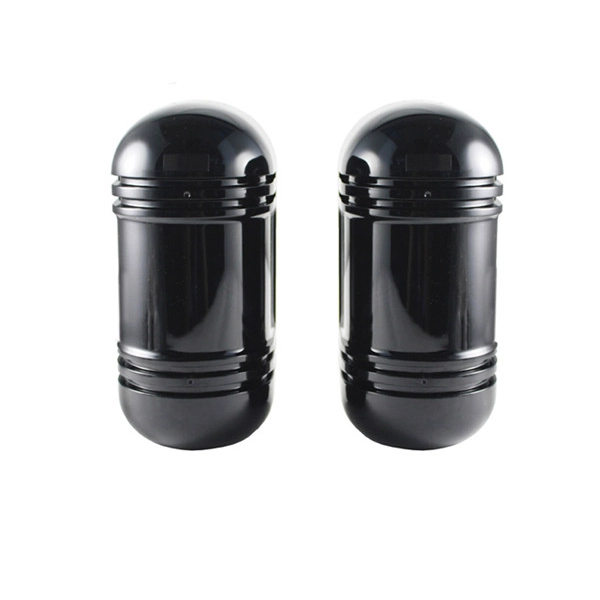

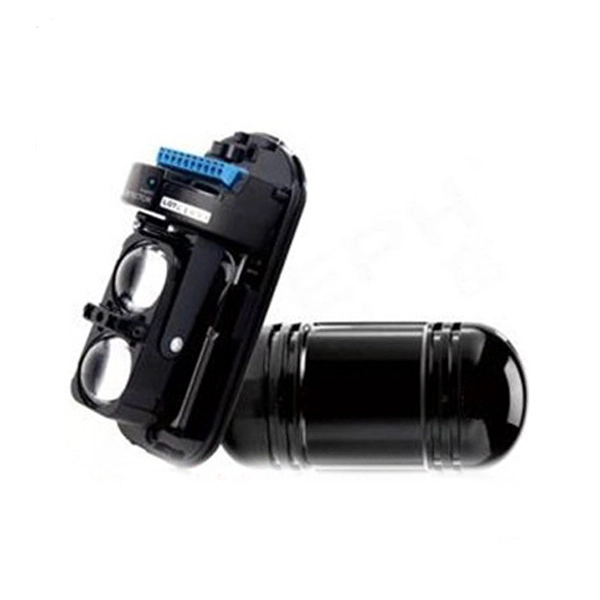

BT-20 Dual beam infrared active sensor barrier outdoor gate window photoelectric detector 24v

  • Model Number:ACM BT-20
  • Keyword:Active infrared beam detector
  • Beam:2 beams
  • Power and Voltage:DC 12-24V / AC 11-18V
  • Outdoor distance::80M
  • Dimension:177*82*77mm
  • Multi-beam:1/ 2/ 3/ 4 beams
  • Light source:Infrared LED
  • Response speed:50-700m/sec

Dual beam infrared active sensor barrier outdoor gate window photoelectric detector 24v


Features
1). Photoelectric infrared beam sensor with digital frequency conversion
2). Mout transmitter and receiver, build an invisible fence people can't see
3). When beam is blocked, alarm trigger
4). Alarm output NC/NO optional, compatible with other brand burglar alarm systems such as HONEYWELL,DSC,GE and BOSCH
5). Resistant to rain, fog, snow and frost
6). Infrared LED lighting
7). PC engineering plastic material
8). Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight,completely against fluorescent and car light
9). AGC circuit, the detector will automatically increase sensitivity when faced harsh environment
10). Horizontal / vertical optical angle can be easy to adjust

Technical Parameters

Products type                                             ABT-20            ABT-40          ABT-60          ABT-80           ABT-100
Detection distance Outdoor                       20m                40m               60m                80m             100m
Indoor                                                            60m                120m            180m              240m            300m
Detection means                                         Photoelectric beam detector
Number of beams                                       2 beams
Light source                                                 Infrared LED
Response speed                                         50-700m/sec
Alarm output                                               Switch signal output (NO/NC)
Power and Voltage                                     DC 12-24V  /  AC 11-18V
Working Current                                         40mA
Operating temperature                             -25°C - +55°C
Tamper output                                           NC  Contact the capacity of AV / DC 24V/0.5A
Exterior dimension                                   177*82*77mm
Adjust the level of the angle                   180º (± 90º)
Adjust the vertical angel                          ±10º
Case Material                                            PC engineering plastic
MOQ                                                           50 pairs
