ACM-Y280DS 280kgs/600lbs dual door em lcok withled/feedback signalACM-Y280DS 280kgs/600lbs dual door em lcok withled/feedback signalACM-Y280DS 280kgs/600lbs dual door em lcok withled/feedback signalACM-Y280DS 280kgs/600lbs dual door em lcok withled/feedback signal

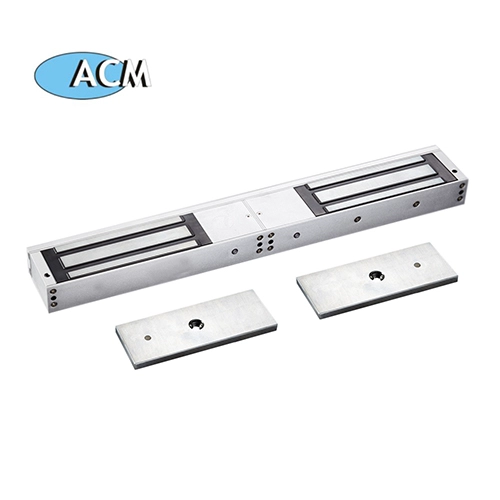

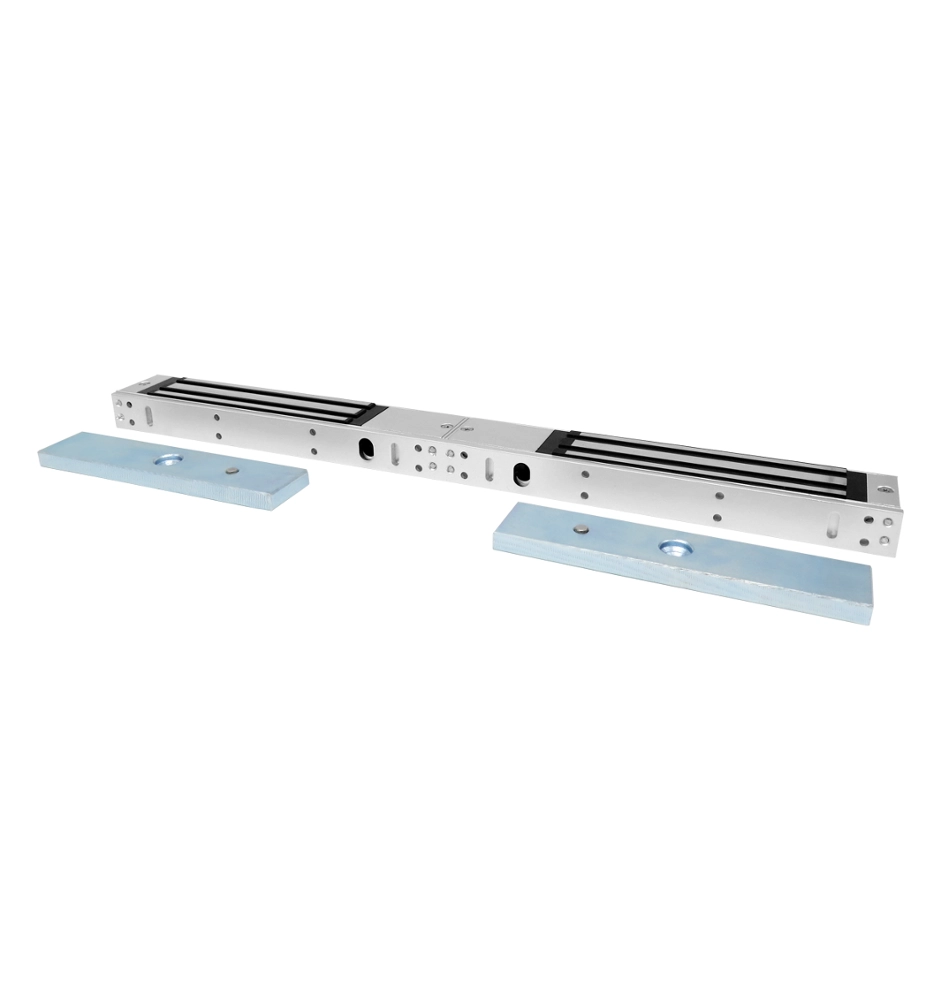

ACM-Y280DS 280kgs/600lbs dual door em lcok withled/feedback signal

  • Model : ACM-Y280DS
  • Lock dimensions: 560Lx81.6Wx46H(mm)
  • Armature plate dimensions: 180Lx38Wx11H(mm)
  • Holding force: 280kgx2(600Lbsx2)
  • Material: Zinc
  • Dual voltage: 12/24V DC
  • Current: 12V/500mA*2 or 24V/250mA*2
  • Suitable for: wooden, glass, metal and fire-resistant door
  • Operating Temp: -10~+55℃(14-131F)
  • Weight: 5kg
Product Description


280kgs/600lbs dual door em lcok withled/feedback signal


600lbs double door Magnetic Lock is for glass door, wooden door, fireproof door, sliding door and metal door. Dual Voltage 12 or 24 VDC is optional.

Product Parameter
Parameter Description
Lock Size :
560Lx81.6Wx46H(mm)
Armature plate:
180Lx38Wx11H(mm)
Holding Force :
280kgx2(600Lbsx2)
Input Voltage :
12/24VDC Dual Voltage
Current
12V/500mA*2 or 24V/250mA*2
Suitable for door:
Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp
≤+20℃
Feature:
Fail Safe, Led Light,Timer delay, feedback signal, 12V/24VDC dual voltage
Operating Temp
-10~+55℃(14-131F)
Armature Plate Finish
Zinc
Weight
5kg
Product Advanatge

* Collinear Load Test 280kgx2,600poundsx2.
* Dual Voltage 12 or 24 VDC(optional).
* The Standard Voltage is 12VDC when Finished.
* MOV Provides Reverse Current Protection.
* Anti-Residual Magnetism Designed.
* High Strength Material,Anodized Aluminum Housing.
* Design without Mechanical Failure.
* Increase the holding Force,Dual Insulative Housing.
* CE Certificate by European Union,MA Certificate by China Public Security Office.


Detailed Images , OEM/ODM available

Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .
ACM-Y280D is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 5pcs per carton,
Carton size : 35*30*16cm , Gross Weight :25kg.
