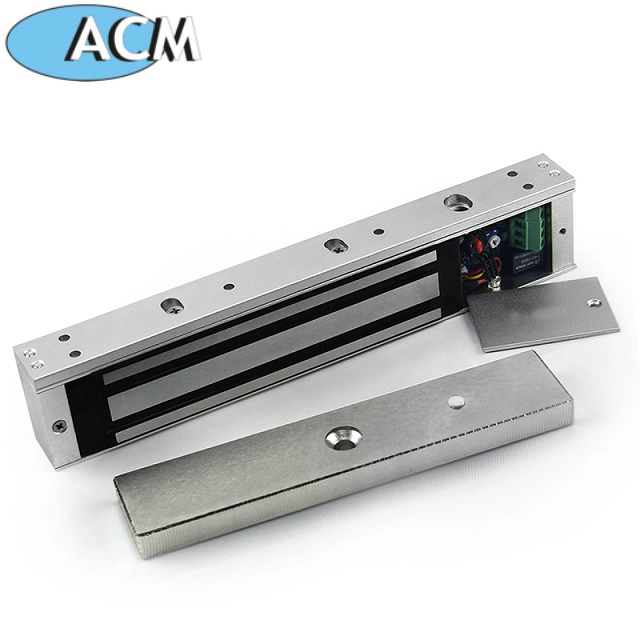

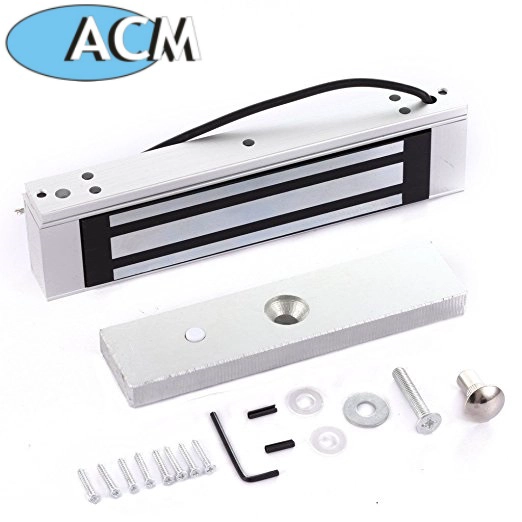

ACM-Y280-LED 280kg fail secure door access controlel electric magnetic lock with LED signal

  • Model : ACM-Y280-LED
  • Dual oltage select 12V/24V
  • Lock size :250x47x25mm
  • Holding force:280KGWorking
  • voltage : 12/24V DC
  • Working current : 400/200mA
  • Feature:With LED,NO/NC/COM/+/-
  • Suitable for door: Wooden door , Glass door ,Metal door , Fireproof door
Product Description

280kg fail secure door access controlel electric magnetic lock with LED signal


Magnetic lock with 600lbs (280kg) holding force for single door

Product Parameter
Parameter Description
Lock Size :
250*47*25mm
Armature plate:
190Lx190Lx45Wx11H(mm)
Holding Force :
280kg (600Lbs)
Input Voltage :
12/24VDC Dual Voltage
Suitable for door:
Wooden door , Glass door ,Metal door , Fireproof door
Singal Output :
Feedback signal,led,time delay,NO/NC/COM/+/-
Feature:
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
LED:
Red shows unlocked, Green shows locked
Weight:
2.1kgs
Certification:
CE /MA
Product Advanatge

- Collinear Load Test 280kg, 600pounds.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when Finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material,Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force,Dual Insulative Housing.
- CE Certificate by European Union,MA Certificate by China Public Security Office


Detailed Images , OEM/ODM available

Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .
ACM-Y280 is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

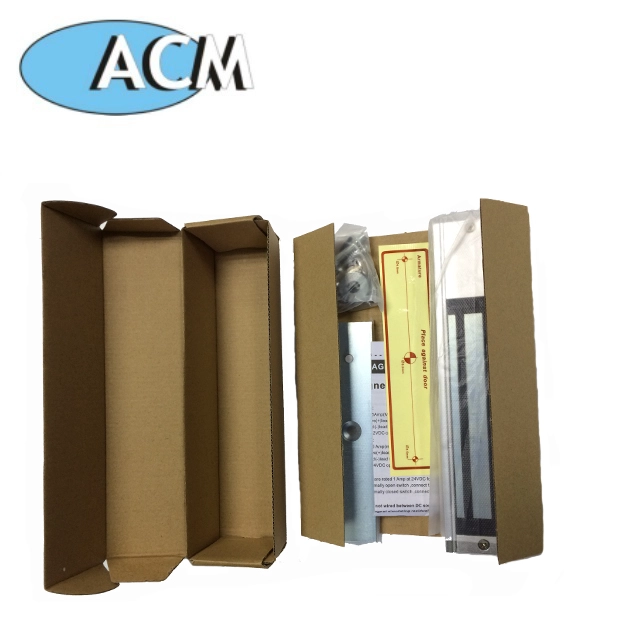

Packaging
Magnetic Lock packaging: 1unit per box, 12pcs per carton,
Carton size :
54.3*13.5*19.3cm , Gross Weight :25kg. 50 cartons per pallet
