ACM-Y500W-LED Waterproof Outdoor Surface mountedmagnetic 500kg/1000lbs Holding Force Magnetic Lock With LED

  • Model: ACM-Y500W
  • Lock size: 265Lx73Wx39H (mm)
  • Armature plate: 190Lx190Lx45Wx11H (mm)
  • Holding Force: 500kg (1000lbs)
  • Input voltage: 12 / 24VDC dual voltage
  • Suitable for door: wooden door, glass door, metal door, fire door
  • Single output: single state lock NO / NC / COM / + / -
  • Feature: Fail Safe, timer delay, feedback signal, 12V / 24VDC dual voltage
  • LED: red shows unlocked, green shows locked
  • Weight: 5 kg
  • Working current : 400/200mA
  • Fail safe: Unlock when power on, with LED
  • Guarantee : More than 200,000 Times
Product description
Waterproof Outdoor Surface mountedmagnetic 500kg/1000lbs Holding Force Magnetic Lock


Magnetic lock with 1000 lbs (500 kg) holding force for single door

Product parameter
Parameter description
Block size:
265Lx73Wx39H (mm)
Armature plate:
190Lx190Lx45Wx11H (mm)
Holding Force:
500 kg (1000 lbs)
Input voltage:
Dual voltage 12 / 24VDC
Suitable for door:
Wooden door, Glass door, Metal door, Fire door
Singal output:
Block single status NO / NC / COM / + / -
Characteristic:
Fail Safe, timer delay, feedback signal, dual voltage 12V / 24VDC
GUIDED:
Red shows unlocked, green shows locked
Weight:
5.0 kg
Certification:
CE / MA



Advanatge product

- Collinear load test 500kg, 1000lbs.
- Dual voltage 12 or 24 VDC (optional).
- Standard voltage is 12VDC when finished.
- MOV provides reverse current protection.
- Suitable for wooden doors, glass doors, metal doors, fire doors.
- LED Indicates the status of the door.
- Block status sensor (NO / NC / COM)
- Door status sensor (NO / NC / COM)
- Anti-residue magnetism designed.
- High strength material, anodized aluminum housing.
- Design without mechanical failures.
- Increase the holding force, double insulated housing.
- CE certified by the European Union, MA certified by the Chinese Public Security Office

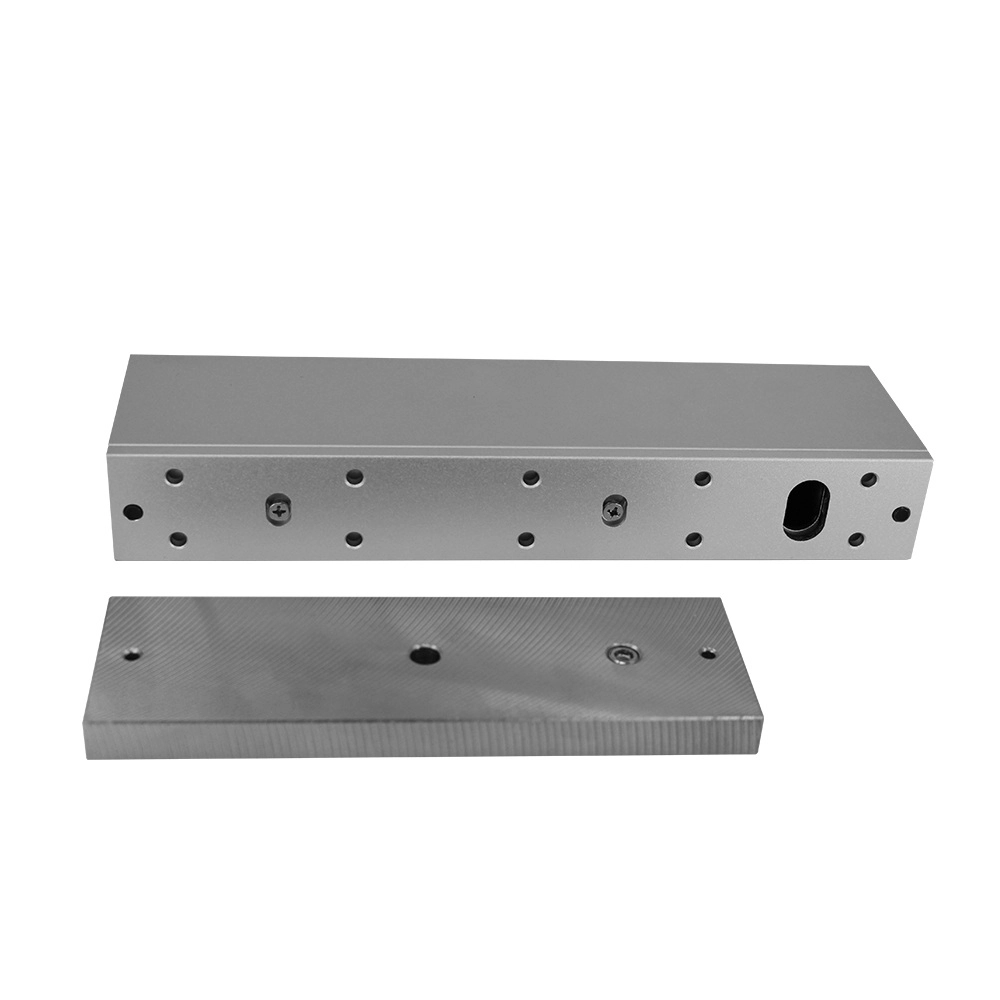

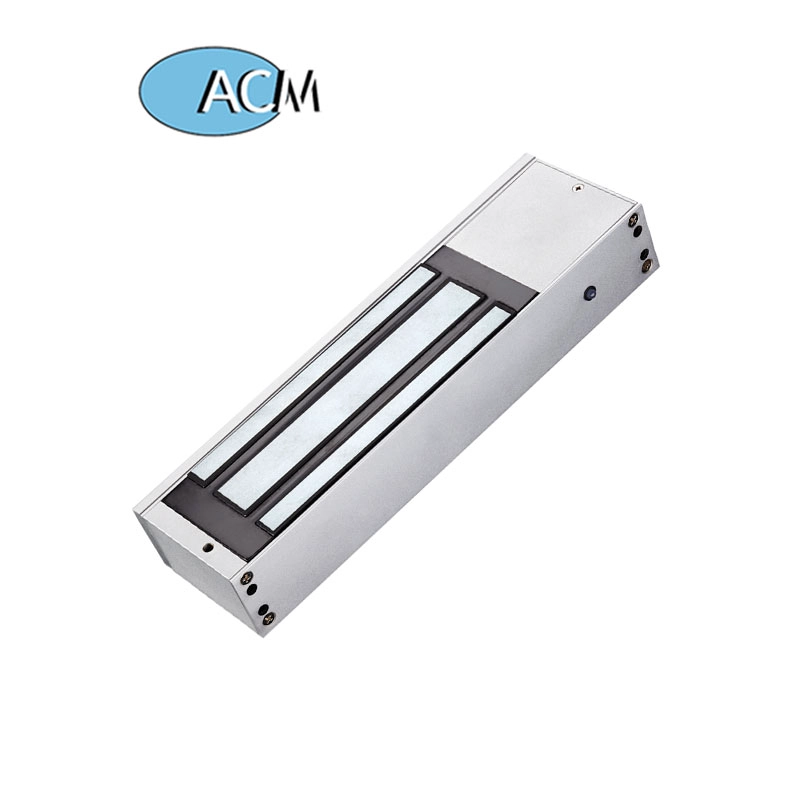

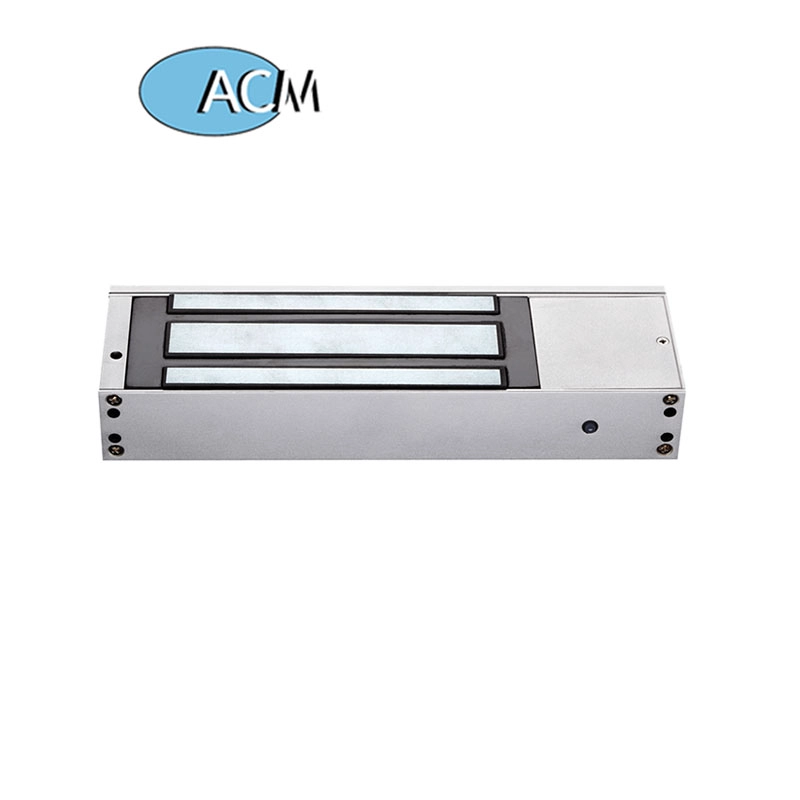

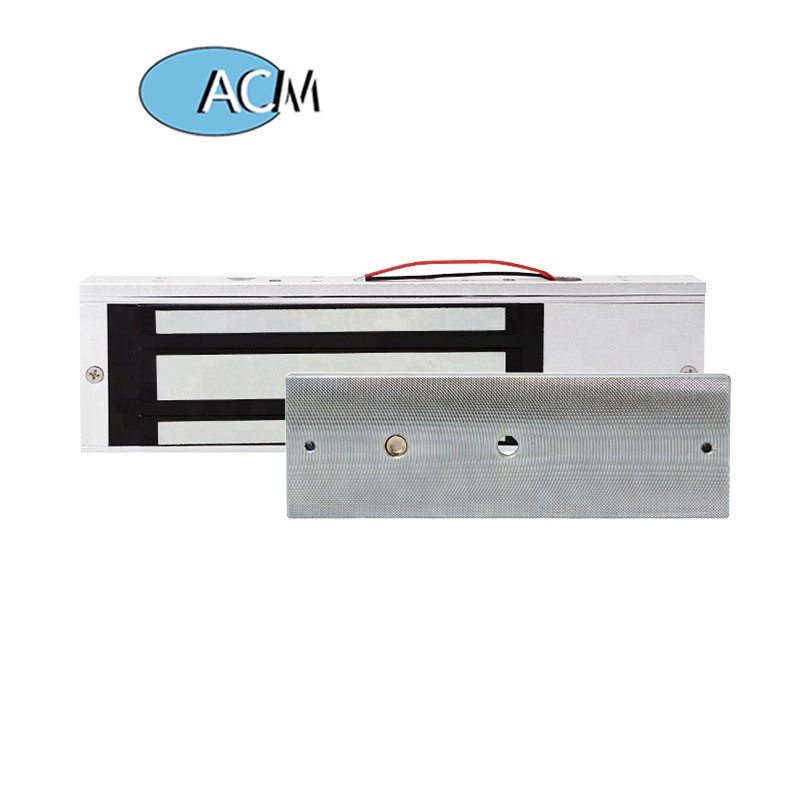

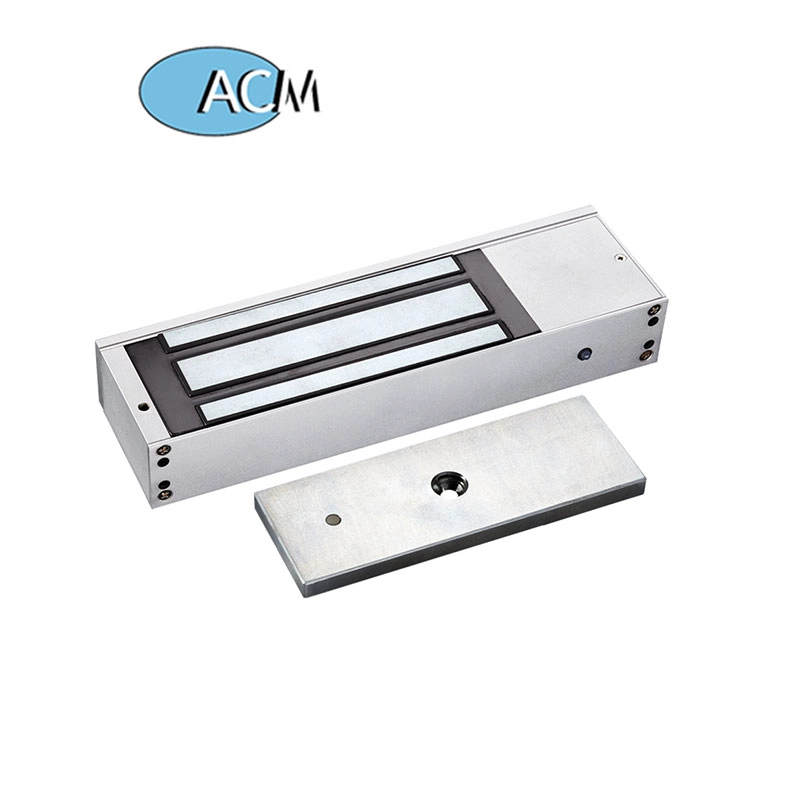

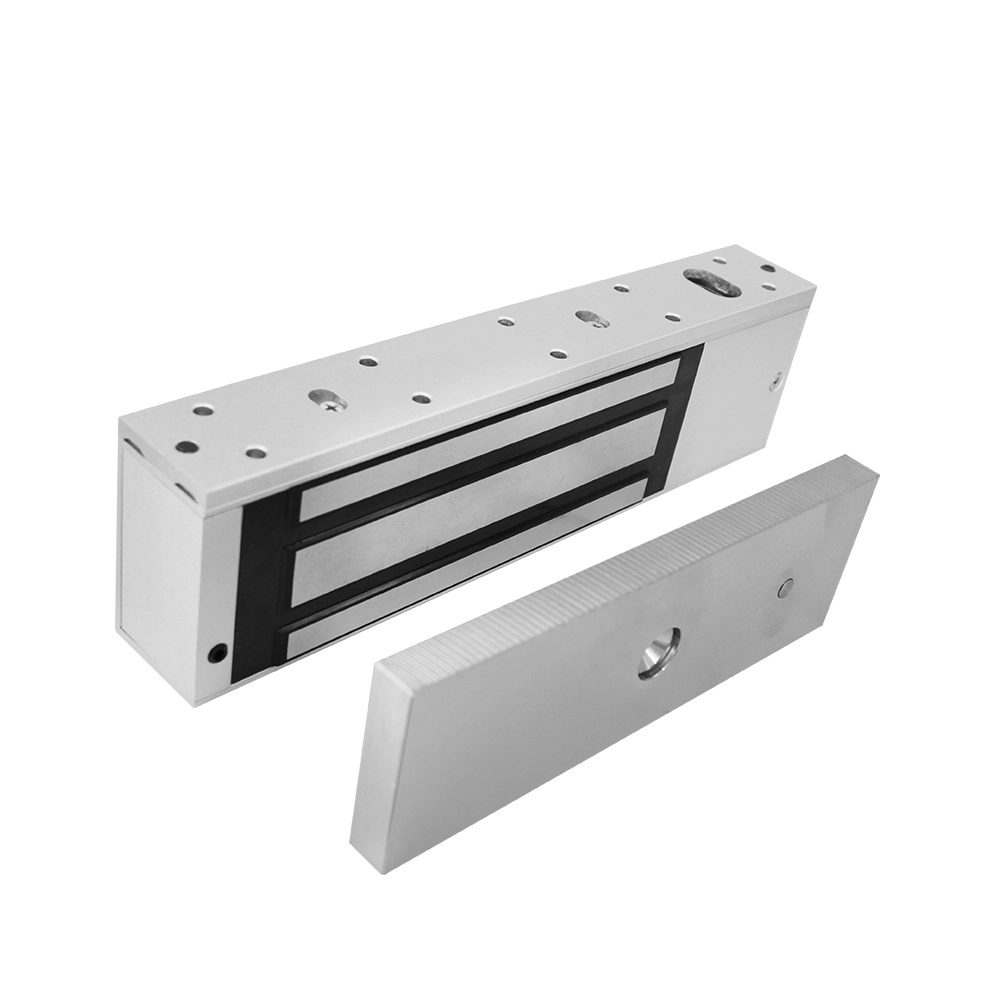

Detailed pictures, OEM / ODM available

Our lock is with LED light to show the working statue, the light is green when locked, red when unlocked . The glowing statue can be changed.
ACM-Y500 has a signal output. The PCB board can be customized. We can make the lock with dual voltage 12v and 24v and with 7-wire connection. The following photo is the optional PCB board.If you want to customize the lock, please tell us your detail request, we will send your detailed quotation after knowing all your needs.

Quality assurance

- Warranty service will be honored if the damage is not caused by people, ACM Goldbridge provides 2 years warranty for related products.
- On the contrary, ACM Goldbridge will require extra in case of repair.
- More information, please consult our service center.

Installation diagram
Packaging and delivery

Shipping way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You can also choose your own forwarder.


Packaging
Magnetic lock packaging: 1 unit per box, 6 pcs per carton,
Carton size: 35 * 30 * 20cm, gross weight: 24kg. 50 cartons per pallet

Our service

1, All inquiries will be answered within 24 hours
2, professional manufacturer and supplier, welcome to visit our website and factory
3, OEM / ODM available
4, high quality, fashin design, reasonable and competitive price, fast delivery time
5, after-sales service:
1), All products will have been strictly checked in house before packing
2), All products will be well packed before shipping
3), All of our products have 2-3 years warranty if the damage is not caused by man
6, faster delivery : About 1 ~ 5 days for sample order, 7 ~ 30 days for bulk order
7, payment: You can pay for the order via: T / T, Western Union, Paypal.
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, you can also choose your own forwarder.

FAQ

Q: 1. How can I place an order?
A: Please indicate your needs by email. Then we will send you the offer as soon as possible, after your order is confirmed, we will arrange the production as soon as possible.

Q: 2. What about the payment and shipping?
A: Trade assurance and T / T, Paypal, Western Union.
Customers can choose by sea, air or express (DHL, FedEx, TNT UPS etc.)

Q: 3. How can I get a sample to check the quality?
A: We could provide you with free sample and the freight cost paid by you.

Q: 4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000 pieces and 7-15 days for 100,000 pieces

Q: 5. Can your products be customized?
A: Almost all of your products are customized, including matter, size, thickness and printing. OEM orders are welcome.

Q: 6. Are you a trading company or a factory?
We are one of the largest manufacturers of RFID card / NFC tag / RFID keybod / RFID bracelet, rfid reader and access control products in China for more than 20 years.
