ACM215A Standalone 125khz & 13.56mhz proximity access control system products with wg26

  • Model Number:ACM215A
  • Capacity:1000 - 4000 users
  • Working frequency: 125KHz or 13.56mhz
  • Reading distance:10-50mm
  • Output Interface:PUSH+ / PUSH- output
  • Card type: EM (ID) card or MF1 (IC) card
  • Open type: Card /PIN /Card+PIN
  • Power supply: DC 12V±10%
  • Operating Voltage:< 100mA
  • Product type: RFID Proximity Entry door accesss control system products
  • Weight: 110g
Product description


outside waterproof keypad access control for access control system



Waterproof metal Access control keypad
 Frequency   125KHz or 13.56MHz
Operating Voltage
DC 12V
User Capacity
2000 users
Card Reading Distance
3-6 cm
Active Current
<60mA
Lock Output Load
Max 3A
Alarm Output Load
Max 20A
Operating Temperature
-45°C~60°C
Operating Humidity

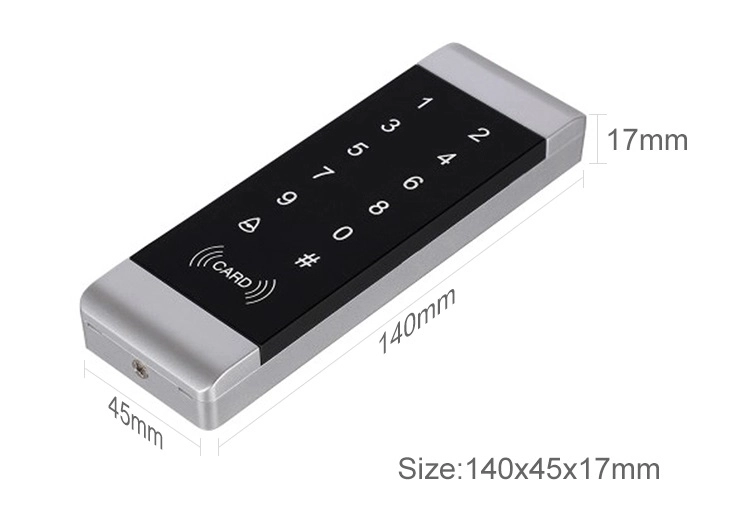

140×45×17mm
Wiegand Interface
Wiegand 26 bit
Wiring Connections
Electric Lock, Exit Button, External Alarm, External reader

Benefit

  • Two sets of signal output separately ,a set of high level output signal and a set of electric lock driving signal
  • A group of exit button interface; a group of doorbell interface
  • Frenquecy: 125KHZ or 13.56MHz
  • Full programming from the keypad ,easy to install and program
  • 1000 users, supports Card, PIN, Card + PIN
  • Can be used as a standalone keypad
  • Wiegand 26 input for connection to external reader
  • Wiegand 26 output for connection to a controller
  • Backlight keys
  • User-friendly and adaptable interface
  • Easy of use to add and remove access
  • Very low power consumption (30mA)
  • Lock output current short circuit protection
  • Built in buzzer
  • Red and Green LEDS display the working status
  • Installation, training, and ongoing maintenance and support




Product display



Our service

Our service

1. Any request will be answered within 24 hours
2. Professional manufacturer and supplier, welcome to visit our website and factory
3. OEM / ODM available
4. High quality, fashin desing, reasonable and competitive price, quick delivery time
5. after sales service:
A: All products will have been strictly checked in-house before packing
B: All the products will be well packed before shipping
C: All our products have a 2-3 year warranty if the damage is not caused by the human being
6. Faster delivery: about 1 ~ 5 days for sample order, 7 ~ 30 days for bulk order
7. Payment: you can pay for the order through: T / T, Western Union, Paypal, Ali commercial insurance
8.Shipping: we have a strong cooperation with DHL, FEDEX, TNT, UPS, EMS, forwarder by sea and by air, you can also choose your own forwarder.

Quality assurance

 - The warranty service will be honored if the damage is not caused by the human being, ACM Goldbridge provides a 2 year warranty for the related products.

- On the contrary, ACM Goldbridge will further increase in case of repair.

- Further information, consult our service center.

Packaging and delivery

Shipping way
We work closely with DHL, FEDEX, TNT, UPS, EMS, forwarder of SEA and AIR
You can also choose your forwarder.

package
Keypad access control packaging: 1 unit per box, 100 pieces per carton,
Carton size: 45 * 31 * 28cm, Gross weight: 13kg.
