Ex-factory price Rfid 13.56mhz smart card reader module RS232/TTL interfaceEx-factory price Rfid 13.56mhz smart card reader module RS232/TTL interfaceEx-factory price Rfid 13.56mhz smart card reader module RS232/TTL interfaceEx-factory price Rfid 13.56mhz smart card reader module RS232/TTL interface

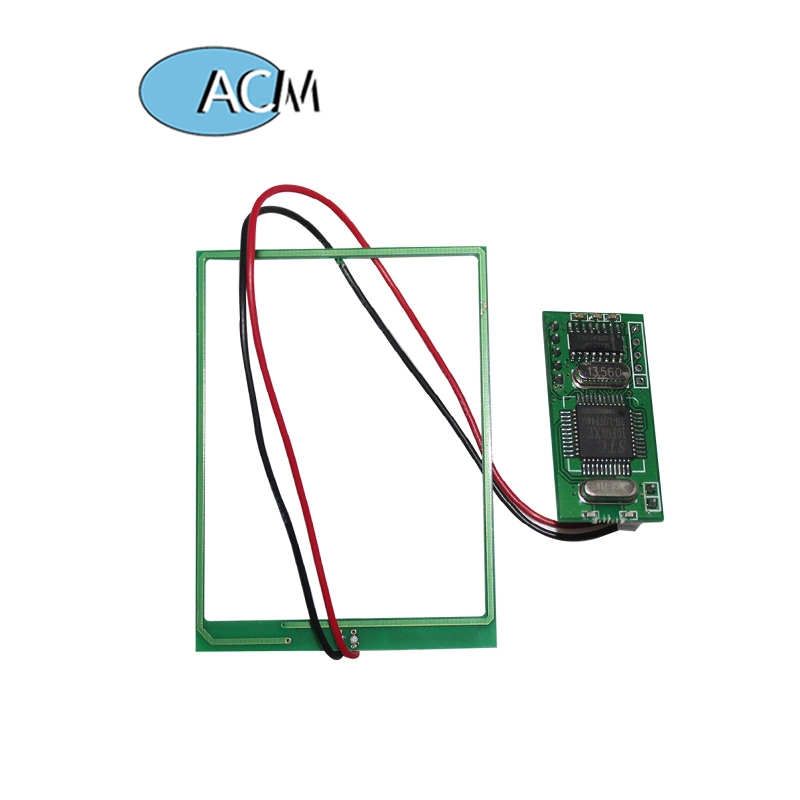

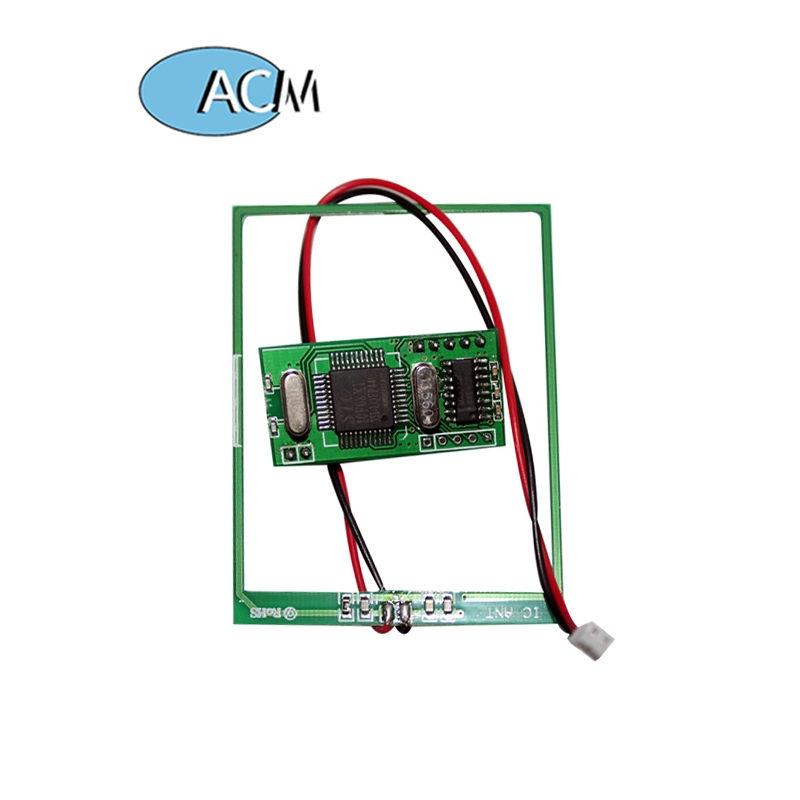

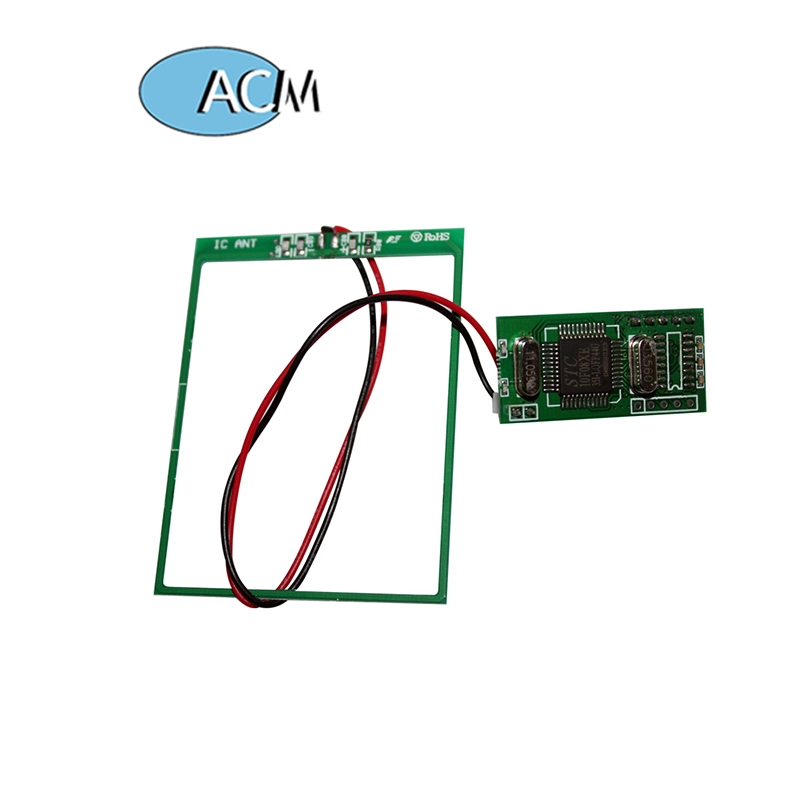

Ex-factory price Rfid 13.56mhz smart card reader module RS232/TTL interface

  • Operating frequency: 13.56MHZ
  • Baud rate: 9600-115200 Kbit/s(default 9600)
  • Read range: 0-50MM
  • Support cards:: MF S50, S70, Ultralight, F08
  • Power Supply: 3.3 V ~ 5.5 V are supported
  • Size: 75mm*55mm*1mm

Product Description

Specification of 13.56MHZ reader module:



Item

Parameter

Frequency

13.56mhz

Protocol

ISO/IEC 14443 TypeA

Support Cards

MF S50, S70, Ultralight, F08 etc

Working Voltage

DC +3.3V

Working Current

100mA

Interface

TTL

Baud Rate

9600bps or 115200bps etc.

Communication Speed

106Kbit/s

Read range

0mm-100mm (related to the card or the environment)

Storage Temperature

-20℃ ~ +80℃

Working Temperature

0℃ ~ +95℃

Size

39mm*19mm*0.8mm

Size(Antenna)

75mm*55mm*1mm

Weight

10G



Connecting instruction:

Ex-factory  price Rfid 13.56mhz smart card reader module RS232/TTL interface

Item

Pin

Function

J1

Pin1

NC(Reset)

 J1

Pin2

Data 1(UART RXD)

J1

Pin3

Data 0(UART TXD)

J1

Pin4

GND

J1

Pin5

VCC

J2

Pin1

Ant 1

J2

Pin2

Ant 2

Application



Ex-factory  price Rfid 13.56mhz smart card reader module RS232/TTL interface

 Ex-factory  price Rfid 13.56mhz smart card reader module RS232/TTL interface
