factory price Rfid 13.56mhz smart card reader module RS232/TTL interfacefactory price Rfid 13.56mhz smart card reader module RS232/TTL interfacefactory price Rfid 13.56mhz smart card reader module RS232/TTL interfacefactory price Rfid 13.56mhz smart card reader module RS232/TTL interface

factory price Rfid 13.56mhz smart card reader module RS232/TTL interface

  • Place of Origin:Guangdong, China
  • Brand Name:ACM
  • Product Name:reader writer module
  • Frequency:13.56MHZ
  • Dimension(mm):75mm*55mm*1mm
  • Baud rate:9600-115200 Kbit/s(default 9600)
  • Support cards:MF S50, S70, Ultralight, F08
  • Power Supply:3.3 V ~ 5.5 V are supported
  • Weight:10G
  • Operating System Support:Windows,Android
  • Working Temperature:-10℃ ~ +70℃
  • Communication Ports:ISO18000-6C(EPC GEN2)
Product Description

Rfid 13.56mhz smart card reader module RS232/TTL interface


Specification of 13.56MHZ reader module:
Item
Parameter
Frequency
13.56mhz
Protocol
ISO/IEC 14443 TypeA
Support Cards
MF S50, S70, Ultralight, F08 etc
Working Voltage
DC +3.3V
Working Current
100mA
Interface
TTL
Baud Rate
9600bps or 115200bps etc.
Communication Speed
106Kbit/s
Read range
0mm-100mm (related to the card or the environment)
Storage Temperature
-20℃ ~ +80℃
Working Temperature
0℃ ~ +95℃
Size
39mm*19mm*0.8mm
Size(Antenna)
75mm*55mm*1mm
Weight
10G

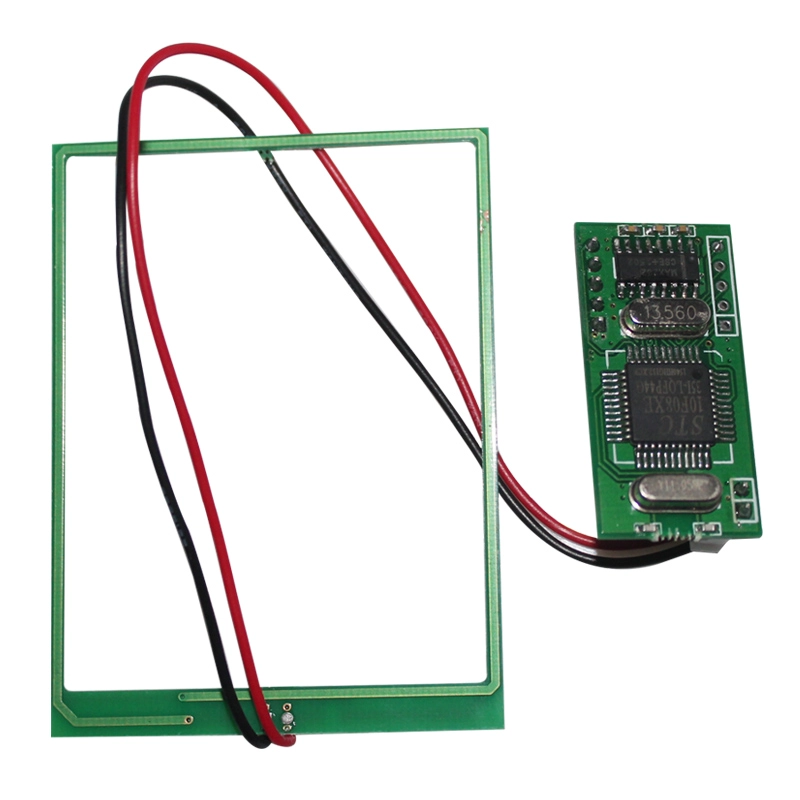

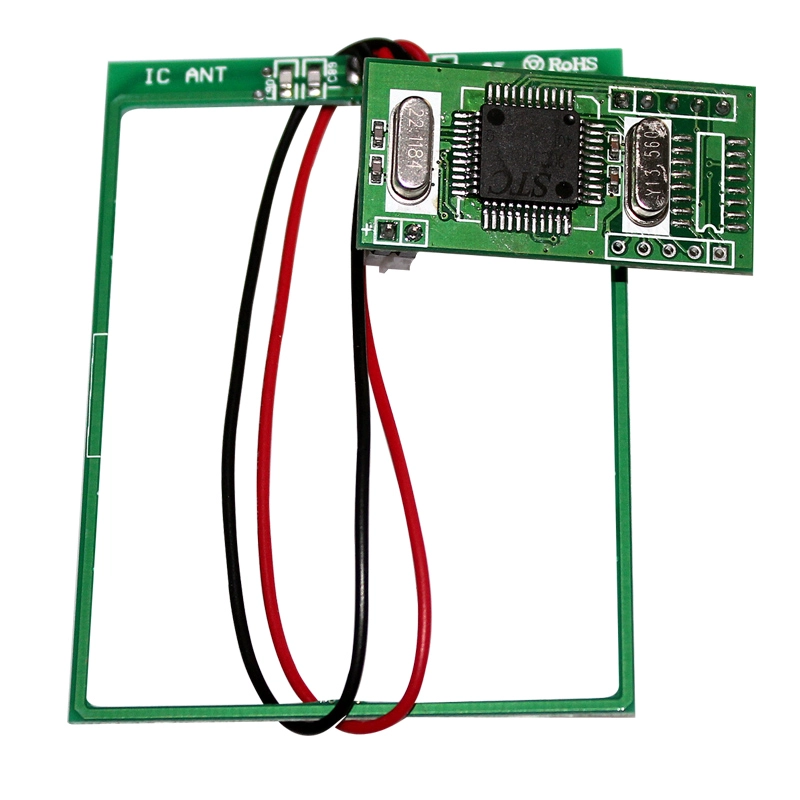

Detailed Images

Connecting instruction


About ACM-MU145 13.56mhz & 125khz & NFC machine module
ACM-MU145 13.56mhz & 125khz & NFC machine module? Size: 42mm*27mm*4mm

M7 is a module that reads the UID card number of the 125K&14443A protocol,It can also be compatible with USB, TTL, 232, wegen 26,34 and other communication interfaces,Compact size, SMT mounting,Easy to integrate into the advertising machine, electronic class, integrated LCD screen, electronic door lock, access control, attendance, and other terminal equipment.

Item
Parameters
Item
Parameter
Operating frequency
125K,13.56MHZ
Support card type
125K EM4100/TK4100
MF S50 /S70 /ntag203/ntag213
Interface
USB TTL weigan is also supported (TTL and 232, weigan 26 and 34 are both options)
Baud rate
9600-115200 Kbit/s(default 9600)
Power supply
3.3 V ~ 5.5 V are supported
Current consumption
<100mA
Read Range
0-50MM
Communication speed
106Kbit/s
Extended I/O port
Status indicator
Lights and buzzers
Operating temperature
-10℃ ~ +70℃
Storage temperature
-50℃ ~ +120℃
Operating humidity
Relative humidity is 0 ~ 95%
Weight
10G
Size (module)
42MM*27MM*4MM
Size (antenna)
Built-in
About ACM-MU125 Wholesale 125khz EM4100 LF RFID Card reader Module
ACM-MU125 Wholesale 125khz EM4100 LF RFID Card reader Module Size: 51mm*17mm*1mm

Cheap wholesale 125Khz EM4100 LF RFID Card Key ID Reader Module. RFID reader module,widely used to access control system,attendance system,anti-theft system,warehousing system,metroetc.

Specification of LF RFID reader module:
Item
Parameter
Frequency
125Khz
Support Cards
EM4100/TK4100.etc
Working Voltage
DC 12V
Working Current
100mA
Interface
Wiegand 26/34
Distance of transmission
WG26/34≥100M
Read range
0mm-100mm (related to the card or the environment)
Storage Temperature
-20℃ ~ +80℃
Working Temperature
-10℃ ~ +70℃
Size
51mm*37mm*1mm
Size(Antenna)
75mm*55mm*1mm
Weight
20G
Lead Length
180mm±5mm
Indicators
Double Color LED (Red & Green) and Buzzer
(“Red” means standby, “Green” means reader success)
Wiring definition
Black
GND
Red
VCC(12V)
Purple
Wiegand 26/Wiegand 34(The output format is WG34 when purple line connect with black line)
Grey
Green light and buzzer long ring
White
Wiegand D1
Green
Wiegand D0
