13.56mhz RS232 / USB RFID Intercom Access control weigand rfid module for access control card reader

  • Product Name:125Khz EM4100 LF RFID Card Reader Module
  • Model: ACM-MU125
  • Frequency:125Khz
  • Interface:Wiegand 26/34
  • Read range:0mm-100mm (related to the card or the environment)
  • Size:51mm*37mm*1mm
  • Working current:100mA
  • Working Voltage:DC 12V
  • Operating temperature:-10℃ ~ +70℃
  • Operating humidity:Relative humidity is 0 ~ 95%
  • Protocol:ISO14443

Product Description

Entry System Use Passive Range HF LF RFID Reader Module access control dual Frequency Card Reader Module

reader module,widely used to access control system,attendance system,anti-theft system,warehousing system,metroetc.

Item
Parameter
Frequency
EM4100/TK4100 etc
Working Voltage
DC 12V
Working Current
100mA
Interface
wiegand26/34
Distance of transmission
WG26/34>=100M
Read Range
0mm-100mm (Related to the card or environment)
Storage Temperature
-20℃- +80℃
Working Temperature
-10℃-+70℃
Size
51*37*1mm
Weight
20G
Lead Length
180mm±5mm
Indicators
Double Color LED (Red & Green) and Buzzer
(“Red” means standby, “Green” means reader success)
Wiring Definition
Black
GND
Red
VCC(12V)
Purple
Wiegand26/ wiegand34 (The output format is WG34 when purple line connect with black line)
Grey
Green light and buzzer long ring
White
Wiegand D1
Green
Wiegand D0

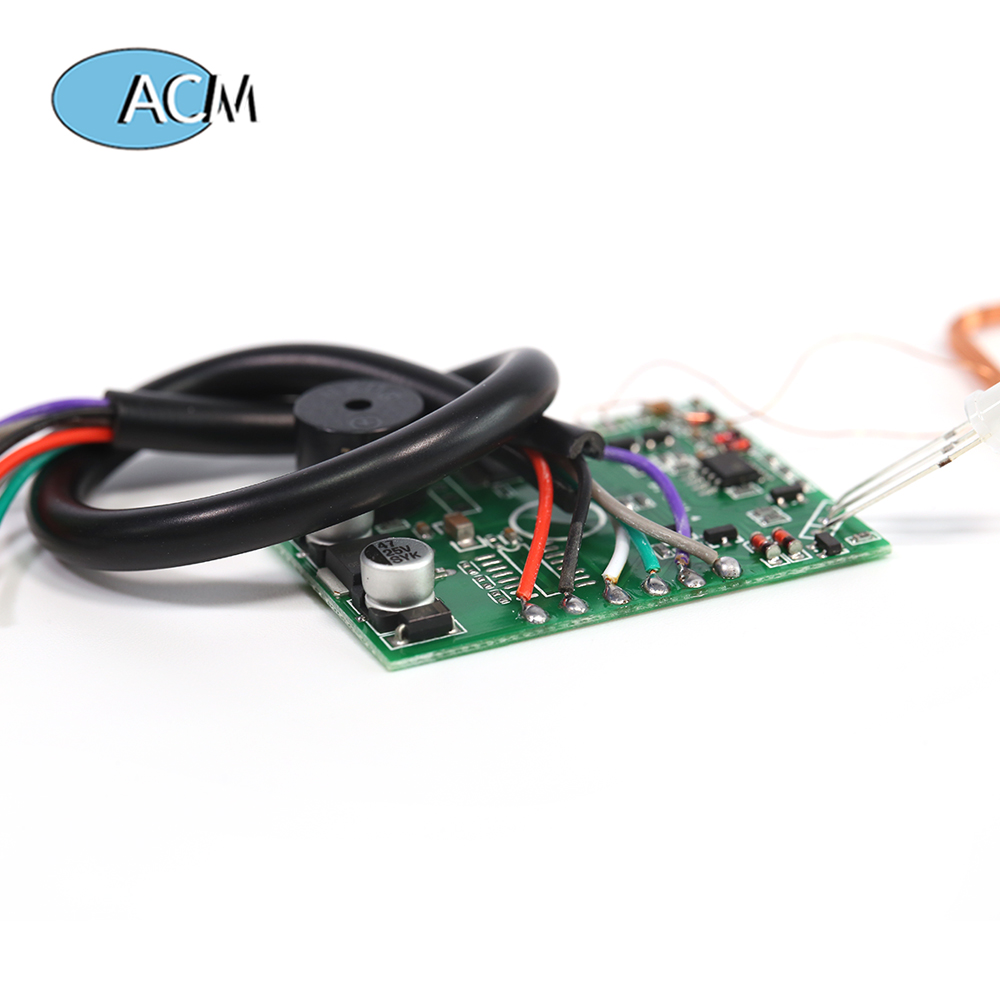

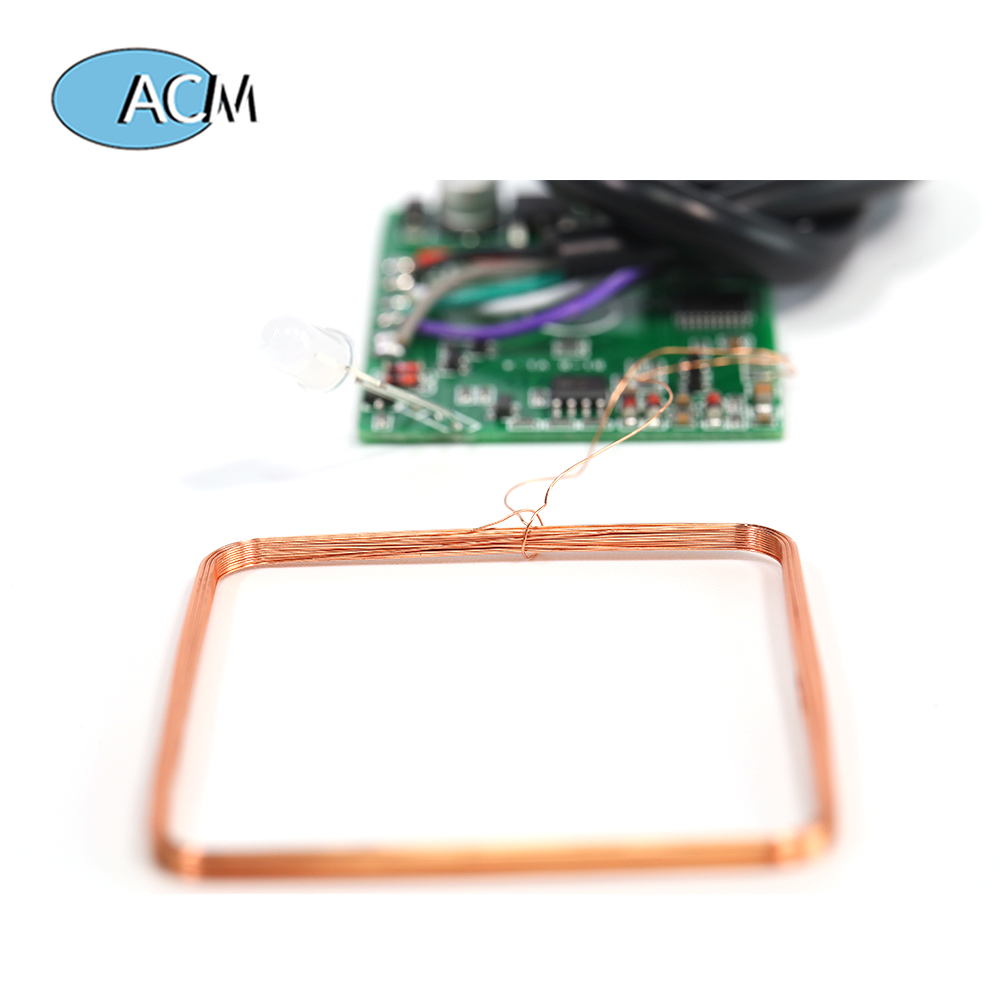

Detailed Images
Packing & Delivery

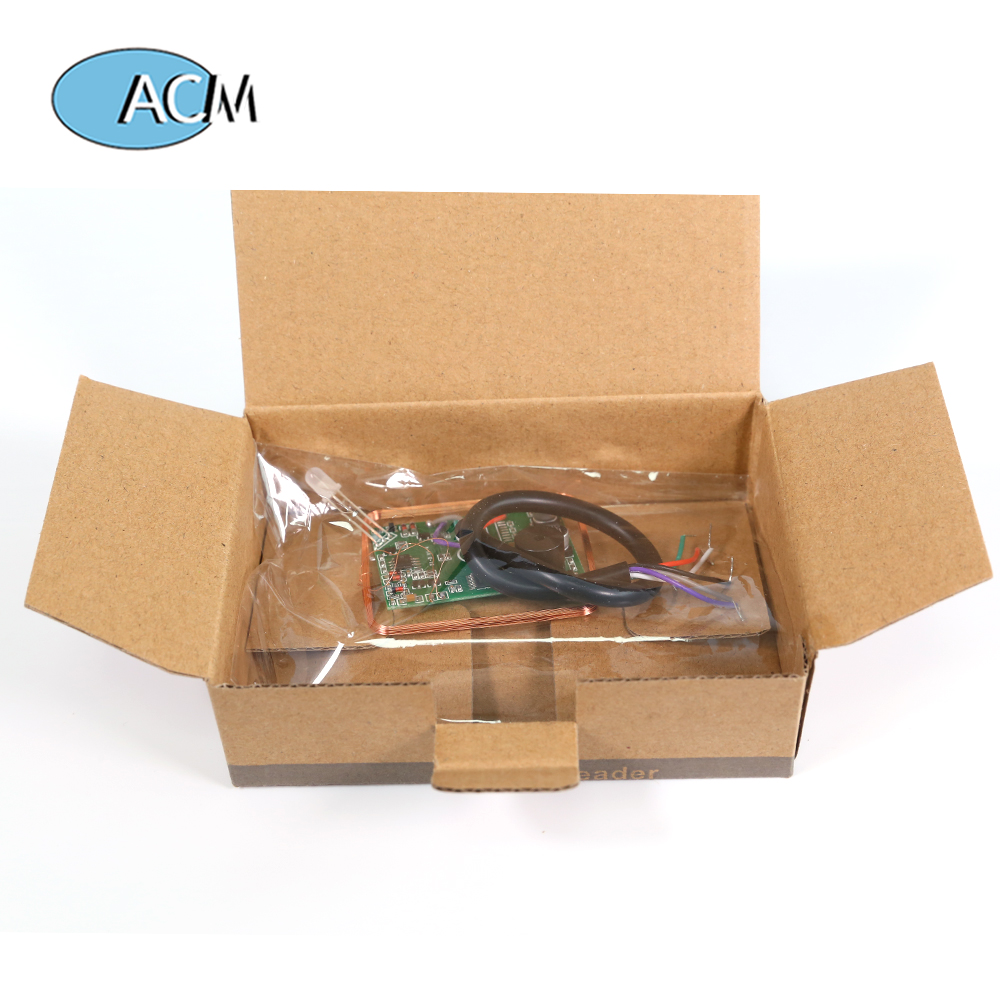

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~7 days after the order confirmed
