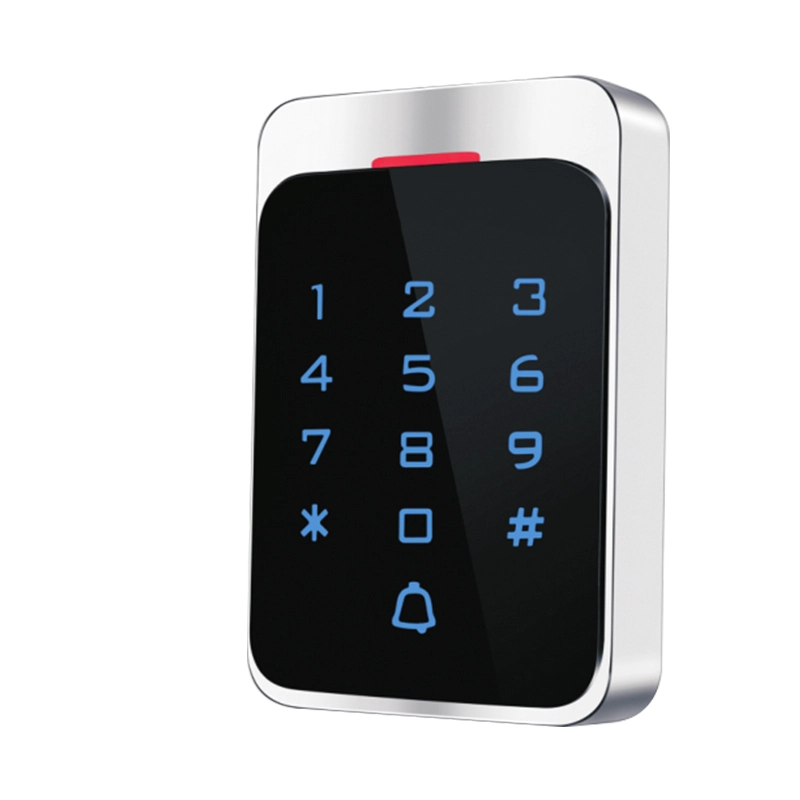

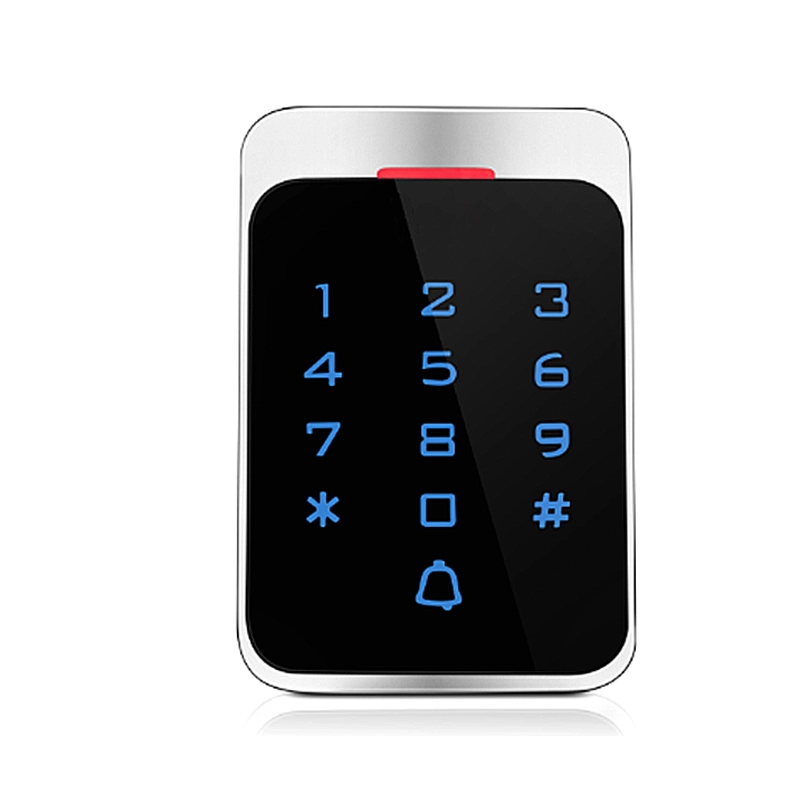

RFID Touch Keypad Access Control System With Wiegand 26/34RFID Touch Keypad Access Control System With Wiegand 26/34

RFID Touch Keypad Access Control System With Wiegand 26/34

  • Product Name:RFID Touch Keypad Access Control System With Wiegand 26/34
  • Power Supply:DC12V±10%
  • Output::Standard WG26/WG34
  • Card Type:125Khz/13.56Mhz Card
  • User Capacity:2000 users
  • Card Reading Distance::1 ~ 5CM
  • Lock output:≤30mA
  • Ambient temperature:-45℃~60℃
  • Dimension (mm):100x68x22mm
  • Application:Indoor, Outdoor
Product Description

RFID Touch Keypad Access Control System With Wiegand 26/34

> Metal case, anti-vandal
> Digital backlit touch keypad
> Multi-function standalone access controller and reader,
> WG interface: WG26 Input / output
> Capacity: 2000 cards / codes
> Three accesses: card, pin, card + pin
Card type
 125khz/13.56Mhz Card
Waterproof degree
IP68
User capacity
2000 users
Environment Humidity
10%~90%
Lock output
≤3A
Working voltage
DC12V±10%
Static electricity
≤30mA
Alarm output
≤20A
Output short circuit protection time
≤100μS
Card read distance
1-5cm
Ambient temperature
-20℃~70℃
Relay Unlock output
5 Seconds
Dimension
100x68x22mm


We are Professional Access Control Manufacturer, We have Full System for Access Control Product as below:




ACM223

Touch Keypad RFID & Keypad Access Control , 125Khz EM 1000/4000 USer capacity



ACM209-NW

Keypad Metal RFID Single door AccessControl (Non-waterproof), 125Khz EM



ACM208

Waterproof RFID Single door Access Control and Reader




ACM210

Metal RFID Single door Access Control (Non-waterproof)



ACM225

Touch Keypad RFID Access Control,125Khz EM, Can connnect wiegand reader



ACM211B

Touch Keypad Metal case Waterproof RFID Access Control, Can connnect wiegand reader

Our Service

1, Any inquires will be replied within 24 hours

2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

FAQ

Q: 1. How can I place an order?

A: Please list your requirement to us via mail. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.

Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)

Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.

Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs

Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.

Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband,rfid reader and access control products in China more than 20 years.
