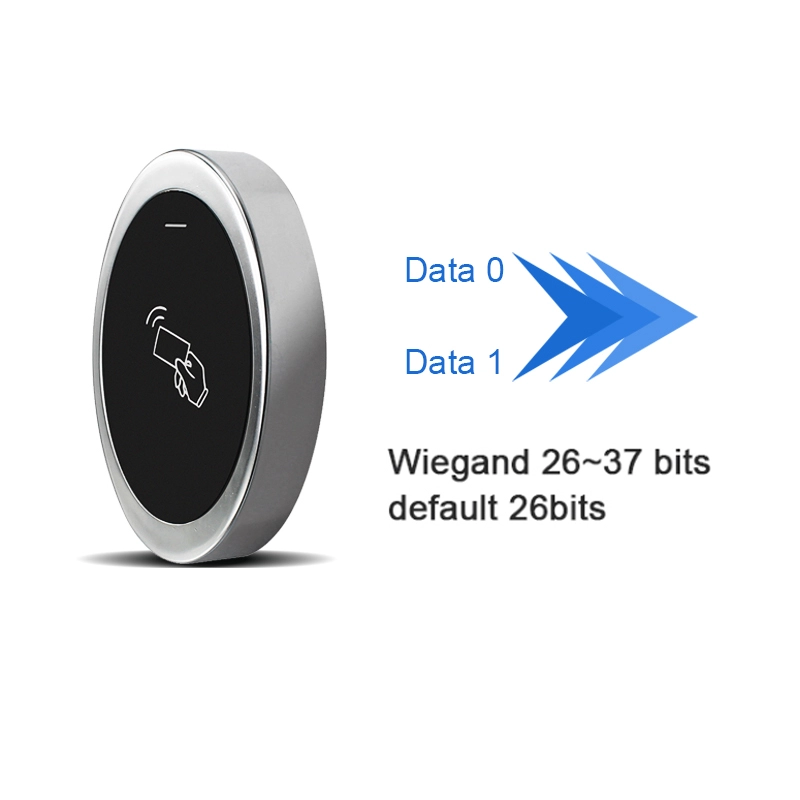

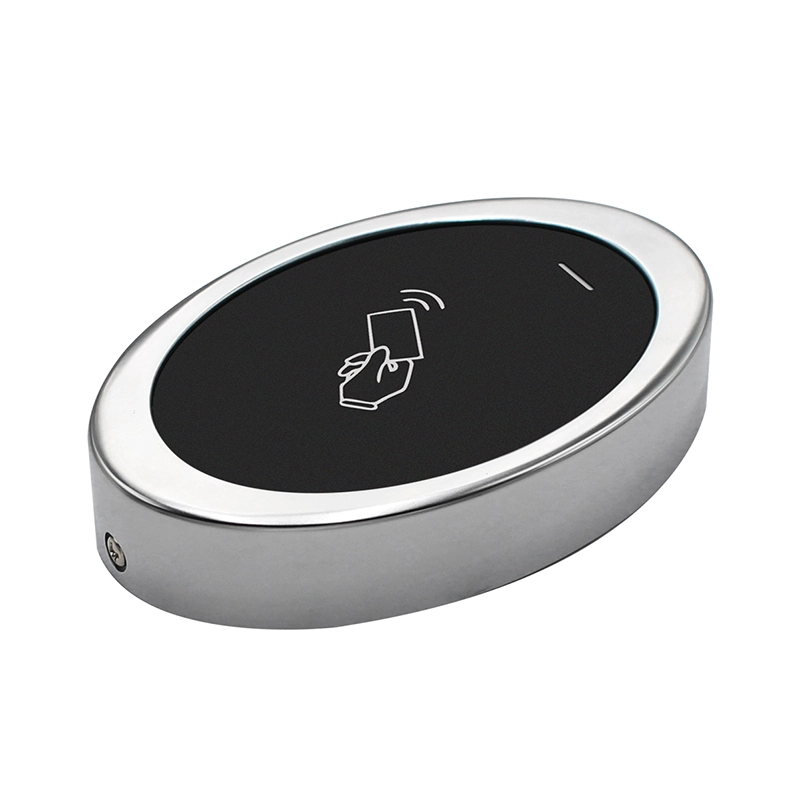

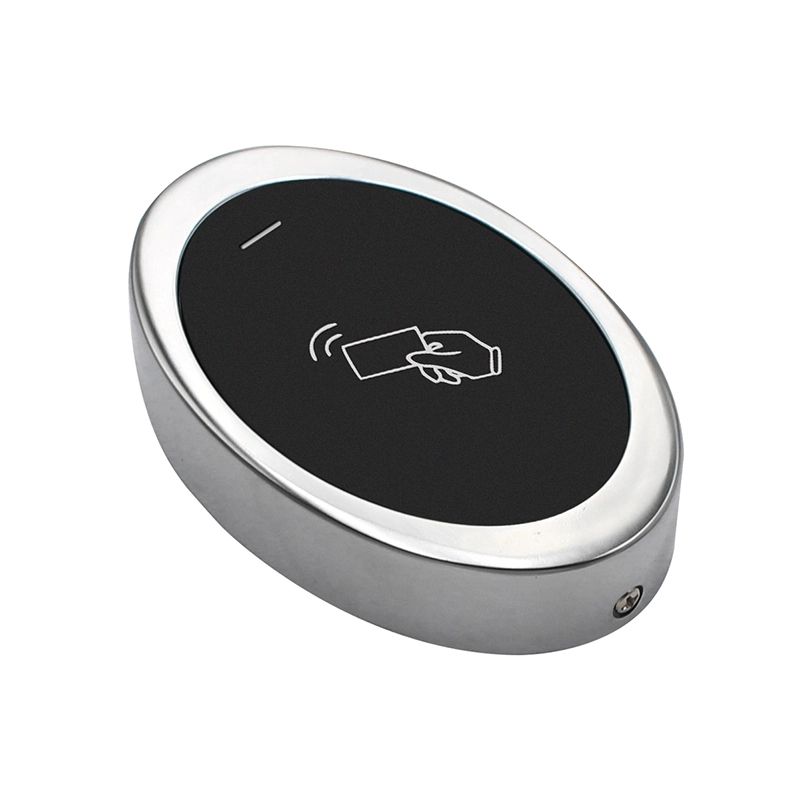

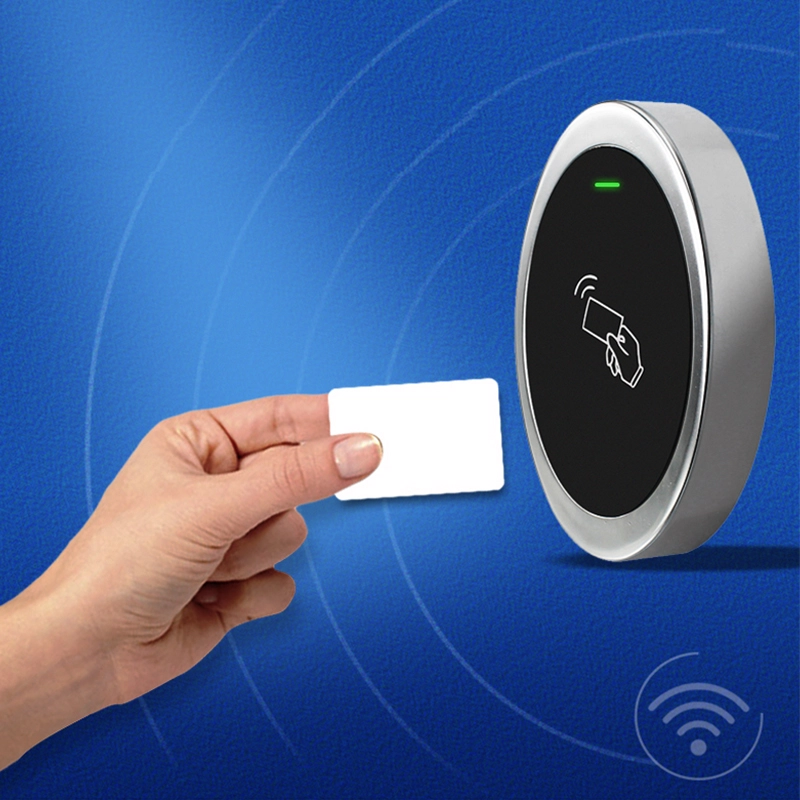

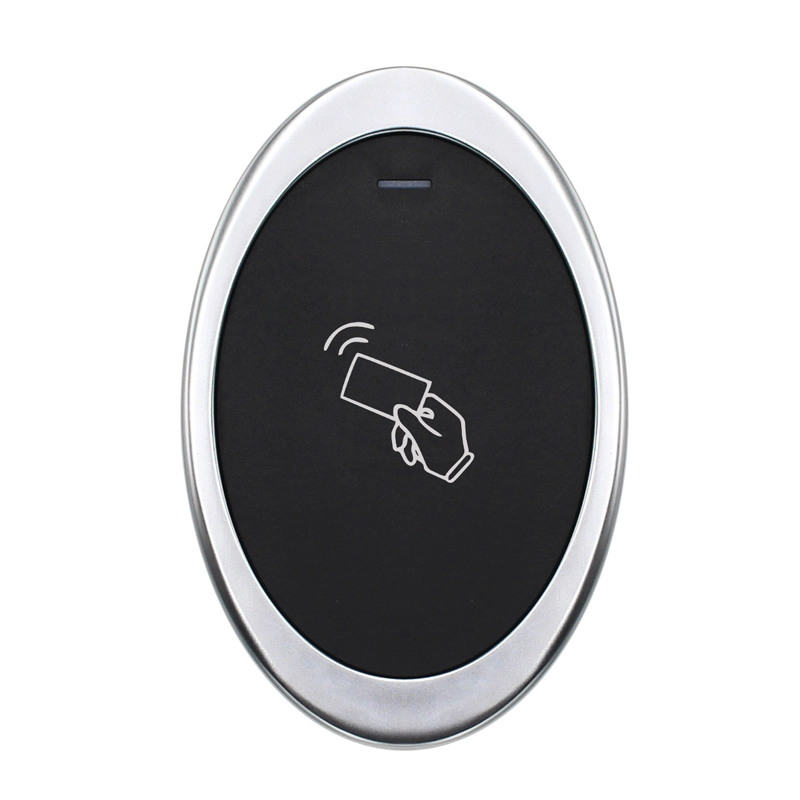

Rfid System Metal Standalone EM Reader Waterproof NFC Access Control

> Metal case, anti-vandal
> Waterproof, conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card
> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
> Pulse mode, toggle mode
> Built in LDR for anti tamper
> Card block enrollment
> Mini size: Diameter: 73mm, Thickness: 20mm

Product Description

RFID System Metal Round 125KHz EM Access Control Card Reader

> Metal case, anti-vandal

> Waterproof, conforms to IP66

> One relay, 2000 users, standalone

> Card type: 125KHz EM card

> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)

> Pulse mode, toggle mode

> Built in LDR for anti tamper

> Card block enrollment

> Mini size: Diameter: 73mm, Thickness: 20mm

Name	125KHz EM Card Reader
IP Rating	IP66
User Capacity Card	2000 EM Card
Operating Voltage Idle Current	9~24V DC < 40mA
Proximity Card Reader Radio Technology Read Range	EM 125KHz 3~10cm
Wiring Connections	Relay output, exit button
Relay Adjustable Relay Output Time Lock Output Load	One (NO, NC, Common) 0-99 Seconds (5 seconds default) 2 Amp Maximum
Environment Operating Temperature Operating Humidity	Meets IP66 -40 oC ~ 60 oC (-40 oF ~ 140 oF) 20% RH ~ 98% RH
Physical Surface Finish Dimensions Unit Weight Shipping Weight	Zinc Alloy Powder Coat L105mm x W69mm x H20mm 220g 280g

Product Show

Our Service

Our Service

1.Any inquires will be replied within 24 hours

2. Professional manufacturer and supplier, Welcome to visit our website and our factory

3.OEM/ODM Available

4. High quality, fashin desing, reasonable & competitive price, fast lead time

5.After-sale Service :

A:All products will have been strictly quality checked in house before packing

B: All products will be well packed before shipping

C:All our products have 2-3 year warranty if the damage is not caused by human

6. Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order

7. Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance

8.Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own

shipping forwarder.

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative

products.

- On the contrary, ACM Goldbridge will cahrge extra if repair.

- More information, please browse our service center.
