Stainless Steel 12V Security Smart Magnetic Electronic Metal Door Gate Electric Door Rim LockStainless Steel 12V Security Smart Magnetic Electronic Metal Door Gate Electric Door Rim LockStainless Steel 12V Security Smart Magnetic Electronic Metal Door Gate Electric Door Rim LockStainless Steel 12V Security Smart Magnetic Electronic Metal Door Gate Electric Door Rim Lock

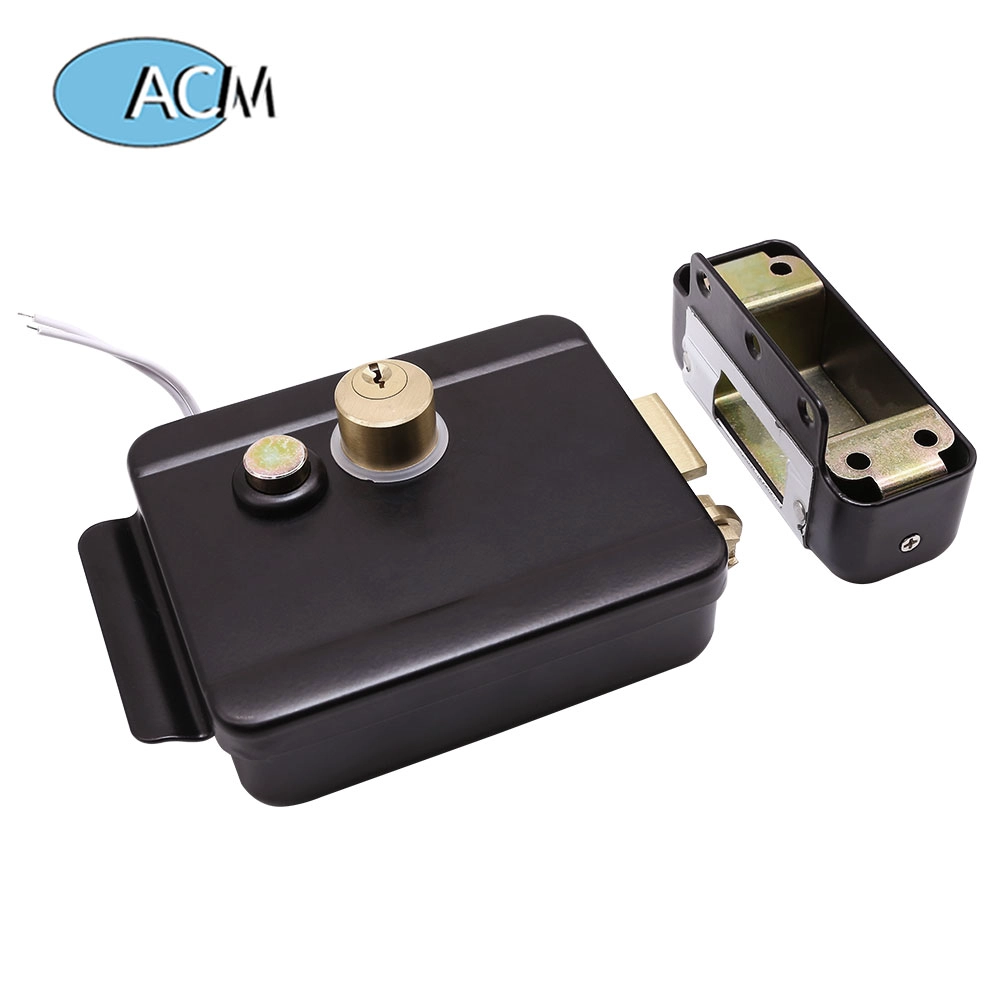

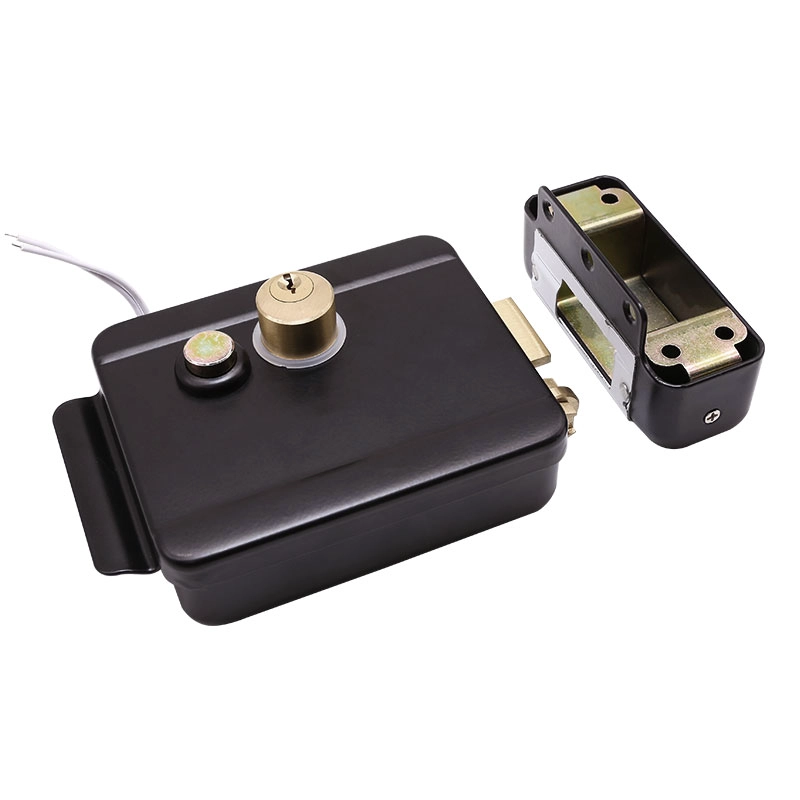

Stainless Steel 12V Security Smart Magnetic Electronic Metal Door Gate Electric Door Rim Lock

  • Model Number:ACM-Y041
  • Product name::Electric Lock 12VDC smart electric rim lock with single cyliner
  • Current::3Am
  • Induction Distance::13mm
  • Voltage::12-18VDC
  • Guarantee:More than 200,000 times
  • Suitable For::Wooden Door,Glass Door,Metal Door,Glass Door
  • Dimension:126*101*39 mm
  • Feature::power to unlock
  • Working temperature::-10 to 55 Celsius degree
  • Keywords:electric rim lock.intelligent lock
Product Description

Electric Lock 12VDC smart electric rim lock with single cyliner



single-end Electric Control Lock.can be opened by electric devices, turning the button or key.Suitable for right open door.It is highly secured and anti-theft.It also can avoid the someone to open the lock with other tools.

Product Parameter
Parameter Description
Face Plate
126×101×39 mm
Working current
Over 100mA
Current
12-18V DC
Feature
Single cylinders,reading card on two side
Lifetime
More than 200,000 Times
Opening lock time
≤1s
Remote controlled distance:
within 7m
Certification:
CE /MA
Product Feature

1. Uses nice control system and automatically lock door byinduction
2.latch operated by key from outside and by button from inside
3. universal for inward, outward, rightward, leftward door
4. Lock size: 125.5X101X39mm
5. Working voltage: 12 to 18V
6. Working current: 100mA

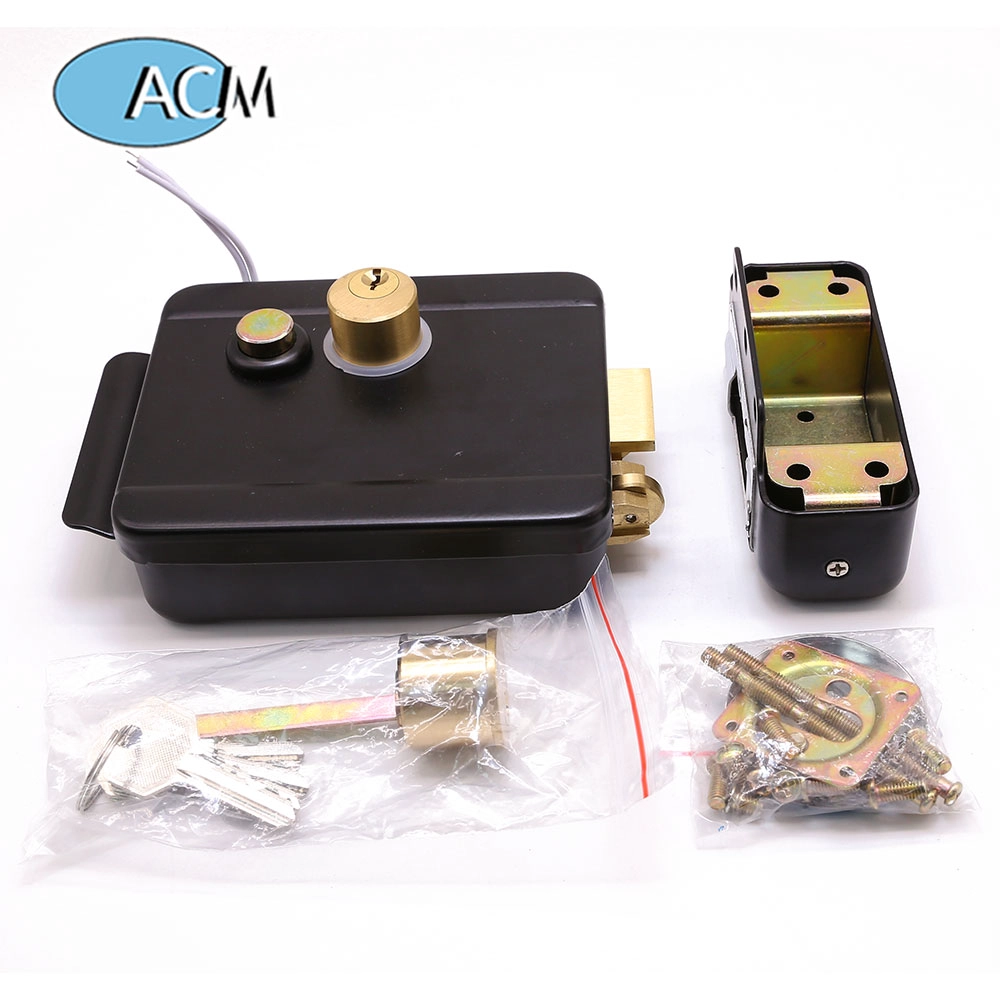

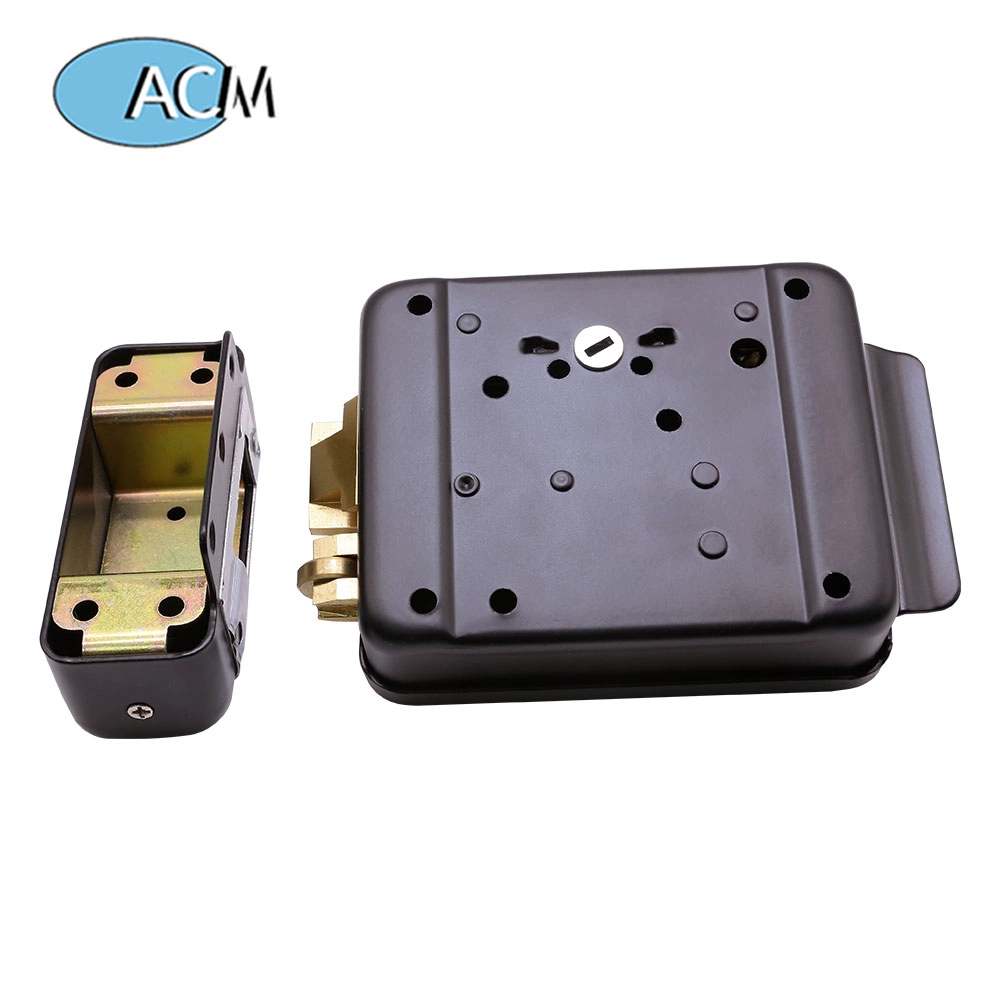

Detailed Images , OEM/ODM available  More details for front side/back side and Accessories

Optional
optional can be rotary button / push button, hook latch / rolling latch, separated cylinder / connected cylinder
Can be operated with a switch from a distance
Can also be connected with remote
Ideal for Iron / Wooden gates or doors
Specially used in intercom systems of appartments and villas

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
