USB Dual Frequency RFID Proximity Sensor Card Desktop Reader 125khz 13.56mhz Smart Cards ReaderUSB Dual Frequency RFID Proximity Sensor Card Desktop Reader 125khz 13.56mhz Smart Cards ReaderUSB Dual Frequency RFID Proximity Sensor Card Desktop Reader 125khz 13.56mhz Smart Cards ReaderUSB Dual Frequency RFID Proximity Sensor Card Desktop Reader 125khz 13.56mhz Smart Cards Reader

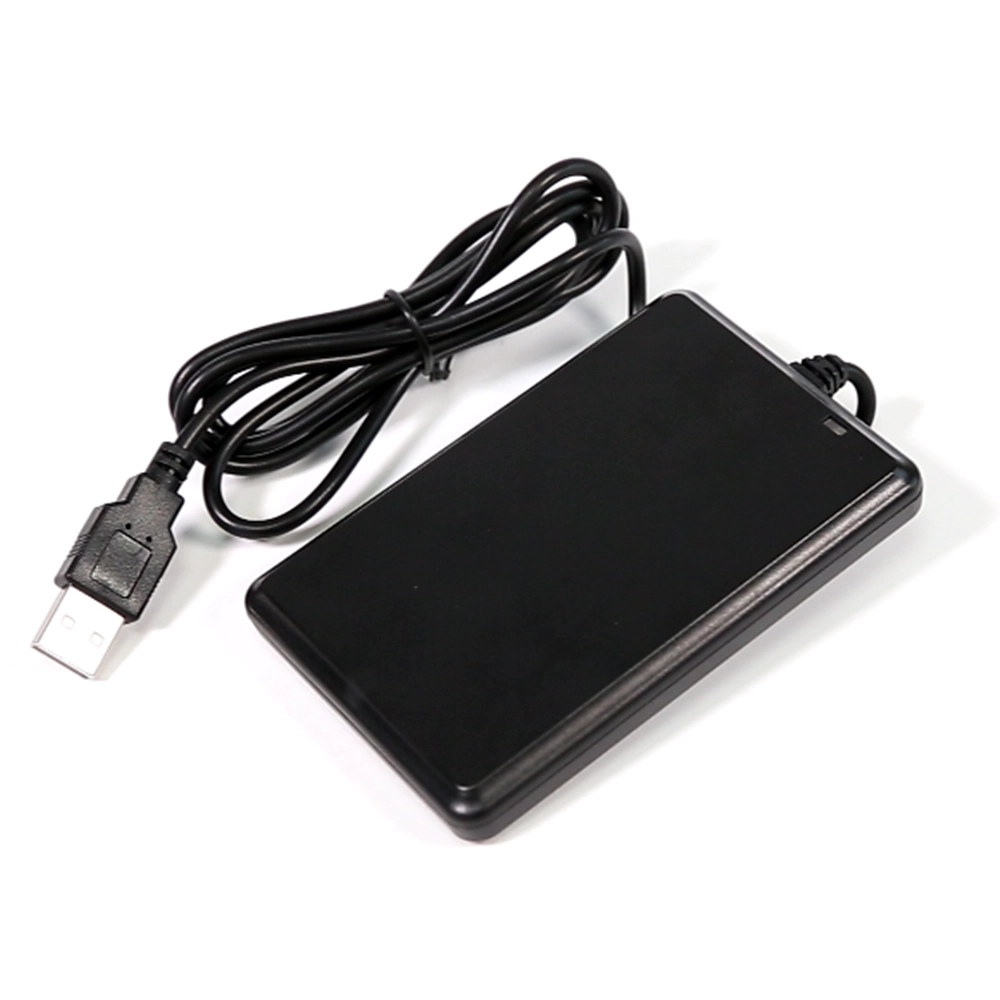

USB Dual Frequency RFID Proximity Sensor Card Desktop Reader 125khz 13.56mhz Smart Cards Reader

  • Frequency:125KHz, 13.56mhz +125khz(Dual frequency)
  • Product Name:Dual Frequency RFID Proximity Desktop RFID Reader
  • Interface:USB
  • Read range:5~10cm
  • Size:104*68 *10 mm
  • Color:Black
  • Working current:70mAh
  • Power Consumed:DC12V
  • Operating temperature:-25 - 75℃
  • Operating humidity:10 - 90%
Product Description
USB Dual Frequency RFID Proximity Sensor Card Desktop Reader 125khz 13.56mhz Smart Cards Reader
USB Dual Frequency RFID Card Reader Proximity Sensor 125khz 13.56mhz Smart Cards Reader for Access Control
No Driver Required!No Software Required!Just Plug and Play!
Note:This is the RFID reader cannot write cards,not support read HID cards!!
There are two kind of models:Flat model and rugged model,now stock is Flat model ! Flat model the USB cable is fixed.No requirement, we will send Flat model!
Reader card speed
0.2/s
Frequency
125Khz
Operating Temperature
-25 - 75℃
Operating humidity
10 - 90%
Working voltage
DC 12V
Working current
70mAh
Read range
50 - 100cm
Color
black
Dimension
104*68 *10 mm
Weight
135g

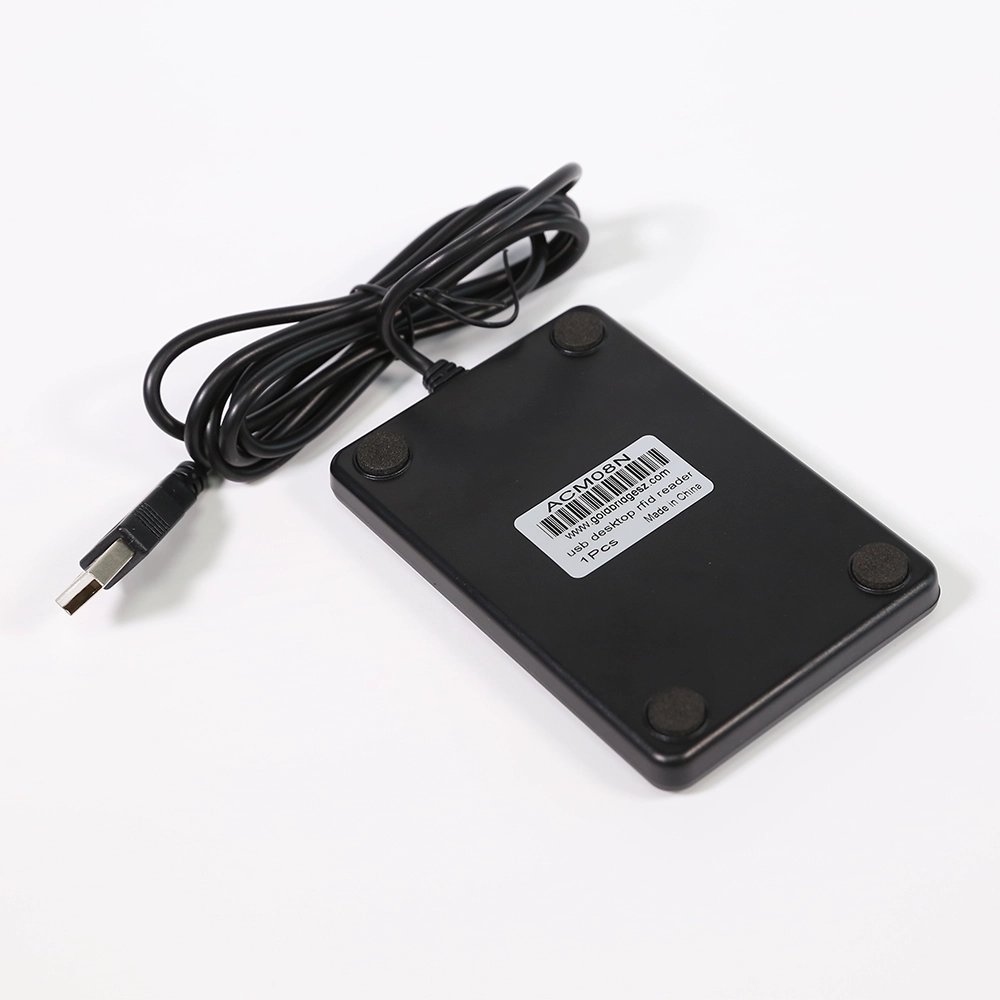

Detailed Images
Frequency: 13.56mhz +125khz(Dual frequency)
Output:Default Read first 10 digits Decimal RFID card. (If need read last 8 digits Decimal,pls contact with us firstly)
Support System:Windows
Communication speed: 106Kbit/s
Power: DC 5V(+/-5%)
Reading distance: 5-8cm
Interface: USB
Operating temperature: -10 degree~ 70 degree
Storage temperature: -20 degree ~ +80 degree
Size: ( L*W*H ) 10.8x7.8x2.8cm
Weight: 90g. with USB Cable: 100g
Color: black

Install Instructions:
Firstly: Connect the usb cable with the card reader to the computer USB port.
Second: The reader will 'drip' sound and flash about that power successfully, and then half a second, after the 'drip' sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
Third: Open one EXCEL or WORLD ,the card number would be input by itself .
Packing & Delivery

Packaging and delivery Details:

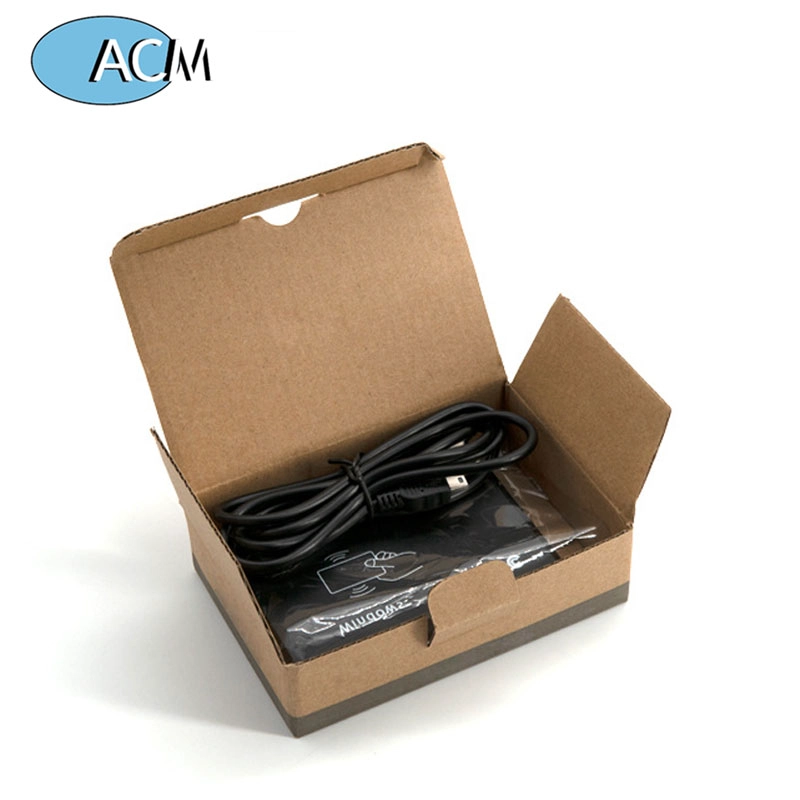

Package: One piece in one box, 120 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~5 days after the order confirmed

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click Send now!

We are looking forward to forming successful business relationships with new clients around the world in the future.
