Waterproof Door Entry Access Control keypad Pin Passive Standalone Proximity Card Wiegand Rfid ReaderWaterproof Door Entry Access Control keypad Pin Passive Standalone Proximity Card Wiegand Rfid ReaderWaterproof Door Entry Access Control keypad Pin Passive Standalone Proximity Card Wiegand Rfid Reader

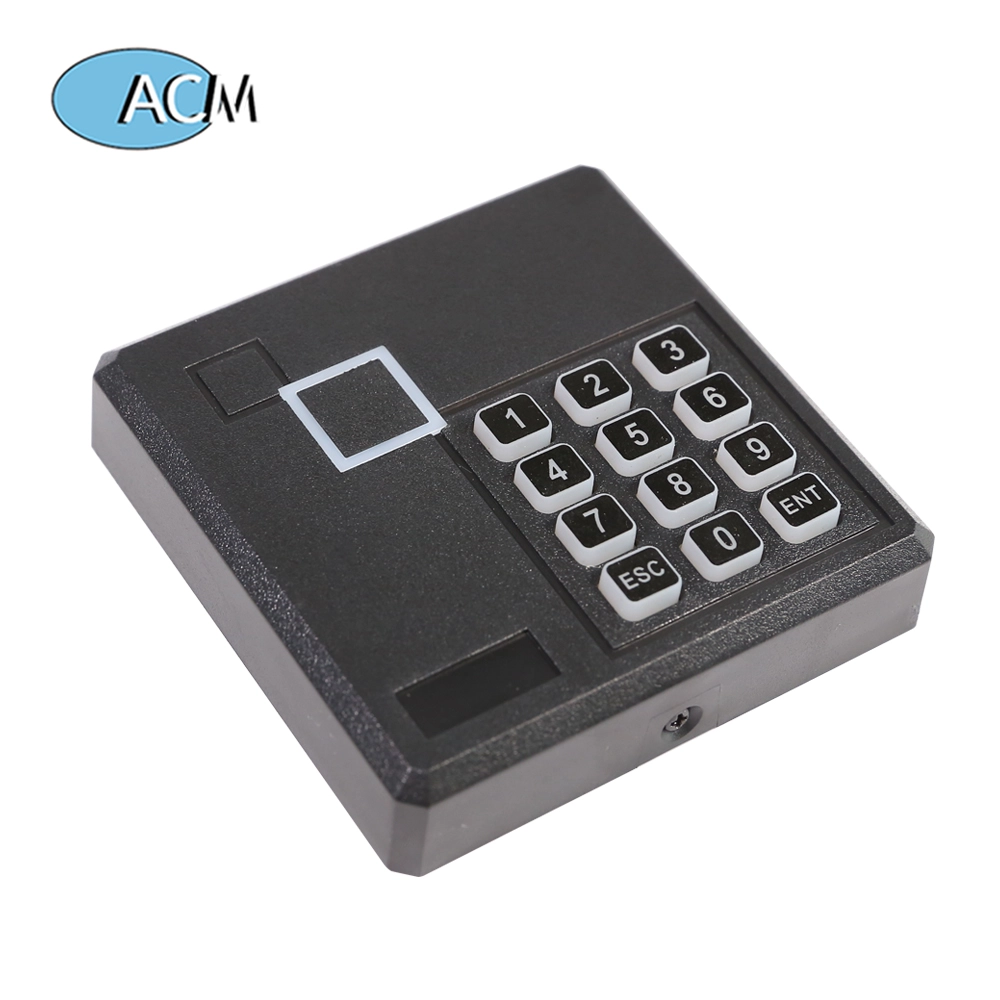

Waterproof Door Entry Access Control keypad Pin Passive Standalone Proximity Card Wiegand Rfid Reader

  • Model Number:ACM-08F
  • Certification:CE
  • Special Features:Waterproof / Weatherproof
  • Product Name:Proximity ID Card Reader Black Waterproof Access Control RFID Reader
  • Frequency:125Khz
  • Interface:Wiegand 26bit/34bit
  • Read range:5~10cm
  • Size:86*86*18mm
  • Color:Black
  • Working current:0-100mAh
  • Power Consumed:DC12V
  • Operating temperature:-25 - 75℃
  • Operating humidity:10 - 90%
Product Description

Waterproof Door Entry Access Control keypad Pin Passive Standalone Proximity Card Wiegand Rfid ReaderWaterproof Door Entry Access Control keypad Pin Passive Standalone Proximity Card Wiegand Rfid Reader

ACM-08F is a 125KHz non-contact Wiegand ID card reader, using advanced radio frequency receiving circuit design and embedded
microcontroller, combined with efficient decoding algorithm, to complete the 64bits Read-Only uem4100 compatible ID card ( EM
card) has the characteristics of high receiving sensitivity, low working current, single DC power supply, low price and high
performance. The dust-proof, moisture-proof and fully sealed design is convenient for users to install under harsh conditions such
as outdoors, without mechanical wear and tear, and is durable.

Model Number
ACM-08F
Frequency
125Khz?
Operating temperature
-25 - 75℃
Operating humidity
<90%
Working voltage
DC 12V
Working current
100mAh
Read range
0mm-100mm (Depend on the card use environment)
Color
black
Dimensions
86*86*18(mm)
Card Type
ID Card (TK4100/EM4100 etc)
Material
ABS and sprayed plastic, filled with black resin glue (effectively waterproof)
Builder-in Speaker
Buzzer, can control LED and buzzer
Weight
170G
Detailed Images
Advantage:Advantage:
1. Good water and dust resistance
2. ABS material heat-resistant and wear-resistant sand
3. Good ID/IC compatibility
4. Rubber buttons are not easy to damage
5. Fast induction of card reading
6. The stable chip has a long use time
Wiring diagram
Red: VCC (+12V)
Black: Ground
White: Wiegand D1
Green: Wiegand D0
Blue: LED
Yellow: BEEP
Gray: default Wiegand26, gray ground is converted to Wiegand34
