Wireless Fingerprint Lock Kit include Wireless Fingerprint Keypad + Wireless Lock + 433MHz Remote Control
ACM-A96
IP65 Wireless Fingerprint Lock Kit

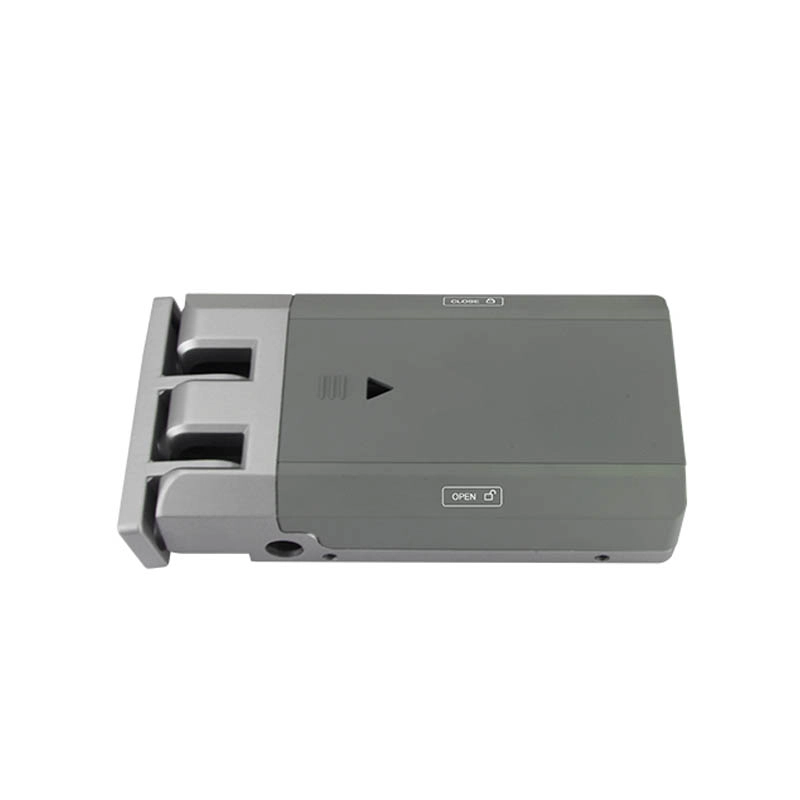

The ACM-A96 is a Wireless Fingerprint DIY Lock Kit for home use.
It includes Wireless Fingerprint Keypad (metal, waterproof) + Wireless Lock + 2pcs
Remote Transmitters . 433MHz Rolling Code of encryption algorithm and the split design guarantee higher-secure.

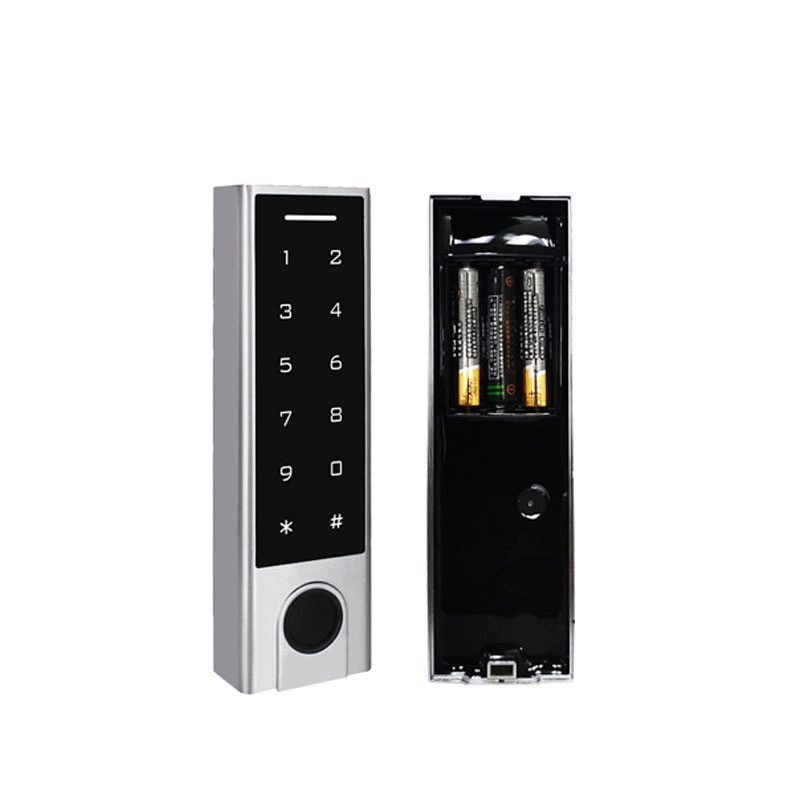

> Metal design & Waterproof Fingerprint Keypad, can install outside
> 433MHz Rolling Code technology
> Communication distance: 20m Max
> Open/Close by Fingerprint Keypad, transmitter, or touch the lock
> Open times: 12000 times
> 1000 users (including 100 fingerprint users + 900 PIN / Card users)
> 4~6 digits PIN, 125KHz EM card
| Product Parameter |
Parameter Description |
| Model |
ACM-A96
|
| Product Name |
IP65 Wireless Fingerprint Lock Kit |
| |
| User Capacity |
1000 (including 100 fingerprint users + 900 PIN / Card users) |
| PIN Length |
4-6 Digits |
| Card Type |
125KHz EM Card |
| Operating Voltage |
| Wireless Fingerprint Keypad |
3 units of AAA batteries |
| Wireless Lock |
2 units of AA batteries |
| Remote Transmitter |
1 unit of 2032 Lithium battery |
| Idle Current |
All items < 10uA |
| Working Current |
| Wireless Fingerprint Keypad |
> 35mA |
| Wireless Lock |
< 60mA |
| Remote Transmitter |
< 3mA |
| Communication Frequency |
433MHz |
| Communication Distance |
20m Maximum |
| Operating Temperature |
| Wireless Fingerprint Keypad |
-25°C~+60°C (-13°F~+140°F) |
| Wireless Lock |
-20°C~+60°C (-4°F~+140°F) |
| Operating Humidity |
0%~86%RH |
| Physical |
| Wireless Lock |
Zinc-Alloy |
| Wireless Fingerprint Keypad |
Zinc-Alloy (IP65) |
| Remote Transmitter |
ABS |
| Dimensions |
| Wireless Fingerprint Keypad |
L148 x W43.5 x D22(mm) |
| Wireless Lock |
L150 x W83 x D38(mm) |
| Remote Transmitter |
L62 x W30 x D11.5(mm) |
| Unit Weight |
| Wireless Fingerprint Keypad |
300g |
| Wireless Lock |
800g |
| Remote Transmitter |
25g/pc |
