433MHz Wireless RFID Access Control Reader
Features:
> 433MHz Rolling Code technology
> Card type: 13.56MHz Mifare card
> Programmable Wiegand output of the
> Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra-low power consumption
> Waterproof conforms to IP65
|
Wireless Reader |
Card Type |
13.56MHz Mifare card |
|
Operating Voltage |
3 units of AAA batteries |
|
|
Idle Current |
≤5uA |
|
|
Working Current |
≤35mA |
|
|
Reading Distance |
≤3cm |
|
|
Communication Frequency |
433MHz |
|
|
Communication Distance |
30m Maximum |
|
|
Operating Temperature |
-20'C ~ +60'C (-4'F ~ +140'F) |
|
|
Operating Humidity |
0% ~ 86% |
|
|
Index of Protection |
IP65 |
|
|
Colour |
Black, White optional |
|
|
Dimensions |
L120 * W50 * H20(mm) |
|
|
Net Weight |
88g |
|
|
Receiver |
Operating Voltage |
12V DC |
|
Working Current |
≤15mA |
|
|
Communication Frequency |
433MHz |
|
|
Wiegand Output Format |
26 bits Or 34 bits (Default is 26 bits) |
|
|
Operating Temperature |
-20'C ~ +60'C (-4'F ~ +140'F) |
|
|
Operating Humidity |
0% ~ 86% |
|
|
Dimensions |
L25 * W50(mm) |
|
|
Net Weight |
10g |

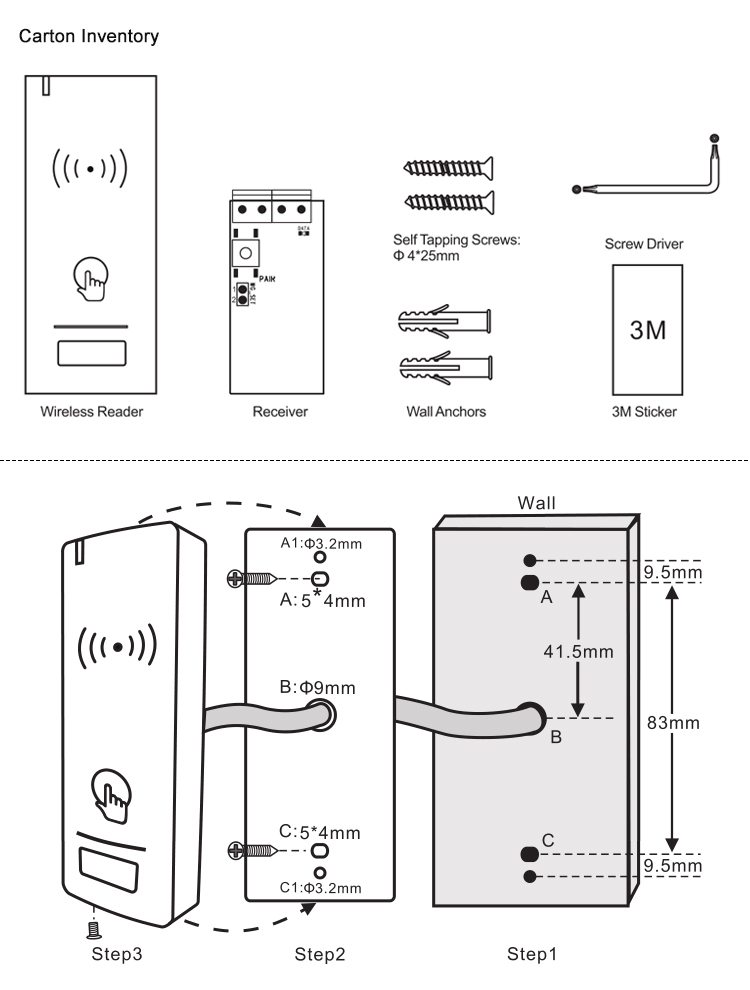

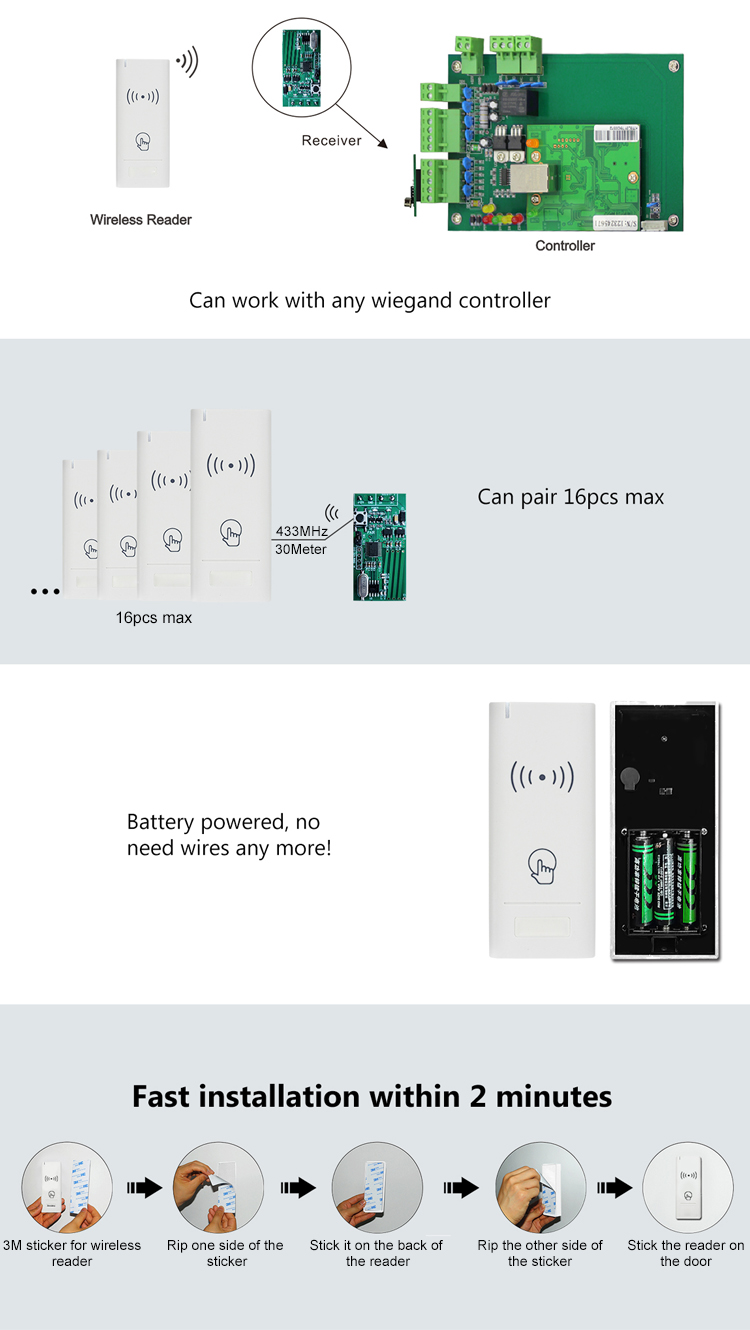

The wireless Reader Kit includes a Wireless Reader and a Receiver. 433MHz Rolling Code of encryption algorithm guarantees higher-secure, programmable Wiegand output of the Receiver makes it can work with most Wiegand controller in the world. Super-strong 3M stickers provide a simple way of installing the Wireless Reader.
Because of ultra-low power consumption, the battery of Wireless Reader can work as long as 6 months.
(bases on 30 times/day)
